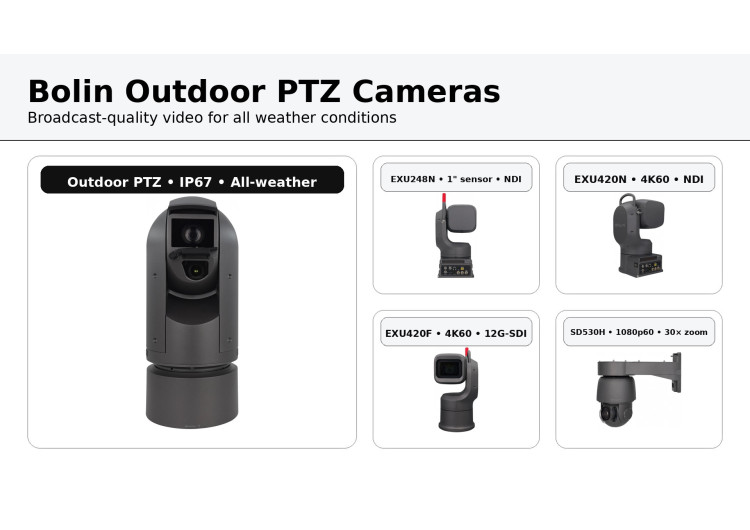

Bolin outdoor PTZ cameras – broadcast-quality video for all weather conditions

A practical guide to Bolin outdoor PTZ cameras for live production. Learn what matters outdoors and which models fit each workflow.

Outdoor fixed positions are unforgiving: salt air, wind gusts, freezing rain, heat shimmer, and constant vibration from structures and traffic. In that environment, a PTZ camera is only as useful as its optical block, its transport reliability, and the signal paths it can deliver to a control room without compromises. The current Bolin outdoor portfolio focuses on one requirement: broadcast-grade acquisition that stays predictable when the weather stops cooperating.

Across the range, the common denominator is a hardened housing with IP67 sealing and active environmental management—wiper, heater and defroster—so the image chain remains stable instead of drifting with humidity, icing and condensation. Models intended for coastal and industrial sites add C5-grade anti-corrosion protection, and wind-load specifications reach 60 m/s (about 216 km/h) for installations on stadium roofs, towers and exposed catwalks. Sony sensors and Sony-based image blocks are used across the lineup to keep colour response and low-light behaviour consistent from camera to camera.

The practical question for production teams is not “SDI or IP?”, but “how many parallel outputs and control planes do we need?”. Bolin splits the answer across several families: Full HD long-zoom cameras for dense installations, and 4K platforms that can feed 12G-SDI, optical fibre via SFP modules, and NDI workflows for distributed production.

Large-sensor outdoor PTZ: 1-inch imaging for long lens work

When the brief calls for subject separation, cleaner highlights and more headroom before noise reduction starts to smear detail, sensor area becomes the governing parameter. The Bolin EXU248N EX-Ultra Grey positions itself as the long-range flagship with a 1-inch Sony Exmor R sensor and a Zeiss Vario-Sonnar T lens. In operational terms, it combines a wide 64.6° field at 9.3 mm with a tight 6.1° field at 111.6 mm, supported by optical stabilisation for shots that stay usable at extreme telephoto.

EXU248N’s lens behaviour is equally relevant for live coverage: up to 18× zoom in 4K and an extended Full HD long-range zoom range (marketed in the EXU248 family as up to 48× in 1080p), with a constant f/2.8 aperture, built-in ND filtering, and optical stabiliser support for long focal lengths. That combination is a strong match for stadium follow cams, weather decks, observation towers, and perimeter positions where operators need reach but cannot accept a separate housing plus box camera rig. On the signal side, EXU248N sits comfortably in hybrid facilities with NDI High Bandwidth (up to 4K30), NDI HX3 (1080p60 for constrained networks), plus dual 6G-SDI, HDMI 2.0, optical SDI and IP streaming, all available simultaneously.

4K60 baseband and IP: 12G-SDI and fibre for modern routing

For live production where motion portrayal and frame-accurate switching are priorities, Bolin’s EXU420 platform focuses on 4K60 output from a Sony IMX715 1/2.8″ sensor. The Bolin EXU420F EX-Ultra Grey targets baseband-heavy environments while still providing independent IP streams. It supports dual 12G-SDI, HDMI 2.0, IP streaming up to 2160p60, and an SFP optical SDI path for long fibre runs where copper becomes impractical.

The sister model, Bolin EXU420N EX-Ultra Grey, adds a fully integrated NDI toolchain: NDI High Bandwidth, NDI HX3 and “NDI 6 ready” operation, plus NDI Embedded Bridge for WAN contribution in distributed productions. Alongside NDI, it keeps the same physical outputs—dual 12G-SDI, HDMI 2.0 and optical SDI via SFP—so a single camera can satisfy a broadcast router, an IP control room and a remote contribution workflow at the same time.

Weather hardening that is measurable, not marketing

Outdoor camera performance collapses when moisture and temperature gradients reach the optics. Bolin addresses this with a nitrogen-filled interior (where specified), a wiper mechanism and an active heater/defroster stage, enabling continuous operation across –40 °C to +60 °C on the EXU range (and down to –40 °C on SD530H). In addition, lens-front treatments such as salt-resistant / water-repellent coatings help droplets break up rather than bloom across highlights under rain and spray—an operational detail that matters for live switching under stadium lighting.

Wind is the second failure mode. At long focal lengths, even minor mast oscillation reads as visible micro-judder. The EXU outdoor housings list steady operation under wind loads up to 60 m/s, and the motion platform adds proportional speed control, high-precision preset recall and position self-correction functions, so repeatable framing remains achievable when gusts hit the structure. On the image side, stabilisation (electronic and/or optical, depending on model) is the difference between “technically sharp” and “broadcast usable” when the camera is mounted on exposed steelwork.

Full HD long-zoom options for dense deployments

Not every outdoor position needs 4K, but many positions need long zoom, consistent low-light behaviour and transport flexibility. The Bolin SD530H Grey is a Full HD 1080p60 camera based on a 1/2.8″ Sony STARVIS II sensor, paired with a 30× optical zoom lens (4.3–129 mm) and 12× digital zoom. In practice, its low-light specification and stabiliser modes support fixed rooftop positions, outdoor stages and traffic corridors where vibration and lighting contrast are part of the job. SD530H also supports simultaneous 3G-SDI and IP output, with IP streaming options such as RTSP/RTMP/SRT for remote contribution or monitoring.

The Bolin EX1030NX Grey takes the same 30× Full HD concept and layers in NDI HX3 alongside 3G-SDI, which is relevant for NDI-first control rooms that still require an SDI safety feed. The motion platform includes mechanical roll-axis correction (±15°) for imperfect mounting points, and the enclosure adds a wiper, heater and a 500 m laser IR illuminator for long-range night coverage on infrastructure sites.

Control, metadata and automation for broadcast operations

Outdoor PTZ cameras rarely operate as standalone devices. They sit inside control systems that expect predictable behaviour: VISCA over IP for joystick rooms, ONVIF for facility automation, and serial protocols for legacy panels. Bolin supports these control planes across models, and selected cameras add FreeD for AR/VR tracking workflows, where pan/tilt/zoom telemetry is as critical as the video feed. In practical terms, FreeD supports virtual set insertion and graphics alignment while the camera moves, without relying on manual keyframe work.

In multi-path productions, parallel outputs reduce failure domains. A common configuration uses 12G-SDI or 6G-SDI as the primary path to a switcher or router, HDMI as a local engineering monitor feed, and NDI/SRT as contribution or backhaul. Cameras in the EXU range support independent output format selection and audio embedding, keeping routing coherent when engineering changes the transport strategy mid-event.

Choosing the right Bolin outdoor PTZ for your installation

If your brief begins with “large sensor”, the EXU248N is the natural anchor: 1-inch imaging, Zeiss optics and simultaneous NDI/SDI/HDMI/fibre outputs. If your routing is fundamentally 12G-SDI with a parallel IP layer, EXU420F brings 4K60, genlock and optical SDI. If your workflow is NDI-first but you still require baseband for redundancy and conventional monitoring, EXU420N provides the most complete blend of NDI + dual 12G-SDI + SFP optical SDI. For dense outdoor networks where Full HD is sufficient but long reach is mandatory, SD530H and EX1030NX deliver 30× optical zoom, rugged enclosures and protocol coverage that fits both broadcast and streaming operations.

For production companies and broadcasters, these cameras function as infrastructure nodes rather than “PTZ accessories”. Selecting the optical block, weather protection and transport interfaces up front reduces converters, external encoders and recurring maintenance. The result is a fleet of outdoor PTZ cameras that remain controllable, routable and visually consistent from the first rehearsal to the worst weather day of the season.
