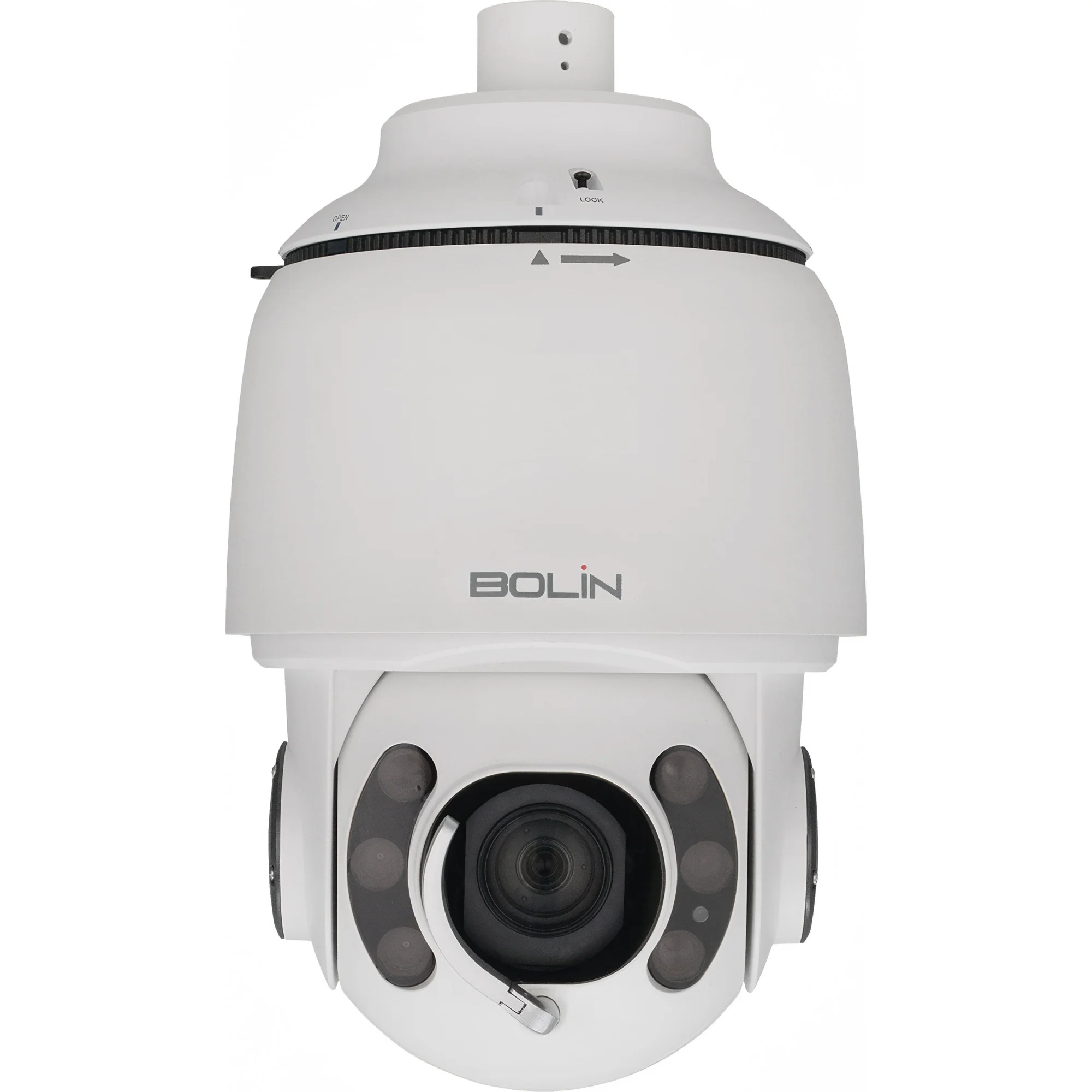

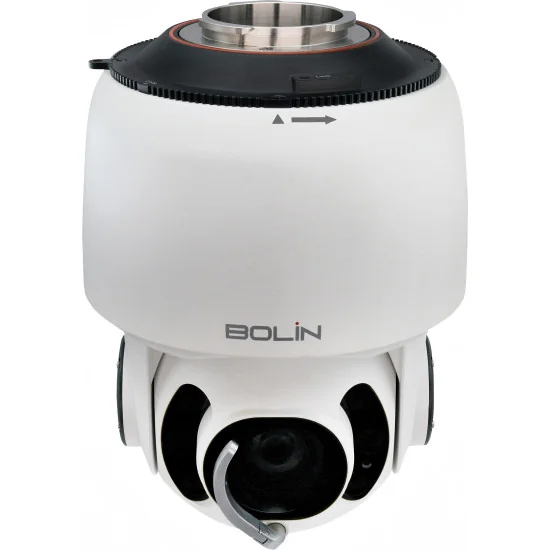

SD530NX Outdoor NDI HX3 PTZ Camera
The Bolin SD530NX outdoor NDI HX3 PTZ camera is built for demanding outdoor production environments, delivering broadcast-quality Full HD video with superior low-light performance and rapid, precise movement. Featuring a 30x zoom, the SD530NX captures clear, detailed images even from long distances, making it an ideal choice for sports, outdoor event coverage, and remote situational awareness. Designed for unmatched durability, its IP67-rated housing protects against water, dust, and corrosion, ensuring reliable operation in rain, snow, and extreme temperatures. The built-in rain wiper and heater keep the lens clear, providing uninterrupted performance in any weather condition.

With 360-degree continuous pan and high-speed movement, the SD530NX allows operators to track fast-moving subjects with smooth, precise control. This makes it perfect for capturing dynamic live events, sports action, and large-area monitoring where real-time responsiveness is critical. Super Image Stabilization Plus minimizes vibrations and motion blur, ensuring steady shots even in windy environments or elevated installations. The mechanical roll-axis adjustment up to 15 degrees adds flexibility for creative camera positioning and correcting any leveling issues.

The SD530NX supports Certified NDI HX3, 3G-SDI, and IP streaming, making it a powerful choice for Sport broadcast, live production, and AV-over-IP workflows. NDI Embedded Bridge enables low-latency remote video transmission, while FreeD protocol support allows for real-time AR/VR tracking, making it a valuable tool for virtual productions and interactive live experiences.

SONY IMAGE BLOCK (NEW)
SD530NX Outdoor NDI HX3 PTZ camera equipped with the latest Sony's 1/2.8-type Full HD color image sensor Full HD offers high sensitivity with a minimum illumination of 0.009 lx. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.

• 1/2.8 inch STARVIS II sensor
• Enhanced High Resolution image quality
• 30X High Resolution optical zoom lens
• Advanced AF performance, Spot Focus · Spot AE · Spot AWB
• Wide Dynamic Range (Wide-D)
• Visibility Enhancer (VE)
• Super low light in color performance
• Super image stabilizer

From fast-paced sports to complex outdoor productions, the SD530NX delivers exceptional Full HD video, precise high-speed movement, and rugged durability, ensuring every moment is captured with clarity, stability, and accuracy no matter the conditions.

RUGGED & DURABLE

• Made for Extreme Weather Condition
• Dustproof and Waterproof IP67 Rated
• Wind Load Durability, Non-Destructive and Steady Operation at 30 m/s or less
• –30 °C to 60 °C (-40°F to 140°F) Operational

High Resolution-Day Light/Night View
The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.

Super image stabilization
The blur suppression has been greatly improved from the conventional stabilizer function, and high-definition movies with less blur can be shot even in a harsh environment with large vibrations. Equipped with two modes, "Super" and "Super + (plus)" .

Sony’s sophisticated proprietary AF algorithm
Sony’s proprietary AF algorithm enables zoom and focus at the same time in difficult conditions. Unlike common cameras, which cannot zoom and focus at the same time nor refocus after defocusing under certain circumstances, the camera can zoom and focus at the same time and has the algorithm design which minimizes defocusing in difficult conditions, especially in dark environments (including environments with a mixture of visible light and infrared light and environments with locally strong light sources).

30x enhanced optical zoom
In pursuit of high image quality, with  a 30x enhanced optical zoom, beautiful images can be obtained not only at the Wide end, but also at the Tele end where the effects of reduced resolution and aberrations are easily visible.

Jero effect correction
In electronic image stabilization, the image is generally distorted when the amount of blur is large. This product corrects this phenomenon and enables the acquisition of natural images with little distortion.

Bolin PTZ Camera with NDI Embedded Bridge
(Coming Soon with SD530NX)
"NDI Bridge revolutionizes remote media production by eliminating traditional geographical limitations and facilitating seamless connectivity, collaboration, and content creation from any global location."

With Bolin's NDI Embedded Bridge PTZ cameras and decoders, the devices send and receive encrypted NDI streams over WAN from any location globally. With one device running the embedded bridge, all NDI streams on a network can be sent and received. With NDI embedded devices, no complex setups required and configurations can easily be done ahead of time for plug and play operation in the field.

Bolin's NDI PTZ cameras with NDI Embedded Bridge provide real-time collaboration, robust security, and a seamless user experience for remote production and broadcast, virtual events, and content creation.

"It essentially allows individuals or teams from multiple locations to share, send, and receive high-quality, low-latency video, audio, and metadata streams, and control across the globe."

FreeD Protocol Integrated for VR/AR Video Production
FreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.

FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.

NDAA Section 889(a)(1)(B) Statement of Compliance
Bolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defense Authorization Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.

SPECIFICATION

IMAGE FULL HD, 30X
Image Block: Sony
Image Sensor: Progressive scan CMOS image sensor 1/2.8 type, STARVISTM 2
Number of effective pixels: 2.13MP
Picture elements: 1920x1080
Lens Optical zoom: 30X
Digital Zoom: 12X
Horizontal Angle of View: 64 ˚ (W)~2.4 ˚ (T)
Focal Length: f= 4.3 mm (WIDE) to 129 mm (TELE)
Min. object distance: 10mm (Wide), 1200mm (Tele)
Aperture: F1.6 (Wide) to F14 (Tele)
Min. Illumination (50%, High Sensitivity Mode ON): ICR-OFF mode: 0.009 lx (Shutter Speed: 1/30 s), ICR-ON mode: 0.00008 lx (Shutter Speed: 1/30 s)
Min. Illumination (50%, High Sensitivity Mode OFF): ICR-OFF mode: 0.09 lx (Shutter Speed: 1/30 s), ICR-ON mode: 0.00063 lx (Shutter Speed: 1/30 s)
Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
Focusing System: Auto, Manual, One Push Trigger, Full Scan one push trigger, Near Limit, Spot Light Avoidance, Spot Focus
White Balance: Auto, ATW, Indoor, Outdoor, One Push WB, Manual, Outdoor Auto, Sodium Vapor Lamp Auto, Sodium Vapor Lamp, Sodium Vapor Lamp Outdoor Auto
Exposure: Full Auto, Gain Limit Setting, Shutter Priority, Iris Priority, Manual, EV Compensation
Features: Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker ,Contrast, Effect, Sharpness
WDR; Yes
ND Filter: /
Image Stabilizer: Yes: Super image stabilizer (Super / Super+)
Contrast: Yes
Color Gain: Yes
Color Hue: Yes
Color Matrix: Yes
Gamma: Yes
Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D Noise Reduction
S/N Ratio: ≥50db
Spot Light Avoidance: Yes
E-Flip: Yes
Spherical Privacy Zone Masking: -
Defog: Yes (low/mid/high)
High Sensitivity: Yes
Slow AE Response: Yes
Day/Night (Auto ICR): Yes: ON (B&W/Color)
Backlight Compensation: Yes
Low Latency Mode: Yes
Focus Zone: All, Central Area
Scene Style: Default, Clear, Bright, Soft
Auto Flip: Yes

MECHANICAL
Pan Movement: PAN: 360° Continuous ; Fully proportional 0.05°〜135°/S
Tilt Movement: TILT: 105° (-90° to +15°); Fully proportional 0.05°〜135°/S
Image Rolling Adjustment: ±15°
Speed Proportional: Pan/Tilt speed proportional to zoom range
Preset Position: 255 positions, Speed 135°/s, 0~5 Level Adjustable, Accuracy: 0.05°
Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
Motionless Preset: ON/OFF
PTZ Trace Memory: Yes,4
Cruise: Yes, 12
Position Limit: Pan/Tilt, programmable
Quietness: NC55
Home Position: Yes
FreeD: Yes, FreeD protocol for AR/VR camera tracking, via IP
Position Deviation Correction: Yes
Environmental: IP67 (Waterproof and Dust Proof)
Environment Temperature Sensor: Yes
Body Finishing: C5 Corrosion Resistant Power Coating
Wind Load Durability: 0-15m/s Operation Normal 15-30m/s Pan/Tilt Operational Non-Destructive and steady operation at 30 m/s or less
Wiper: Yes
Illumination: IR LED (70M)

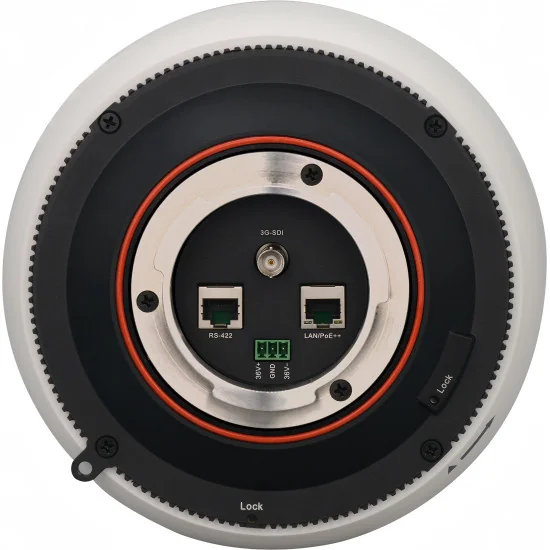

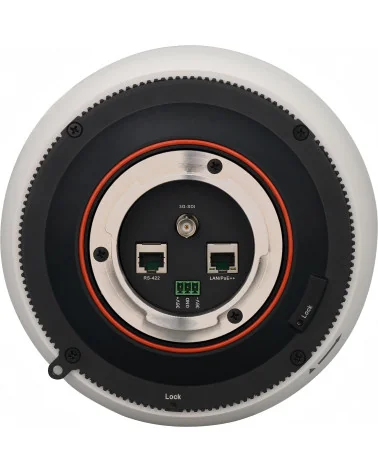

INTERFACE
SDI Video Output: 3G-SDI, Standard 75 Ω (BNC x 1)
Network LAN Port: RJ45 Standard 10M/100M/1000M Ethernet, LAN connector for IP control/video output/System FW Upgrade
Camera Environment Temperature: Outside camera body temperature sensor built in
System Firmware Upgrade: FW Upgrade via IP interface (Including MCU, IP, FPGA)
Power Connector Type: AC24V/ DC 36V, PoE++ (IEEE802.3bt)
Control Interface: RS422, IP Control
Control Protocol: Serial: VISCA, PELCO P/D, IP: VISCA Over IP, ONVIF, NDI, FreeD

SDI SIGNAL FORMAT
SDI Video Format: 1080p: 60/59.94/50/30/29.97/25; 1080i: 60/59.94/50; 720p: 60/59.94/50
Color Precision: 10bit(SDI), YCbCr, 4:2:2
Color Space: YUV
Standard: SMPTE 292M ，SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M，SMPTE 425-A(3Gb/s) with SMPTE352 SDI Metadata Supported
True Dual Output: IP and SDI signal can be set to independent resolution formats
OSD Menu Display: Yes
On-Screen Information Display: Yes, In-video On-Screen character generator （Image Parameter Setting, Camera Optional Data, User Customization Character, Image/Logo Insert)

NETWORK
Video Compression: NDI HX3, MJPEG,H.264/H.265 by SoC
IP Resolution/Frame Rate: NDI HX3: 1080P60/59.94/50/30/29.97/25; 720P60/59.94/50 2nd Stream:704x576, 640x480, 640x360, 576x480, 352x228 P30/25
True Dual Output: IP and SDI signal can be set to independent resolution formats
IP Protocols: TCP/IP, ICMP, ARP, RTP, UDP, HTTP, HTTPS, DNS, DHCP, FTP, NTP, NDI HX3
Application Protocols: RTP, RTSP, RTMP,RTMPS, SRT, ONVIF, NDI HX3, NDI 6
NDI Bridge: Yes, embedded
Multi-stream: 2 Stream (Simultaneous up to 8 users)
OSD: Customized OSD
Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP
Bandwidth ( results may vary depending on network configuration and management settings.): 10-100Mbps, 1080p60
Latency (Overall latency may increase depending on network configurations): NDI Certified, <120ms
Browser Support: HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

GENERAL
Operating Temperature: -30 to +60 (°C)/-22 to 140 (°F)
Operating Humidity: 100% Suitable for Use
Power Input: AC 24V/DC 36V, PoE++(Compatible with IEEE802.3bt)
Power Consumption: Min: 28W(Static state with no movement); Max: 78W（Fully loaded operation with heater on）
Installation Method: Pendant Mount
Mounting Bracket: Ceiling Mount, Wall Mount
Body Color: Grey / White
Dimension: Φ212×297mm
Weight: 11.5Ibs/5.2kg (Net weight)
Accessories Included: Power Adaptor x1, Safety Chain Lock x1, Power Connector x1
Accessories Optional:
Wall Mount with Tail-cable - SD-TCA
Ceiling Mount with Tail-cable - SD-CMK
Wall Mount - ES-WM
Certificate CE，FCC，IC，UKCA，ROHS，WEEE
