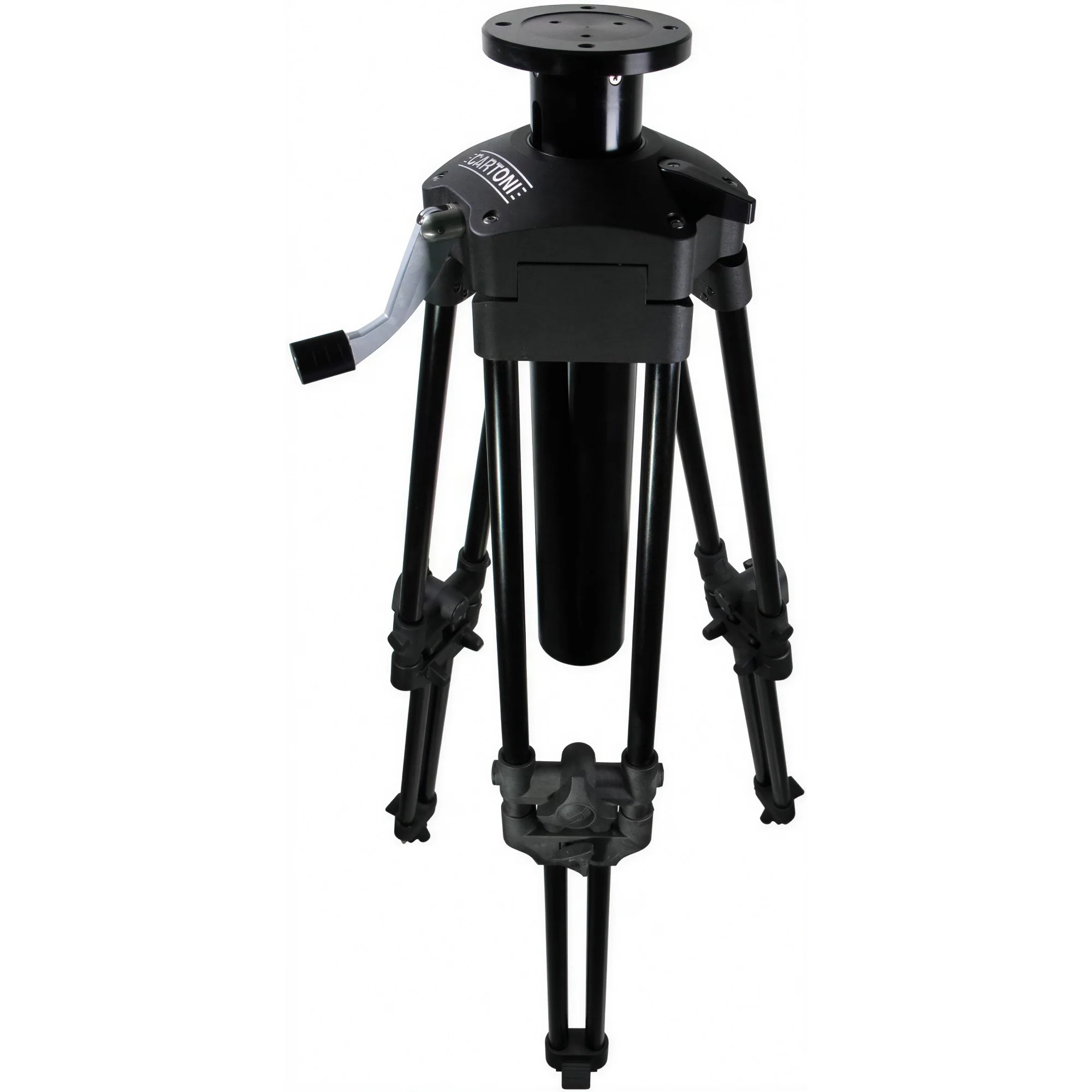

Cartoni Elevation Unit T625/E Video Tripod

For crews that need pedestal-style height control without moving into a full studio pedestal, the Cartoni Elevation Unit T625/E gives a heavy camera package a solid aluminium base with crank-operated vertical positioning. It is part of Cartoni’s heavy-duty flat-base support family and is rated for a 200 kg payload, so it suits large cinema cameras, broadcast lenses, remote heads, teleprompter plates or specialist rigs where ordinary ENG legs would be outside their safe operating class.

The central elevation column is adjusted by a side crank, allowing the operator to trim the camera level after the head, lens and accessories are already mounted. That matters on studio floors, OB compounds and stage productions: the frame can be raised for a presenter position, lowered for product shots or matched between several camera stations without rebuilding the support. The one-stage aluminium tripod keeps the structure direct and rigid, while the mid-level spreader helps hold leg geometry under high load. Pivoting feet add contact stability on exterior surfaces, temporary platforms and other locations where the ground is not as predictable as a broadcast studio.

Head mounting is centred on a flat-base / four-bore interface, with compatibility across Cartoni flat-base heads and other professional heads using the same attachment logic. This makes the unit relevant for Master, Maxima and Magnum class configurations, but also for rental houses and integrators that need one support platform to accept different camera heads across documentary, commercial, live-event and studio jobs. The elevation action is mechanical and local, which is useful where repeatable framing, low setup risk and minimal electronic dependency are priorities.

The Cartoni Elevation Unit T625/E is best understood as a specialised support rather than a general tripod: it carries the mass of serious production hardware, gives precise vertical trim, and maintains a tripod footprint that can travel between set, stage and outside broadcast work. For buyers comparing heavy duty video tripods, elevation tripods and flat-base camera support systems, its value is the combination of high load rating, crank height control, aluminium construction and compatibility with professional Cartoni head ecosystems.
