Libec LX-ePed 2 is an electric video pedestal for PTZ cameras used in broadcast studios, live streaming sets and multi-camera production rooms where vertical framing must stay repeatable during a shot. The floor-spreader version uses a motorized center column and supports up to 10 kg, which covers many PTZ camera setups with tally, interface boxes or compact accessories. Its operating height reaches 98.5 to 250 cm, and the motorized lift section provides 400 mm of travel, giving operators a practical way to move from seated framing to standing presenter height without changing camera position. This is especially useful in news desks, lecture capture rooms, worship production and corporate studios where one camera position must serve several shot types.
The column speed is continuously adjustable from 10 to 30 mm/s, and the included controller supports smooth height changes with three preset positions stored in the remote. That matters in real studio use: one preset for a wide host shot, one for a guest close-up line, one for product tabletop framing. Libec also highlights controlled start/stop movement and reduced wobble while the column is moving, so the LX-ePed 2 can be used during live switching, PTZ tracking corrections and on-shot re-framing instead of only between takes.
Libec LX-ePed 2 uses a wired control architecture, with a 30 m LAN cable for the controller and a 3 m power cable, which is a strong fit for fixed installations where stable connection paths are preferred over radio links. The pedestal runs on 100–240 V AC, with optional battery operation available for selected mobile or temporary studio setups. The platform supports 1/4" camera mounting with video pin, and it can also accept 100 mm video heads directly or 75 mm heads via an optional adapter. Additional 1/4" and 3/8" accessory ports, a built-in level and safety-oriented column construction make it suitable not only for PTZ cameras, but also for compact studio camera builds, POV heads and specialty rigs that need precise vertical positioning in production environments.
Libec LX-ePed 2 Electric Video Pedestal
LX-EPED 2
Price: €2,599.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Libec LX-ePed 2 is an electric video pedestal for PTZ cameras used in broadcast studios, live streaming sets and multi-camera production rooms where vertical framing must stay repeatable during a shot. The floor-spreader version uses a motorized center column and supports up to 10 kg, which covers many PTZ camera setups with tally, interface boxes or compact accessories. Its operating height reaches 98.5 to 250 cm, and the motorized lift section provides 400 mm of travel, giving operators a practical way to move from seated framing to standing presenter height without changing camera position. This is especially useful in news desks, lecture capture rooms, worship production and corporate studios where one camera position must serve several shot types.
The column speed is continuously adjustable from 10 to 30 mm/s, and the included controller supports smooth height changes with three preset positions stored in the remote. That matters in real studio use: one preset for a wide host shot, one for a guest close-up line, one for product tabletop framing. Libec also highlights controlled start/stop movement and reduced wobble while the column is moving, so the LX-ePed 2 can be used during live switching, PTZ tracking corrections and on-shot re-framing instead of only between takes.
Libec LX-ePed 2 uses a wired control architecture, with a 30 m LAN cable for the controller and a 3 m power cable, which is a strong fit for fixed installations where stable connection paths are preferred over radio links. The pedestal runs on 100–240 V AC, with optional battery operation available for selected mobile or temporary studio setups. The platform supports 1/4" camera mounting with video pin, and it can also accept 100 mm video heads directly or 75 mm heads via an optional adapter. Additional 1/4" and 3/8" accessory ports, a built-in level and safety-oriented column construction make it suitable not only for PTZ cameras, but also for compact studio camera builds, POV heads and specialty rigs that need precise vertical positioning in production environments.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop

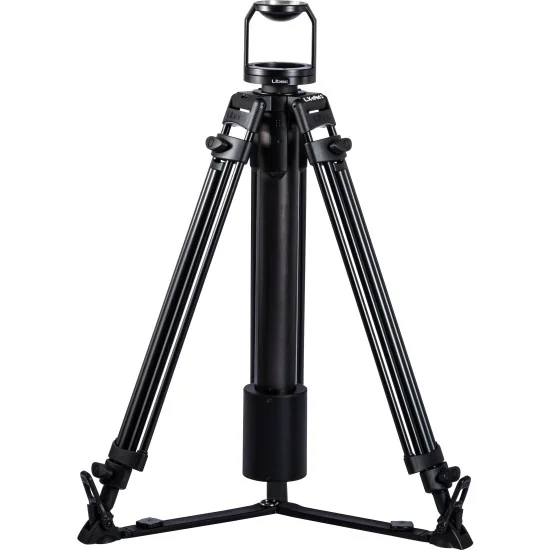

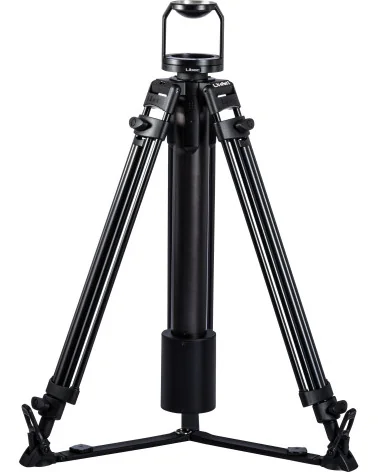

The Libec LX-ePed 2 is a motorized base specifically designed for PTZ cameras. The tripod is equipped with a motorized center column and remote control for easy height adjustment and offers a load capacity of up to 10 kg. The base is equipped with a bottom spacer (max. height 250 cm).
This patented product line is the world's first electric line of PTZ camera bases and is used in all types of PTZ filming in broadcast and production. This new Libec LX-ePed successor model now includes position presets, supports IP connectivity and serial communication when combined with the new optional multi-protocol converter"MPC-1". With it, the LX-ePed 2 can be controlled by PTZ controllers and the original PC application, the LX-ePed PC APP, which offers various optional settings.
Smart quick release adapter

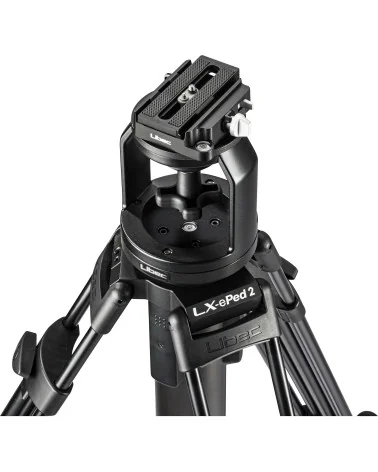

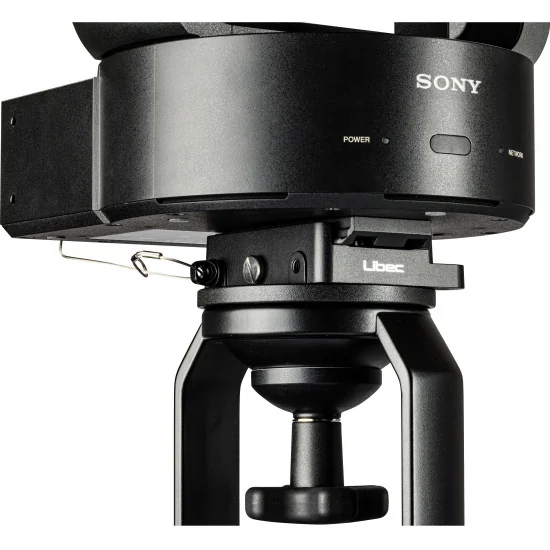

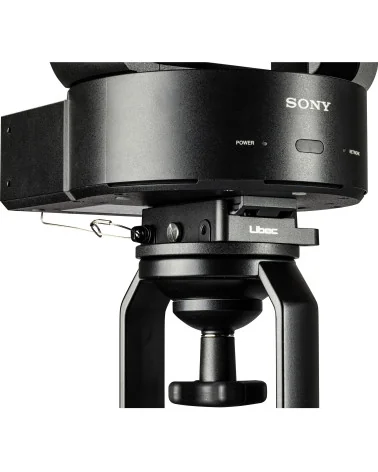

Included in the package is a smart quick release adapter "AP-X" that allows you to attach/detach your camera more securely, easily and quickly. To prevent the attached PTZ camera from falling, the adapter is equipped with a hole for attaching a safety rope.
IP connection and serial communication
Using the optional multi-protocol converter "MPC-1", the new LX-ePed 2 and LX-ePed 2 Studio models can work with PTZ controllers and the original LX-ePed PC APP, allowing for precise setup. This unique feature enhances the accessibility of the electric pedestal.
Remote control

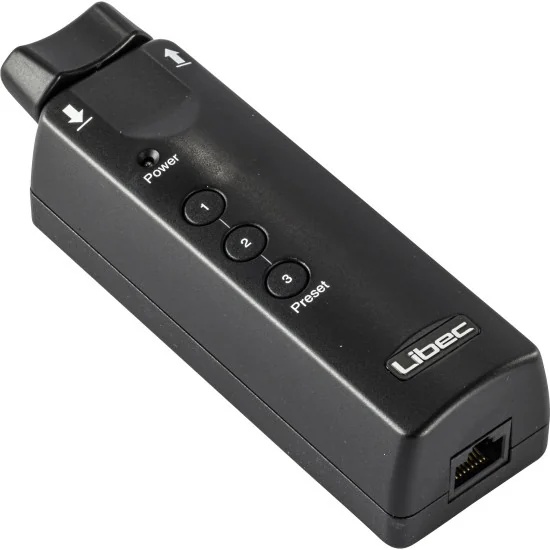

The new remote control can store up to three preset positions, making it easy to adjust the height. The remote control adds a lifting element to the pan, tilt and zoom functions. This will provide multiple "viewing angles" and make setup easier.
Smooth and precise movements
The original column mechanism minimizes wobble and spin when the base moves up/down. In addition, the column is mechanically controlled with precision, allowing for smooth starting and stopping movements, making these electric bases ideal for "on shot" scenes.
Continuous speed adjustment
The speed of the top column can be adjusted by tilting the control lever. Slow motion mode allows fine tuning of the settings.
Highly reliable cable connection system
The LX-ePed 2 does not use Wi-Fi or Bluetooth, allowing users to focus on shooting without worrying about interference from radio waves. In addition, the controller is powered through the main part of the electrical base, so no additional power source or charger is needed.
Compatible with flat base with 1/4" and 3/8" screw holes

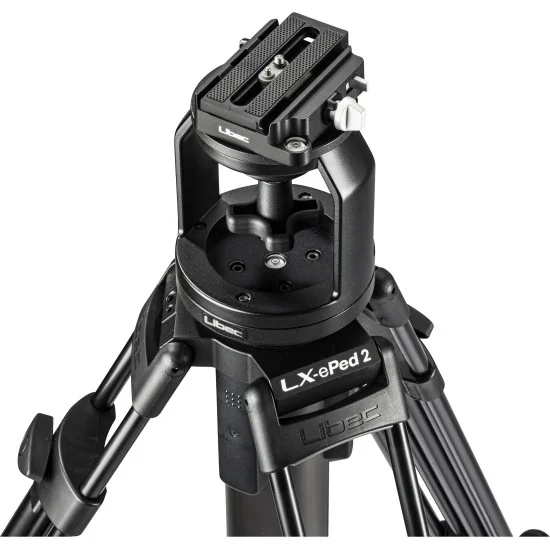

Includes "AP-X" adapter with 1/4" screw and "BL-F" adapter with 3/8" screw. These adapters support not only PTZ cameras, but also a wide range of devices equipped with 1/4" or 3/8" threads, which can now be mounted on the LX-ePed 2 and LX-ePed 2 Studio.
Compatibility with video heads

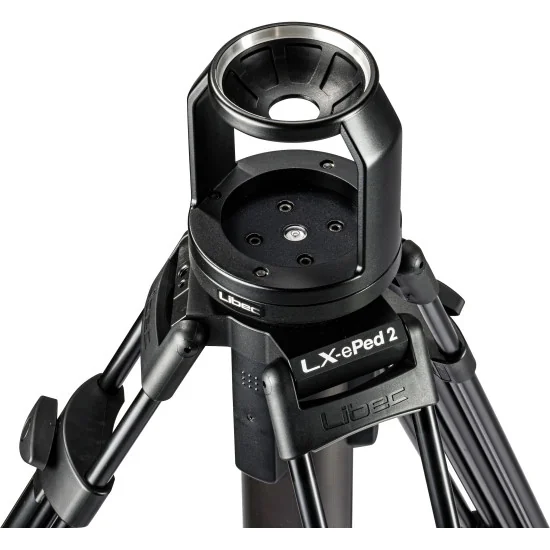

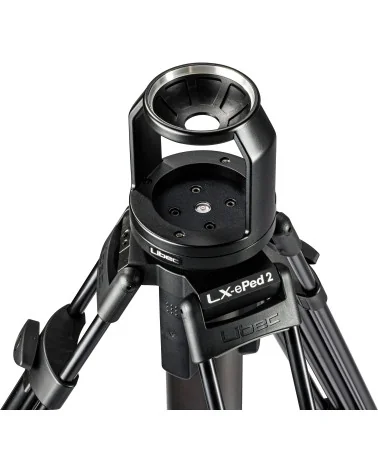

By removing the "BL-F" adapter component, a video head with a 100mm ball base can be mounted on the LX-ePed 2 and LX-ePed 2 Studio. In addition, by using the optional "AD-75" adapter, a video head with a 75mm ball base can also be mounted.
Compact design
The main unit can be separated from the strut for easy transportation, with all components being collapsible. This compact unit can be stored in the optional RC-80 tripod case.
High angle shots

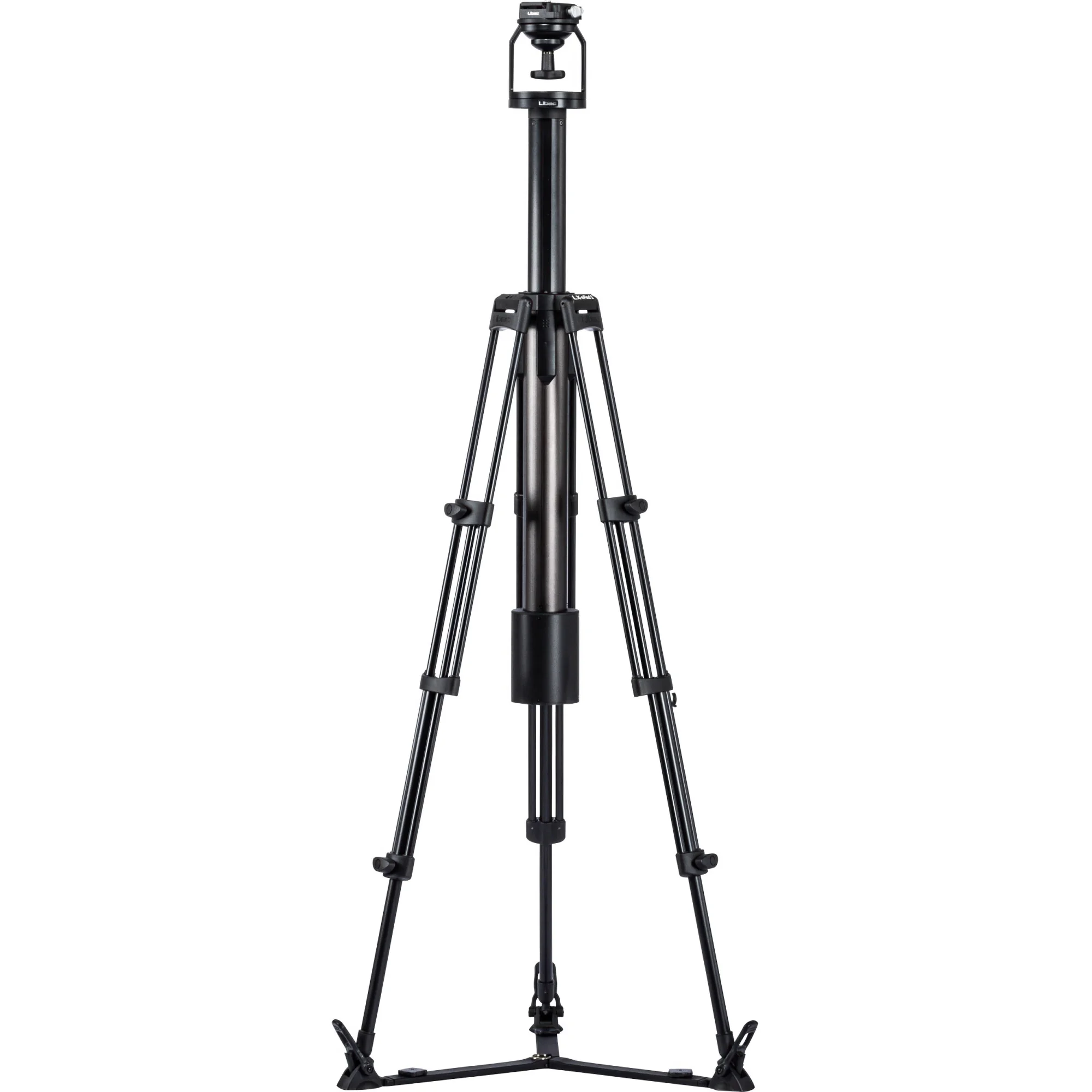

Dynamic high angle shots can be achieved with a maximum height of 250 cm.
User friendly port for accessories
The accessory port, which has a 1/4" and 3/8" screw hole, is located on two of the three sides of the tripod base.
Safety design
With safety in mind, the power pole is carefully designed to prevent users from injuring their fingers.
Built-in spirit level

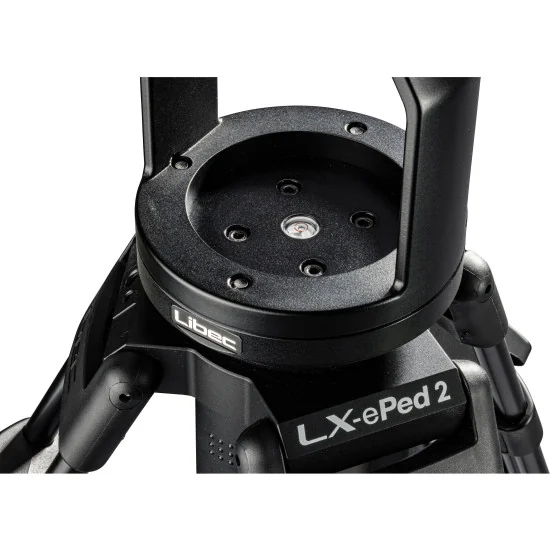

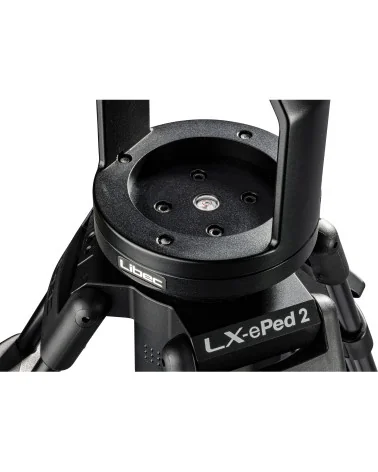

For easy adjustment, a spirit level is built into the base of the head mounting platform.
Technical Specifications:
Load capacity: 10 kg
Elevation: 400 mm
Lifting/lowering speed: Approximately 14 to 40 seconds/movement
Continuous operation time: 3 minutes
LAN cable for controller: 30 m
Power cable: 3 m
Power supply: AC 100V～240V
Operating temperature: -10°C to 40°C
Operating humidity: 0% to 90%
Battery power supply: optional (V-Mount)
Camera mounting: 1/4" screw + video pin
Head attachment: 100mm / 75mm hemisphere (optional)
Accessory attachment: 1/4" and 3/8" x 2 screw holes
Level
Weight: 11.9 kg
Height: 98.5 to 250 cm
Section: 2-stage
LX-EPED 2
Data sheet
- Tripod type
- Pedestal system
- Payload (kg)
- 10
- Maximum Height (cm)
- 250
- Bowl diameter
- 75mm
100mm
Flat Base - Spreader Type
- Ground
- Material
- Aluminium
- Counterbalance
- None
Specific References
- ean13
- 4986397465041
- mpn
- LX-EPED 2
