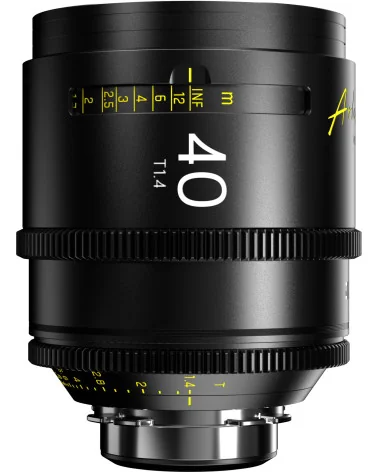

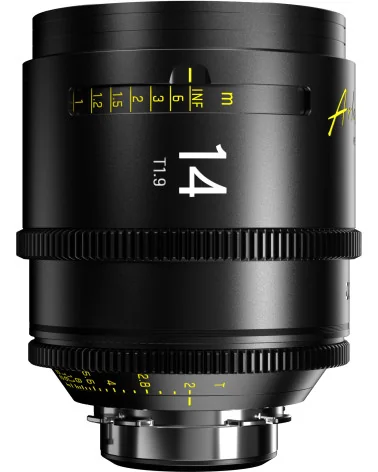

DZOFilm Arles 5-Lens Kit 14/21/40/135/180mm FF/VV Prime Cine Lens PL Mount (metric) pairs five fast primes for full frame/VistaVision capture with a 46.5 mm image circle. The set spans ultra-wide to long telephoto with matched PL mount, metric focus scales and standard 0.8 MOD gears on focus and iris. Maximum apertures are T1.9 (14 mm), T1.4 (21 mm, 40 mm), T1.8 (135 mm) and T2.4 (180 mm), maintaining high transmission and shallow depth of field across the range.
Optics use multi-layer nano coatings with a calibrated blue treatment for stable flare behavior and neutral colour. A 16-blade iris yields circular bokeh, while floating groups preserve resolution from infinity to close range with minimal focus breathing. Close-focus covers approximately 0.28 m (~11 in) at the wide end to about 1.07 m (~3.5 ft) on the longest lenses. Colour is consistent around 5000 K, easing multi-camera matching and fast finishing in ACES or Rec.709.
The mechanical design offers repeatable marks, firm damping and identical gear positions for rapid lens changes, ideal for follow focus, FIZ systems and studio robotics. Unified mechanics streamline matte box and motor placement, and the 0.8 MOD interface supports common drive units. The wide-angle field curvature and speed enable expressive foreground separation without sacrificing micro-contrast in the focal plane.
In production, the set covers narrative, documentary and live broadcast. Use 14 mm for architectural scale or LED volumes, 21 mm for wides on handheld gimbals, 40 mm for dialogue on full frame, 135 mm for interviews with compressed perspective, and 180 mm for selective coverage at events and sports. With VistaVision coverage, PL mount robustness and predictable focus behaviour, the DZOFilm Arles 5-Lens Kit fits contemporary cinema cameras and virtual production workflows, delivering repeatable, cinema-grade results on set efficiently.
Instead of €9,835.00
DZOFilm Arles 5-Lens Kit 14/21/40/135/180mm FF/VV Prime Cine Lens PL Mount (metric) pairs five fast primes for full frame/VistaVision capture with a 46.5 mm image circle. The set spans ultra-wide to long telephoto with matched PL mount, metric focus scales and standard 0.8 MOD gears on focus and iris. Maximum apertures are T1.9 (14 mm), T1.4 (21 mm, 40 mm), T1.8 (135 mm) and T2.4 (180 mm), maintaining high transmission and shallow depth of field across the range.
Optics use multi-layer nano coatings with a calibrated blue treatment for stable flare behavior and neutral colour. A 16-blade iris yields circular bokeh, while floating groups preserve resolution from infinity to close range with minimal focus breathing. Close-focus covers approximately 0.28 m (~11 in) at the wide end to about 1.07 m (~3.5 ft) on the longest lenses. Colour is consistent around 5000 K, easing multi-camera matching and fast finishing in ACES or Rec.709.
The mechanical design offers repeatable marks, firm damping and identical gear positions for rapid lens changes, ideal for follow focus, FIZ systems and studio robotics. Unified mechanics streamline matte box and motor placement, and the 0.8 MOD interface supports common drive units. The wide-angle field curvature and speed enable expressive foreground separation without sacrificing micro-contrast in the focal plane.
In production, the set covers narrative, documentary and live broadcast. Use 14 mm for architectural scale or LED volumes, 21 mm for wides on handheld gimbals, 40 mm for dialogue on full frame, 135 mm for interviews with compressed perspective, and 180 mm for selective coverage at events and sports. With VistaVision coverage, PL mount robustness and predictable focus behaviour, the DZOFilm Arles 5-Lens Kit fits contemporary cinema cameras and virtual production workflows, delivering repeatable, cinema-grade results on set efficiently.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
| Specification | 14mm | 21mm | 40mm | 135mm | 180mm |
|---|---|---|---|---|---|
| Colour | Black | ||||
| Mount | PL | ||||
| Aperture | T1.9-T22 | T1.4-T22 | T1.8-T22 | T2.4-T22 | |
| Image Circle | ø46.5mm (VV/FF) | ||||
| Construction of Optics | 15 Elements in 12 Groups | 14 Elements in 12 Groups | 13 Elements in 11 Groups | 12 Elements in 8 Groups | 12 Elements in 9 Groups |
| Flange Distance | 52mm (PL) | ||||
| Angle of view (diagonal, horizontal, vertical) | 109° / 72° / 116° | 89° / 54° / 96° | 56° / 31° / 61° | 17° / 9° / 19° | 13° / 7° / 15° |
| Close Focus (from sensor plane) | 0.28m | 0.33m | 0.4m | 0.98m | 1.07m |
| Iris Control | Manual (65°) | Manual (77°) | Manual (83°) | Manual (88°) | |
| Focus Control | Manual (270°) | ||||
| Front Dia. | ø95mm / 3.74" | ||||
| Length (from lens front to flange plane) | 121mm (PL) | 130mm (PL) | |||
| Iris Blade | 16 | ||||
| Filter Size | / | M86 | |||
| Gear Pitch | 0.8 Mod | ||||
| Material | Aluminum Alloy | ||||
| Weight (Product) | ≈1646g | ≈1500g | ≈1633g | ≈1846g | ≈1675g |
