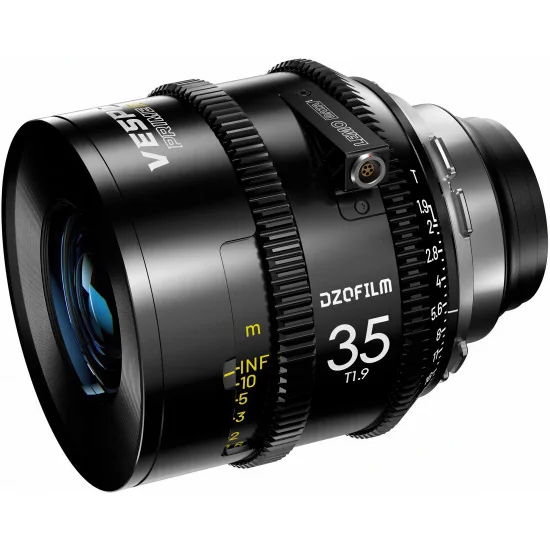

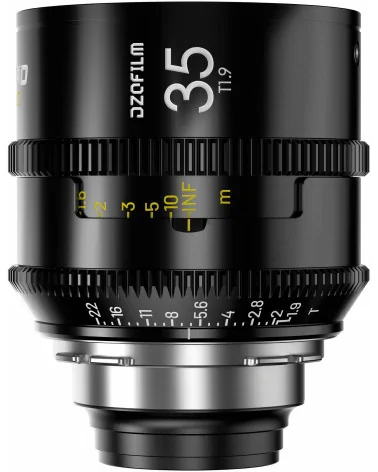

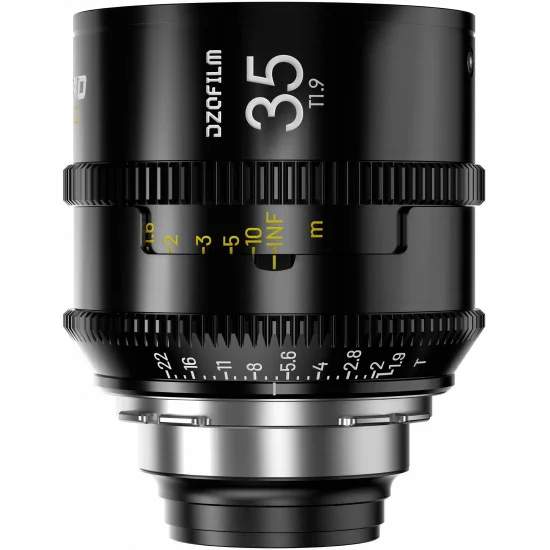

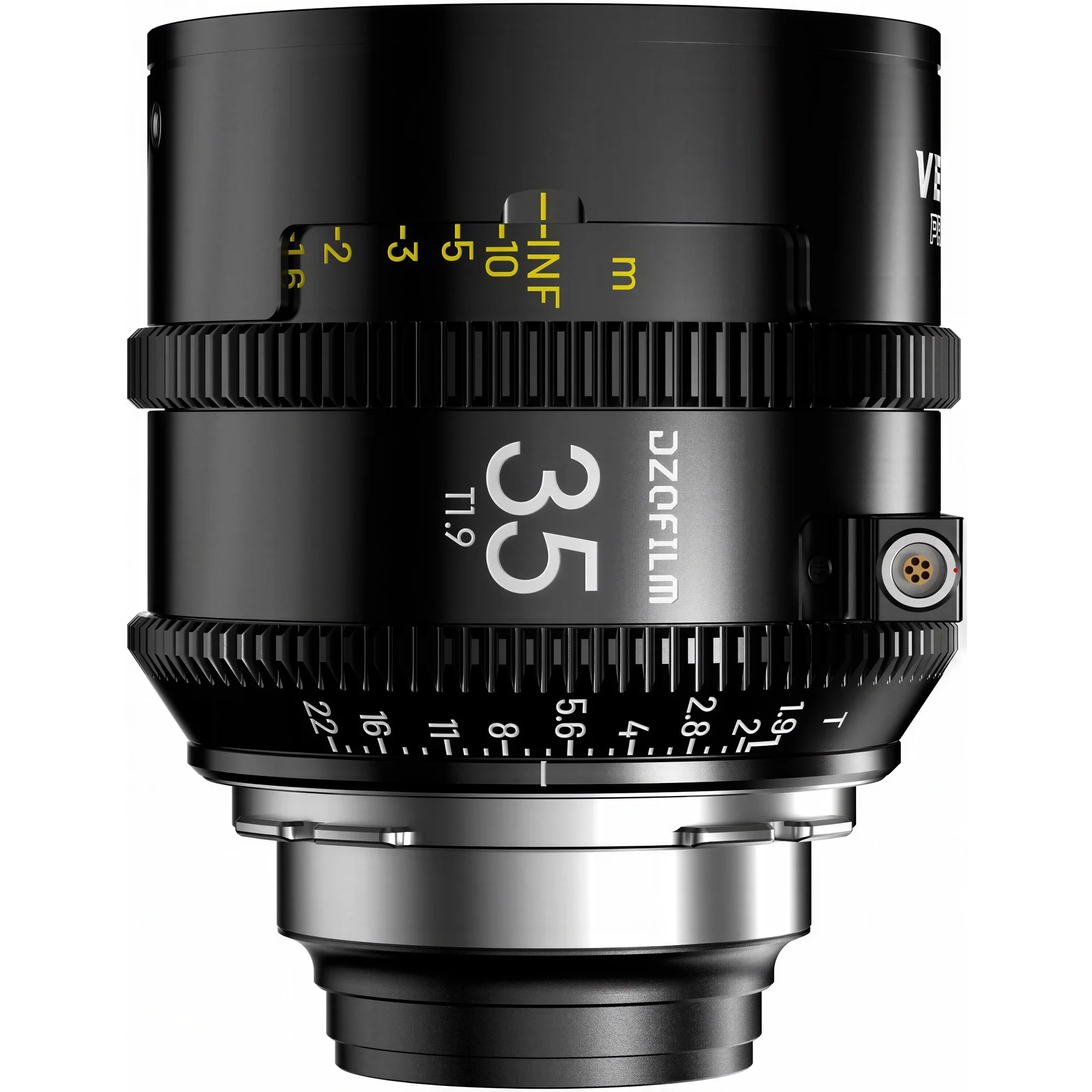

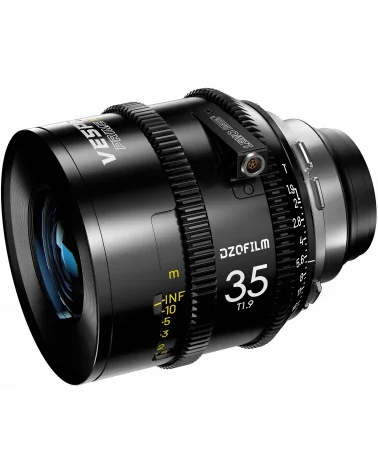

DZOFilm Vespid Prime2 35mm T1.9 PL Mount (VV/FF)

    DZO-V235MH
    Price: €1,049.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

    No lens in the Vespid 2 line fills the frame with a smaller object than the DZOFilm Vespid Prime2 35mm T1.9 PL Mount. Focused to 0.3 m from the sensor plane, it reaches 1:5.5 magnification (its five siblings stop at 1:7.5–1:8), a full-frame field of roughly 20 × 13 cm. Floating elements keep the image clean that close, so a pressure-gauge needle in an industrial film, or the stitching on a leather handbag, fills the screen without a macro swap.

    First-generation Vespid owners will spot the changes. T1.9 replaces T2.1, a third of a stop brighter. Focus travel rises from 270° to 300°, with metric marks on this version, and the optics count thirteen elements in nine groups, stopped down by a linear-scaled iris with ten blades. EF is gone: PL only.

    Flare is where the new optics show first. DPR aspheres and multi-layer nano coatings keep veiling glare low, and the streaks that do appear read cool, nearer DZOFilm's Arles than the warm flares of the original Vespid. In Keith Knittel's production-lens tests, centre detail was crisp wide open; edges, colour fringing and corner bokeh had cleaned up by T2.8. Breathing only shows on a full close-to-infinity pull. On full frame the horizontal view is about 54°, enough for a walk-and-talk; at T1.9 and 2 m, sharpness spans roughly 1.83–2.21 m, lifting a presenter off a busy open-plan office. With a 46.5 mm image circle, it serves VistaVision as well; on a RED V-RAPTOR [X] 8K VV, the 35 sees about 61° across.

    Through its PL contacts the lens speaks Cooke /i (version 1), so focal length, T-stop and focus distance land in each file on ARRI, RED, Blackmagic, Sony and Canon bodies that read it, ready for Nuke or Resolve. Via an Octopus adapter on E, RF or L cameras, that data stays behind. For the moment, the LEMO socket is a firmware port. Gears at 0.8 MOD, the 80 mm front and M77 thread match all six focal lengths. Because the rear group moves out as focus turns, slot-in ND adapters, rear teleconverters and KOOP filters are off the table. Seals at critical joints keep dust out of the aluminium housing. Product commercials, lab films, documentary series and episodic drama keep this 35 mm full-frame cine prime busy.

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    Specification
    Focal Length35mm
    ColourBlack
    MountPL
    ApertureT1.9-T22
    Image Circleø46.5mm (VV/FF)
    Max.Mag. Ratio1:7.8
    Construction of Optics13 Elements in 9 Groups
    Flange Distance52mm (PL)
    Close Focus0.3m / 1ft
    Iris ControlManual (66°)
    Focus ControlManual (300°)
    Front Dia.ø80mm / 3.15"
    Length80mm / 3.15” (PL)
    Iris Blade10
    Filter SizeM77
    Gear Pitch0.8 Mod
    Weight (Product)≈800g
    DZO-V235MH
    5 Items

    Data sheet

    Lens Mount
    PL Mount
    Focal Lengths
    35mm
    Maximum Aperture
    T1.9
    Lens Format Coverage
    Full Frame
    Lens Type
    Cinema Lens
    Prime

    Specific References

    ean13
    6970604944502
    mpn
    DZO-V235MH
