Getting mains power to a PTZ camera clamped onto a truss or bolted to a stadium gantry is the part of a rig that quietly eats the most hours. FieldCast Fiber Node One takes that job off the schedule. It is the local station in a four-camera fibre chain, standing within 100 metres of the camera positions and collecting one FieldCast 2Core SM Hybrid cable from each PTZ Monk converter. Video, control data and camera power share those runs, so nothing at height needs a socket, an adapter or a separate coax pull.
The four fibre inputs land on colour-coded chassis connectors, two yellow dots marking the single-mode pair and two red ones the power conductors — the kind of detail that pays off at two in the morning during a strike. Each channel breaks out across eight 75-ohm BNCs as dual 3G-SDI outputs, letting a switcher and a multiviewer run from one camera without a distribution amplifier. Nothing is compressed and nothing is reframed on the way through: the unit carries up to 2.97 Gb/s and every SD and HD standard through 1080p60, under SMPTE 259M, 344M, 292M and 424M.
Control travels the same fibre. All four camera Ethernet channels surface on one front-panel RJ-45 port, running 1 Gigabit over 1000Base-T and 1000Base-SX/LX to IEEE 802.3ab and 802.3z, so a single controller sees every head on one network. Power reaches the box from Fiber Base One across one SMPTE 311M/304 hybrid cable, which can be run out to 2 kilometres. Fiber Node One converts it and puts 24 V DC on each of the four hybrid connectors with 260 W to share between them; each PTZ Monk then regulates that down to 12 V DC at the camera body.
That two-box geometry is what makes long distances practical. An OB van in a car park, a gallery three floors up, a studio in another building: the heavy hybrid cable covers the distance while the 1U rack unit keeps the camera legs short. Arena rigs, theatre grids, conference venues, council and parliamentary chambers, esports floors and permanent installs all sit inside that envelope. And because Fiber Node One still presents SDI and Ethernet locally, a shading position can work beside the cameras while the main gallery stays two kilometres back.
FieldCast Fiber Node One 4x PTZ Control System
CO201
Price: €5,299.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Getting mains power to a PTZ camera clamped onto a truss or bolted to a stadium gantry is the part of a rig that quietly eats the most hours. FieldCast Fiber Node One takes that job off the schedule. It is the local station in a four-camera fibre chain, standing within 100 metres of the camera positions and collecting one FieldCast 2Core SM Hybrid cable from each PTZ Monk converter. Video, control data and camera power share those runs, so nothing at height needs a socket, an adapter or a separate coax pull.
The four fibre inputs land on colour-coded chassis connectors, two yellow dots marking the single-mode pair and two red ones the power conductors — the kind of detail that pays off at two in the morning during a strike. Each channel breaks out across eight 75-ohm BNCs as dual 3G-SDI outputs, letting a switcher and a multiviewer run from one camera without a distribution amplifier. Nothing is compressed and nothing is reframed on the way through: the unit carries up to 2.97 Gb/s and every SD and HD standard through 1080p60, under SMPTE 259M, 344M, 292M and 424M.
Control travels the same fibre. All four camera Ethernet channels surface on one front-panel RJ-45 port, running 1 Gigabit over 1000Base-T and 1000Base-SX/LX to IEEE 802.3ab and 802.3z, so a single controller sees every head on one network. Power reaches the box from Fiber Base One across one SMPTE 311M/304 hybrid cable, which can be run out to 2 kilometres. Fiber Node One converts it and puts 24 V DC on each of the four hybrid connectors with 260 W to share between them; each PTZ Monk then regulates that down to 12 V DC at the camera body.
That two-box geometry is what makes long distances practical. An OB van in a car park, a gallery three floors up, a studio in another building: the heavy hybrid cable covers the distance while the 1U rack unit keeps the camera legs short. Arena rigs, theatre grids, conference venues, council and parliamentary chambers, esports floors and permanent installs all sit inside that envelope. And because Fiber Node One still presents SDI and Ethernet locally, a shading position can work beside the cameras while the main gallery stays two kilometres back.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The intermediate hub for long-distance PTZ control over fiber
Fiber Node One is a four-channel converter device that serves as an intermediate hub for long-distance monitoring and control of 3G SDI PTZ cameras with Ethernet on board for control data.
Where to place Fiber Node One in the setup?

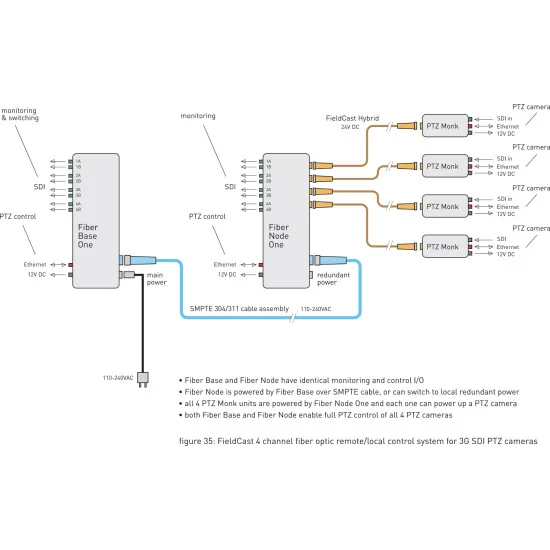

Fiber Node One is typically installed at a distance of up to 100 meters from the camera setup, in between PTZ Monk camera converter and the far-away-based Fiber Base One control station. Designed to work seamlessly with PTZ Monk and Fiber Base One, Fiber Node One functions as the intermediate node in a complete fiber node PTZ camera system.
Fiber Node One offers the following key functionalities:
• Fiber Patch Panel: The rear panel features four FieldCast Hybrid chassis connectors, enabling connection of up to four FieldCast Hybrid main cables—each linked to a PTZ Monk and corresponding PTZ camera.
• Multi-Channel Conversion: Converts four fiber channels into four separate SDI and Ethernet channels, allowing direct connection to monitoring equipment and camera controller.
• Signal Multiplexing: Combines video and control data from all connected cameras into a single fiber optic signal, transmitted to Fiber Base One over one SMPTE 311M/304 hybrid cable for centralized monitoring and control.
• Power Distribution: Receives power from Fiber Base One and distributes it to each connected PTZ camera, ensuring a clean and efficient power setup with no local power adapters required.
When used together with PTZ Monk(s), Fiber Base One, FieldCast Hybrid main cable(s), and one SMPTE 311M/304 cable, Fiber Node One becomes the essential intermediate hub for professional, long-distance PTZ camera control over fiber.
Features

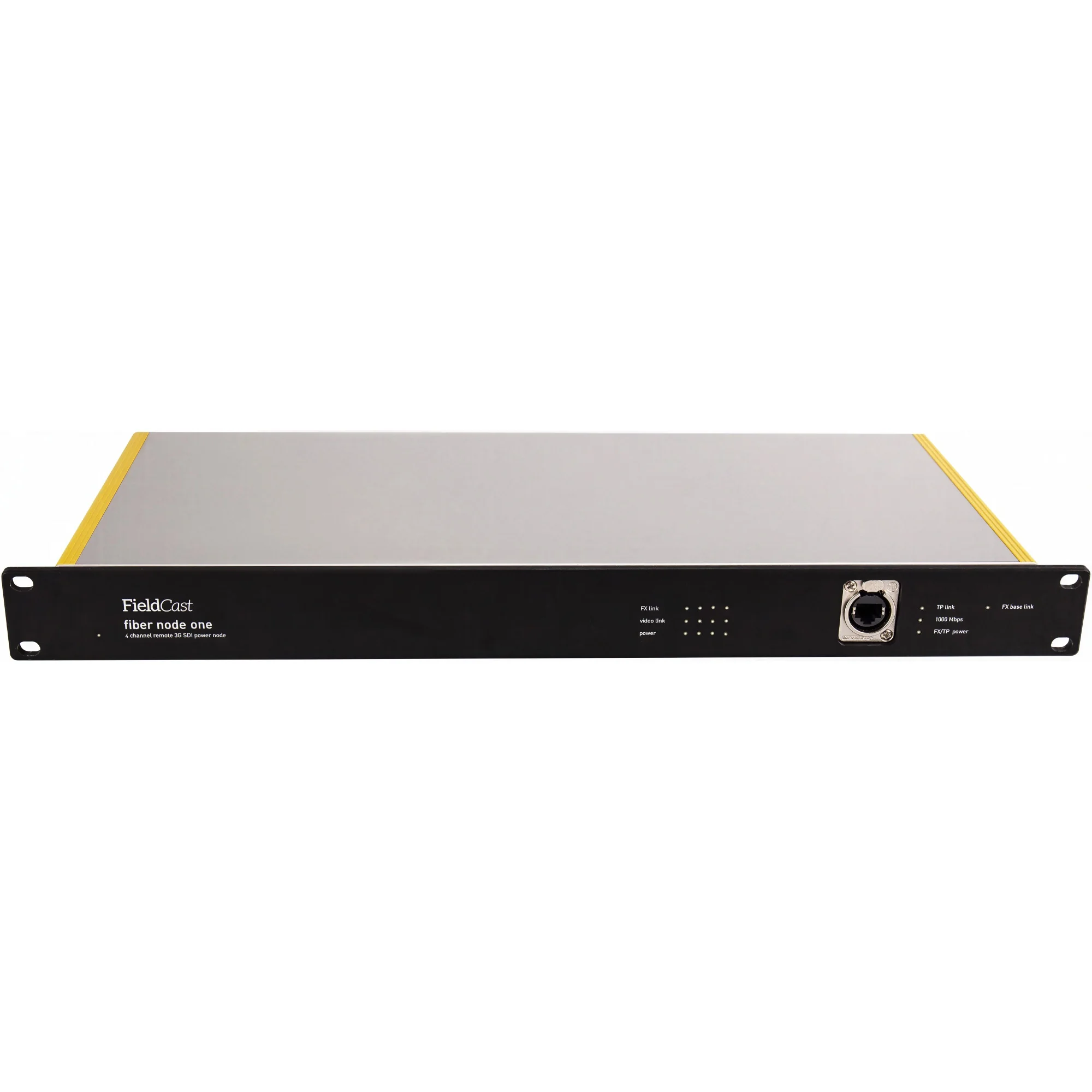

• Robust 19″ rack mount aluminum enclosure, 1RU in height, to be placed at a distance of up to 100 meters from the camera setup, in between PTZ Monk camera converter and the far-away Fiber Base One control station.
• Four FieldCast 2Core SM Hybrid Chassis Connectors on the backside to connect easily to four FieldCast 2Core SM Hybrid main cables.
• Four BNC SDI connectors with dual SDI output on the backside to connect to your SDI switcher or monitor.
• One RJ-45 Ethernet connector to connect to your PTZ camera controller.
• One SMPTE EDW connector to connect to SMPTE 311M/304 hybrid cable.
• FieldCast color coding on all four fiber connectors for easy identification.
• Converts four fiber channels to four SDI channels.
• Converts fiber to Ethernet and Ethernet to fiber.
| Specifications | |
|---|---|
| Material | Aluminum enclosure design |
| Form Factor | 1RU design with a depth of 205 mm |
| Channel Count | – 4x 2-core fiber input – 4x SDI output, each with dual output – 4x Ethernet i/o over fiber – 1x 2-core fiber output SDI + Ethernet |
| Fiber Conversion | – 4x fiber input to 4x SDI output – 4x Ethernet i/o over fiber |
| Fiber Connector | – Four color-coded FieldCast 2Core SM Hybrid Chassis Connector on the back side – One SMPTE 304 EDW connector on the back side |
| Color Code | Two yellow dots for 2Core single mode and two red dots for power on the four chassis connectors at the back |
| Fiber Type | Single mode 9/125 |
| SDI Connector | 8x 75-ohm BNC on the backside |
| Ethernet Connector | UTP RJ-45 connector on the front side, full duplex or half duplex |
| Supported Video Format | – Up to 3G (2.97Gb) SDI – All SD and HD standards up to 1080p60 – Complies with SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M |
| Supported Data Format | 1 Gigabit Ethernet (1000Base-T and 1000Base-SX/LX), compliant with IEEE 802.3ab and IEEE 802.3z |
| LED Indicators | Black front panel with 2mm warm white led indicators containing: – led indicator for AC power input – led indicator for 12VDC output – led indicators for channel module activity: SDI signal over fiber, Ethernet over fiber – led indicators for local Ethernet and for detection of 1 Gb signal level |
| Transmission Distance | – 100m/328ft between Fiber Node One and PTZ Monk – up to 2km/1.2mi between Fiber Node One and Fiber Base One |
| Power Out | – 24VDC output through each of the four hybrid connectors, 260W max total power |
| Power Consumption | 300W |
| Power In | 24VDC converted input from Fiber Base One through SMPTE 304 EDW connector |
| Weight | 3.48 kg |
| Dimension | Standard 1RU panel size, 482 (W) x 43 (H) x 205 (D) mm |
| Packing List | Fiber Node One, country-specific power cord, manual |
CO201
Data sheet
- Video Input
- FieldCast 2Core SM Hybrid Fiber
- Video Output
- RJ-45 (IP)
SDI
SMPTE 304/311 - Audio Input
- FieldCast 2Core SM Hybrid Fiber
- Audio Output
- SDI Embedded
SMPTE 304/311 - Max Output Resolution
- 1080p 50/60 fps
- Built-in scaler
- No
Specific References
- ean13
- 8719324374880
- mpn
- CO201
