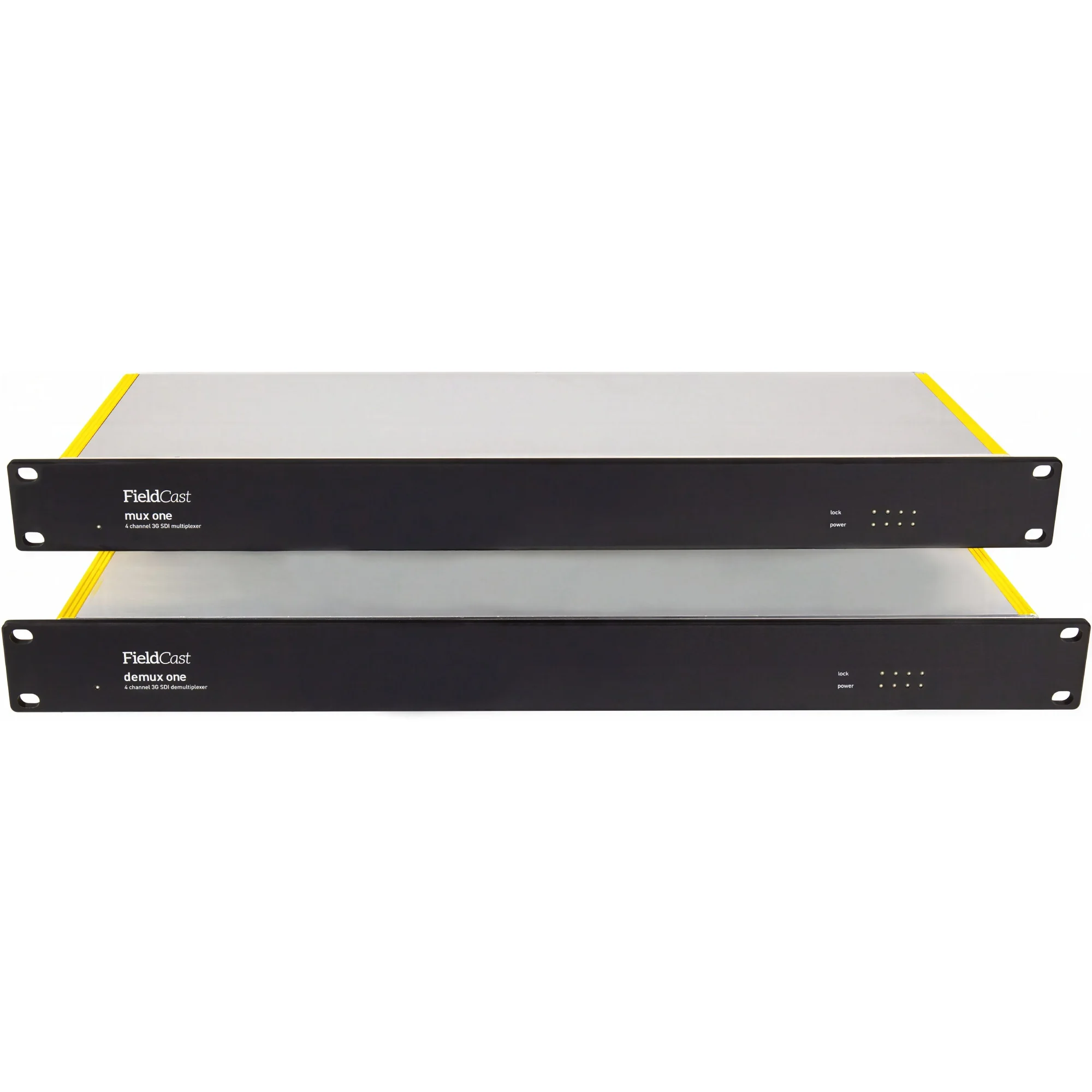

Not every camera position needs a gigabit control path running alongside the pictures. Where camera control and intercom already ride separate infrastructure, what the production lacks is a way to move four SDI feeds across a site on the single fibre core a venue will give up. That is the job the FieldCast Mux + Demux One 3G takes on: a matched multiplexer and demultiplexer pair folding four independent 3G-SDI channels onto one single-mode core, mux at the camera end, demux in the gallery.

Nothing in the chain touches the picture. Thin-film xWDM multiplexing gives each channel its own wavelength and lets the glass carry all four at once — no compression, no re-encoding, no frame buffer between input and output. Every channel handles up to 3G (2.97 Gb/s) and all SD and HD standards through 1080p60, with SMPTE 259M, 344M, 292M and 424M compliance keeping legacy and current formats on one rack.

Reach is where the pair earns its place in a rental inventory. Up to 40 km separates mux from demux on 9/125 single-mode fibre, putting a stadium's far touchline, a remote OB position or a second campus building in a single hop. A simplex run is enough, since all four channels share one core; on a two-core tactical cable the spare core stays free for a backup pair. Each SDI input carries a reclocked loop-through at the camera and every channel arrives on dual outputs in the gallery, so confidence monitoring sits at both ends without a distribution amplifier. Eight 75-ohm BNCs per unit keep patching quick for multi-camera live switching, arena relay and studio-to-gallery links.

Channel count is not fixed at four. The UPG port cascades the pair into a second four- or eight-channel set for 16 SDI channels on that same core, and the cascade breaks apart and rebuilds as needs change. Standard units ship unidirectional as 4i/o; the factory builds splits such as 2i/2o or 1i/3o where return feeds are needed, and LC connectors give way to SC or ST on request. Both chassis are 1RU aluminium, draw under 40 W, accept 110-240 VAC on PowerCon, and report power, channel activity and SDI input activity on warm-white front-panel LEDs — enough to spot a dead feed across the machine room.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

4 channels of 3G SDI video over one fiber optic channel
Mux One 3G and its twin brother Demux One 3G allow you to transport four independent channels of 3G SDI video over just one fiber optic channel.

Is your infrastructure such that you have limited access to individual fiber optic connections? Mux One and Demux One can help you run multiple video channels without needing separate cables.

Or else, do you want to roll out a minimum number of cables in live event environments? Just use Mux One and Demux One, multiplex up to four channels of video, and get all data from A to B using only one strand of fiber!

No hidden processing involved! All 3G video signals preserve full data integrity! What goes in comes out, unchanged.

Features

Transport over long distance
The mux/demux pair can transport video over distances of up to 40 km/24 mi for 3G SDI. The mux is typically placed at the camera side, and the demux at the control room side.

4 independent video channels with loop-through and dual output
The set supports 4 independent SDI video channels. The SDI inputs have a reclocked loop-through. The SDI outputs are dual. Hence, monitoring on both sides (input and output) is possible. The SDI input is typically connected to the camera’s SDI output. The SDI output is generally connected to the SDI input of a monitor or switcher.

Transport over one fiber optic core
All information for up to 4 SDI video channels, back and forth, runs over a single fiber optic core. This means a simplex fiber-optic cable is sufficient to bridge the distance between mux and demux, saving on fiber-optic cable costs. Alternatively, if you have a fiber optic cable with 2 cores, you have 1 core (or channel) left for other fiber optic transport. You might, for example, use the free fiber optic core to connect to a second, similar Mux/Demux pair to add redundancy to your setup.

No compression
There is no signal processing involved, so there is no compression; full data integrity is guaranteed.

Unidirectional video by default
The standard model is unidirectional, meaning that 4 SDI signals go from mux to demux; it’s denoted as 4i/o, where ‘i’ stands for input and ‘o’ stands for output.

Upgrade (UPG) port to add more channels
Start with the channels you need today and scale up as demand grows. The UPG Port lets you add more channels without replacing your existing hardware. Simply connect the UPG port of your existing Mux/Demux pair to the COM port of a secondary 4-channel or 8-channel Mux/Demux pair, supporting up to 16 SDI video channels plus full-duplex 1Gb Ethernet. When connected, the cascaded systems will still carry all information over a single fiber-optic core. Cascaded systems can be easily split into two independent Mux/Demux systems and then recascaded as needed, making them ideal for environments requiring staged or modular network builds.

specifications

mux one plus 3G
• 4 channel SDI input to 1 channel fiber optic output multiplexer
• 1RU all aluminum enclosure design
• four 3G (2.97Gb) SDI input channels (1), each with SDI loopthrough (2)
• 75 Ohm BNC connectors for all SDI inputs and loopthrough outputs
• complies with SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M
• accepts all SD and HD standards up to 1080p60
• 9/125 single mode fiber optic technology
• one LC single mode (UPC) fiber optic output (COM) channel (3)
• one LC single mode (UPC) fiber optic upgrade (UPG) channel (4)
• black front panel with 2 mm warm white LED indicators
• one LED indicator for power (5)
• four LED indicators for channel module activity (6)
• four LED indicators for SDI signal input activity (7)
• power consumption < 40W
• robust thin film CWDM multiplexing technology
• maximum distance between Mux and Demux unit → 40 km
• 110–240 VAC input with PowerCon connector (8)
• dimensions: 482 (W) × 155 (D) × 43 (H) mm
• weight: 1500 grams
• comes with manual and local power cord

demux one plus 3G
• 1 channel fiber optic input to 4 channel SDI output demultiplexer
• 1RU all aluminum enclosure design
• 9/125 single mode fiber optic technology
• four 3G (2.97Gb) SDI channels with dual output (1)
• 75 Ohm BNC connectors for all SDI outputs
• complies with SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M
• accepts all SD and HD standards up to 1080p60
• one LC single mode (UPC) fiber optic input (COM) channel (2)
• one LC single mode (UPC) fiber optic upgrade (UPG) channel (3)
• black front panel with 2 mm warm white LED indicators
• one LED indicator for power (4)
• four LED indicators for channel module activity (5)
• four LED indicators for fiber optic signal input activity (6)
• power consumption < 40W
• robust thin film CWDM demultiplexing technology
• maximum distance between Mux and Demux unit → 40 km
• 110–240 VAC input with PowerCon connector (7)
• dimensions: 482 (W) × 80 (D) × 43 (H) mm
• weight: 1500 grams
• comes with manual and local power cord
