FieldCast SMPTE PUW-FUW 100m on Drum Hybrid Fiber Cable

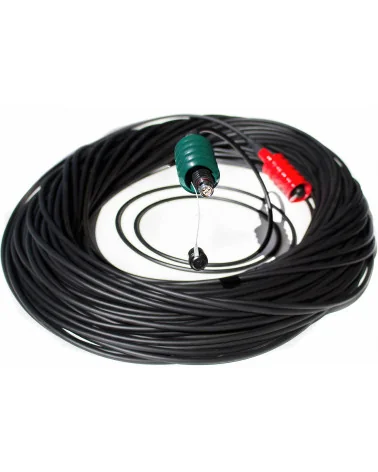

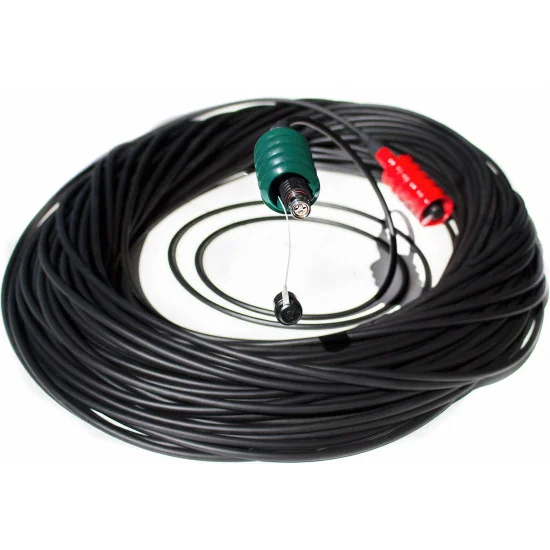

A SMPTE 304 termination is a published interface, not a manufacturer's fitting: the Lemo 3K.93C.Y hardware here also answers to ARIB BTA S-1005B and EBU R100, plus UL 1977 recognition. For a hire fleet running mixed camera stock, that is the whole argument. The FieldCast SMPTE PUW-FUW 100m mates with whatever SMPTE-equipped head or converter arrives next season, and since one end finishes in an FUW plug and the other in a PUW socket with its own cap, two drums join tail to head if a position sits further from the truck than the recce said.

Under the abrasion-resistant sheath sits Furukawa's TV-OM-AMS, the A-grade member of a camera range that also runs a J grade to the Japanese ARIB specification; A follows SMPTE 311M. Two single mode 9/125 cores run beside six tinned copper conductors — four power cores stranded from twenty-one wires apiece, two control cores from seven — laid around a central galvanised steel member that absorbs hand-hauling so the glass never works in tension. A tinned copper braid at 85 % optical coverage closes the assembly. At the shell, the four power cores pair onto two contacts rated 10 A while the control pair lands on the signal pins.

Run against Blackmagic's Camera Fiber Converter and Studio Fiber Converter, one line carries 12G-SDI to 2160p60, three independent HD return feeds, two dual-channel talkback circuits, tally, camera control and camera power — a pairing rated to two kilometres, so a hundred metres is nowhere near the ceiling. A camera at the 18th green reaches the compound without a mid-span repeat. A basketball baseline position gets returns and power with no distribution box beside it.

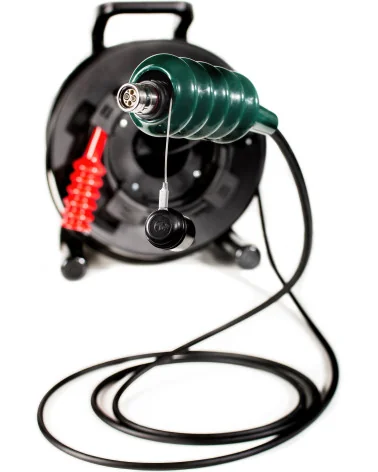

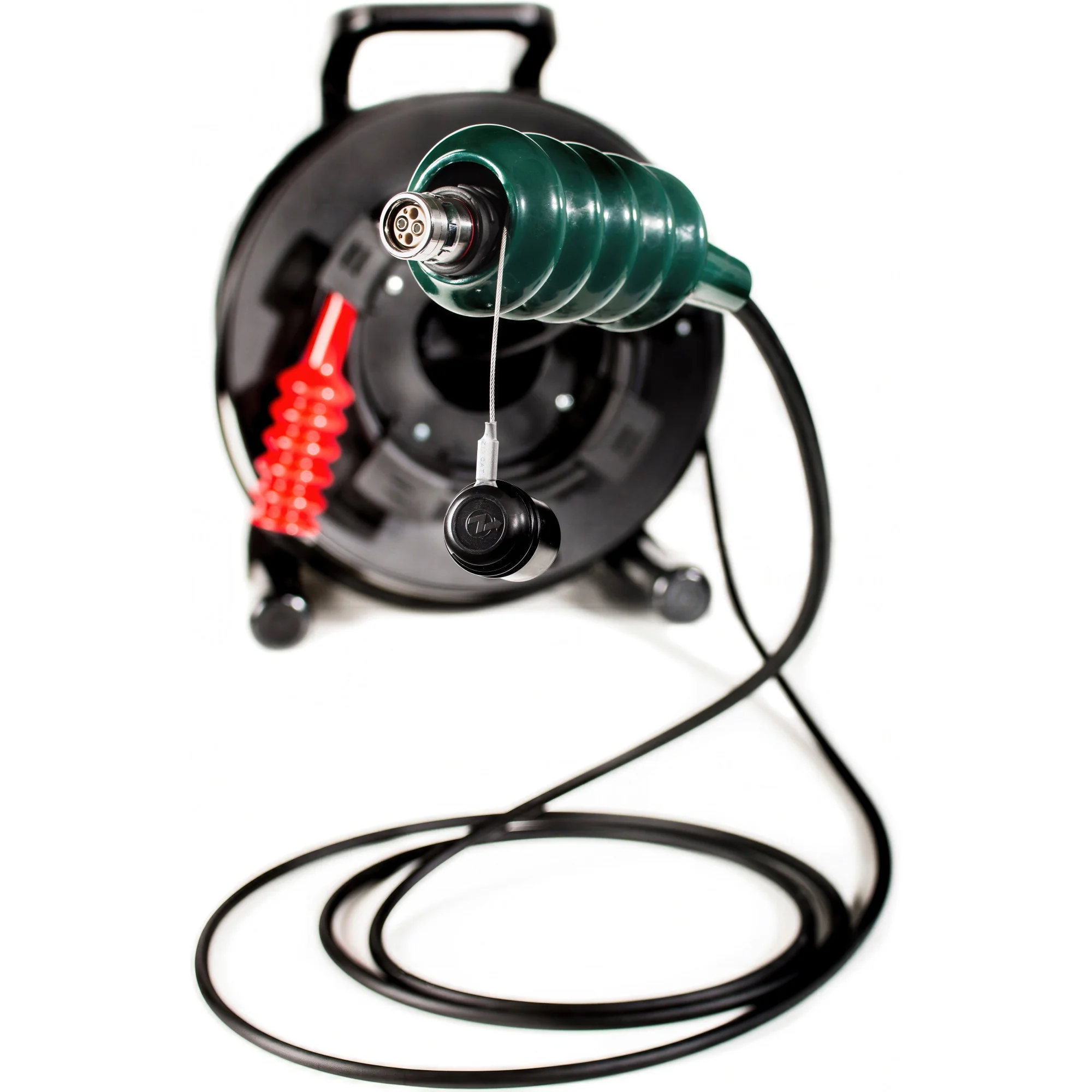

Handling decides what a cable costs over its life, hence the Schill GT380 drum is solid rubber rather than moulded plastic — indifferent to oil, fuel and site chemicals, stackable in a truck, braked so a half-paid-out run stays put. The cable takes 700 N, bends to six times its own diameter and holds from −20 °C to +75 °C; the Lemo PUW-FUW connectors are sealed to IP68, rated at 20 000 matings and tested past a thousand hours of salt spray. Lengths from five metres up share the same ends, so one connector scheme covers the fleet.
