Begin redefining your studio workflow with the Lilliput Q18-8K 17.3” Broadcast Production Monitor, built for uncompromising clarity. It supports...
A clipped highlight, a soft eyelash or an unnoticed record state can cost a take. The Kinefinity KineEVF2 Viewfinder Pack places those checks at the operator’s eye on a 1920 × 1080 Full-HD Micro-OLED display with 16 million colours. Self-emissive pixels render true black and separated grey tones, helping judge shadow detail, edge definition and exposure without a larger monitor. The optical path stays sharp and distortion-free, while diopter adjustment from -6D to +2D covers a broad range of eyesight.
Image processing runs on Kinefinity’s DirectClear FPGA platform, reducing monitoring delay during pans, handheld moves and moving subjects. Waveform, histogram and false colour give measurable exposure references; magnification and focus peaking assist critical focus on cine lenses. These tools matter on shallow-depth-of-field interviews, product close-ups and documentary shots that cannot be repeated. Fanless operation adds no noise near a boom or lavalier, and 1.8 W consumption places little load on the camera power system during long field days.
KineEVF2 also serves as a camera interface. A record button, playback/menu control, rotary wheel and two additional buttons let the operator review clips and change settings without losing sight of the frame. A lower tally indicator communicates recording, standby, connection, warning and shutdown states, useful on shoulder rigs and compact crews that need immediate visual confirmation. The included eye cushion limits stray light and pressure around the eye during extended sessions.
The pack supplies the KineEVF2 OLED viewfinder, locking Kine Video Cord, Movcam EVF bracket and eye cushion. One push-pull cable carries picture and power from the camera, keeping the rig tidy and avoiding a separate finder battery. The bracket provides a secure viewing position for handheld or shoulder-mounted configurations. Compatibility covers MAVO Edge 8K and 6K, MAVO mark2 LF and S35, MAVO LF, MAVO 6K, TERRA 4K and TERRA 6K, so a camera department can keep the same viewing system across several bodies.

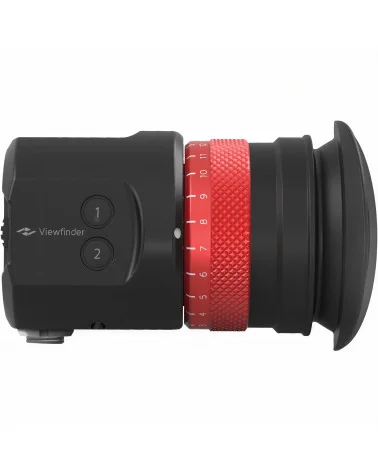

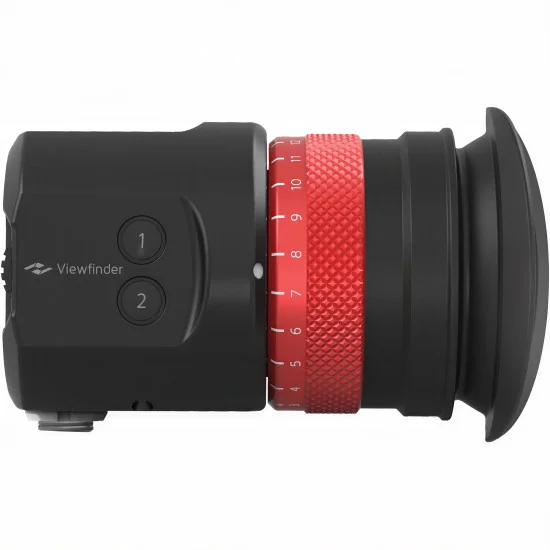

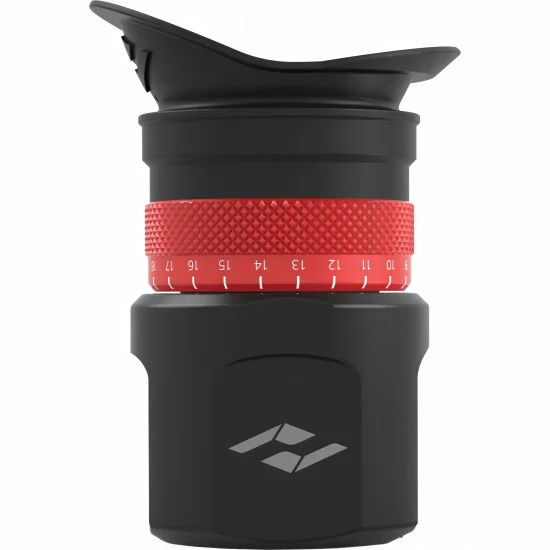

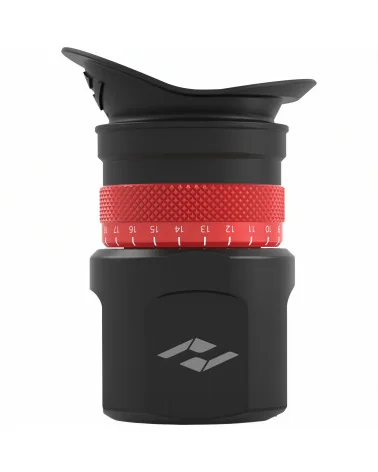

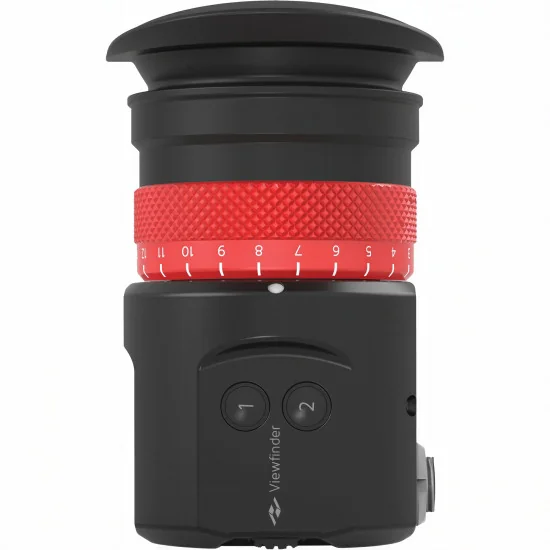

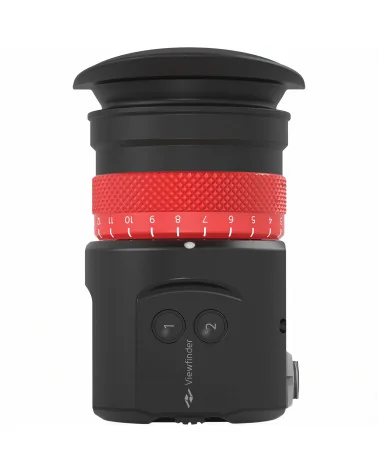

Kinefinity KineEVF2 Viewfinder Pack
A912-003-01
Price: €2,499.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
A clipped highlight, a soft eyelash or an unnoticed record state can cost a take. The Kinefinity KineEVF2 Viewfinder Pack places those checks at the operator’s eye on a 1920 × 1080 Full-HD Micro-OLED display with 16 million colours. Self-emissive pixels render true black and separated grey tones, helping judge shadow detail, edge definition and exposure without a larger monitor. The optical path stays sharp and distortion-free, while diopter adjustment from -6D to +2D covers a broad range of eyesight.
Image processing runs on Kinefinity’s DirectClear FPGA platform, reducing monitoring delay during pans, handheld moves and moving subjects. Waveform, histogram and false colour give measurable exposure references; magnification and focus peaking assist critical focus on cine lenses. These tools matter on shallow-depth-of-field interviews, product close-ups and documentary shots that cannot be repeated. Fanless operation adds no noise near a boom or lavalier, and 1.8 W consumption places little load on the camera power system during long field days.
KineEVF2 also serves as a camera interface. A record button, playback/menu control, rotary wheel and two additional buttons let the operator review clips and change settings without losing sight of the frame. A lower tally indicator communicates recording, standby, connection, warning and shutdown states, useful on shoulder rigs and compact crews that need immediate visual confirmation. The included eye cushion limits stray light and pressure around the eye during extended sessions.
The pack supplies the KineEVF2 OLED viewfinder, locking Kine Video Cord, Movcam EVF bracket and eye cushion. One push-pull cable carries picture and power from the camera, keeping the rig tidy and avoiding a separate finder battery. The bracket provides a secure viewing position for handheld or shoulder-mounted configurations. Compatibility covers MAVO Edge 8K and 6K, MAVO mark2 LF and S35, MAVO LF, MAVO 6K, TERRA 4K and TERRA 6K, so a camera department can keep the same viewing system across several bodies.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The Kinefinity KineEVF2 Viewfinder (A912-003-01) is a 290 g zero-latency 1080p Micro-OLED EVF with 16M colors, ±4 diopter, one-cable video+power, peaking, false color, and Movcam bracket. Perfect for MAVO Edge/mark2/TERRA handheld and gimbal precision.
The Kinefinity KineEVF2 (A912-003-01) is a ultra-compact Full-HD OLED viewfinder engineered for MAVO Edge 8K/6K, MAVO mark2, and TERRA cameras. Its 0.7" 1920×1080 Micro-OLED panel delivers 16.7 million colors, true black, 10,000:1 contrast, and zero-latency monitoring via FPGA hardware processing—powered and fed video through one proprietary Kine video cord (included). Optical design features a multi-coated glass eyepiece with -4 to +4 diopter, heated anti-fog coating, and 38° field of view. Pro tools include focus peaking (red/green/blue), false color, zebra, waveform, histogram, anamorphic de-squeeze, frame markers, and flip/rotate. Mounts instantly via the included Movcam EVF bracket with 15 mm rod clamp and rosette. At only 290 g, it’s lighter than ARRI and RED EVFs yet built from magnesium alloy for daily abuse.
Key Features:
Zero-latency FPGA processing
Single Kine video cord (video + 5 W power)
Heated anti-fog eyepiece
Full toolset: peaking, false color, waveform, anamorphic
Movcam 15 mm rod bracket + rosette included
Ultra-light 290 g magnesium body

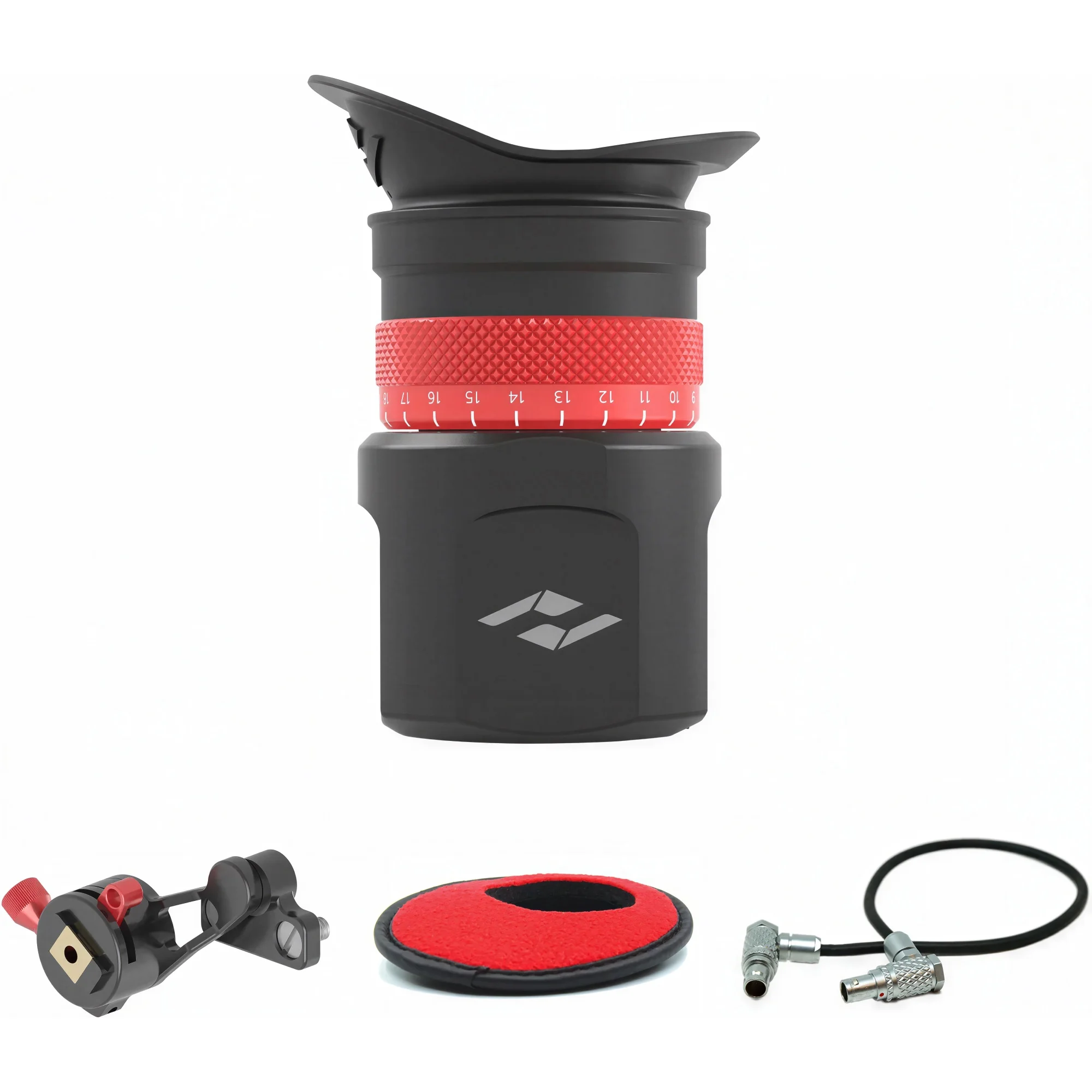

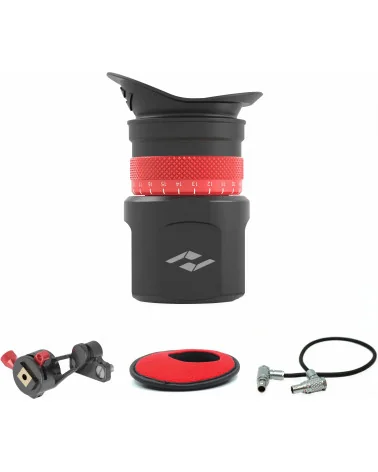

PACKAGE CONTENT
Kinefinity KineEVF OLED Viewfinder
Kinefinity Kine Video Cable for KineEVF (12", Right Angle)
EVF Bracket
Eye Cushion
SPECIFICATIONS
Model: A912-003-01
Panel: 0.7" Micro-OLED
Input: 1× proprietary Kine video (video + power)
Mount: Movcam 15 mm rod clamp + ARRI rosette
Weight: 290 g (with bracket)
A912-003-01
Data sheet
- Video Input
- Kine Video
- Screen Size
- 0.7"
- Aspect Ratio
- 16:9
- Screen Resolution
- 1920x1080
- Max Input Resolution
- 1920x1080
Specific References
- mpn
- A912-003-01
