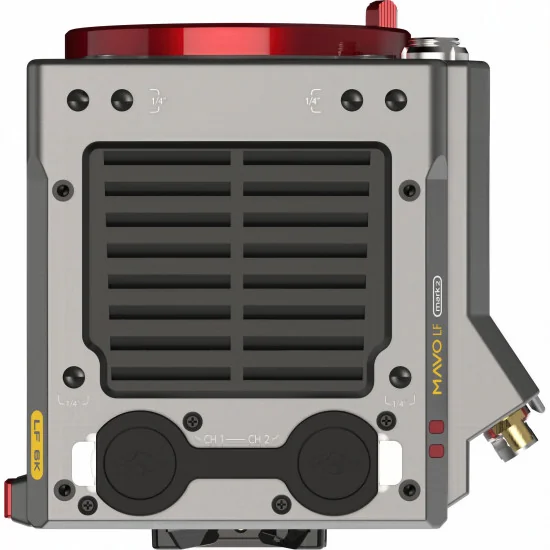

Kinefinity MAVO mark2 LF KineMOUNT 6K Camera
A010-003-02
Price: €6,189.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Sensor pedigree decides how hard a camera can be pushed once a schedule tightens. The Kinefinity MAVO mark2 LF KineMOUNT carries the full-frame 6K 3:2 CMOS sensor from the MAVO Edge 6K, resolving 6016 x 3984 over a 36 x 24 mm active area, image circle 43.3 mm. That is true large-format geometry: wide coverage and the shallow separation clients ask for on commercials and narrative work. Dual base ISO 800 and 5120 lets one body cover a midday exterior and a practical-lit night interior, and over 14 stops of latitude holds speculars that smaller sensors clip.
Lens options stay open. The native KineMOUNT is included and converts to PL, LPL or EF without tools, so one body serves an anamorphic drama and an EF documentary package in the same month. Optional Active PL and Active E mounts add electronic control: Cooke/i focal length, iris and focus data lands in the clip for VFX and dailies, and E-mount glass runs from the camera menu with stabilisation still active. Mount swaps need no flange calibration.
Recording is Apple ProRes 4444XQ and 4444 at 12-bit, plus 422 HQ, 422 and LT at 10-bit. KineLOG3 holds the full tonal range for grading, Neutral Rec.709 gives a direct monitoring path, and custom 3D LUTs load over USB-C. KineMAG Nano SSDs come in 1 TB and 2 TB, while third-party NVMe M.2 2280 drives fit through the KineMAG Nano Body; each mag has its own USB-C port, so offload hits 10 Gbps without a reader. Speeds reach 48 fps in 6K open gate, 75 fps at 6K 2.4:1, 86 fps at 5K 2.4:1 and past 200 fps in cropped 2K for product slow motion, and anamorphic de-squeeze is internal.
Multi-camera days are covered. Two independent 3G/1.5G-SDI BNC outputs send embedded audio and metadata to a switcher or DIT cart, timecode runs in and out, and RS422 sync locks several bodies together for drama coverage or live capture. Two XLR inputs with 48 V phantom record 24-bit/48 kHz linear PCM. Wi-Fi 5 covers remote control and streaming. The hybrid plate takes 14.8 V V-mount bricks or compact BP-U cells, and a 27 W draw lets a 200 Wh battery run a long block. Aerospace-grade aluminium and a 0–40 °C range keep the MAVO mark2 LF steady on gimbals and on location.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
MAVO mark2 LF Full Frame 6K 3:2 / Dual Native ISO 800 & 5120 / 14+ Stops
Inherits the acclaimed full-frame sensor from MAVO Edge 6K. Wider angle, shallower depth of field, and a more immersive cinematic presence. Dual native ISO 800/5120 for exceptional low-light performance.

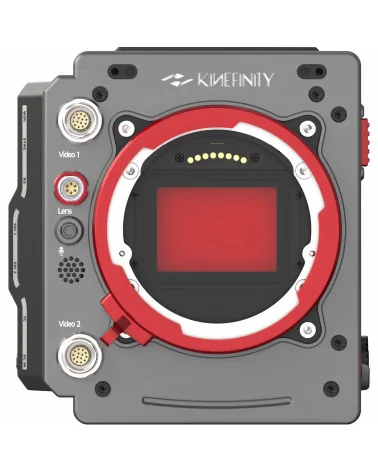

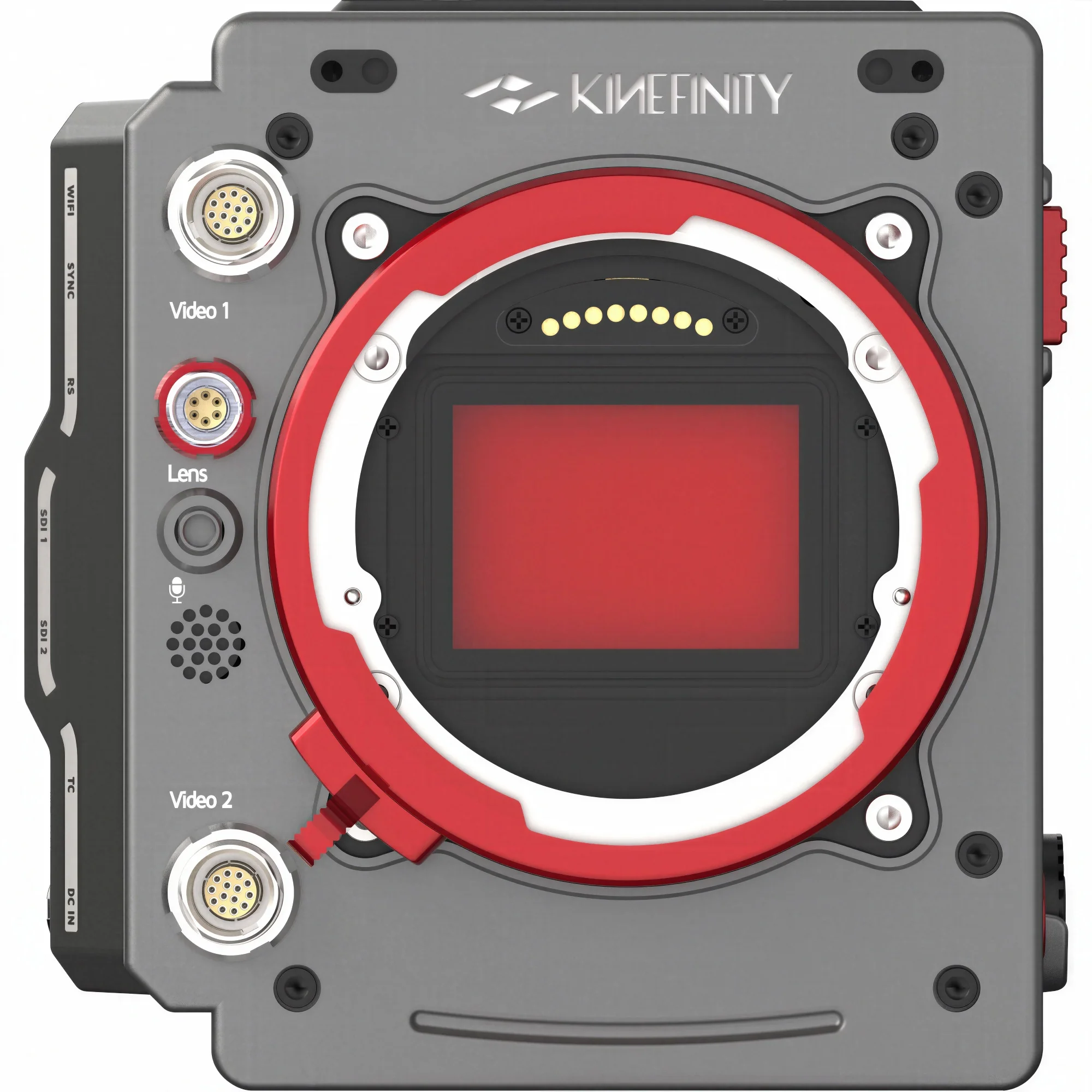

Native KineMOUNT
KineMOUNT is very convenient for switching mount adapters including EF, PL and LPL adapters without tools. In addition to keeping the exclusive native KineMOUNT, MAVO mark2 provides two new lens mounts: the Active PL Mount and Active E Mount. Users can install and detach the active mounts without extra flange distance calibration.
Key Features:
Full-frame 6K 3:2 CMOS (6016 x 3984) with 14+ stops, dual native ISO 800/5120
6K86 ProRes 4444XQ, 4K58, 1080p high-frame-rate; in-camera anamorphic de-squeeze
Native KineMOUNT included; active EF/E/PL adapters with lens control and metadata
KineLOG3, Rec.709, custom 3D LUTs; compressed cDNG (3:1, 5:1, 7:1)
Dual proprietary video, 3G-SDI, 2x XLR audio, timecode, sync, RS-232
KineMAG Nano SSD recording (1TB/2TB or third-party NVMe M.2)
Wi-Fi app control (iOS/Android), 23 W power, V-mount/BP-U hybrid plate
Compact, modular, 1.37 kg body with accessory threads and OLED monitoring options
Both MAVO mark2 cameras adopt the MAVO Edge high-performance computing platform, integrate industry standard ports like independent dual SDI outputs, record in-camera ProRes4444XQ to NVMe M.2 SSD. With fully integrated, refined lightweight design and efficient workflow, the cameras help more cinematographers achieve a classic, efficient cinematic experience at a more affordable price.
Advanced Platform, Streamlined Workflow
Powerful in-camera ProRes recording, flexible SSD media, and efficient workflow from acquisition to post.
Integrated Body Design
MAVO mark2 inherits the integrated body design of MAVO Edge camera which has won the prestigious iF DESIGN AWARD 2021. The compact camera body features a host of general control ports, dual SDI outputs with embedded metadata and audio, high-quality multi-channel audio recording, timecode sync, and RS232 protocol LENS port for third-party accessories.

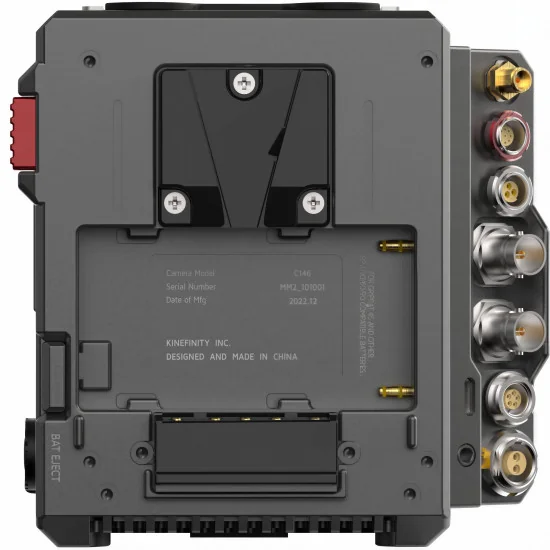

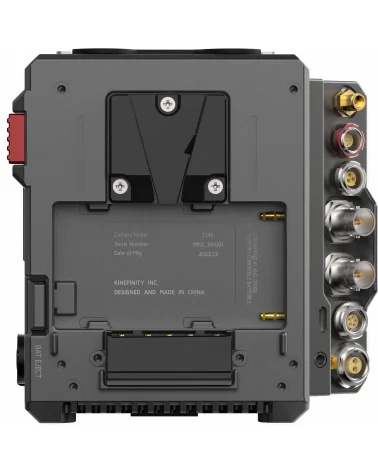

Comprehensive Power Solution
The MAVO mark2 offers an innovative hybrid battery plate to accommodate power demands in various shooting scenarios. It supports standard 14.8V V-mount batteries like KineBAT PD 99/200, as well as BP-U type batteries like GripBAT 4S. With the addition of Movcam KineKIT-Edge cage, NP-F550 type batteries can support an uninterruptible power supply (UPS) to the camera via the UPS baseplate.
Ultra-Compact, Ultra-Light
MAVO mark2 features a high-strength aviation aluminum alloy body with highly integrated functions, yet weighs only 1.35kg (2.98lbs). It is lighter than both MAVO Edge and MAVO LF with KineBACK, making it easy to carry and suitable for a wide range of complex and dynamic shooting scenarios.
PACKAGE CONTENT
Kinefinity MAVO mark2 LF Digital Camera (KineMOUNT)
KineMOUNT Lens Mount
Body Cap
| CMOS Imaging Sensor | |
|---|---|
| CMOS Sensor Type | Full Frame 6K 3:2 CMOS |
| Max Recording Resolution | 6016×3984 (3:2 Open Gate), 24M |
| Max Frame Rate (Wide) | 6K Wide 0.2~75fps |
| Active Sensor Area | 36×24mm, ø 43.3mm |
| Dual Base ISO | 800 / 5120 |
| Dynamic Range | >14 Stops |
| Shutter Angle | 0.7°~358° with Rolling Shutter |
| Lens Mount | Native KineMOUNT (Optional Adapters: PL / LPL / EF) |
| Optical Filter | Optical LPF with UV and IR-cut filter |
| Codec, LUT & Recording Media | |
| Recording Codec | ProRes 4444XQ / ProRes 4444 / ProRes 422HQ / ProRes 422 / ProRes LT |
| Format | QuickTime .mov |
| Bit Depth | 12-bit (4444XQ/4444) 10-bit (422HQ/422/LT) |
| Color Science | KineLOG3 |
| LUT Support | KineLOG3, Neutral (Rec 709), Custom 3D LUT support |
| Recording Media | KineMAG Nano SSD 1TB/2TB, single media slot. Third-party NVMe M.2 2280 SSD supported via KineMAG Nano Body. |
| Media Size (W×H×L) | 1.6×3.5×0.35″ / 40×88×9mm |
| Monitoring | |
| Video Ports | KINEFINITY Proprietary Video Port ×2 |
| SDI Outputs | 3G/1.5G SDI ×2 with metadata and audio (standard BNC) |
| Monitor Support | KINEFINITY Micro OLED EVF Viewfinder, KineMON-5U2/7U2 Ultra Bright Monitor with Touch Screen |
| Audio | |
| Audio Sampling | Linear PCM, 24-bit, 48KHz |
| Audio Input | Built-in Mono Microphone, 3.5mm Stereo Microphone Jack, 48V Phantom-power Balanced Input ×2 (standard XLR) |
| Audio Output | 3.5mm Stereo Headphone Jack |
| Wireless & Network | |
| Wireless | WiFi 5 for live streaming and camera control |
| Sensor | 3-axis accelerometer |

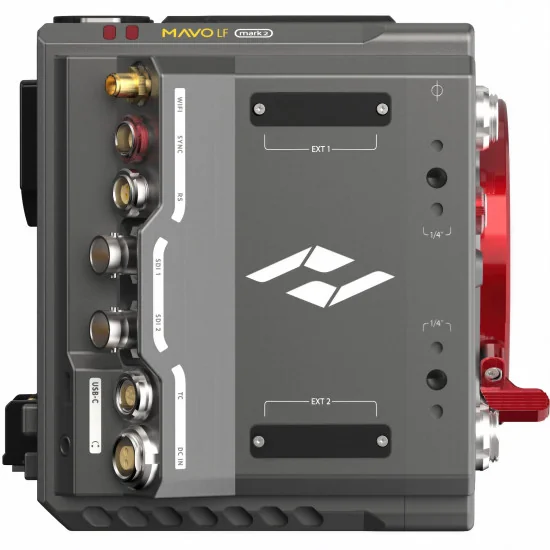

| SYNC & Control | |
| Timecode | Linear TC In & Out (0B 5-pin) |
| Lens Control Port | RS232 Lens Port, Power Output (0B 5-pin) |
| Multi-Sync Port | RS422 Sync and KINEFINITY Camera Sync, Power Output (0B 9-pin) |
| RS Trigger Port | Rec Trigger Input with Power Output (Fisher 3-pin) |
| Extension Ports | Data & Control, EXT 1 and EXT 2 (Pogo-pin, 2×4 contacts) |
| USB | USB Type-C ×1, for firmware updates and custom 3D LUT import |
| Power In & Out | |
| Power Consumption | 27W (6K HD 25fps, live view) |
| Power Input | Integrated Hybrid Battery Plate (V-mount or BP-U compatible), DC Input (1B 2-pin), 11~26V |
| UPS Port | EXT 3 (Pogo-pin, 2×5 contacts) |
| Power Outputs | RS ×1 @4A, SYNC ×1 @3A, Lens ×1 @6A |
| Construction & Size | |
| Body Color | Deep Grey |
| Body Material | Aerospace-grade Aluminum Alloy |
| Body Weight | 3.02lb / 1.37kg |
| Dimensions (W×H×L) | 4.1×4.8×4.2″ / 106×124×107mm (*without protrusions) |
| Operating Temperature | 0°C ~ 40°C |
| Recording Formats — Full Frame | |
| FF 6K OG | 6016×3984, 0.2~48fps Codec: up to ProRes 4444XQ Optical Format: 36×24mm, ø 43.3mm |
| FF 6K 17:9 | 6016×3172, 0.2~60fps Codec: up to ProRes 4444XQ Optical Format: 36×19.1mm, ø 41.0mm |
| FF 6K 2.4:1 | 6016×2520, 0.2~75fps Codec: up to ProRes 4444XQ Optical Format: 36×15.2mm, ø 39.1mm |
| FF 5.7K 3:2 | 5760×3700, 0.2~50fps Codec: up to ProRes 4444XQ Optical Format: 34.5×22.2mm, ø 41.0mm |
| FF 6K UHD | 5760×3240, 0.2~58fps Codec: up to ProRes 4444XQ Optical Format: 34.5×19.5mm, ø 39.6mm |
| FF 5.7K 2.4:1 | 5760×2400, 0.2~75fps Codec: up to ProRes 4444XQ Optical Format: 34.5×14.4mm, ø 37.4mm |
| FF 5K 4:3 | 5120×3700, 0.2~50fps Codec: up to ProRes 4444XQ Optical Format: 30.6×22.3mm, ø 37.9mm |
| FF 5K DCI | 5120×2700, 0.2~70fps Codec: up to ProRes 4444XQ Optical Format: 30.6×16.2mm, ø 34.6mm |
| FF 5K 2.4:1 | 5120×2160, 0.2~86fps Codec: up to ProRes 4444XQ Optical Format: 30.6×12.9mm, ø 33.2mm |
| FF 4.6K 6:5 | 4608×3700, 0.2~50fps Codec: up to ProRes 4444XQ Optical Format: 27.6×22.3mm, ø 35.5mm |
| FF 3.8K 3:2 (OS) | 3840×2460, 0.2~50fps Codec: up to ProRes 4444XQ Optical Format: 34.5×22.2mm, ø 41.0mm |
| FF 4K UHD (OS) | 3840×2160, 0.2~58fps Codec: up to ProRes 4444XQ Optical Format: 34.5×19.5mm, ø 39.6mm |
| FF 3.8K 2.4:1 (OS) | 3840×1600, 0.2~75fps Codec: up to ProRes 4444XQ Optical Format: 34.5×14.4mm, ø 37.4mm |
| FF 3.4K 4:3 (OS) | 3456×2460, 0.2~50fps Codec: up to ProRes 4444XQ Optical Format: 31.0×22.1mm, ø 38.1mm |
| FF 3K 6:5 (OS) | 3072×2460, 0.2~50fps Codec: up to ProRes 4444XQ Optical Format: 27.6×22.3mm, ø 35.3mm |
| Recording Formats — S35 Crop | |
| S35 4K 3:2 | 4096×2700, 0.2~70fps Codec: up to ProRes 4444XQ Optical Format: 24.5×16.1mm, ø 29.3mm |
| S35 4K DCI | 4096×2160, 0.2~112fps Codec: up to ProRes 4444XQ Optical Format: 24.5×12.9mm, ø 27.7mm |
| S35 4K 2.4:1 | 4096×1720, 0.2~140fps Codec: up to ProRes 4444XQ Optical Format: 24.5×10.3mm, ø 26.6mm |
| S35 4K UHD | 3840×2160, 0.2~112fps Codec: up to ProRes 4444XQ Optical Format: 23.0×12.9mm, ø 26.4mm |
| S35 3.8K 2.4:1 | 3840×1600, 0.2~150fps Codec: up to ProRes 4444XQ Optical Format: 23.0×9.6mm, ø 24.9mm |
| S35 3.6K 4:3 | 3712×2700, 0.2~70fps Codec: up to ProRes 4444XQ Optical Format: 22.2×16.1mm, ø 27.4mm |
| S35 3.2K 6:5 | 3328×2700, 0.2~70fps Codec: up to ProRes 4444XQ Optical Format: 19.9×16.1mm, ø 25.6mm |
| S35 2.7K 1:1 | 2688×2688, 0.2~70fps Codec: up to ProRes 4444XQ Optical Format: 16.1×16.1mm, ø 22.8mm |
| S35 2K DCI (OS) | 2048×1080, 0.2~112fps Codec: up to ProRes 4444XQ Optical Format: 24.5×12.9mm, ø 27.7mm |
| S35 2K 2.4:1 (OS) | 2048×860, 0.2~140fps Codec: up to ProRes 4444XQ Optical Format: 24.5×10.3mm, ø 26.6mm |
| S35 2K FHD (OS) | 1920×1080, 0.2~112fps Codec: up to ProRes 4444XQ Optical Format: 23.0×12.9mm, ø 26.4mm |
| S35 1.9K 2.4:1 (OS) | 1920×800, 0.2~140fps Codec: up to ProRes 4444XQ Optical Format: 23.0×9.6mm, ø 24.9mm |
| Recording Formats — Other Cropping | |
| 3K DCI | 3072×1620, 0.2~144fps Codec: up to ProRes 4444XQ Optical Format: — |
| 3K 2.4:1 | 3072×1200, 0.2~195fps Codec: up to ProRes 4444XQ Optical Format: — |
| 3K HD | 2944×1620, 0.2~145fps Codec: up to ProRes 4444XQ Optical Format: — |
| 3K HD 2.4:1 | 2944×1200, 0.2~195fps Codec: up to ProRes 4444XQ Optical Format: — |
| 2K DCI | 2048×1080, 0.2~200fps Codec: up to ProRes 4444XQ Optical Format: — |
| 2K 2.4:1 | 2048×860, 0.2~270fps Codec: up to ProRes 4444XQ Optical Format: — |
| 2K FHD | 1920×1080, 0.2~220fps Codec: up to ProRes 4444XQ Optical Format: — |
| 1.9K 2.4:1 | 1920×800, 0.2~290fps Codec: up to ProRes 4444XQ Optical Format: — |
A010-003-02
Data sheet
- Video Output
- Kinefinity Video Port
SDI - Audio Input
- Built-in microphone
Mini Jack 3.5mm
XLR - Audio Output
- HDMI Embedded
Mini Jack 3.5mm
SDI Embedded - Max Output Resolution
- 6K Open Gate (6016 × 3984) 48 fps
- Output colour sampling
- RGB 4:4:4 12-bit
- Network Connection
- Wi-Fi
- Sensor Size
- Full Frame (36x24mm)
- Lens mount
- Interchangeable mount
KineMOUNT - Internal ND filtres
- No
- Media type
- KineMAG SSD
- Battery Type
- Sony BP-U
V-Mount - Screen Type
- External
- Sensor Resolution
- 24MP
- Sensor Type
- CMOS
- Image Stabilization
- No
- ISO Sensitivity Range
- 160-81920
- Dynamic Range
- 14 stops
- Shutter Type
- Electronic Shutter
- Shutter Speed
- 1/2000s-1/24s
- Bit Depth
- 12-bit
- Viewfinder Type
- External
- Focus Mode
- Manual
- Internal Recording Modes
- ProRes 422
ProRes 422 HQ
ProRes 4444
ProRes 4444XQ
ProRes LT
RAW CinemaDNG - External Recording Modes
- RAW CinemaDNG
- Timecode
- Yes
- Genlock
- No
Specific References
- ean13
- 6153051780781
- mpn
- A010-003-02
