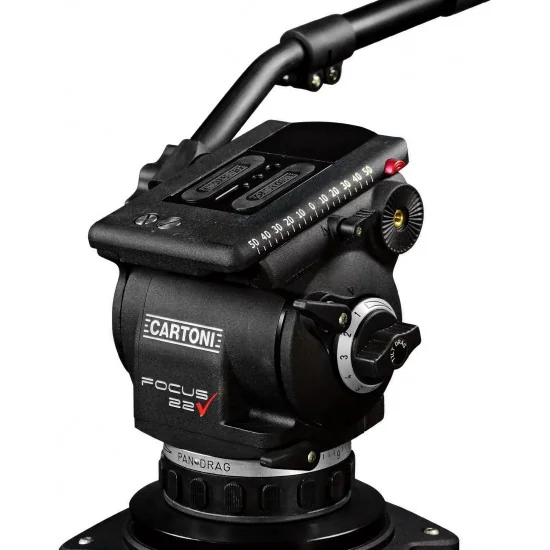

Cartoni Focus 22 150 Video Fluid Head
€3,899.00
Every component of the Cartoni Focus 22 150 passes through the hands of a single engineer at the Cartoni factory in Rome, where 127 individually...

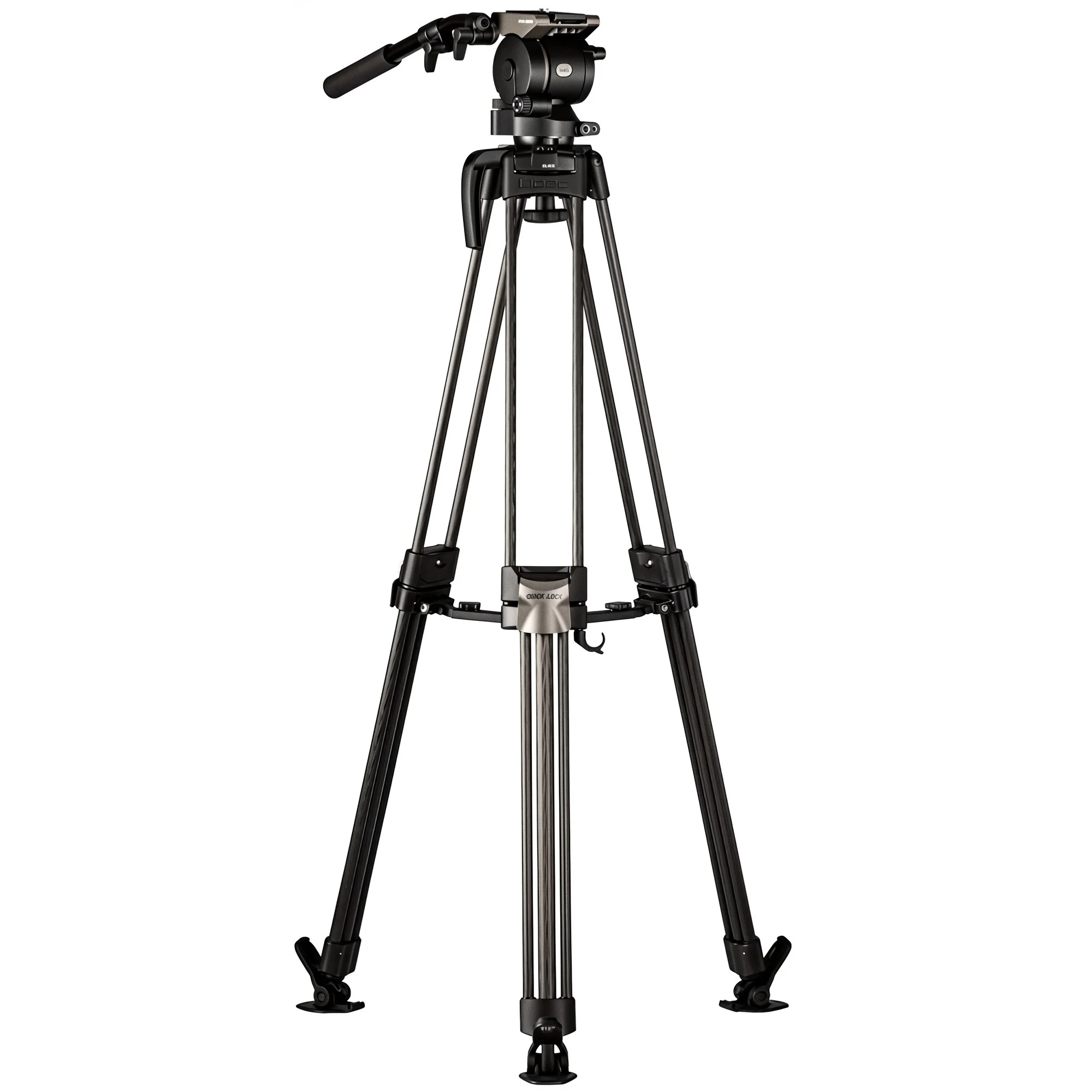

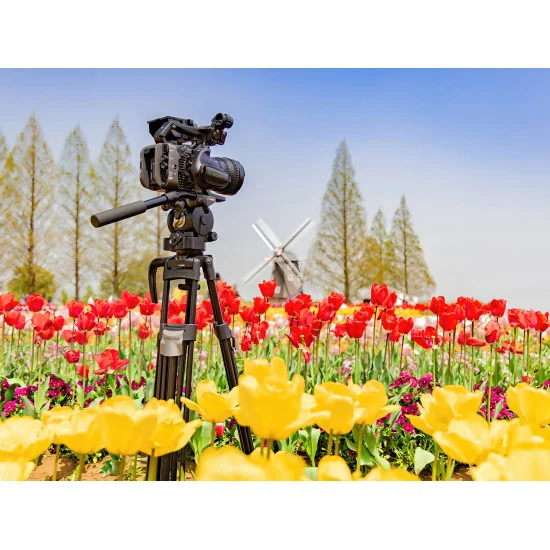

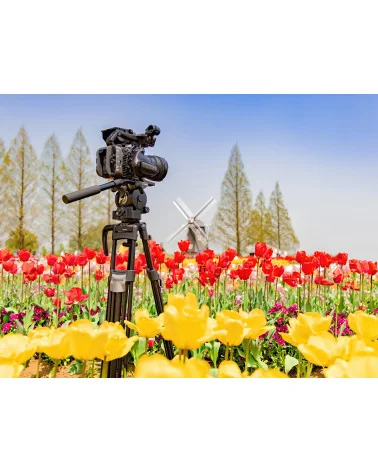

Libec HS-450MQC is a carbon-fiber tripod system pairing the H45 fluid head with QL40C quick-lock legs for broadcast, documentary and commercial crews that need repeatable pans and tilts on accessorised camera builds. The head supports camera packages up to 12 kg and uses a continuous “Perfect Balance” counterbalance (4.5–10.5 kg), so the rig can hold at any tilt angle—critical when working a long zoom or a front-heavy matte box.
For controlled motion, pan/tilt resistance comes from a multilayer metal drag system with Free + 3 stepped drag levels, plus independent pan and tilt locks. The head offers +90° / −70° tilt, an illuminated bubble level for dim studios, and a one-touch snap-on/off sliding plate for fast camera swaps between A/B units. The sliding plate ecosystem stays practical on mixed crews, with compatibility covering common Manfrotto 501/504 plates and Sachtler Sideload S, while camera mounting uses 1/4" and 3/8" screws with a locating pin.

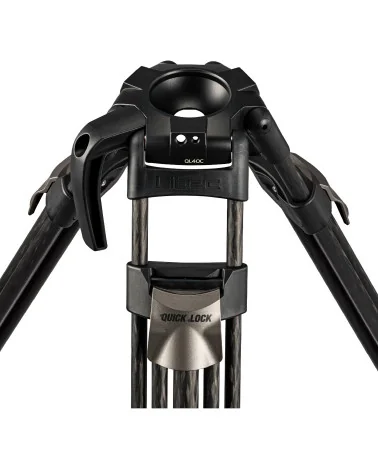

The BR-2B mid-level spreader keeps leg geometry stable on stairs, cobblestones or OB-van cable runs where a ground spreader can’t sit flat, while carbon legs keep torsional stiffness high for live pans. QL40C’s single-action leg locks secure both stages in one move, reducing downtime when repositioning during ENG, sports or run-and-gun streaming. The head’s 75 mm half-ball also converts to a threaded flat base (3/8"-16), so the same head can move onto sliders, skater dollies or flat platforms without extra adapters.
The kit ships as a complete working package: head, legs, spreader, FP-1B rubber feet and carry bag. Put it under cinema cameras with V-mount power, shoulder camcorders, teleprompter builds or compact studio rigs; the counterbalance window and drag steps keep moves consistent take after take, even across temperature swings from −40°C to +60°C. Accessory threads on the head/tripod accept monitor arms, wireless receivers or timecode boxes for tidy, production-ready builds.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop

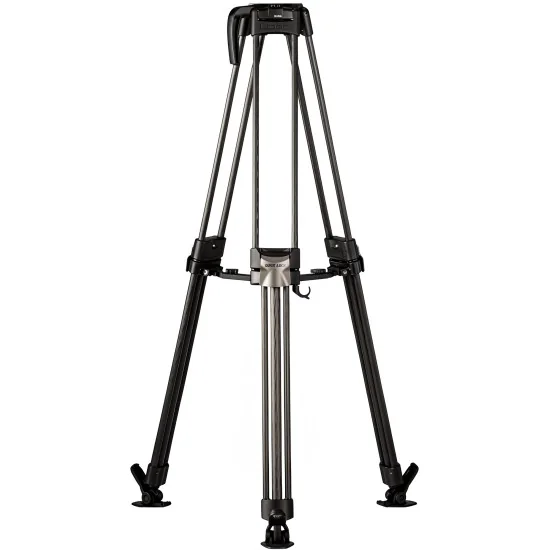

System with mid-level spreader(Carbon pipe)

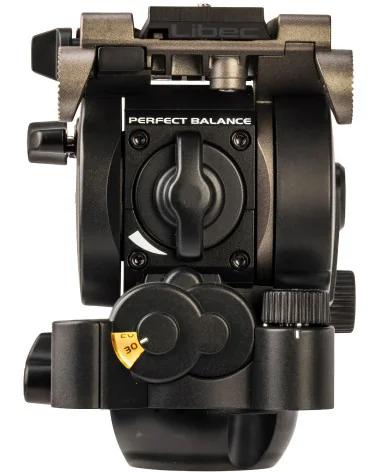

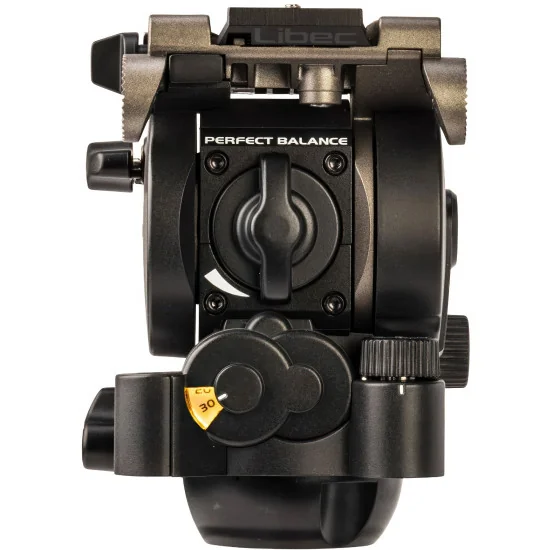

Libec's unique continuous perfect counterbalance system enables the camera to perfectly balance at any tilt angle.

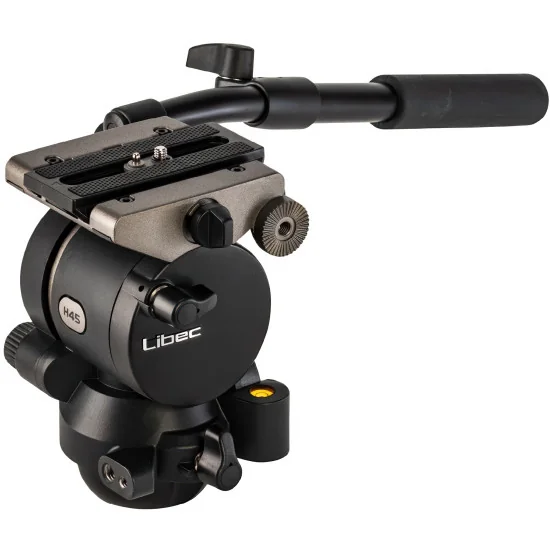

The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup.

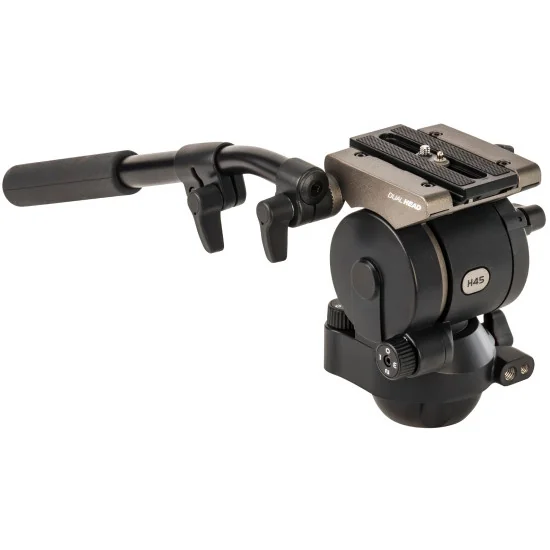

Dual-head specification available for both 75mm bowl and flat base tripods. Mountable on sliders, skater dollies, and other equipment.
By removing the spacer from the bowl clamp, the length of the insertion thread is extended, offering more equipment options that can be attached to the head.

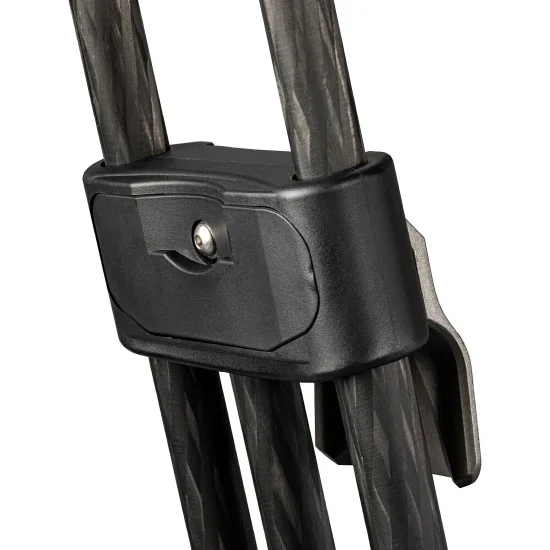

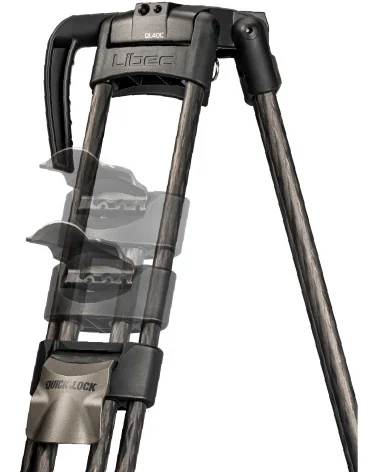

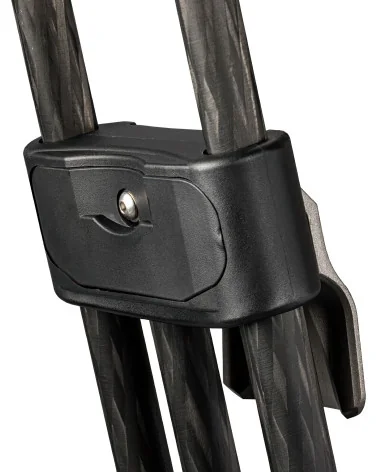

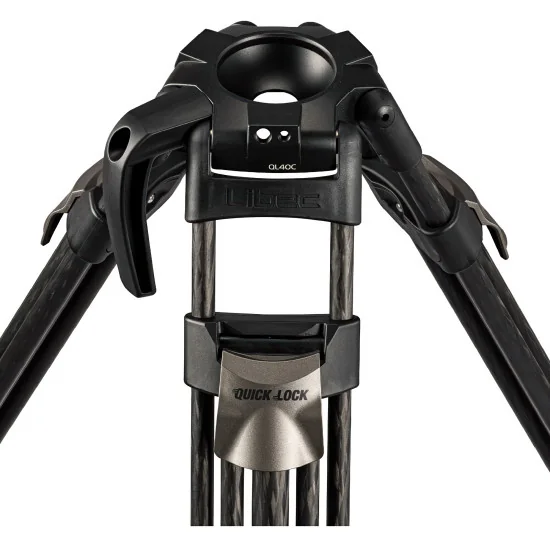

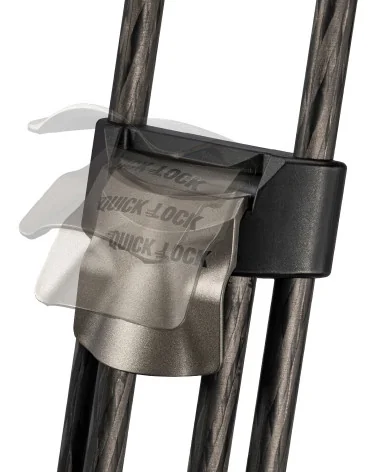

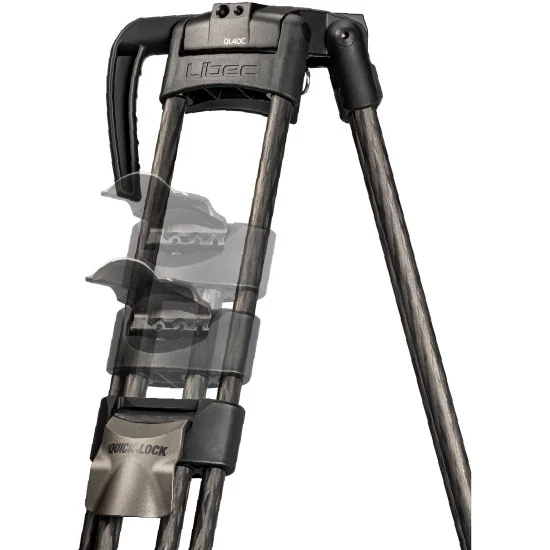

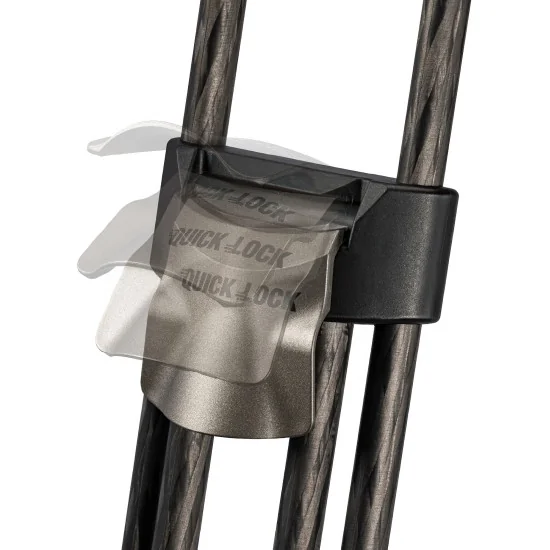

Easy and speedy height adjustments using a one flip lock per leg.
System components
Head: H45
Tripod: QL40C
Spreader: BR-2B
Large rubber feet: FP-1B
Case: RC-30
Specifications
Counterbalance range: 4.5 to 10.5kg / 9.9 to 23.1lb (C.G.100mm)
Payload: 12kg / 26.5lb
Counterbalance: Perfect Balance, Continuous Counterbalance with Illuminated Meter
Drag mode: Free plus 3 steps
Drag system: Multilayered Metal Structure
Tilt angle: +90° to -70°
Temperature range: -40°C to +60°C / -40°F to +140°F
Bubble level: Illuminated
Camera plate: Sliding plate compatible with Manfrotto and Sachtler heads
Sliding range: +/-30mm / +/-1.2"
Long sliding plate: Included
Head base: 75mm ball / Flat base
Plate attachment: 1/4" screw with video pin

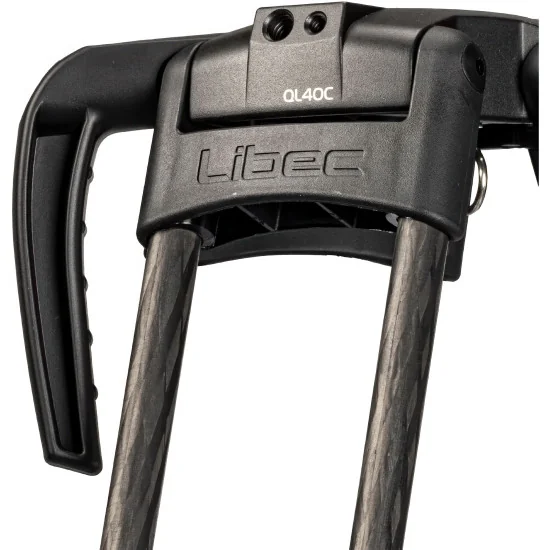

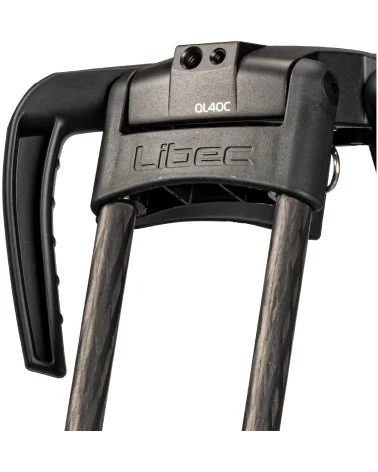

Accessory attachments: Head: 1/4" and 3/8" screw holes, Tripod: 3 sets of 1/4" and 3/8" screw holes
Spare screw: 1/4" and 3/8" screws
Weight: 5.5kg / 12.1lb
Height: 79.5 to 167cm / 31.3 to 65.7"
Head attachment: 75mm bowl
Pipe material: Carbon
Section: 2-Stage
