Libec LX-ePed 2 Studio is an electric video pedestal with dolly built for PTZ camera positions in broadcast studios, streaming sets and fixed multicamera installations. The two-stage column supports PTZ systems up to 10 kg, and the motorized lift adds a 400 mm vertical move for on-air framing changes without touching the camera body. This is especially useful in news rooms, lecture capture, worship production and corporate studios where shot height must be adjusted smoothly while the camera remains locked on subject.
The column moves at a continuous 10-30 mm/s speed and is controlled from the included hand unit with elevation rocker, LED indicators and preset button. Libec also specifies roughly 14-40 seconds for a full movement depending on speed setting, which helps operators execute slow, controlled rises during live programs. The controller connects through a 30 m LAN cable, so the pedestal can stay on set while operation is handled from a control desk, side-stage position or technical area. This layout works well for PTZ control rooms and educational AV studios.
Camera mounting uses a 1/4" screw with video pin, and the top supports a 100 mm bowl; a 75 mm ball configuration can be used with an optional adapter. Two accessory ports with 1/4" and 3/8" threads make it easy to add a monitor, wireless receiver or compact converter directly on the pedestal base. The electric column includes a safety-focused structure to reduce finger pinch risk, and the built-in bubble level speeds up setup before a live session. The Studio version also reaches a high operating position, which is valuable for wide overhead PTZ angles in talk shows and event coverage.
Libec LX-ePed 2 Studio runs on AC 100-240 V and supports optional battery powering for temporary studios, event stages and mobile production spaces. Rated continuous operating time is 3 minutes, with an operating temperature range of -10°C to 40°C. For teams searching for an electric PTZ pedestal, motorized PTZ camera stand or studio PTZ dolly pedestal, this model delivers stable vertical movement, rolling repositioning and precise height control for television and streaming environments.
Libec LX-ePed 2 Studio Electric Video Pedestal with Dolly
LX-EPED 2 STUDIO
Price: €2,699.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Libec LX-ePed 2 Studio is an electric video pedestal with dolly built for PTZ camera positions in broadcast studios, streaming sets and fixed multicamera installations. The two-stage column supports PTZ systems up to 10 kg, and the motorized lift adds a 400 mm vertical move for on-air framing changes without touching the camera body. This is especially useful in news rooms, lecture capture, worship production and corporate studios where shot height must be adjusted smoothly while the camera remains locked on subject.
The column moves at a continuous 10-30 mm/s speed and is controlled from the included hand unit with elevation rocker, LED indicators and preset button. Libec also specifies roughly 14-40 seconds for a full movement depending on speed setting, which helps operators execute slow, controlled rises during live programs. The controller connects through a 30 m LAN cable, so the pedestal can stay on set while operation is handled from a control desk, side-stage position or technical area. This layout works well for PTZ control rooms and educational AV studios.
Camera mounting uses a 1/4" screw with video pin, and the top supports a 100 mm bowl; a 75 mm ball configuration can be used with an optional adapter. Two accessory ports with 1/4" and 3/8" threads make it easy to add a monitor, wireless receiver or compact converter directly on the pedestal base. The electric column includes a safety-focused structure to reduce finger pinch risk, and the built-in bubble level speeds up setup before a live session. The Studio version also reaches a high operating position, which is valuable for wide overhead PTZ angles in talk shows and event coverage.
Libec LX-ePed 2 Studio runs on AC 100-240 V and supports optional battery powering for temporary studios, event stages and mobile production spaces. Rated continuous operating time is 3 minutes, with an operating temperature range of -10°C to 40°C. For teams searching for an electric PTZ pedestal, motorized PTZ camera stand or studio PTZ dolly pedestal, this model delivers stable vertical movement, rolling repositioning and precise height control for television and streaming environments.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop

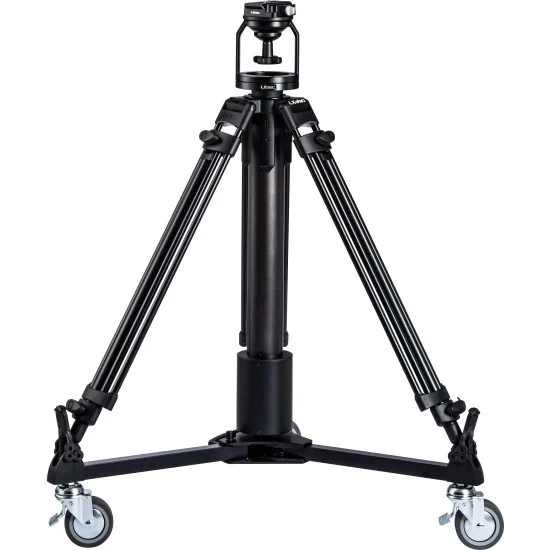

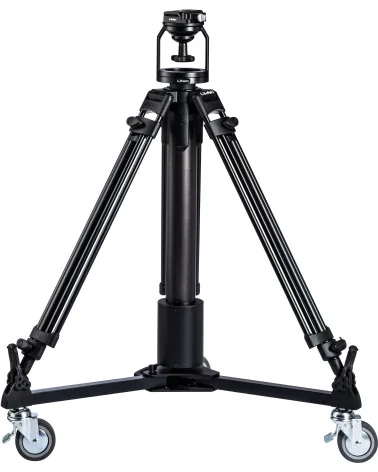

Libec LX-ePed 2 Studio is a motorized base specifically designed for PTZ cameras. The tripod is equipped with a motorized center column, tripod wheels and remote control for easy height adjustment and offers a load capacity of up to 10 kg. It provides a maximum height of 264 cm.
This patented product line is the world's first electric line of PTZ camera bases and is used in all types of PTZ filming in broadcast and production. This new successor model to the Libec LX-ePed Studio now includes preset positions, supports IP connectivity and serial communication when combined with the new optional multi-protocol converter"MPC-1". With it, the LX-ePed 2 Studio can be controlled by PTZ controllers and the original PC application, the LX-ePed PC APP, which offers various optional settings.

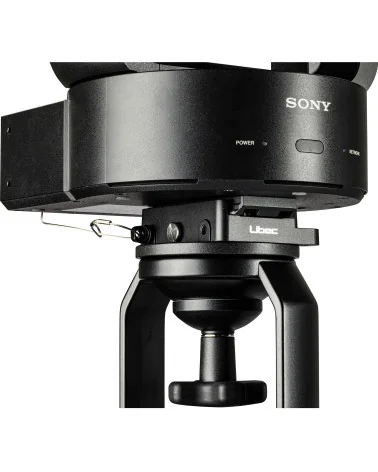

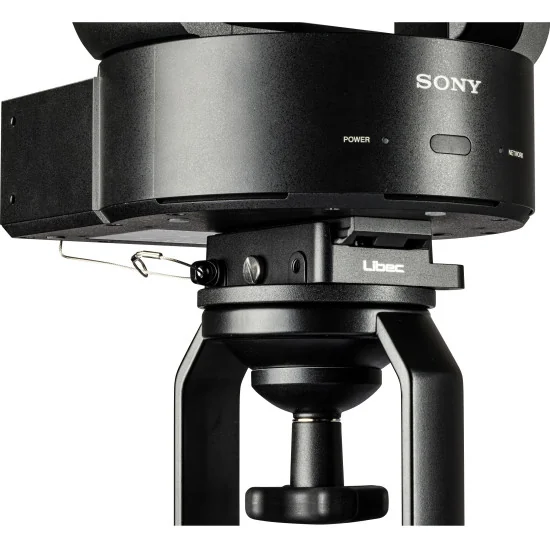

Smart quick release adapter
Included in the package is a smart quick release adapter "AP-X" that allows you to attach/detach your camera more securely, easily and quickly. To prevent the attached PTZ camera from falling, the adapter is equipped with a hole for attaching a safety rope.
IP connection and serial communication
Using the optional multi-protocol converter "MPC-1", the new LX-ePed 2 and LX-ePed 2 Studio models can work with PTZ controllers and the original LX-ePed PC APP, allowing for precise setup. This unique feature enhances the accessibility of the electric pedestal.

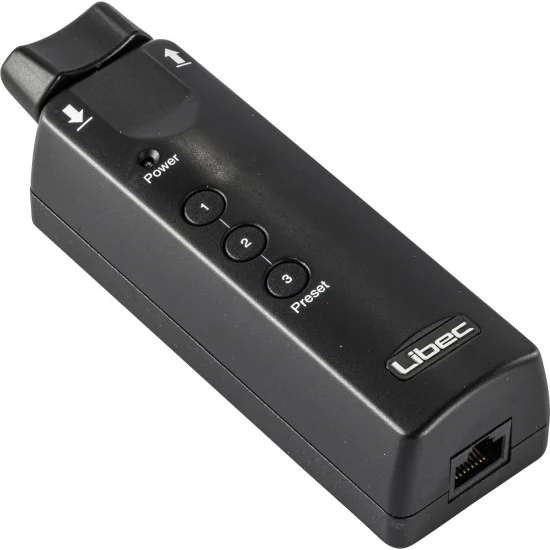

Remote control
The new remote control can store up to three preset positions, making it easy to adjust the height. The remote control adds a lifting element to the pan, tilt and zoom functions. This will provide multiple "viewing angles" and make setup easier.
Smooth and precise movements
The original column mechanism minimizes wobble and spin when the base moves up/down. In addition, the column is mechanically controlled with precision, allowing for smooth starting and stopping movements, making these electric bases ideal for "on shot" scenes.
Continuous speed adjustment
The speed of the top column can be adjusted by tilting the control lever. Slow motion mode allows fine tuning of the settings.
Highly reliable cable connection system
The LX-ePed 2 Studio controller does not use Wi-Fi or Bluetooth, allowing users to focus on shooting without worrying about interference from radio waves. In addition, the controller is powered through the main part of the electrical base, so no additional power source or charger is needed.

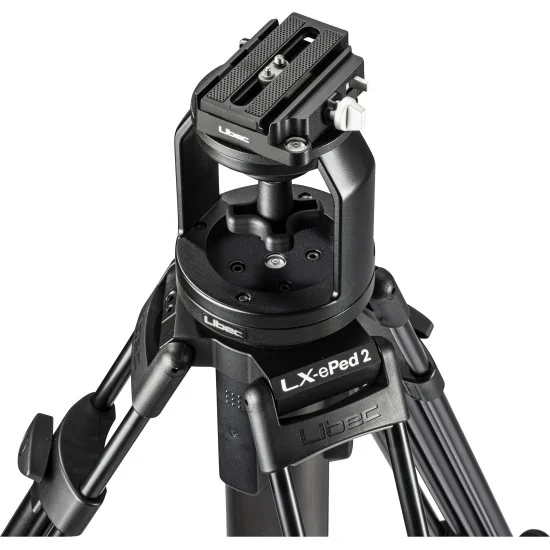

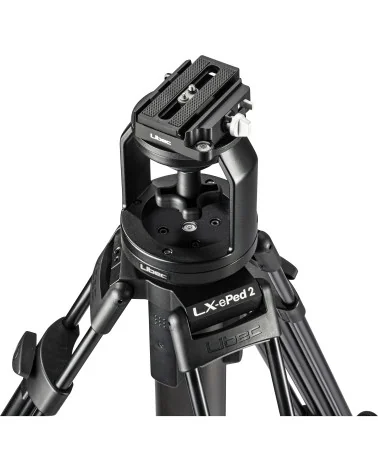

Compatible with flat base with 1/4" and 3/8" screw holes
Includes "AP-X" adapter with 1/4" screw and "BL-F" adapter with 3/8" screw. These adapters support not only PTZ cameras, but also a wide range of devices equipped with 1/4" or 3/8" threads, which can now be mounted on the LX-ePed 2 and LX-ePed 2 Studio.

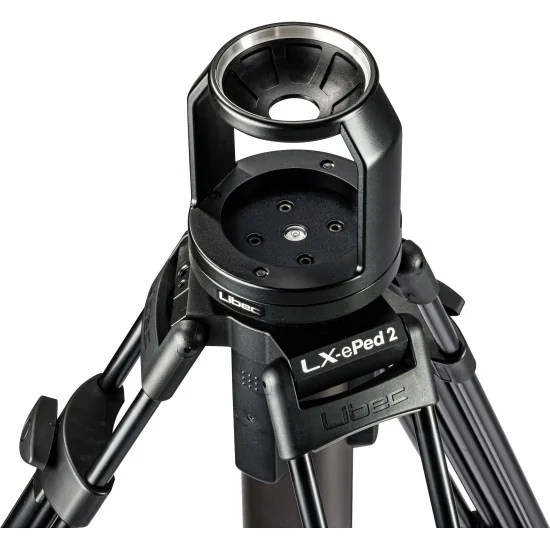

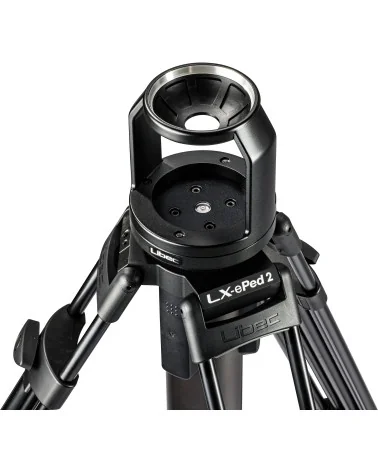

Compatibility with video heads
By removing the "BL-F" adapter component, a video head with a 100mm ball base can be mounted on the LX-ePed 2 and LX-ePed 2 Studio. In addition, by using the optional "AD-75" adapter, a video head with a 75mm ball base can also be mounted.
Compact design
The main unit can be detached from the tripod wheels (dolly) for easy transportation, and all components are collapsible. This compact unit can be stored in the optional RC-80 tripod case.

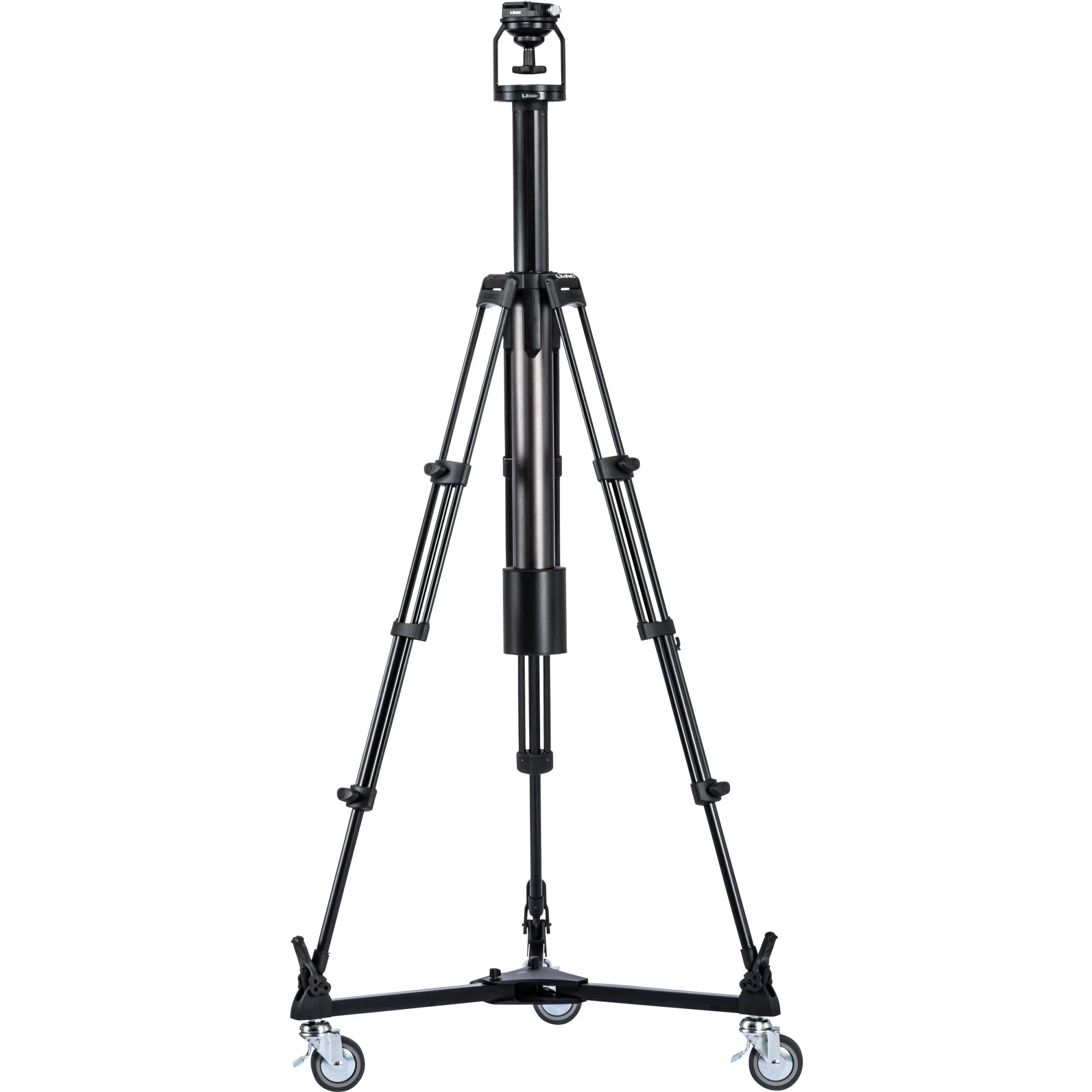

High angle shots
Dynamic high-angle shots can be achieved with a maximum height of 264 cm.
User friendly port for accessories
The accessory port, which has a 1/4" and 3/8" screw hole, is located on two of the three sides of the tripod base.
Safety design
With safety in mind, the power pole is carefully designed to prevent users from injuring their fingers.

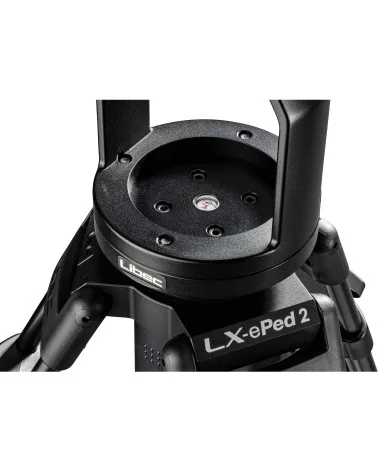

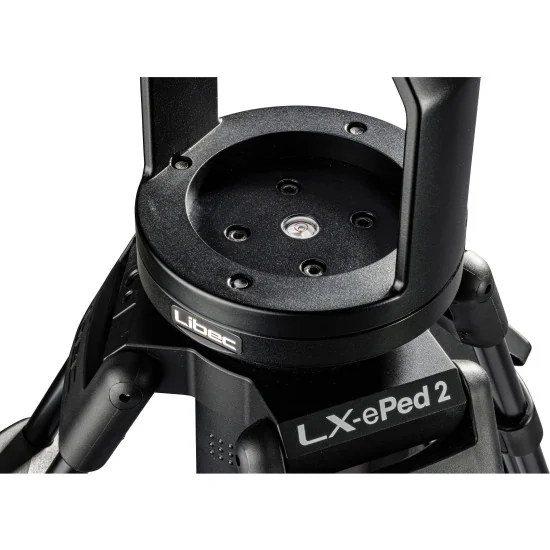

Built-in spirit level
For easy adjustment, a spirit level is built into the base of the head mounting platform.
Technical Specifications:
Load capacity: 10 kg
Elevation: 400 mm
Lifting/lowering speed: Approximately 14 to 40 seconds/movement
Continuous operation time: 3 minutes
LAN cable for controller: 30 m
Power cable: 3 m
Power supply: AC 100V～240V
Operating temperature: -10°C to 40°C
Operating humidity: 0% to 90%
Battery power supply: optional (V-Mount)
Camera mounting: 1/4" screw + video pin
Head attachment: 100mm / 75mm hemisphere (optional)
Accessory attachment: 1/4" and 3/8" x 2 screw holes
Level
Weight: 14.9 kg
Height: 109.5 to 264 cm
Section: 2-stage
LX-EPED 2 STUDIO
Data sheet
- Tripod type
- Pedestal system
- Payload (kg)
- 10
- Maximum Height (cm)
- 264
- Bowl diameter
- 75mm
100mm
Flat Base - Spreader Type
- Ground
- Material
- Aluminium
- Counterbalance
- None
Specific References
- ean13
- 4986397465058
- mpn
- LX-EPED 2 STUDIO
