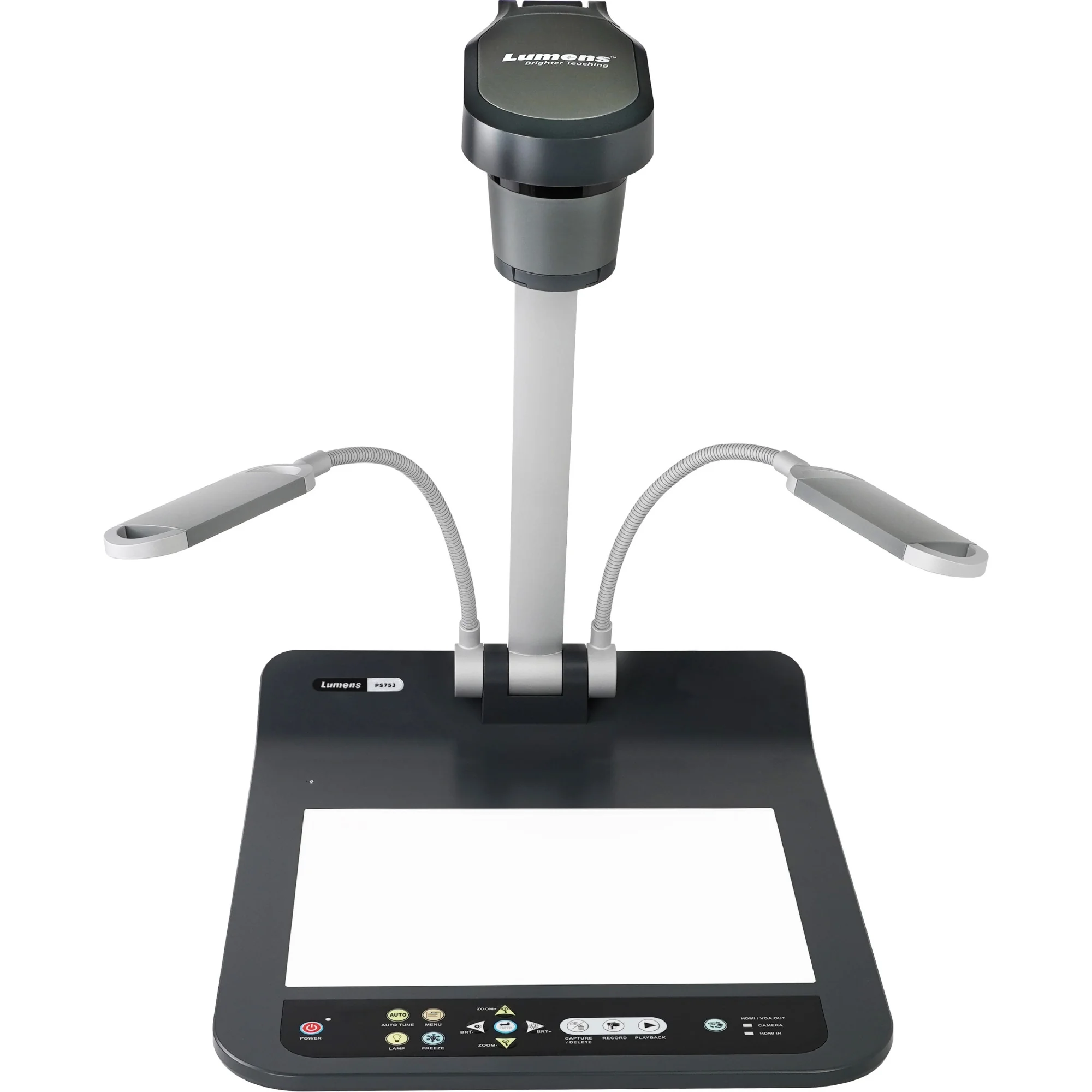

Lumens PS753 V1 4K Desktop Document Camera

Lumens PS753 V1 4K Desktop Document Camera

Name: Lumens PS753 V1 4K Desktop Document Camera
Brand: Lumens
SKU: PS753-V1
Price: 1549.00 EUR
Availability: InStock

MPN: PS753-V1

Price: €1,549.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

Detail decides everything when a printed page, a circuit board or a tissue sample has to read clearly across a room, and that is the demand the Lumens PS753 V1 4K Desktop Document Camera answers. A 1/2.8" 8-megapixel Sony CMOS sensor feeds a true 4K signal at up to 4096 x 2160, holding texture, fine print and colour fidelity steady in real time while keeping image noise in check. Combined optics reach a 300x total zoom, so an operator can frame an A3 layout one moment and isolate a serial number or a soldered joint the next, with ePTZ shifting the frame and nobody touching the stand.

The capture area runs wider than A3, well past 50 x 30 cm, giving demonstrators room to lay out large schematics, an open textbook or a three-dimensional object without cropping. Two LED side lamps ride on bendable gooseneck arms to light a subject from above without glare, while a backlit panel beneath the surface acts as a light table for X-rays, film negatives and transparencies. Auto-Tune sets focus, exposure and colour from one button, and on-screen annotation lets a presenter mark up the live image with only a USB mouse, no host computer in the loop.

Connectivity is where this document camera earns a place in a permanent install. HDMI input with 4K pass-through chains a laptop on to the projector, while HDMI, VGA, USB and IP streaming outputs route the picture wherever the signal chain calls for it. The Ethernet port carries an RTSP H.264 stream and takes PoE+ power, so a single network cable handles data and supply and thins out the cabling behind the lectern. UVC and UAC drivers let the PS753 behave as a plug-and-play camera for Zoom, Teams, Meet or WebEx, and a USB host port writes H.264 1080p straight to a flash drive for sessions that need archiving rather than streaming.

For an integrator weighing reliability against running cost, the practical extras count: image modes for text, film, slide and microscope subjects, freeze, picture-in-picture, mask, spotlight and a lock-down mode for shared rooms. With the bundled Ladibug suite on Windows, macOS and Chrome OS, a Kensington slot, VESA fixing and a five-year manufacturer warranty, the Lumens PS753 V1 suits higher-education lecture capture, medical and laboratory demonstration and corporate briefings alike.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

PS753 - 4K document camera with 300x zoom, HDMI, VGA, USB, and IP streaming.

4K Resolution with 300x zoom
Supports HDMI, VGA, Ethernet, and USB output
Shooting area (20.5" x 12.1") larger than A3
Records to USB drives
HDMI pass-through up to 4K resolution

Superior Image Quality
With a 4K camera and powerful zoom, the PS753 delivers remarkably detailed images to screens and projectors. The high-performance Sony sensor faithfully reproduces textures and colors in real-time, with excellent control over image noise.

Wide Shooting Area
Lumens PS753 is extremely versatile, capable of reproducing documents and objects larger than A3 in size (over 20.5" x 12.1" / 50cm x 30cm). This gives presenters and demonstrators the flexibility that less powerful visualizers cannot match. Where the operator needs a close-up shot, the 300x zoom can capture the finest detail. For maximum versatility, the ePTZ functionality changes the camera angle and position to focus on a specific part of the object. This gives you the precise image you need every time.

Multi-Angle Lighting
The Lumens PS753 has dual lights on adjustable gooseneck mounts: any object is perfectly lit from above without glare or reflections. It also has a backlit LED light under the display area, making the visualizer ready to illuminate photo negatives and X-rays from below.

Easy to Use
Despite its advanced features, Lumens PS753 is very easy to use. The Auto-Tune immediately calibrates the camera to deliver a perfectly focused image with accurate colors. The annotation tool allows the user to draw over the image on the screen without installing any additional software. It’s fast, convenient, and simple to use. Use the included Ladibug software for advanced image control and connect to remote guests using your favorite conferencing platforms, such as Zoom, Meet, Skype, Teams, or WebEx.

Fast Installation
The PS753 is very easy to install. Power is provided over your Ethernet network (PoE) without additional power supplies. The system can output live pictures over a connection that suits the way you work: it links directly to a display or projector over HDMI or VGA or streams images over your network.

Specs.
Image Sensor: 1/2.8" 8M CMOS
Total Pixels: 8.6 MP
Total Zoom: 300x (max.)\
Zoom: 30x
Digital Zoom: 30x (max.)
Output Resolution: XGA / 720p / 1080p / 2160p
Frame Rate: 30fps for All Resolution , 60fps for 1080p and 720p
Shooting Area Max.: 522 x 308 mm (20.5" x 12.1")
Sharpness: MTF 1700 lines (at 2160p)
Focus Mode: Auto / Manual
Image Rotation: 0° / 90° / 180° / 270° / Flip / Mirror
Lamp:
1. Dual LED Side Lamps,
2. Built-in LED Backlight
Arm: Mechanical Arm
Power Supplied: External, 12V DC Adapter (100~240 VAC) / PoE+
Input: HDMIx1 (Support 4K), HDMI Pass-Through
Output: HDMI x1 / VGA x1(up to 1080p) / USB 2.0 / IP Streaming
Control: RS-232 / USB / Ethernet
USB Image Transmission: USB 2.0 (480 Mbps)
Driver: UVC / UAC
USB Host: USB 2.0 Type-A x1 (For Mouse, USB Flash Drive)
Built-in Microphone: Yes
Audio In: Built-in Mic, Line In (3.5mm)
Audio Out: Line Out (3.5mm)
Ethernet: RJ-45 ( PoE+, IEEE802.3at)
IP Stream Format: RTSP (H.264)
Memory Slot: USB 2.0 Flash Drive, Expandable to 4TB
Built-in Memory: 100 JPEG
Auto Tune: Yes, One Button for Optimization Image
Onboard Annotation: Yes, Supports USB Mouse
Image Mode: Photo / Text / Film / Slide / Microscope
Freeze: Yes
Pan: Yes
Picture in Picture (PIP): Yes
Mask / Spotlight: Yes
Lock Down Mode: Yes
Auto Erase: Yes
Image Capture: Single or Continuous Capturing
Standalone AV Recording: Yes, H.264 1080p
Ladibug™ Software: Support Windows 11, 10, 7 / Mac OS X / Chrome OS
Anti-Theft: Kensington Anti-Theft Lock Device
VESA Mount: Yes, 75mm x 75mm
Power Consumption: DC In : 16W / PoE : 18W
Dimensions: (WxHxD):
Folded: 566x385x152 mm
Open : 466x385x588 mm
Weight: 5.6 kg
