The PTZOptics Studio 4K 12x White is a stationary box camera that captures native UHD video at up to 60 frames per second through an 8MP CMOS sensor. Its 12x optical zoom lens spans a focal range from 4.1 mm to 49.2 mm with an aperture between f/1.8 and f/2.68, while a 16x digital zoom extends reach when tighter framing is needed. At full wide, the 72.5° horizontal field of view covers an entire stage, a courtroom bench, or a conference table without extra camera positions. Minimum illumination of 0.5 lux (F1.8, AGC on) keeps the image clean under dimmed studio or worship lighting.
Simultaneous output paths include HDMI 2.0 at full 4K60, 3G-SDI up to 1080p60, and USB 3.0 Type-C at 1080p60 — feeding a switcher, a recorder, and a software encoder at the same time. Over the network, the camera streams natively via NDI|HX2, SRT, and RTMP/RTSP with H.264 or H.265 compression, plugging directly into IP-based production environments and cloud contribution links. A single PoE+ Ethernet cable handles both power and data, cutting cable runs in half for ceiling mounts or fixed-rig positions where a separate power drop adds cost.
Control runs through IP or RS-485 via a built-in terminal block, and automatic linking to PTZOptics Hive Studio opens browser-based remote management from anywhere on the network. A 3.5 mm line-level audio input embeds external sound into the stream; a matching 3.5 mm output provides a confidence feed at the camera position — something live event engineers count on during multi-camera broadcasts. The built-in microphone covers setups where no external audio source is at hand.
Production crews regularly mount the Studio 4K 12x as a locked-off wide shot in concert broadcasts, an overhead document camera in legal proceedings, or a permanent witness camera in council chambers. The white aluminium housing blends into light-coloured settings, and the included IR remote, 12V power supply, and USB A-to-C cable mean the camera ships ready for broadcast, live streaming, corporate AV, or house-of-worship installations.
PTZOptics Studio 4K 12x Zoom Box Camera White
PT12X-STUDIO-4K-WH-G3
Price: €1,090.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
The PTZOptics Studio 4K 12x White is a stationary box camera that captures native UHD video at up to 60 frames per second through an 8MP CMOS sensor. Its 12x optical zoom lens spans a focal range from 4.1 mm to 49.2 mm with an aperture between f/1.8 and f/2.68, while a 16x digital zoom extends reach when tighter framing is needed. At full wide, the 72.5° horizontal field of view covers an entire stage, a courtroom bench, or a conference table without extra camera positions. Minimum illumination of 0.5 lux (F1.8, AGC on) keeps the image clean under dimmed studio or worship lighting.
Simultaneous output paths include HDMI 2.0 at full 4K60, 3G-SDI up to 1080p60, and USB 3.0 Type-C at 1080p60 — feeding a switcher, a recorder, and a software encoder at the same time. Over the network, the camera streams natively via NDI|HX2, SRT, and RTMP/RTSP with H.264 or H.265 compression, plugging directly into IP-based production environments and cloud contribution links. A single PoE+ Ethernet cable handles both power and data, cutting cable runs in half for ceiling mounts or fixed-rig positions where a separate power drop adds cost.
Control runs through IP or RS-485 via a built-in terminal block, and automatic linking to PTZOptics Hive Studio opens browser-based remote management from anywhere on the network. A 3.5 mm line-level audio input embeds external sound into the stream; a matching 3.5 mm output provides a confidence feed at the camera position — something live event engineers count on during multi-camera broadcasts. The built-in microphone covers setups where no external audio source is at hand.

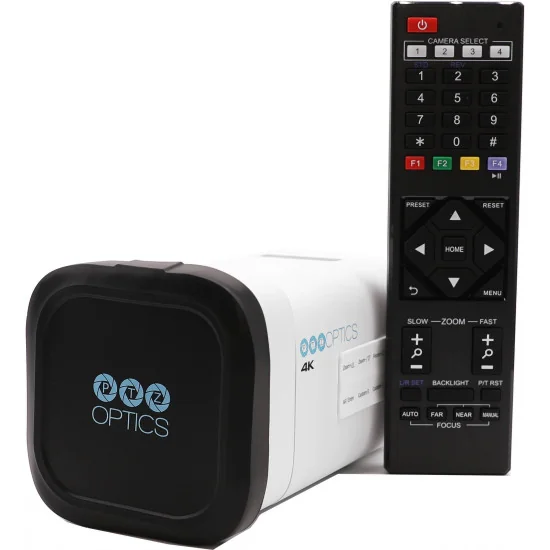

Production crews regularly mount the Studio 4K 12x as a locked-off wide shot in concert broadcasts, an overhead document camera in legal proceedings, or a permanent witness camera in council chambers. The white aluminium housing blends into light-coloured settings, and the included IR remote, 12V power supply, and USB A-to-C cable mean the camera ships ready for broadcast, live streaming, corporate AV, or house-of-worship installations.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The PTZOptics Studio 4K 12X is a high-quality, fixed camera designed to provide exceptional 4K video resolution for a wide variety of video production needs. With its 12X optical zoom, the Studio 4K is perfect for medium to large spaces, enabling clear, detailed shots from distances of up to 27 meters. Whether used as a standalone camera or integrated into a larger production setup, the Studio 4K offers unmatched video quality, making it an ideal choice for streaming, broadcasting, and other professional applications.
The camera is designed for easy connectivity, featuring SDI, HDMI, USB, and IP outputs, as well as native support for NDI® HX3, ensuring seamless integration into various video production environments. Additionally, the Studio 4K is Hive-Linked, which means it can automatically connect to PTZOptics' Hive Studio platform for simple, web-based camera control and management. This future-proof connectivity allows users to manage multiple cameras from a single interface, making the Studio 4K an excellent choice for multi-camera setups and professional live streaming.
With its discreet design and compact form factor, the Studio 4K is a perfect fit for a wide range of applications, including municipal meetings, worship services, sports, and security. As a fixed camera, it also provides reliable performance in courtroom settings. The camera offers a variety of mounting options, making it versatile and adaptable to any production environment. The Studio 4K also comes with a 5-year limited parts and labor warranty, ensuring long-term reliability and peace of mind.
Features and Benefits:
- 4K resolution at 60fps for stunning video quality
- 12X optical zoom for capturing detailed shots from long distances
- NDI® HX3 support for seamless integration into IP-based video production
- Hive-Linked connectivity for simple web-based camera management
- SDI, HDMI, USB, and IP outputs for versatile connectivity
- Compact and discreet design ideal for a variety of production environments
- 255 preset positions for easy camera configuration
- Built-in IR control with 4x IR addresses for flexible operation
- 5-year parts and labor warranty for added peace of mind
Technical Specifications:
Camera & Lens
Image Sensor & Lens: 1/2.8” CMOS, 8MP (8.4M effective pixels)
Digital Zoom: 16x
Resolution and Frame Rate:
HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50
Optical Lens Focal Length (Zoom): 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
Optical Lens Field of View, Horizontal & Vertical: 12x: H 6.9° ~ 72.5° | V 3.9° ~ 44.8°
Display Field of View: 12x: 80.2°
Min Lux: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
Presets: 255 Presets
Presets Accuracy: 0.1°
Image Flip: Supported
Image Mirror: Supported
Image Freeze: Supported
Physical Specifications
Material: Aluminum, Plastic
Color: Gray or White
Dimensions (L x W x H): 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H
Weight: 12x: 1.5 lbs | 0.68kg
Working Environment: Indoor
Humidity Range: 10% ~ 80%
Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature: -40°F ~ 140°F (-40 ~ 60°C)

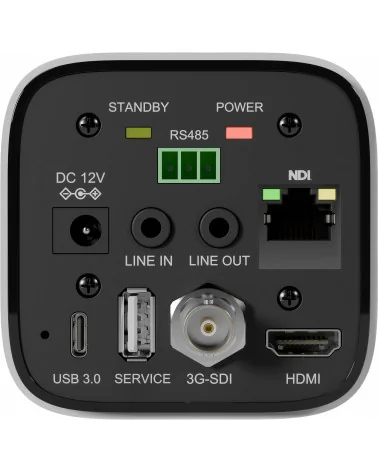

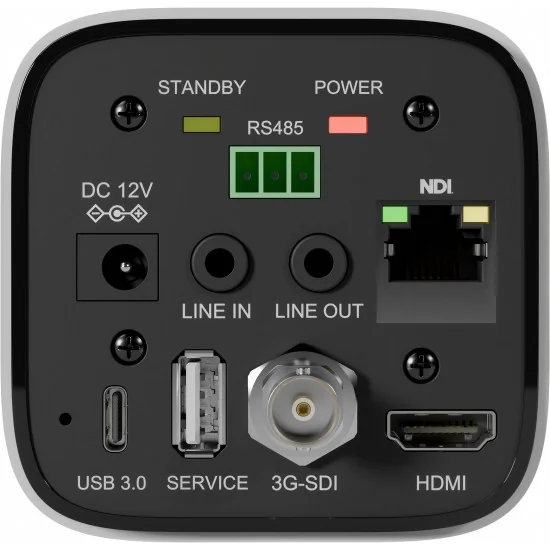

Connections
HD Video Output:
1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI® HX3 enabled
1x HDMI: Version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M
Audio Interface: 1x 3.5mm Line level input, 1x 3.5mm Line level output
Video Formats:
USB:
YUY2: Max resolution 1920x1080p @ 30fps
MJPEG: Max resolution 3840x2160p @ 30fps
H.264 AVC & SVC: Max resolution 3840x2160p @ 30fps
RTSP/NDI® HX3 only: H.265: Max resolution 3840x2160p @ 60fps
Compression Standards: H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX3 only)
UVC Version Supported: UVC 1.1 ~ 1.5
Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc.
IR: 4x IR Addresses, Max distance 30ft / 9m
Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
Current Consumption: Max 2A
Power Consumption: Max 18W
PT12X-STUDIO-4K-WH-G3
6 Items
Data sheet
- Video Output
- HDMI
NDI
RJ-45 (IP)
SDI
USB - Audio Input
- Built-in microphone
Mini Jack 3.5mm - Audio Output
- HDMI Embedded
Mini Jack 3.5mm
NDI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 4K UltraHD (3840 x 2160) 50/60 fps
- Streaming protocols
- Multicast
NDI®|HX 3
ONVIF
RTMP
RTSP
SRT - Network Connection
- Ethernet
- USB video capture
- Yes
- Sensor Size
- 1/2.8"
- Optical Zoom
- 12x
- Interchangeable lens
- No
- Lens mount
- Integrated lens
Specific References
- ean13
- 840170500890
- mpn
- PT12X-STUDIO-4K-WH-G3
