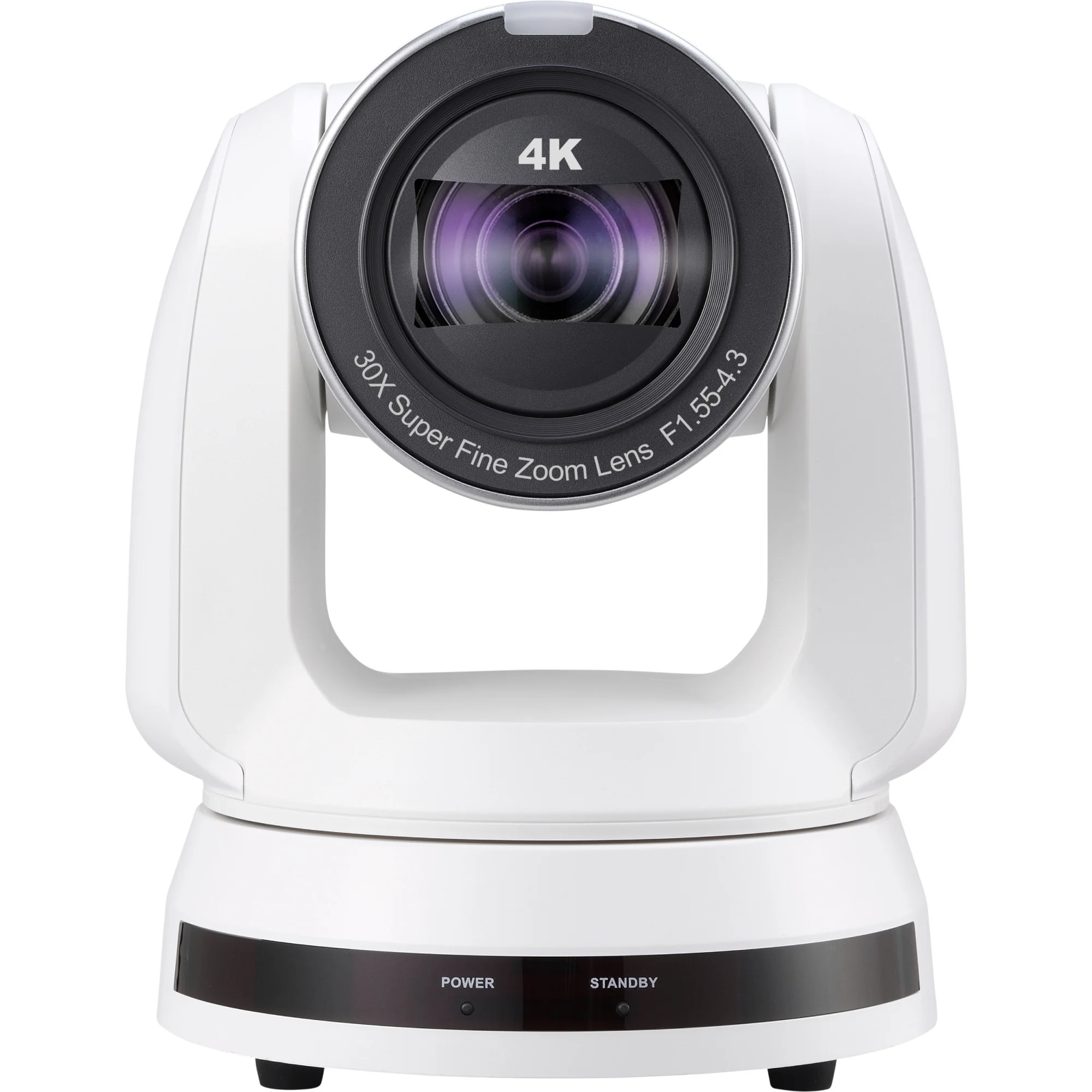

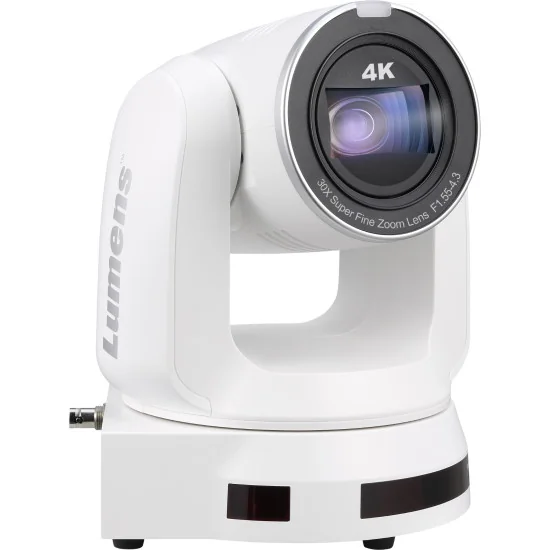

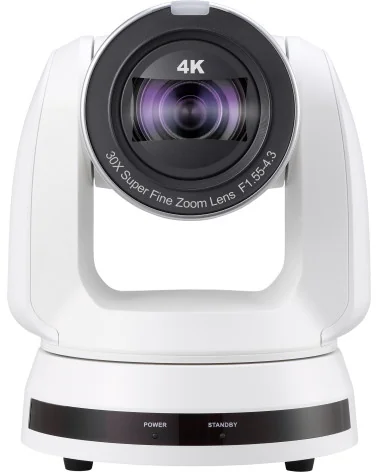

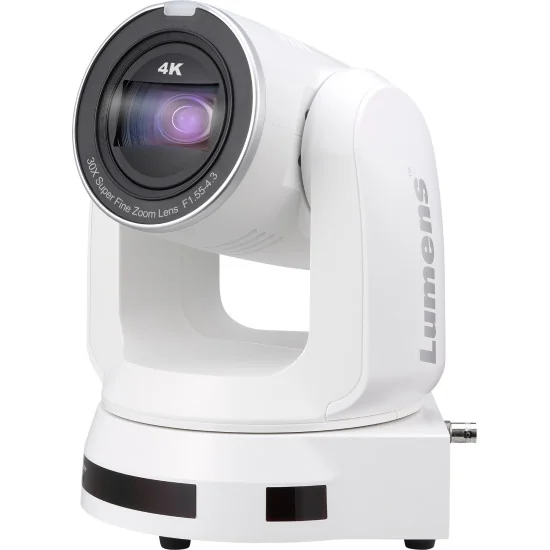

Lumens VC-A71P White PTZ Camera

Name: Lumens VC-A71P White PTZ Camera
Brand: Lumens
SKU: VC-A71P-W
Price: 2599.00 EUR
Availability: InStock

MPN: VC-A71P-W

Price: €2,599.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

In a studio rack, an auditorium balcony or a compact live-switching room, the Lumens VC-A71P-W gives operators a 4K PTZ camera that can feed broadcast hardware, AV-over-IP systems and web distribution from the same camera head. The white body suits bright interiors, while the 1/1.8" 9.17MP CMOS sensor captures UHD video up to 2160p59.94/50 and HD formats down to 720p. For interviews, panel debates, product launches and sports coverage, the 30x optical zoom moves from a 63° horizontal wide shot to tight framing without forcing the camera position closer to the subject.

Signal routing is the main strength of this model. 12G-SDI and HDMI 2.0 serve vision mixers, recorders and production monitors, Ethernet handles IP control and streaming, and USB 3.0 supports computer-based conferencing or capture. IP output covers HEVC/H.265 and H.264 with RTSP, RTMP, RTMPS, MPEG-TS and SRT, so the camera can sit in a local studio, a lecture hall or a remote contribution chain with controlled latency. USB delivery reaches H.264 4K30 or MJPEG 1080p30, useful where a single PTZ feed must enter a software mixer, encoder or conferencing platform.

For multi-camera shows, the Smart AF system tracks human faces with eye and mouth detection, helping presenters stay sharp during reframing. Smart AE, auto/manual white balance, WDR, 3D noise reduction and selectable Standard, BT.2020 or Rec.709 colour spaces give technicians meaningful control over mixed lighting, LED walls or high-contrast conference rooms. The built-in tally light gives on-air status to talent and camera operators, while 256 presets let a director recall repeatable speaker, desk, stage or scoreboard shots without manual re-cueing.

The robotic section is specified for fast, quiet movement: pan range is +170° to -170°, tilt range +90° to -30°, and both axes reach 300°/sec. Power can come from 12 V DC or PoE++ IEEE 802.3bt, reducing cable runs in ceiling, wall or truss installations. With VISCA, VISCA over IP, Pelco D, ONVIF, UVC plus FreeD positional data for VR/AR sets, the Lumens VC-A71P-W fits broadcast studios, live event systems, education capture rooms and hybrid production spaces that need reliable PTZ control and clean 4K signal paths.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Advanced UltraHD pan tilt zoom camera with 12G-SDI, IP, and HDMI outputs.

Key Features:
• 4K UHD 60fps and 1080P 60fps output
• 30x optical zoom, 63° maximum horizontal field of view
• 12G-SDI, HDMI, Ethernet, and USB 3.0 video output
• Triple stream HEVC/H.264 IP video output
• Supports RTSP / RTMP / RTMPS / MPEG-TS / SRT streaming protocols
• Maximum horizontal/vertical speed of rotation: 300° /sec
• Supports Power Over Ethernet (PoE++)
• Smart AF: AI-enabled autofocus system
• FreeD protocol for live VR/AR production
• 5 Year Warranty

Broadcast Quality UltraHD Video
Paired with a low distortion professional zoom lens, the camera's large (1/1.8") CMOS sensor produces great 4K and HD results. Operating in lighting conditions down to 0.05 lux, the smooth video output makes it an ideal camera for producing sports, theatre, and live events. Its excellent color reproduction and 12G-SDI output mean it's a great choice for productions where image quality is of the highest importance.

AV and Broadcast Integration
The VC-A71P integrates with a variety of professional AV, IT, and broadcast workflows. The camera is ready for SDI and HDMI video workflows, IP networks, direct video streaming, and video conferencing via USB 3.0. Each interface will output video simultaneously, creating a flexible installation, monitoring, switching, and distribution options.

Live VR/AR Video Production
VC-A71P supports the popular FreeD protocol which outputs the camera’s positional data over IP in real-time. This enables users to work with state-of-the-art Virtual Reality and Augmented Reality sets without the need for additional sensors.

Control and Power
Lumens’ PTZ cameras offer users a high degree of versatility. The VC-A71P can be powered by a dedicated 12v DC adapter, or via POE++, giving network managers the option to install devices in any position. Multiple control protocols (Visca, Pelco, Onvif and UVC) and interfaces (RS-232, RS-422, Ethernet and USB 3.0) enable cameras to join new or existing networks.

Face Recognition Autofocus System
Equipped with Lumens' Smart AF algorithm, VC-A71P can intelligently identify human faces and automatically detect the eyes and mouth. This enables the camera to keep the subject in sharp focus all the time.

Semi-Autonomous Production
Each camera supports up-to 256 presets, allowing users to switch angles and zoom positions, and engage tracking movements at the touch of a button. The advanced Auto Focus, Auto Exposure and Auto White Balance algorithms automatically deliver consistent images while zooming and panning, or under changing lighting conditions. Together, these advanced functions allow a single operator to manage multiple cameras and to produce multi-camera productions without the need for a large crew.

Applications
• Broadcast and Video Studios: built-in 12G-SDI, IP control and tally lights make VC-A71P and ideal 4K studio camera.
• Live Events and Sports: Shooting UltraHD at 60p delivers smooth, high-quality images, with the zoom lens able to shoot wide and deliver extreme close-ups.
• Next Generation AV Installation: featuring major control protocols and with support for multiple power and video output options, VC-A71P can integrate into the corporate, house of worship and education installations to deliver higher quality results.

Specification:
Sensor: 1/1.8" 9.17MP CMOS
Video Format: 2160p: 59.94 / 50 / 29.97 / 25 , 1080p: 59.94 / 50 / 29.97 / 25 , 1080i: 59.94 / 50 , 720p: 59.94 / 50 / 29.97 / 25

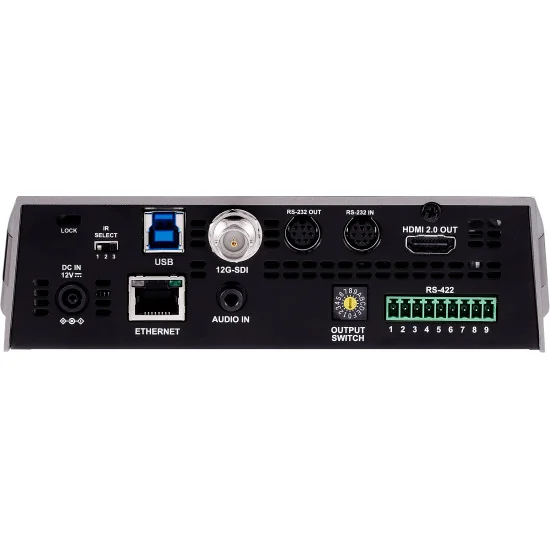

Video Output Interface: 12G-SDI / HDMI 2.0 / Ethernet / USB 3.0
Optical Zoom: 30x
Digital Zoom: 12x
Viewing Angle: 63° (H) 35.4° (V) 72.3° (D)
Aperture: F1.6 ~ F4.8
Focal Length: 6.5mm ~ 202mm
Shutter Speed: 1/1 ~ 1/10,000 sec
Minimum Object Distance: 1.5m (Wide/Tele)
Video S/N Ratio: > 50dB
Minimum Illumination: 0.05 lux (F1.6, 50IRE, 30fps)
Focus System: Auto / Manual / Smart AF
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual / Smart AE
IQ Sync: Yes
WDR: Yes
3D NR: Yes
Image Flip: Yes
Color Space: Standard / BT.2020 / REC.709
AR/VR Systems: FreeD
Tally Light: Yes
Panning Angle: +170° ~ -170°
Panning Speed: 300°/sec
Tilting Angle: +90° ~ -30°
Tilting Speed: 300°/sec
Preset Positions: 256
HDMI / 12G-SDI: 2160p59.94
IP Stream: HEVC 4K 59.94fps , H.264 1080p 59.94fps , H.264 640x360 29.97fps
IP Compression: HEVC(H.265) / H.264
USB Output: H.264 4K30fps , MJPEG 1080p30
USB Compression: H.264 / MJPEG
IP Protocol: RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE: PoE++ (IEEE802.3bt)
Audio Input: Line In / MIC In, Phone Jack 3.5mm x1
Audio Output: Ethernet / 12G-SDI / HDMI 2.0 / USB
Audio Compression Format: IP: G.711 / USB: PCM
Control Interface: RS-232 / RS-422 / Ethernet / USB 3.0/ Remote
Control Protocol: VISCA / VISCAIP / PELCO D / ONVIF
UVC: 1.1
UAC: Yes
DC In: 12V +/- 20%
Power Consumption: PoE: 27.5 W , DC In: 27 W
Weight: 6.6lbs (3 kg)
Dimensions: 9.2" x 7.4" x 7.4" (232 x 188 x 189 mm)

Reference VC-A71P-W

Data sheet

Video Output: HDMI
RJ-45 (IP)
SDI
USB
Audio Input: Mini Jack 3.5mm
Audio Output: HDMI Embedded
RJ-45
SDI Embedded
USB
Max Output Resolution: 4K UltraHD (3840 x 2160) 50/60 fps
Control protocol for PTZ cameras: ONVIF
PELCO-D
RS-232
RS-485
VISCA
VISCA IP
Network Connection: Ethernet
Sensor Size: 1/1.8"
Optical Zoom: 30x
PoE Technology: Yes
Auto-Tracking: No
Tally Light: Yes
