Bolin B2-220 Black PTZ Camera
€890.00
The Bolin B2-220 Black is a compact Full HD PTZ camera for fixed installations where stable 1080p60 video and precise framing are required. A...
Marshall CV620-WI2 is a white Full HD PTZ camera for fixed installations where clean coverage, repeatable framing and low operator load matter more than camera count. It uses a 2 MP Sony IMX327 1/2.8-inch sensor and delivers up to 1080p at 60 fps, with additional 1080p/50, 1080p/25, 1080p/30 and 720p frame-rate options for broadcast, streaming and corporate AV systems. The optical block covers 5.33-110 mm with 20x optical zoom, so the same camera can hold a wide room shot and then move to a tight speaker frame without changing position. Horizontal viewing angle is specified at 57° wide and about 3.7° tele.
For integrators and video teams, the key advantage is simultaneous signal delivery: 3G-SDI, HDMI, USB and IP outputs are available at the same time, which simplifies mixed environments such as SDI production switchers, USB-based conferencing PCs and IP contribution paths running in parallel. The IP stack supports protocols used in real deployments, including RTSP, RTMP, SRT, ONVIF, MPEG-TS and Multicast, and control is available via VISCA, VISCA over IP, ONVIF, RS-232, RS-422 and web GUI/IR control. Marshall also lists Free-D and CGI command support, which is relevant for tracked virtual sets and automation-heavy rooms.
The pan/tilt mechanism provides a wide travel range (±170° pan and -30° to +90° tilt), with fast movement up to 225°/s and quiet motor behavior for live production use. Image tuning includes WDR, 3D noise reduction, image flip, manual or automatic exposure/white balance/gain, plus 128 presets for fast camera recall. A built-in tally light is useful in studios, lecture capture and council chambers, where presenters need a clear on-air indicator.
Marshall positions the CV620 series for broadcast production, live events, houses of worship, education, courtrooms and government spaces, and this fits the specification well. In practice, Marshall CV620-WI2 PTZ camera works as a main camera for small studios, a side-angle unit in hybrid event rooms, a ceiling or wall-mounted source for worship streaming, or a controllable camera for university lecture capture. Power can be supplied by 12 V or PoE, and the Ethernet link can carry control, video, audio and tally in one cable run, which keeps installation cleaner in permanent AV racks and stage environments.

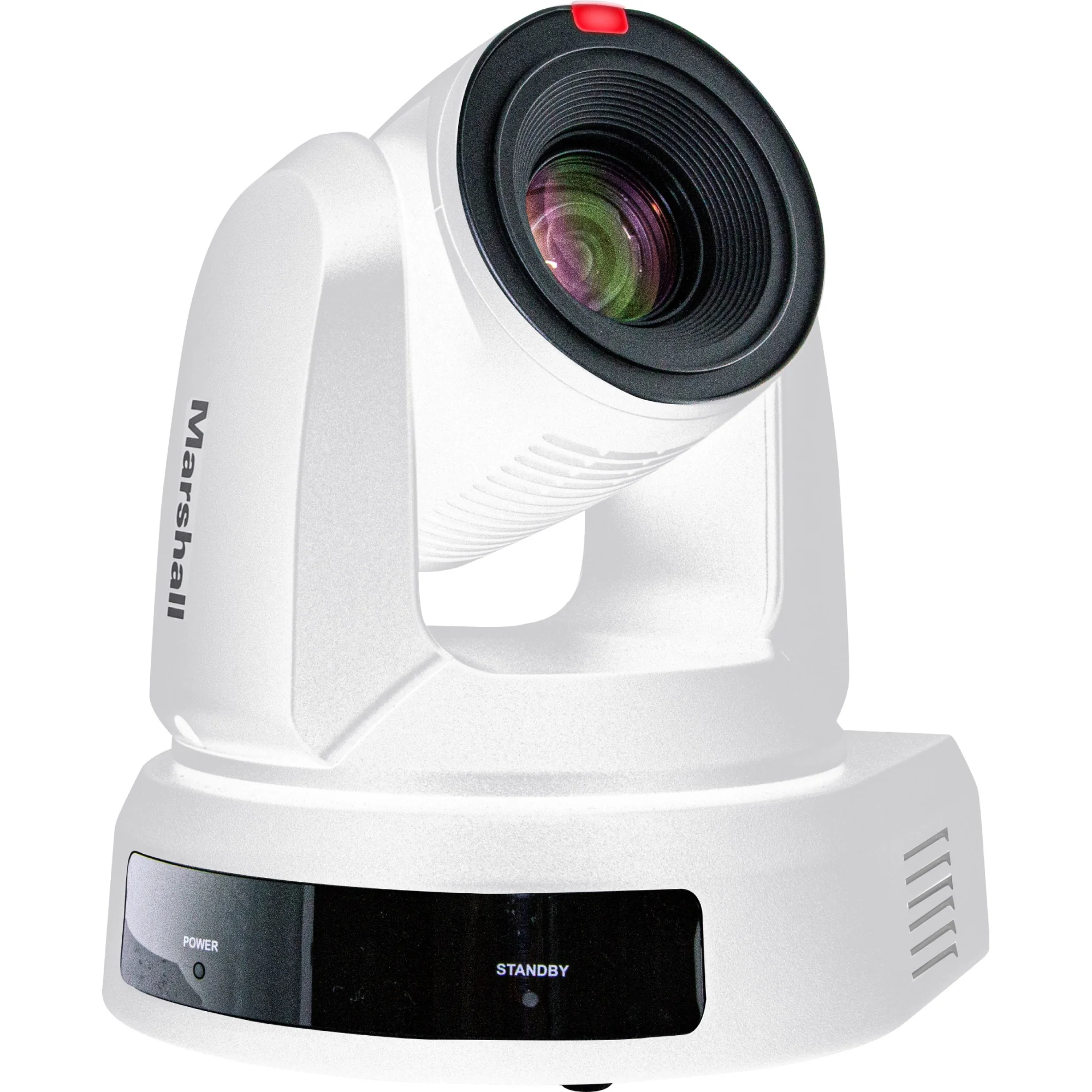

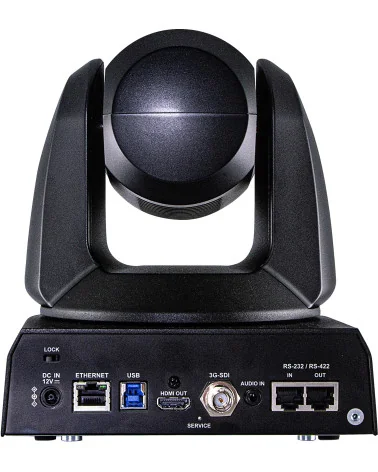

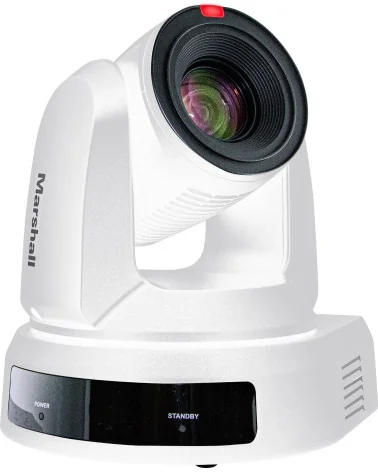

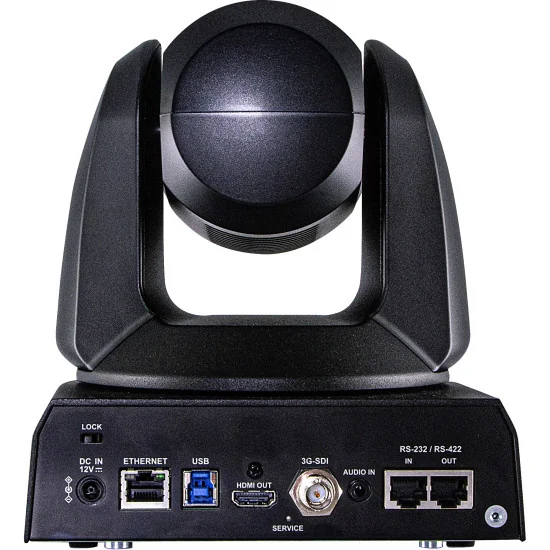

Marshall CV620-WI2 PTZ Camera
CV620-WI2
Price: €1,999.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Marshall CV620-WI2 is a white Full HD PTZ camera for fixed installations where clean coverage, repeatable framing and low operator load matter more than camera count. It uses a 2 MP Sony IMX327 1/2.8-inch sensor and delivers up to 1080p at 60 fps, with additional 1080p/50, 1080p/25, 1080p/30 and 720p frame-rate options for broadcast, streaming and corporate AV systems. The optical block covers 5.33-110 mm with 20x optical zoom, so the same camera can hold a wide room shot and then move to a tight speaker frame without changing position. Horizontal viewing angle is specified at 57° wide and about 3.7° tele.
For integrators and video teams, the key advantage is simultaneous signal delivery: 3G-SDI, HDMI, USB and IP outputs are available at the same time, which simplifies mixed environments such as SDI production switchers, USB-based conferencing PCs and IP contribution paths running in parallel. The IP stack supports protocols used in real deployments, including RTSP, RTMP, SRT, ONVIF, MPEG-TS and Multicast, and control is available via VISCA, VISCA over IP, ONVIF, RS-232, RS-422 and web GUI/IR control. Marshall also lists Free-D and CGI command support, which is relevant for tracked virtual sets and automation-heavy rooms.
The pan/tilt mechanism provides a wide travel range (±170° pan and -30° to +90° tilt), with fast movement up to 225°/s and quiet motor behavior for live production use. Image tuning includes WDR, 3D noise reduction, image flip, manual or automatic exposure/white balance/gain, plus 128 presets for fast camera recall. A built-in tally light is useful in studios, lecture capture and council chambers, where presenters need a clear on-air indicator.
Marshall positions the CV620 series for broadcast production, live events, houses of worship, education, courtrooms and government spaces, and this fits the specification well. In practice, Marshall CV620-WI2 PTZ camera works as a main camera for small studios, a side-angle unit in hybrid event rooms, a ceiling or wall-mounted source for worship streaming, or a controllable camera for university lecture capture. Power can be supplied by 12 V or PoE, and the Ethernet link can carry control, video, audio and tally in one cable run, which keeps installation cleaner in permanent AV racks and stage environments.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Marshall CV620-BI2/WI2 features a 20x optical zoom range and flexible IP, 3GSDI, USB, and HDMI simultaneous outputs with clear Full-HD images up to 1920x1080p at 60fps. Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances via IP, VS-PTC-300 controller, Video Management Software (VMS), Software GUI, OBS Plugins/Docks, vMix and compatible 3rd party control decks.
Key features
- 2 Megapixel Full-HD Sensor (Sony 1/2.8")
- 20x Optical zoom (5.3mm~110mm) starting at 60° H.AOV
- 340° pan and 120° tilt range with various PT selectable speeds
- 3GSDI, HDMI, USB, and IP (H.264) available outputs
- IP formats: HTTP, RTSP, RTMP, RTP, TCP, UDP, SRT, MPEG-TS, ONVIF, Multicast, RTMPS
- Full-HD: 1920x1080p, and 1280x720p
- 60, 50, 30, 25 frames per second
- 3.5mm TRS Stereo Audio (Mic/Line)
- 12V Power cable included (10W max) or PoE+ (10W max)
- Operating Temp: 0 to 40°C, Storage Temp: -20 to 60°C
- Free-D protocol support and CGI protocol commands
Crisp Full-HD Video Output
The CV620-BI2/WI2 cameras are built around a professional-grade, 2-Megapixel 1/2.8-inch Sony sensor, with smooth 20x Optical Zoom (5.3~110mm) outputting HD video up to 1920x1080p60fps, 1920x1080i and 1280x720p.
Versatile Camera Position
The CV620-BI2/WI2 cameras are equipped with synchronous pan, tilt, and zoom motors with various speed adjustment for smooth and silent camera movements during operation. A 20X optical zoom block provides flexibility from 5.3mm to 110mm, maintaining image crispness in wide and tight shots.
Easy I/O and Control
Simultaneous IP, 3GSDI, USB, and HDMI outputs with command options of Visca over IP, RS-422, RS-232, or IR remote control provide flexibility for inclusion in most modern workflows. Also, easy one-cable to camera setup via IP ethernet cable for control, video, audio, tally and PoE+ (power).
Flexible Control Sources
Marshall IP PTZ Cameras are setup to be controlled from IR remote (included), VS-PTC-300 or VS-PTC-200 controllers, Video Management Software (VMS), Software GUI through web, OBS plugins/docks, vMix and other 3rd party software/hardware control decks.
Camera Applications:
Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation
CV620-BI2 / CV620-WI2 Specifications:
Sensor: SONY IMX327
Video Format:
1080p/60,1080p/30
1080p/50,1080p/25
720p/60, 720p/30
720P/50, 720P/25
Video Output (HD) Interface: 3G-SDI / HDMI / Ethernet/USB
Optical Zoom: 20X max
Horizontal Viewing Angle: Wide=57° (+/-5%), Tele ≒3.7° (+/-5%)
Panning Angle: +/-170°
Panning Speed: 225°/sec
Tilting Angle: -30 °～+90°
Tilting Speed: 225°/sec
Aperture: Fno1.6~Fno3.8
Focal Length (lens spec): 5.33~110 mm
Shutter Speed: 1/25 to 1/10,000 s
Minimum Object Distance: ∞~1.5m
Focus System: Auto / Manual / Smart AF(TBD)
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
Preset Positions: 128
Control Interface: VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote
Control Protocol: VISCA / VISCA IP /ONVIF / UVC /HTTP CGI command/UAC
Tally Light: Yes
PoE: IEEE 802.3af(PoE)
Video Stream: HTTP，RTSP，RTMP，RTP， TCP， UDP，SRT，MPEG-TS，ONVIF, Multicast、RTMPS、ONVIF (Profile S) can support Windows 10
Video Compression: H264: 25/30/50/60 fps 1080p/720p, MJPEG 1080p 30/15 fps
Audio Input: Line in/ Mic in
Audio Output: Ethernet / SDI / HDMI/USB
IR Pass-through: No
IR Receiver: Yes
IR Remote Control: Yes
Power Consumption: DC : ≦11W, PoE : ≦12.9W
Weight: 1.9 Kg
Dimensions: 181(L)x195(H)x174(W)
Operating Temperature: 0~40˚C
Storage Temperature: -20°C ~ +60°C
CV620-WI2
Data sheet
- Video Output
- HDMI
RJ-45 (IP)
SDI
USB - Audio Input
- Mini Jack 3.5mm
- Audio Output
- HDMI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 1080p 50/60 fps
- Control protocol for PTZ cameras
- ONVIF
RS-232
RS-422
UVC
VISCA
VISCA IP - Network Connection
- Ethernet
- Sensor Size
- 1/2.8"
- Optical Zoom
- 20x
- PoE Technology
- Yes
- Auto-Tracking
- No
- Tally Light
- Yes
Specific References
- ean13
- 801813233704
- mpn
- CV620-WI2
