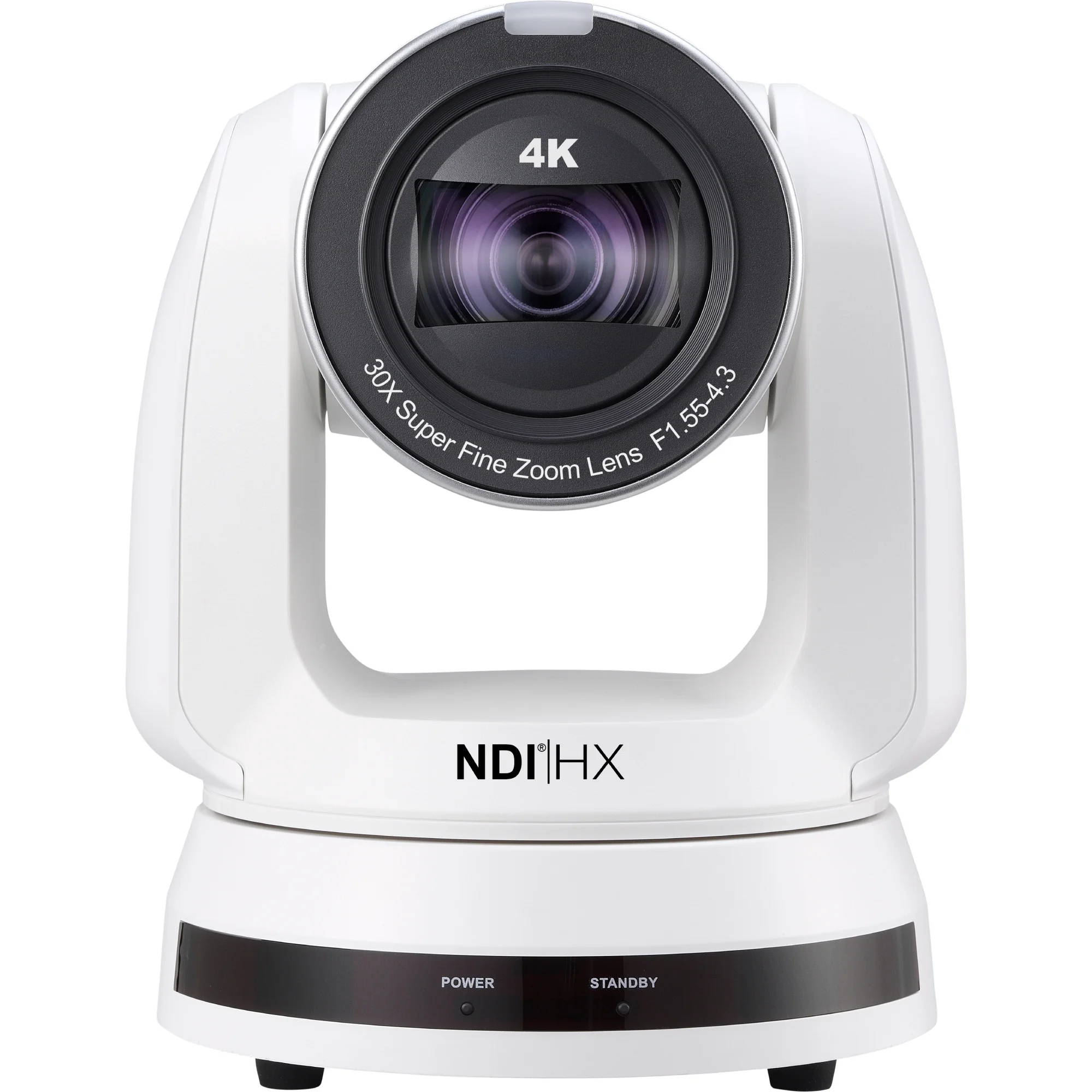

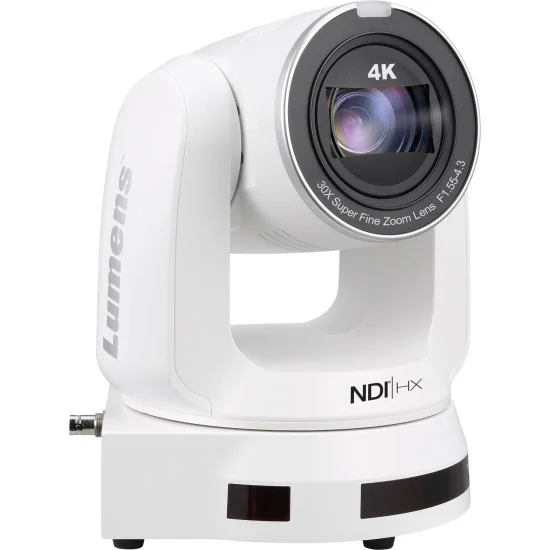

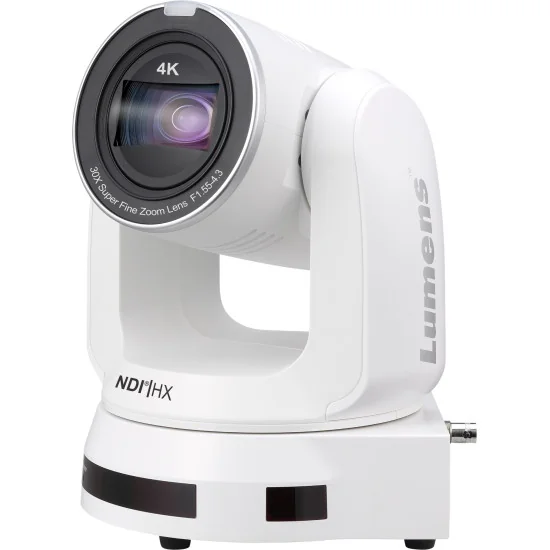

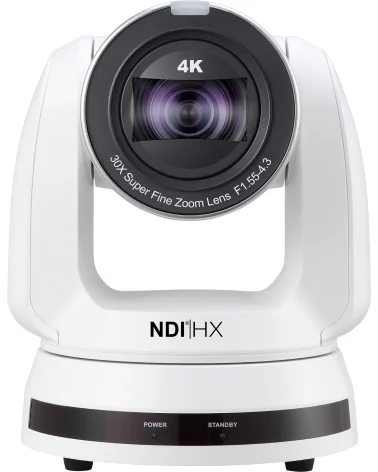

Camera matching in 4K productions becomes far less risky with the Lumens VC-A71SN-W, a white 4K PTZ camera built around a 1/1.8" 9.17 MP CMOS sensor, 30x optical zoom and UHD output up to 2160p59.94/50. The lens covers a 63° horizontal wide view for room coverage and narrows to 3.7° at telephoto, so one unit can frame a presenter, a panel table or a distant stage detail without placing operators near the camera position. Its white finish also suits bright lecture rooms, corporate spaces and event venues where black camera bodies can draw too much attention.
Signal routing is the core strength of this model. 12G-SDI and HDMI 2.0 feed baseband switchers or recorders, while Ethernet carries NDI HX3, NDI HX2, RTSP, RTMP, RTMPS, MPEG-TS and SRT streams with H.264 or HEVC compression. USB 3.0 adds direct UVC capture, including H.264 4K30 and MJPEG 1080p30. For hybrid rooms, lecture capture, corporate webcasts and multi-camera live switching, this keeps the same camera useful across SDI, IP and USB infrastructures.
Image control has been specified for demanding venues rather than simple webcam use. BT.2020, Rec.709 and Standard color modes help match UHD displays, broadcast cameras and production switchers. Smart AF, manual focus, Smart AE, WDR, 3D noise reduction and 0.05 lux sensitivity at F1.6 help maintain usable pictures in mixed lighting. The 3.5 mm line/mic input can be embedded over Ethernet, 12G-SDI, HDMI 2.0 or USB 3.0, reducing separate audio paths in smaller installations.
For operators, the Lumens VC-A71SN-W provides RS-232, RS-422, Ethernet and remote control with VISCA, VISCA over IP, ONVIF, Pelco-D, NDI and UVC. PoE++ can carry power over the network cable, while 256 presets, 300°/sec pan and tilt speed, tally indication and FreeD metadata support precise cues for studios, sports coverage, live events and VR/AR sets. NDI genlock further helps maintain timing discipline in IP-based multi-camera systems.
Camera matching in 4K productions becomes far less risky with the Lumens VC-A71SN-W, a white 4K PTZ camera built around a 1/1.8" 9.17 MP CMOS sensor, 30x optical zoom and UHD output up to 2160p59.94/50. The lens covers a 63° horizontal wide view for room coverage and narrows to 3.7° at telephoto, so one unit can frame a presenter, a panel table or a distant stage detail without placing operators near the camera position. Its white finish also suits bright lecture rooms, corporate spaces and event venues where black camera bodies can draw too much attention.
Signal routing is the core strength of this model. 12G-SDI and HDMI 2.0 feed baseband switchers or recorders, while Ethernet carries NDI HX3, NDI HX2, RTSP, RTMP, RTMPS, MPEG-TS and SRT streams with H.264 or HEVC compression. USB 3.0 adds direct UVC capture, including H.264 4K30 and MJPEG 1080p30. For hybrid rooms, lecture capture, corporate webcasts and multi-camera live switching, this keeps the same camera useful across SDI, IP and USB infrastructures.
Image control has been specified for demanding venues rather than simple webcam use. BT.2020, Rec.709 and Standard color modes help match UHD displays, broadcast cameras and production switchers. Smart AF, manual focus, Smart AE, WDR, 3D noise reduction and 0.05 lux sensitivity at F1.6 help maintain usable pictures in mixed lighting. The 3.5 mm line/mic input can be embedded over Ethernet, 12G-SDI, HDMI 2.0 or USB 3.0, reducing separate audio paths in smaller installations.
For operators, the Lumens VC-A71SN-W provides RS-232, RS-422, Ethernet and remote control with VISCA, VISCA over IP, ONVIF, Pelco-D, NDI and UVC. PoE++ can carry power over the network cable, while 256 presets, 300°/sec pan and tilt speed, tally indication and FreeD metadata support precise cues for studios, sports coverage, live events and VR/AR sets. NDI genlock further helps maintain timing discipline in IP-based multi-camera systems.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
NDI|HX3 Technology
VC-A71SN supports the latest version of the NDI protocol, NDI®|HX3. It delivers very high-quality video with ultra-low latency and connects directly to NDI® networks.
4K NDI® PTZ Camera with NDI®|HX3 and 12G-SDI
- 2160p 60, 30x optical zoom, 1/1.8” Sensor
- 12G-SDI, HDMI, Ethernet, USB3.0 output
- Support NDI|HX3 / NDI|HX2 / RTSP / RTMP / RTMPS / MPEG- TS / SRT
- Support FreeD protocol for live VR/AR production
- Support BT.2020 color space
12G-SDI
Lumens VC-A71SN is equipped with an 12G-SDI video output. This port delivers UltraHD at up-to 60 frames a second, meaning it can capture fast motion and deliver smooth video output.
BT.2020/Rec.709
Lumens VC-A71SN supports the BT.2020 color gamut for wide and precise color reproduction. With BT.2020, VC-A71SN will be easy to match other cameras and deliver video output optimized for new generation UltraHD monitors.
Live VR/AR Video Production
VC-A71SN supports the FreeD protocol. This enables users to work with Virtual Reality and Augmented Reality sets without the need for additional sensors.
Smooth PTZ Movement
With high-precision motor control and Lumens’ innovative mechanical transmission mechanism, VC-A71SN achieves smooth, high-speed movement without any judder. The speed of movement is fully customizable.
Specification:
Sensor: 1/1.8" 9.17 MP CMOS
Video Format: 2160p: 59.94 / 50 / 29.97 / 25 , 1080p: 59.94 / 50 / 29.97 / 25 , 1080i: 59.94 / 50 , 720p: 59.94 / 50
Video Output (HD) Interface: 12G-SDI / HDMI 2.0 / Ethernet / USB 3.0
Optical Zoom: 30x
Digital Zoom: 12x
Horizontal Viewing Angle: 63° (Wide) to 3.7° (Tele)
Vertical Viewing Angle: 35.4° (Wide) to 2.1° (Tele)
Diagonal Viewing Angle: 72.3° (Wide) to 4.2° (Tele)
Aperture: F1.6 ~ F4.8
Focal Length: 6.5mm ~ 202mm
Shutter Speed: 1/1 ~ 1/10,000 sec
Minimum Object Distance: 1.5m (Wide / Tele)
Video S/N Ratio: > 50dB
Minimum Illumination: 0.05 lux (F1.6, 50IRE, 30fps)
Focus System: Auto / Manual / Smart AF
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual / Smart AE
IQ Sync: Yes
WDR: Yes
3D NR: Yes
Image Flip: Yes
Color Space: Standard / BT.2020 / REC.709
AR/VR Systems: FreeD
NDI Genlock: Yes
Tally Light: Yes
Panning Angle: +170 ~ -170°
Panning Speed: 300°/sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 300°/sec
Preset Positions: 256
HDMI / 12G-SDI: 2160p 59.94
IP Stream: NDI : HEVC 4K 59.94fps , H.264 640x360 29.97fps or RTSP : HEVC 4K 59.94fps , H.264 1080p 59.94fps , H.264 640x360 29.97fps
IP Compression: HEVC / H.264
USB Output: H.264 4K 30fps , MJPEG 1080p 30fps
USB Compression: H.264 / MJPEG
IP Protocol: NDI|HX3 / NDI|HX2 / RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE: PoE++ (IEEE802.3bt)
Audio Input: Line In/MIC In , Phone Jack 3.5mm x1
Audio Output: Ethernet / 12G-SDI / HDMI 2.0 / USB 3.0
Compression Format: G.711 / USB: PCM

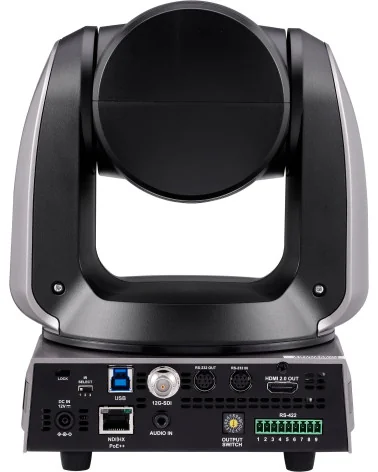

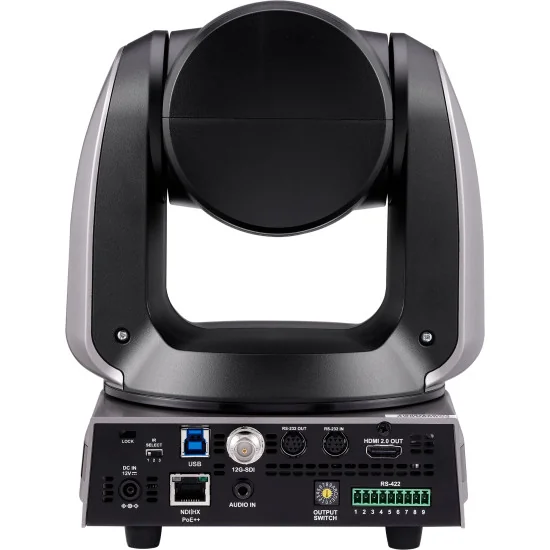

Interface: RS-232 / RS-422 / Ethernet / USB 3.0 / Remote
Protocol: VISCA / VISCAIP / ONVIF / PELCO D / NDI / UVC
DC In: 12V +/- 20%
Power Consumption: PoE : 27.5 W , DC In : 27 W
Weight: 6.6 lbs (3 kg)
Dimensions (WxHxD): 9.1" x 7.4" x 7.4" , (232 x 188 x 189 mm)
