AVMATRIX EAGLE P30-12G-W White PTZ Camera

    EAGLE P30-12G-W
    Price: €1,869.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

    Not every PTZ camera belongs in a broadcast chain with 4K60, long-range framing and direct integration into SDI, USB and IP environments. The AVMATRIX EAGLE P30-12G-W combines a 1/1.8-inch Sony 8.3 MP sensor with a 30x optical zoom, so one camera can cover a lectern, stage, sanctuary, council chamber or studio interview position without losing facial detail. The lens reaches from a 59.2° horizontal view down to 2.5° at the tele end, which helps when the camera has to live far from the subject in auditoriums, conference rooms or sports venues.

    Its signal path suits installations where one camera has to feed several destinations at once. The camera can output HDMI 2.0, dual 12G-SDI, USB 3.0 UVC and LAN streaming simultaneously, with support for UHD 3840 × 2160 at up to 60/59.94p. One output can feed a switcher, another a recorder, USB a conferencing computer, and IP a remote stream. A 3.5 mm line input lets audio travel with video, while H.264, H.265 and MJPEG compression support helps it fit managed network environments.

    Control is equally broadcast-oriented. Pan spans -175° to +175° and tilt runs from -30° to +90°, with variable-speed motion, up to 255 presets, preset freeze, RS232, RS422, VISCA, VISCA over IP, Pelco-D/P, ONVIF and UVC control. That makes the camera easy to tie into joystick controllers, room-control systems, lecture capture platforms or automated multi-camera setups. The white housing is useful in churches, medical spaces, conference interiors and education rooms where a dark body would stand out more on walls or trusses.

    Image control goes beyond basic PTZ operation. The camera offers manual and automatic white balance, focus and iris modes, backlight compensation, brightness, hue, saturation, contrast and sharpness adjustment, plus 2D/3D noise reduction for cleaner images in difficult lighting. FreeD support also opens the door to virtual set and AR production, so the same camera can handle IMAG, streaming, lecture capture, remote hearings and green-screen work. For teams that need a white 12G-SDI PTZ camera with long zoom reach, this model fits broadcast, corporate AV and higher-education rooms with very little compromise.

    Quantity
    Add to Wishlist
    Add to Compare

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    EAGLE P20/P30 Series
    EAGLE P20/P30 adopts a new ROBOTIC concept appearance & U Type design, more stable and more smoothly in Pan/Tilt move. It will provide users with Real 4K@60 ultra-high-definition video experience with More Really, More Colorful, More Clear.

    Equipped with 1/1.8” New Generation Sony 4K High quality Sensor, with 20X/30X multiple Optical Zoom lenses, and abundant Video interface; Support USB3.0、HDMI2.0 and Dual 12G-SDI Video output, and it can support NDI/HX3, which can give User give users the option to join Ultra HD broadcast workflows or transmit low latency UHD video over IP networks; SRT & FreeD Protocol also will be help user in AR/VR filed. And Built-in VISCA/Visca Over IP/ PELCO P/D/ ONVIF communication Protocol to to seamlessly integrate system control applications,

    It can be widely used in Broadcast studios, Education recording, Conferences AV, Telemedicine, Remote training, Court trial systems, Emergency command systems, and Sports & Events Streaming.

    4K Ultra-High-Definition ultimate picture quality, More Really, More Colorful, More clear
    EAGLE P20/P30 Adopt 8.3 Megapixels Sony high quality 4K CMOS sensor, can reach maximum 3840x2160 resolutions and output frame rate up to 60fp &59.94.

    20/30X optical zoom lens to capture every detail of what you need
    Equipped with a 1/1.8" new generation SONY sensor, a variety of optical zoom lenses such as 20x and 30x can be selected. with Fast zoom and focus capabilities to provide clear and smooth images for user.

    Abundant Interface, Max support Dual 12G-SDI video synchronous Video output
    Support HDMI 2.0 HD，2*12G-SDI and IP Streaming/NDI output, USB3.0 uncompressed UVC output, optional SDVoE uncompressed network output, and all HDMI, SDI, IP, USB, SDVoE interfaces can synchronous output 4K60 images, Especial UHD800 Dual SDI Video Output design.Multi-channel SDI signal output can be realized without SDI distributor.

    Live VR/AR video production
    EAGLE P20/P30 supports the FreeD protocol. This enables users to work with Virtual Reality and Augmented Reality sets without the need for additional sensors.

    Support multiple communication ways in remote control
    EAGLE P20/P30 Built-in Multiple Communication Protocol of VISCA/UDP/ONVIF/PELCO/P, PELCO D/UVC. it can support Communition Control by RS485/RS422/RS232/USB3.0/ IP interface.

    More stable and More smoothly & Ultra-silent in Pan/Tilt move
    Using high-precision stepping motor with "U" Type Structure design in our Ultra-unique silent Drive, More stable and More smoothly in Pan/Tilt move, Ultra-silent.

    Supports the preset freeze function, scene switching
    The camera supports the preset freeze function. Users can enable this function and use the preset function to realize free switching of scenes.

    Max Support 255 Presets
    The camera can setting & call Presets max to 255 presets. (The Remote controller max support 10 Presets), You can freely switch the image at will, even in complex scenes，Don't let you miss every important moment.

    IP Streaming in your video production
    Support ONVIF, RTSP, RTMP/s, NDI|HX3, SRT protocols, and can be expanded according to user needs.

    Double Color Tally Light
    The Tally light support 2 kinds of color Red & Green. and the brightness can be adjusted according to customize. Distributed in Front or Behind of Camera.

    360° infrared remote control
    Supports 360° infrared remote control, no matter what angle or position，the user can freely control the camera through Remote Controller.

    Specifications
    Model: EAGLE P30-12G
    CMOS Sensor: 1/1.8” CMOS
    Zoom: 30X
    Effective Pixels: 8.3 Megapixels
    Video Format: 2160P60/59.94, 2160P50, 2160P30/29.97, 2160P/25, 1080P60/59.94, 1080P50, 1080P30/29.97, 1080P25, 1080i60/59.94, 1080i50, 720P60/59.94, 720P50
    Optical Zoom: 30x Optical Zoom, 12X Digital Zoom
    Focal Length: f=7.1~211.95mm
    HFOV: 2.5°(T) ~59.2°(W)
    Iris: F1.61 ~ F5.19
    Min Illumination: 0.05 lux (F1.61)
    Digital Noise Reduction: 2D&3D Noise Reductio
    White Balance: Manual/Auto/Indoor/outdoor/One Push//3000K/4000K/5000K/6500K/ATW
    Focus mode: Manual/Auto/Z- Trigger
    Iris mode: Manual/Auto
    BLC: 1-8/OFF
    Picture adjustment: Brightness, Hue, Saturation, Contrast, Sharpness

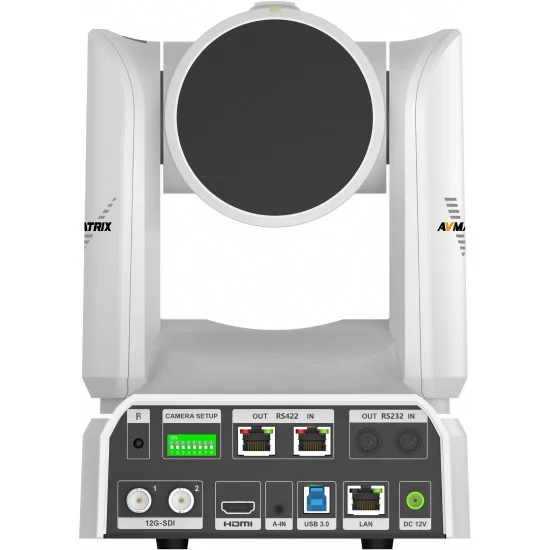

    Video Output Interface: HDMI2.0, 12G-SDI*2, RJ45, USB3.0
    Video Compression Format: H.264, H.265, MJPEG
    Control interface: 1X RS232 IN, 1X RS232 Out, 1X RS422 IN, 1X RS422 Out , 1X RJ45
    Control Protocol: VISCA /PELCO-D / PELCO-P, VISCA OVER IP, ONVIF, UVC（only for USB interface）
    Baud Rate: 2400/4800/9600/19200/38400bps
    Audio Input: Dual channel 3.5mm line input
    Audio Compression: ACC, G711A, G711U
    Network Interface: 1000M Internet Access(10/100BASE-TX)
    Network Protocol: RTSP, RTMP, ONVIF, SRT, GB28181, VPN
    NDI Protocol: Not Support
    Power Interface: DC-038 Outlet(DC12V)
    Pan Rotation Anglee: -175°~+175°
    Tilt Rotation Angle: -30°~+90°
    Horizontal rotation speed range: 0.1~100°/s
    Vertical rotation speed range: 0.1-80°/s
    Presets: Max Support 255 Presets
    Power Adapter: AC100V~AC240V Input, DC12V/2A Output
    Input Voltage: DV12V
    Power Consumption: 15W(MAX)
    Storage Environment: -10°C ~ +60°C / 20% ~ 95%
    Working Environment: -10°C ~ +50°C / 20% ~ 80%

    EAGLE P30-12G-W

    Data sheet

    Video Output
    HDMI
    RJ-45 (IP)
    SDI
    Audio Input
    Mini Jack 3.5mm
    Audio Output
    HDMI Embedded
    RJ-45
    SDI Embedded
    Max Output Resolution
    4K UltraHD (3840 x 2160) 50/60 fps
    Control protocol for PTZ cameras
    ONVIF
    PELCO-D
    PELCO-P
    RS-232
    RS-485
    UVC
    VISCA
    VISCA IP
    Network Connection
    Ethernet
    Sensor Size
    1/1.8"
    Optical Zoom
    30x
    PoE Technology
    Yes
    Auto-Tracking
    No
    Tally Light
    Yes

    Specific References

    mpn
    EAGLE P30-12G-W

    Contact us

    optional

    Reviews

    Write your review

    Write your review

    AVMATRIX EAGLE P30-12G-W White PTZ Camera

    Not every PTZ camera belongs in a broadcast chain with 4K60, long-range framing and direct integration into SDI, USB and IP environments. The AVMATRIX EAGLE P30-12G-W combines a 1/1.8-inch Sony 8.3 MP sensor with a 30x optical zoom, so one camera can cover a lectern, stage, sanctuary, council chamber or studio interview position without losing facial detail. The lens reaches from a 59.2° horizontal view down to 2.5° at the tele end, which helps when the camera has to live far from the subject in auditoriums, conference rooms or sports venues.

    Its signal path suits installations where one camera has to feed several destinations at once. The camera can output HDMI 2.0, dual 12G-SDI, USB 3.0 UVC and LAN streaming simultaneously, with support for UHD 3840 × 2160 at up to 60/59.94p. One output can feed a switcher, another a recorder, USB a conferencing computer, and IP a remote stream. A 3.5 mm line input lets audio travel with video, while H.264, H.265 and MJPEG compression support helps it fit managed network environments.

    Control is equally broadcast-oriented. Pan spans -175° to +175° and tilt runs from -30° to +90°, with variable-speed motion, up to 255 presets, preset freeze, RS232, RS422, VISCA, VISCA over IP, Pelco-D/P, ONVIF and UVC control. That makes the camera easy to tie into joystick controllers, room-control systems, lecture capture platforms or automated multi-camera setups. The white housing is useful in churches, medical spaces, conference interiors and education rooms where a dark body would stand out more on walls or trusses.

    Image control goes beyond basic PTZ operation. The camera offers manual and automatic white balance, focus and iris modes, backlight compensation, brightness, hue, saturation, contrast and sharpness adjustment, plus 2D/3D noise reduction for cleaner images in difficult lighting. FreeD support also opens the door to virtual set and AR production, so the same camera can handle IMAG, streaming, lecture capture, remote hearings and green-screen work. For teams that need a white 12G-SDI PTZ camera with long zoom reach, this model fits broadcast, corporate AV and higher-education rooms with very little compromise.
