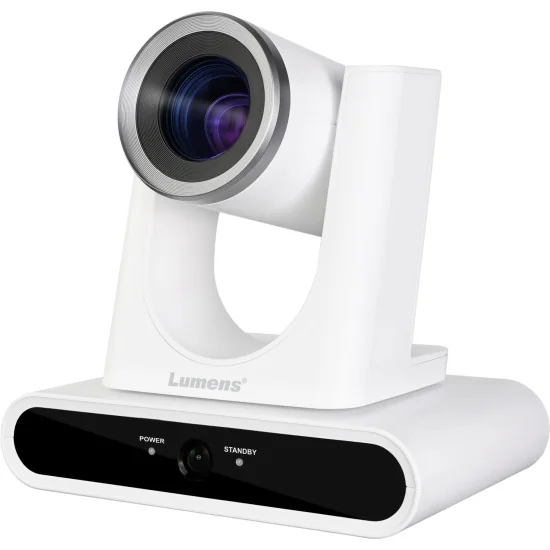

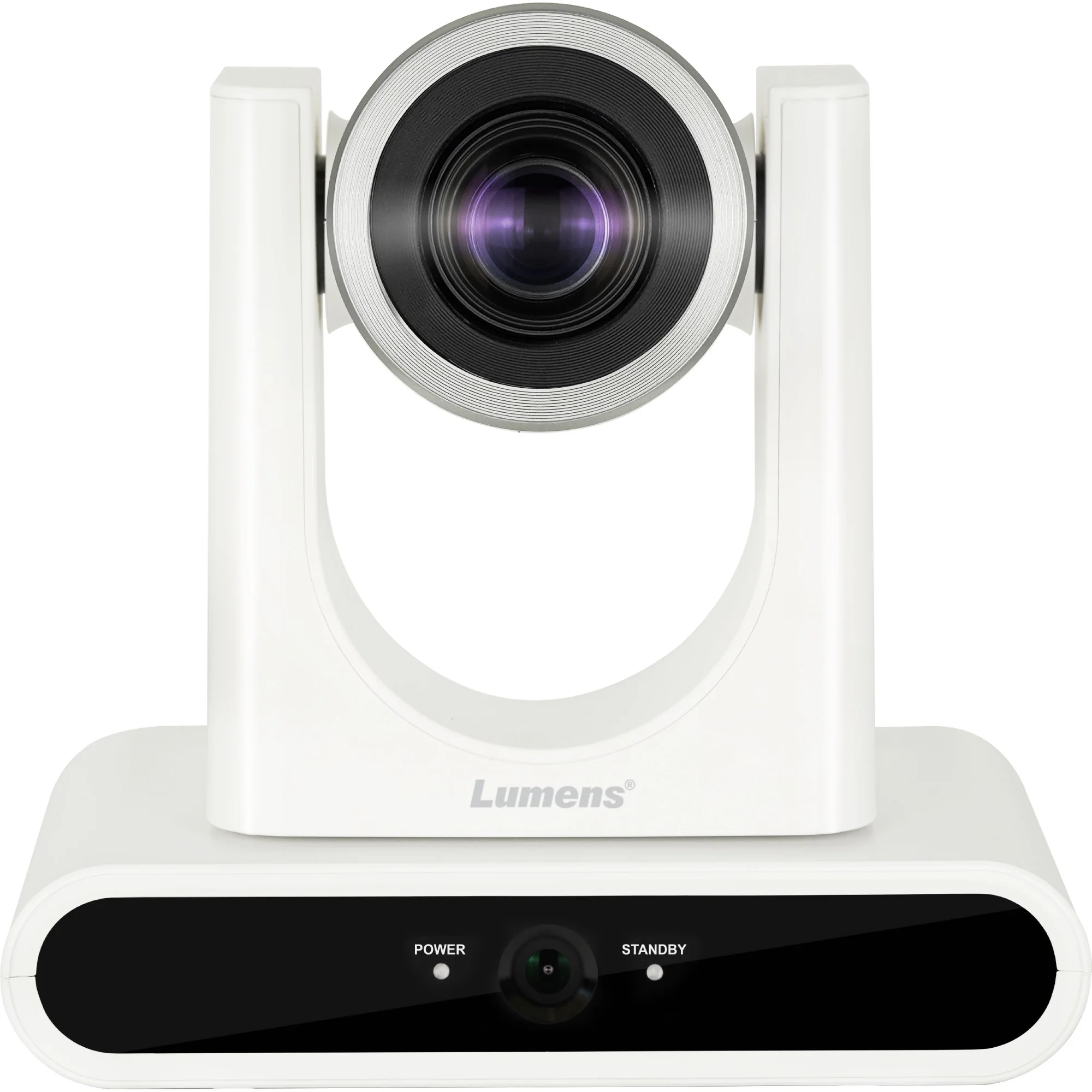

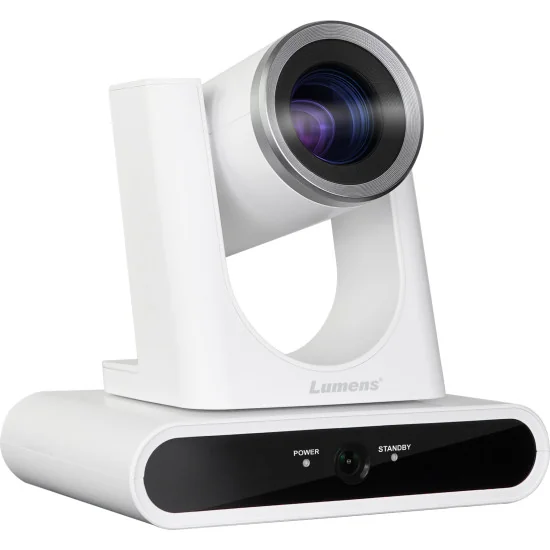

Lumens VC-TR40 White PTZ Camera

Name: Lumens VC-TR40 White PTZ Camera
Brand: Lumens
SKU: VC-TR40-W
Price: 1590.00 EUR
Availability: InStock

MPN: VC-TR40-W

Price: €1,590.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

Removing the camera operator from a room without losing the shot is exactly what the Lumens VC-TR40 White sets out to do. Two lenses share the housing: a wide panoramic sensor reads the whole scene while the main 1/2.8″ sensor frames a single person through a 20x optical zoom. Because the AI human detection was schooled on more than a million images of faces and bodies, the camera keeps a presenter sharp at 1080p 60fps as they cross a stage, step toward a whiteboard, or turn to address a panel — no lanyard transmitter, no rack-mounted processor running alongside.

How it follows people is yours to set. Stage tracking pans left and right inside a marked zone, Everywhere tracking chases movement across the room on every axis, and Partition tracking jumps to a chosen angle and zoom the moment a speaker enters a defined area. Two auto-framing modes pull a tidy group shot and re-frame as delegates join or leave a seminar table. A lecturer can switch the tracked subject simply by raising their hands, since gesture control hands the spotlight over mid-session without anyone reaching for a remote.

Connectivity is where this PTZ earns its place in a busy gallery. HDMI, 3G-SDI, IP and USB 3.0 all run at once, so a single unit can feed a vision mixer, a recorder and a streaming encoder on the same take. The IP path carries the main 1080p60 feed plus a 720p30 second stream over SRT or RTMP, while ONVIF and VISCA control sit beside RS-232 for a controller surface. PoE over one Cat cable trims the install, and a near-silent pan-and-tilt holds 256 presets across a 340-degree sweep.

White bodywork lets the Lumens VC-TR40 White recede into pale lecture theatres, corporate boardrooms and broadcast sets where black hardware would read on camera. Mount it upright on a wall bracket or invert it from a ceiling and the image and controls flip to match. For lecture capture, hybrid town-halls and unmanned studio relays, it is a dependable way to put broadcast-grade tracking on a fixed budget and keep production crews focused elsewhere.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Stage Tracking and Everywhere Tracking Mode
In Stage Tracking mode, the VC-TR40 will pan left and right to follow a presenter within a defined area. In the Everywhere Tracking mode, the camera will continuously track the presenter's movement left and right, forwards and backward.

Key features:
- AI-Powered Human Face Recognition
- 3 Tracking modes and 2 Framing modes
- Mount upright or inverted
- HDMI, Ethernet, 3G-SDI and USB simultaneous output
- 1080p 60fps with 20x Optical Zoom

Partition Tracking Mode
When the presenter moves inside a user-defined Partition Area, the camera switches to a preset angle and zoom. When outside a Partition Area, the camera autonomously follows the presenter.

Gesture Control Tracking Method
The VC-TR40 features advanced gesture control. When the presenter raises their hands, the tracking target will switch automatically. You can also manually change the tracked subject by selecting the individual via the web interface.

Auto-Framing and Partition Framing Mode
With the Auto-framing function, the VC-TR40 will dynamically adjust to capture all delegates, re-framing the view if participants join or leave during the session. In Partition-Framing mode, the camera will go to a preset position when the presenter walks in. When the presenter walks out the area, the camera will go back to the Auto-Framing mode.

Flexible Mounting
The VC-TR40 can be positioned upright or suspended from the ceiling installation. When inverted, the camera can re-orient the image and flip the camera controls.

Specification:
PTZ Sensor: 1/2.8" 2.16M
PTZ Video Format: 1080p : 60 / 50 / 30 / 25 , 720p : 60 / 50
Video Output (HD) Interface: HDMI / Ethernet / 3G-SDI / USB 3.0
Optical Zoom: 20x
Digital Zoom: 12x
PTZ Viewing Angle: 58.7° (H) / 33° (V) / 67.3° (D)
PTZ Aperture: F1.6~F2.8
PTZ Focal Length: 4.9mm ~ 94mm
Shutter Speed: 1/25 ~ 1/10,000 sec
Minimum Object Distance: 500mm
Video S/N Ratio: > 50dB
Minimum Illumination: 1.0 lux (F1.6, 50IRE, 30fps)
Focus System: Auto / Manual
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
Auto-Tracking: Everywhere / Stage / Partition
Auto Framing: Everywhere / Partition
Gesture Control: Yes
Panoramic Sensor: 1/2.8" 2MP CMOS
Panoramic Video Format: 720p30
Panoramic Viewing Angle: 111° (H) / 62° (V)
Panoramic Aperture: F2.4
Panoramic Focal Length: 3.1mm
Panning Angle: +170° ~ -170°
Panning Speed: 0.2° ~ 120°/sec
Tilting Angle: +90° ~ -30°
Tilting Speed: 0.2 ~ 80°/sec
Preset Positions: 256
HDMI / 3G-SDI: 1080p60
IP Stream: PTZ Camera Main : 1080p 60 , Second : 720p 30 , Panoramic Camera : 720p30IP
Compression: H.264
USB Output: 1080p30
USB Compression: MJPEG
IP Protocol: HTTP / RTSP / RTMP / RTMPS / SRT
PoE: PoE (IEEE802.3af )
Audio Input: Line In / MIC In
Audio Output: Ethernet / USB 3.0 / HDMI / SDI
Audio Compression Format: USB : PCM
Interface: RS-232 / Ethernet / USB 3.0
Protocol: VISCA / ONVIF
UVC: 1.1
UAC: Yes
DC In: 12V +/- 20%
Power consumption: PoE : 11W , DC In : 10W
Body Color: Black / White
Weight: 3.3 lbs (1.5 kg)
Dimension: 7.5" x 7.3" x 5.4" , (190 ×185 ×138 mm)
