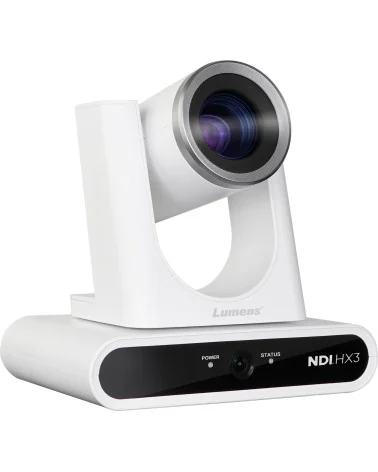

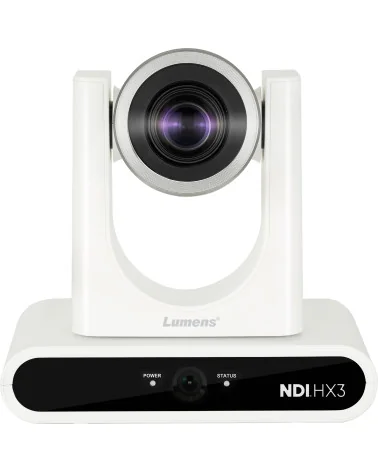

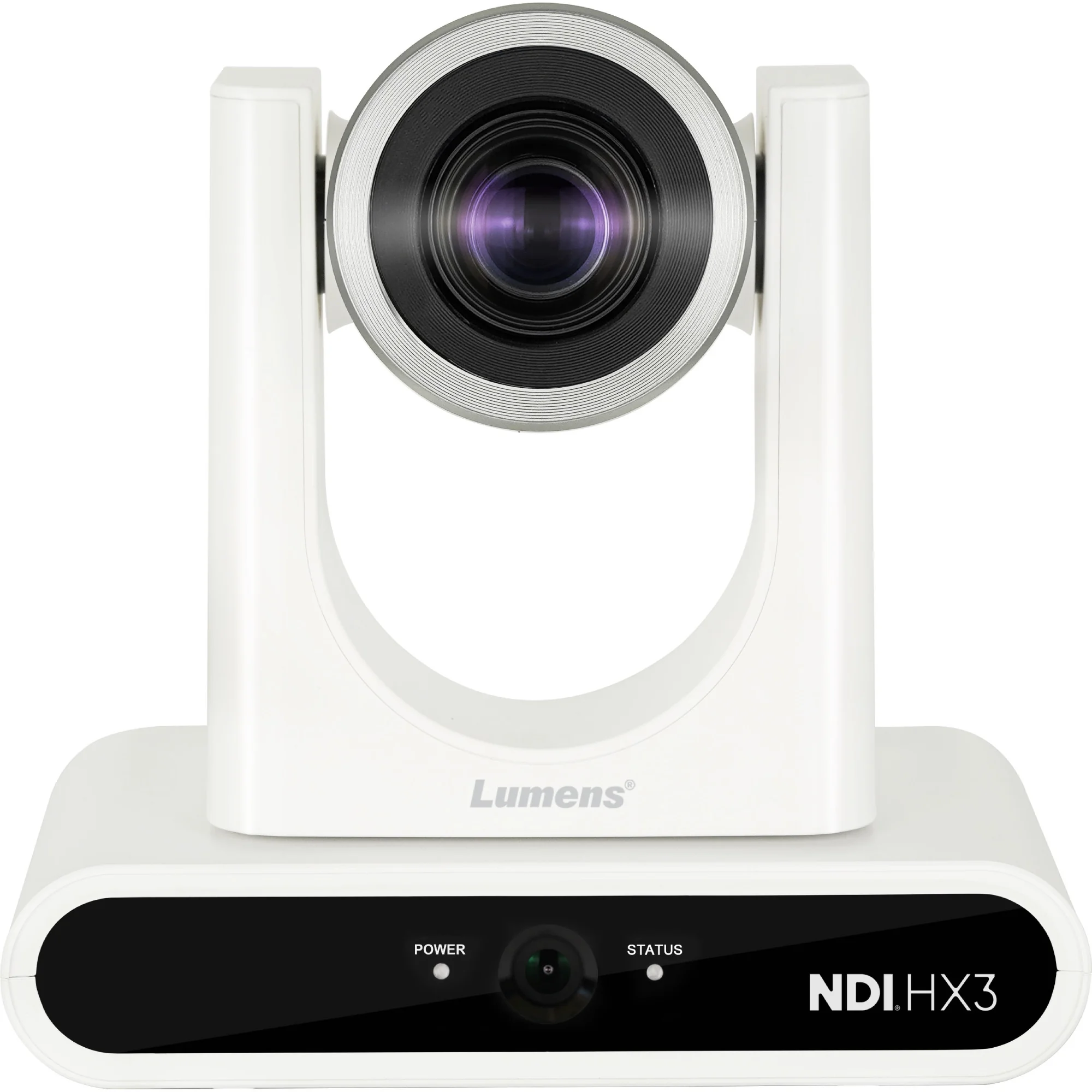

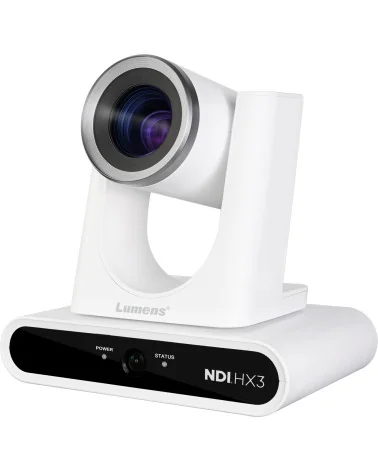

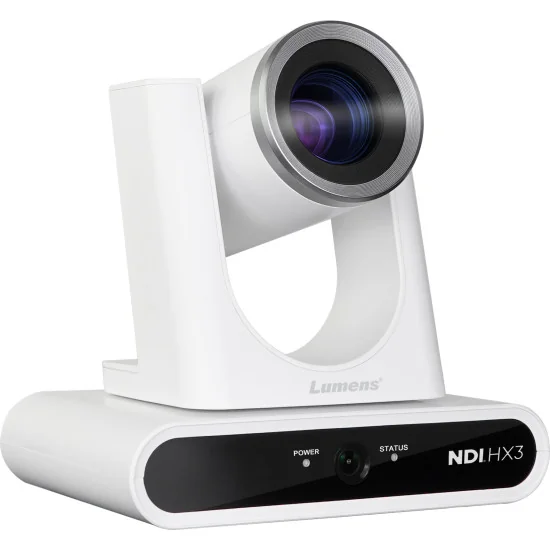

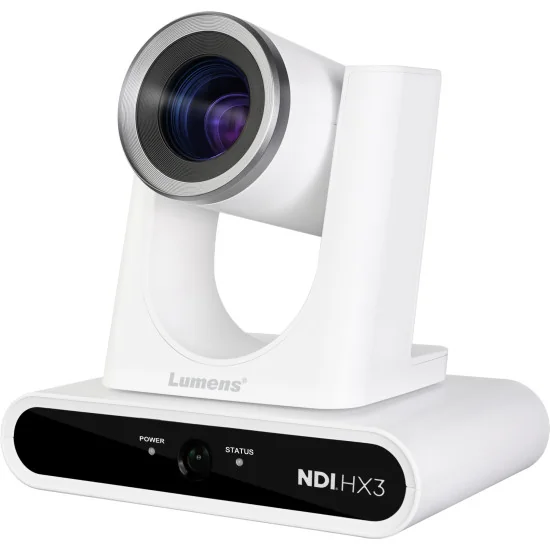

Lumens VC-TR41N White Auto-Tracking PTZ Camera

    VC-TR41N-W
    Price: €1,649.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

    A presenter leaves the lectern, walks the width of the stage, and the shot follows — no joystick, no operator. The Lumens VC-TR41N White manages this with two optics working as a pair: a fixed panoramic lens covering 87° reads the whole room, while the motorised head with 20x optical zoom holds the subject in crisp Full HD 1080p60. Every tracking decision is computed inside the camera, so nothing needs installing and no licence ever expires. Three modes — Everywhere, Stage and Partition — adapt the behaviour to lecture theatres, panel debates or board meetings; an auto-framing option pulls every participant into shot, and hand gestures let the speaker start or pause tracking without touching a remote.

    The N in the name signals its strongest asset: certified NDI|HX3 output. On an ordinary Gigabit network the camera appears directly in TriCaster, vMix or OBS with low latency, which turns multi-camera switching into a purely network matter. RTSP, RTMP(S) and SRT run alongside for secure contribution or direct platform streaming, while HDMI, 3G-SDI and USB 3.0 stay live at the same time — one unit can feed the in-room display, a recorder and a Teams or Zoom call simultaneously.

    Image quality rests on a 1/2.8-inch sensor behind an F1.6 lens, usable down to 1 lux. WDR and 3D noise reduction keep faces readable against bright projection screens, and Smart AF refocuses discreetly during movement. The head pans ±170° at up to 120° per second, yet the motors stay quiet enough to mount near open microphones; 256 presets plus VISCA and ONVIF support tie it into existing room control systems.

    Deployment stays lean: a single PoE cable (IEEE 802.3af) carries power alongside video, audio and control data, so cabling costs on multi-room projects remain predictable. Administrators reach configuration and firmware updates through the built-in web console — valuable once a fleet of cameras spans several floors. Mounted upright or inverted, the white housing blends into light ceilings in auditoriums, courtrooms and corporate studios. For an AV integrator weighing reliability against budget, the VC-TR41N is the rare auto-tracking camera that needs neither an operator nor an external encoder to pay its way.

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    VC-TR41N Auto-Tracking Camera

    • AI-powered human detection with auto-framing and motion-tracking
    • NDI HX3, RTSP, RTMP, SRT streaming support
    • Simultaneous output via HDMI, 3G-SDI, USB, and IP
    • 1080p 60fps video with 20x optical zoom
    • Ultra-silent PTZ motors for smooth, accurate movement
    • PoE for power, video, audio, and control over a single Ethernet cable
    • Wide-angle lens for flexible framing in small to large rooms
    • Preset position support for quick recall of camera viewpoints
    • Remote configuration and firmware upgrade via web UI
    • Mount upright or inverted with standard mounting accessories

    Specifications:
    PTZ Sensor: 1/2.8″ 2.16M
    PTZ Video Format: 1080p : 60 / 50 / 30 / 25, 720p : 60 / 50
    Video Output (HD) Interface: HDMI / Ethernet / 3G-SDI / USB 3.0
    Optical Zoom: 20x
    Digital Zoom: 12x
    PTZ Horizontal Viewing Angle: 58.7°
    PTZ Vertical Viewing Angle: 33°
    Diagonal Viewing Angle: 67.3°
    Aperture: F1.6 ~ F2.8
    Focal Length: 4.9mm ~ 94mm
    Shutter Speed: 1/25 ~ 1/10,000 sec
    Minimum Object Distance: 500mm
    Video S/N Ratio: > 50dB
    Minimum Illumination: 1 lux (F1.6, 50IRE, 30fps)
    Focus System: Auto / Manual / Smart AF
    Gain Control: Auto / Manual
    White Balance: Auto / Manual
    Exposure Control: Auto / Manual / Smart AE
    WDR: Yes
    3D NR: Yes
    Image Flip: Yes
    Auto Tracking: Everywhere / Stage / Partition
    Auto Framing: Everywhere / Partition
    Gesture Control: Yes
    Panoramic Sensor: 1/2.8″ 2MP CMOS
    Panoramic Video Format: 720p 30 / 25
    Panoramic Horizontal Viewing Angle: 87°
    Panoramic Vertical Viewing Angle: 49°
    Panning Angle: +170° ~ -170°
    Panning Speed: 0.2° ~ 120°/sec
    Tilting Angle: +90° ~ -30°
    Tilting Speed: 0.2° ~ 80°/sec
    Preset Positions: 256
    HDMI / 3G-SDI: 1080p 60
    IP Stream:
    PTZ Camera:
    Main: 1080p 60 / 50
    Second: 720p 30 / 25
    Panoramic Camera: 720p 30 / 25
    IP Compression: H.264
    USB Output: 1080p 30 / 25
    USB Compression: MJPEG
    IP Protocol: NDI HX3 / NDI HX2 / HTTP / RTSP / RTMP / RTMPS / SRT
    PoE: Yes (IEEE802.3af)
    Audio Input: Line In / MIC In
    Audio Output: Ethernet / USB 3.0 / HDMI / SDI
    Audio Compression Format: AAC / PCM

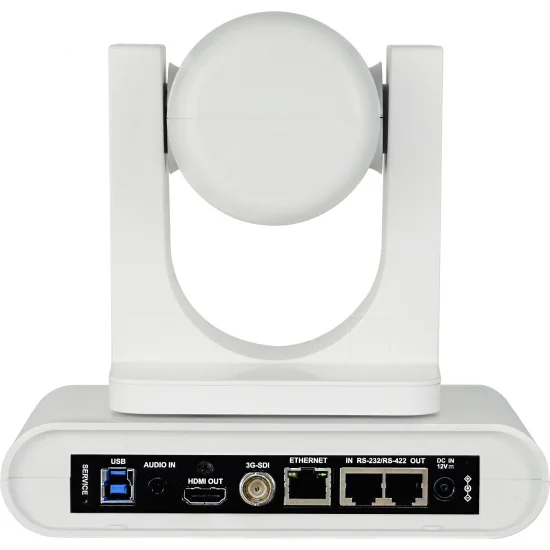

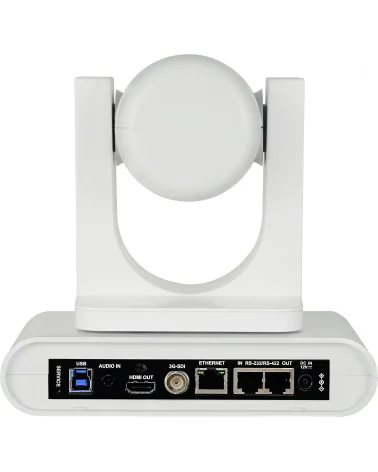

    Interface: RS-232 / 422 (RJ-45) / Ethernet / USB 3.0
    Protocol: VISCA / ONVIF / NDI
    UVC: 1.1
    UAC: Yes
    DC In: 12V +/- 20%
    Power consumption: PoE: 11W / DC In: 10W
    Body Color: Black / White
    Weight: 3.3 lbs (1.5 kg)
    Dimension: 7.5" x 7.3" x 5.4" (190 ×185 ×138 mm)

    VC-TR41N-W

    Data sheet

    Video Output
    HDMI
    NDI
    RJ-45 (IP)
    SDI
    USB
    Audio Input
    Mini Jack 3.5mm
    Audio Output
    HDMI Embedded
    NDI Embedded
    RJ-45
    SDI Embedded
    USB
    Max Output Resolution
    1080p 50/60 fps
    Control protocol for PTZ cameras
    NDI
    ONVIF
    RS-232
    VISCA
    Network Connection
    Ethernet
    Sensor Size
    1/2.8"
    Optical Zoom
    20x
    PoE Technology
    Yes
    Auto-Tracking
    Yes
    Tally Light
    No

    Specific References

    ean13
    4711246503847
    mpn
    VC-TR41N-W
