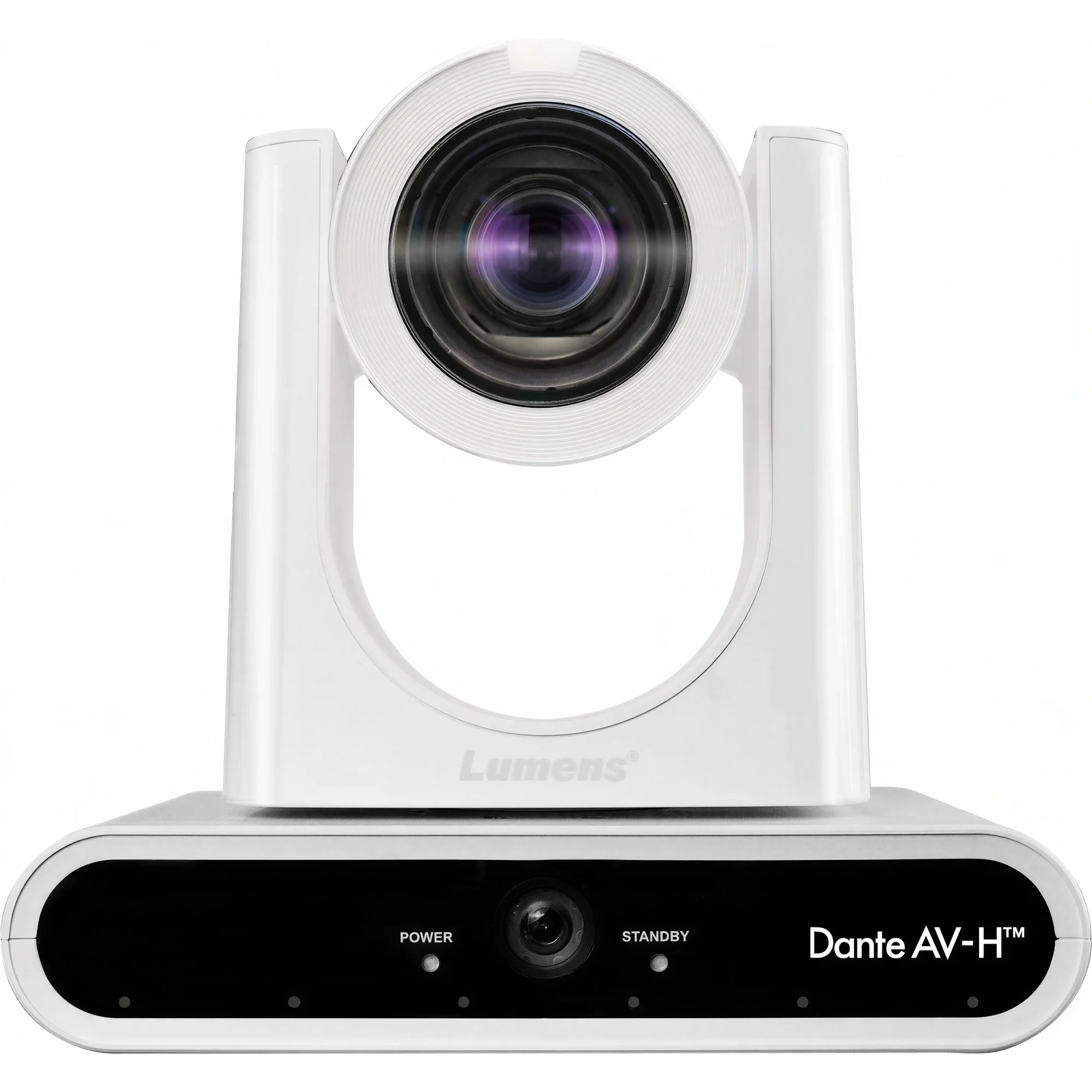

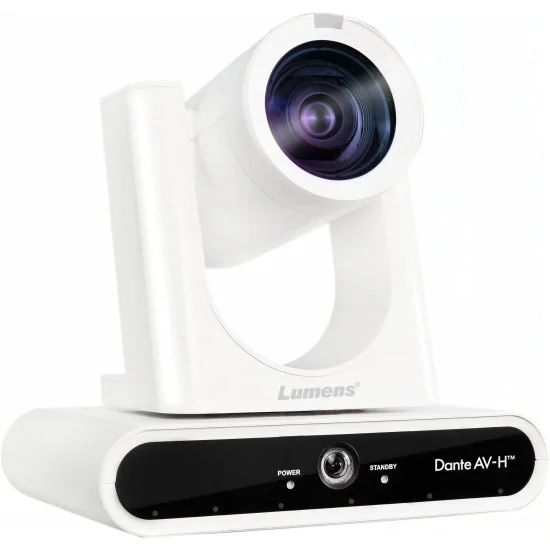

Lumens VC-TR60A Dante AV-H-W Auto-Tracking PTZ Camera

Lumens VC-TR60A Dante AV-H-W Auto-Tracking PTZ Camera

Name: Lumens VC-TR60A Dante AV-H-W Auto-Tracking PTZ Camera
Brand: Lumens
SKU: VC-TR60A-Dante AV-H-W
Price: 1999.00 EUR
Availability: InStock

MPN: VC-TR60A-Dante AV-H-W

Price: €1,999.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

For rooms that need both a close speaker view and a room-wide reference view, the Lumens VC-TR60A Dante AV-H-W gives AV teams a dual-lens PTZ system with native 4K capture, Dante AV-H streaming and built-in tracking logic. The motorised PTZ module uses a 1/2.8" 8.51 MP CMOS sensor, 12x optical zoom and 8x digital zoom, while the panoramic module uses its own 1/2.8" 8.51 MP sensor with a 110° horizontal view. In boardrooms, training spaces and lecture capture rooms, the wide camera keeps room context as the PTZ head follows a presenter or active speaker.

Speaker tracking is driven by directional voice sensors, so the camera can localise the current talker and reframe as discussion moves around the table. AI motion tracking and auto framing cover presenter-led sessions, and Picture-in-Picture can combine the panoramic and zoom views through HDMI or USB. For production staff, that means fewer manual camera corrections and steadier framing during hybrid meetings, panel discussions or internal webcasts.

Image output fits serious signal chains: PTZ HDMI reaches 2160p60, the panoramic feed reaches 2160p30, USB outputs 2160p30, and IP streaming supports Dante AV-H at 2160p30 from the PTZ camera. RTSP reaches 2160p30 or 720p30 from the PTZ channel, with panoramic RTSP at 1080p60. H.264 IP compression, USB H.264/MJPEG/NV12, HTTP, RTMP, RTMPS and SRT make the camera relevant for video conferencing rooms, streaming encoders, lecture platforms and remote contribution systems. WDR, 3D noise reduction, auto/manual focus, gain, white balance and exposure help maintain usable pictures under mixed interior lighting.

Network integration is a key reason to specify the Lumens VC-TR60A Dante AV-H-W. Dante audio/video routing can be handled with familiar Dante tools, and the camera also offers HDMI, Ethernet and USB simultaneous output, line-level audio input, reference USB or line input for tracking stability, audio out over Ethernet, USB, HDMI and Dante, plus AAC/PCM audio encoding. Control options include RS-232, RS-422, Ethernet, USB, VISCA and ONVIF, with UVC/UAC support and PoE+ power. For integrators, 256 presets, +170° to -170° pan and +90° to -30° tilt give enough positioning range for repeatable room presets.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Dante AV-H Video Streaming
VC-TR60A Dante AV-H uses popular streaming formats including Dante AV-H to deliver high quality, low latency video over IP networks. Dante AV-H is compatible with Dante Controller, Dante Domain Manager and Dante Director, allowing the camera’s video stream to be routed, controlled and secured, using familiar applications.

Intelligent Speaker Tracking
VC-TR60A incorporates an array of directional sound sensors that detect the location of active human voices. The camera head moves and zooms to shoot the current speaker, re-framing as other voices enter the discussion. VC-TR60A supports a reference audio input (USB or line in). This eliminates remote side audio interference, ensuring precise and reliable speaker tracking of speakers within the room.

AI Motion Tracking
VC-TR60A features sophisticated auto-tracking and framing modes. Its intelligent human detection algorithms deliver smooth tracking for conferences, presentations, meeting rooms, classrooms and studios.

PIP Output
VC-TR60A can combine the two video images in a picture-in-picture display with output over HDMI and USB. This allows the audience to watch a composite video that incorporates both the wide-angle view and the tight shot. This function can be activated independently, or at the same time as running motion or speaker tracking.

Dual Video Output
VC-TR60A generates two video streams from its panoramic fixed camera and the robotic zoom head. These can be delivered over IP into a media processor, IP-based production software or a lecture capture system to provide two camera angles from a single unit.

USB Audio Reference Line In
Attach a USB speakerphone directly to the VC-TR60A for single cable connection to your MTR or laptop. In speaker tracking mode, the camera's tracking algorithm will exclude sound produced by the speakerphone, ensuring that the VC-TR60A focuses only on individuals in the meeting space.

Specification:
PTZ Sensor: 1/2.8" CMOS 8.51M
PTZ Video Format: 2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
720p : 60 / 50 / 30 / 25
1080i : 60 / 50
Video Output (HD) Interface: HDMI / Ethernet / USB
Optical Zoom: 12x
Digital Zoom: 8x
PTZ Horizontal Viewing Angle: 81°
PTZ Vertical Viewing Angle: 50.5°
Diagonal Viewing Angle: 88.9°
PTZ Aperture: F1.8 ~ F3.6
PTZ Focal Length: 3.4 ~ 43.3 mm
Shutter Speed: 1/25 ~ 1/10,000 sec
Minimum Object Distance: Tele:1.5m / Wide:1m
Video S/N Ratio: > 50dB
Minimum Illumination: 0.5Lux (F1.8, AGC ON)
Focus System: Auto / Manual
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
PIP: Yes
Auto Tracking: Yes
Speaker Tracking: Yes
Auto Framing: Yes
Panoramic Sensor: 1/2.8" CMOS 8.51M
Panoramic Video Format: 2160p：30 / 25 , 1080p：60 / 50 / 30 / 25
Panoramic Horizontal Viewing Angle: 110°
Panoramic Vertical Viewing Angle: 78°
Panoramic Aperture: F2.0
Panoramic Focal Length: f=1.89mm
Panning Angle: +170° ~ -170°
Panning Speed: 0.1°~100°/sec
Tilting Angle: +90° ~ -30°
Tilting Speed: 0.1°/s ~ 60°/sec
Preset Positions: 256

HDMI: PTZ : 2160p 60 , Panoramic : 2160p 30
IP Stream
PTZ : Dante AV-H：2160p 30 , RTSP：2160p 30 / 720p 30
Panoramic : RTSP：1080p 60
IP Compression: H.264
USB Output: 2160p 30
USB Compression: H.264 / MJPEG / NV12
IP Protocol: HTTP / RTSP / RTMP / RTMPS / SRT / Dante AV-H

PoE: PoE+ (IEEE802.3at)
Audio Input: Line In
Ref Audio Input: USB / Line In
Audio Output: Ethernet / USB / HDMI / Dante
Audio Compression Format: AAC / PCM
Interface: RS-232 / RS-422 / Ethernet / USB
Protocol: VISCA / ONVIF
UVC: Yes
UAC: Yes
DC In: 12V +/- 20%
Power Consumption: PoE: 15W
DC In: 14W
Body Color: Black / White
Weight: 1.5 kg
Dimension (WxHxD): 190 ×185 ×144 mm
