Z-CAM P2-R1N 24x Zoom PTZ Camera
€2,499.00
Z-CAM P2-R1N 24x Zoom is a network-native PTZ camera for studios that need real optical reach without giving up a large sensor look. The 24x...
Light-coloured meeting spaces often expose black camera hardware; Lumens VC-TR60A White gives integrators the same 4K dual-lens tracking platform in a housing that suits boardrooms, lecture theatres and training rooms with brighter interiors. The PTZ block uses a 1/2.8" 8.51M sensor and reaches 2160p60, backed by 12x optical zoom, 8x digital zoom, an F1.8–F3.6 lens and an 81° horizontal field of view. A separate panoramic camera watches the whole room at 110° horizontal and 78° vertical up to 2160p30, so the system can hold a room reference while the robotic head follows the active participant.
Its tracking logic is based on both image analysis and audio direction. Integrated voice sensors locate the current speaker, while USB or line-in reference audio helps the camera ignore sound reproduced by a local speakerphone. That is useful in Microsoft Teams Rooms, council meeting spaces, university seminars and executive briefings where several contributors take turns from fixed seats. Speaker tracking, motion tracking and auto framing can run without an operator, yet manual focus, exposure, gain and white balance remain available for rooms that need repeatable AV settings.
Signal handling is broad enough for conferencing, streaming and recording at the same time. HDMI delivers the PTZ image at 2160p60 and the panoramic image at 2160p30; USB 3.0 sends video up to 2160p30 using H.264, MJPEG or NV12; IP streaming uses H.264 with HTTP, RTSP, RTMP, RTMPS and SRT. The camera can provide dual video streams from the zoom head and panoramic lens, and Picture-in-Picture output over HDMI or USB gives a software switcher, lecture capture appliance or media processor both context and detail from one camera position.
For system builders, the PoE+ IEEE 802.3at input reduces separate power cabling, while RS-232, RS-422, Ethernet and USB control cover VISCA, ONVIF, UVC and UAC installations. The 256 preset positions help standardise recurring seating plans, and practical image tools such as WDR, 3D noise reduction, image flip and 0.5 lux sensitivity support rooms with windows, display panels and low ambient light. Plan the VC-TR60A White as a USB, HDMI or IP camera with reference audio configured before handover.

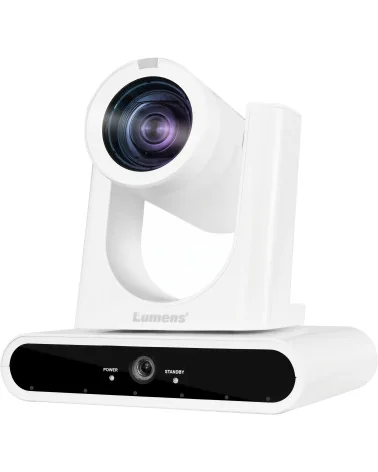

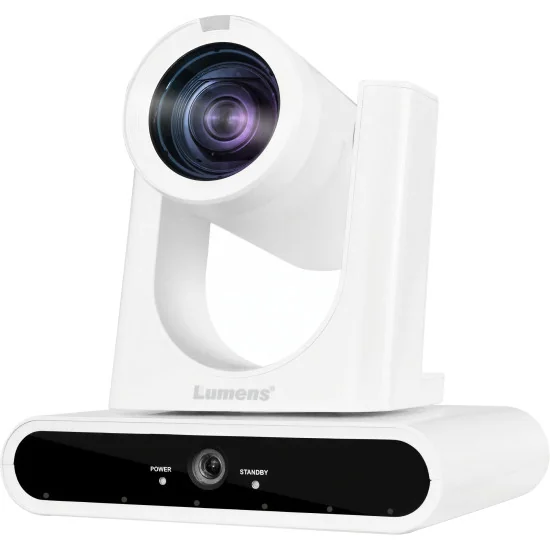

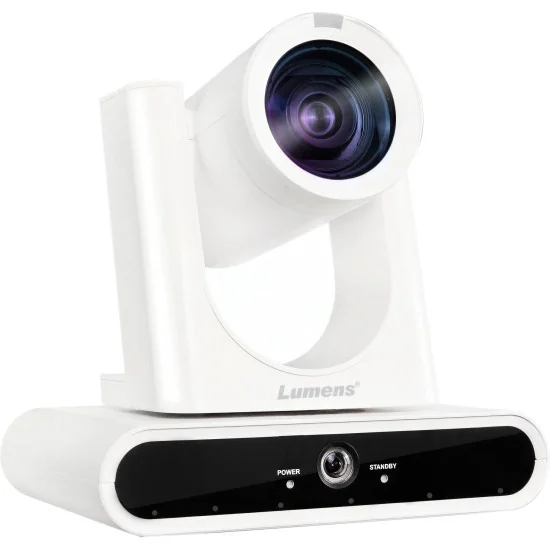

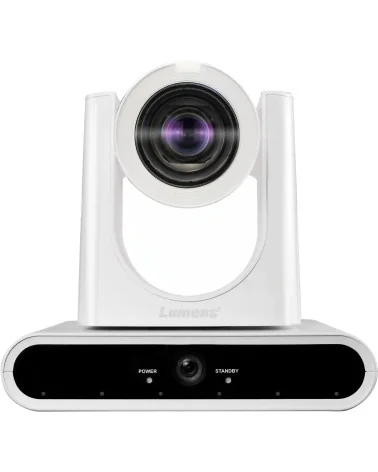

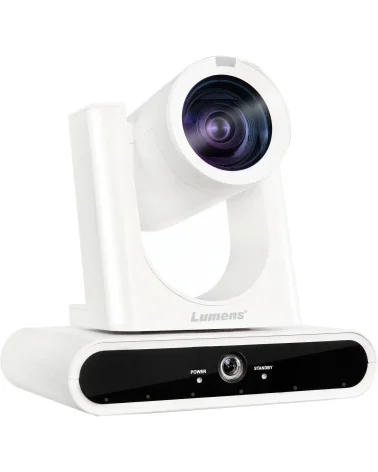

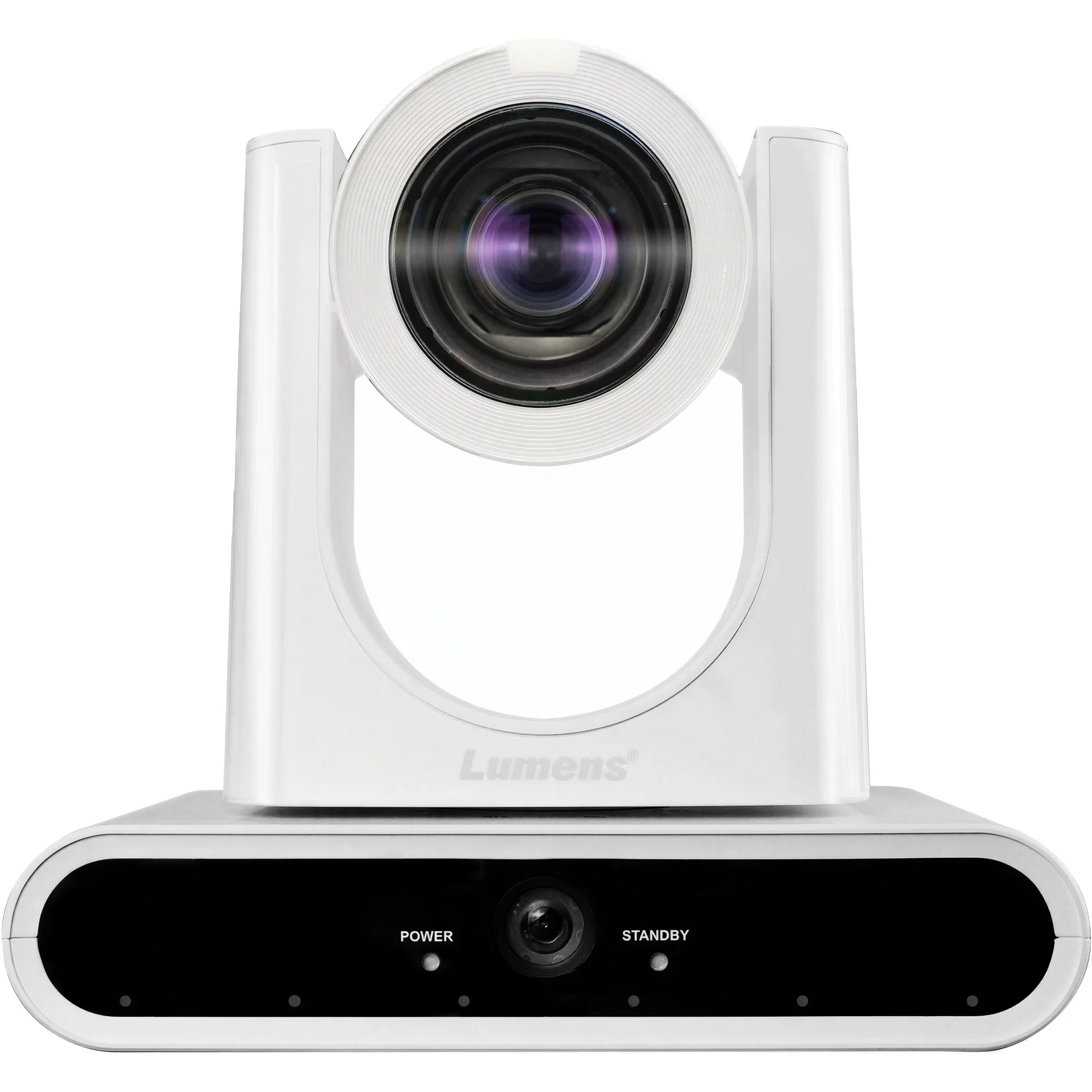

Lumens VC-TR60A White Auto-Tracking PTZ Camera
VC-TR60A-W
Price: €1,849.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Light-coloured meeting spaces often expose black camera hardware; Lumens VC-TR60A White gives integrators the same 4K dual-lens tracking platform in a housing that suits boardrooms, lecture theatres and training rooms with brighter interiors. The PTZ block uses a 1/2.8" 8.51M sensor and reaches 2160p60, backed by 12x optical zoom, 8x digital zoom, an F1.8–F3.6 lens and an 81° horizontal field of view. A separate panoramic camera watches the whole room at 110° horizontal and 78° vertical up to 2160p30, so the system can hold a room reference while the robotic head follows the active participant.
Its tracking logic is based on both image analysis and audio direction. Integrated voice sensors locate the current speaker, while USB or line-in reference audio helps the camera ignore sound reproduced by a local speakerphone. That is useful in Microsoft Teams Rooms, council meeting spaces, university seminars and executive briefings where several contributors take turns from fixed seats. Speaker tracking, motion tracking and auto framing can run without an operator, yet manual focus, exposure, gain and white balance remain available for rooms that need repeatable AV settings.
Signal handling is broad enough for conferencing, streaming and recording at the same time. HDMI delivers the PTZ image at 2160p60 and the panoramic image at 2160p30; USB 3.0 sends video up to 2160p30 using H.264, MJPEG or NV12; IP streaming uses H.264 with HTTP, RTSP, RTMP, RTMPS and SRT. The camera can provide dual video streams from the zoom head and panoramic lens, and Picture-in-Picture output over HDMI or USB gives a software switcher, lecture capture appliance or media processor both context and detail from one camera position.
For system builders, the PoE+ IEEE 802.3at input reduces separate power cabling, while RS-232, RS-422, Ethernet and USB control cover VISCA, ONVIF, UVC and UAC installations. The 256 preset positions help standardise recurring seating plans, and practical image tools such as WDR, 3D noise reduction, image flip and 0.5 lux sensitivity support rooms with windows, display panels and low ambient light. Plan the VC-TR60A White as a USB, HDMI or IP camera with reference audio configured before handover.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
4K Dual Lens Speaker Tracking Camera
- Certified for Microsoft Teams
- Dual Lens Camera with 12x Optical Zoom
- Smart Speaker Tracking with integrated voice sensors
- Picture in Picture Function
- Motion-detect and auto-tracking
- HDMI, Ethernet, and USB simultaneous output
Intelligent Speaker Tracking
VC-TR60A incorporates an array of directional sound sensors that detect the location of active human voices. The camera head moves and zooms to shoot the current speaker, re-framing as other voices enter the discussion. VC-TR60A supports a reference audio input (USB or line in). This eliminates remote side audio interference, ensuring precise and reliable speaker tracking of speakers within the room.
AI Motion Tracking
VC-TR60A features sophisticated auto-tracking and framing modes. Its intelligent human detection algorithms deliver smooth tracking for conferences, presentations, meeting rooms, classrooms and studios.
PIP Output
VC-TR60A can combine the two video images in a picture-in-picture display with output over HDMI and USB. This allows the audience to watch a composite video that incorporates both the wide-angle view and the tight shot. This function can be activated independently, or at the same time as running motion or speaker tracking.
Dual Video Output
VC-TR60A generates two video streams from its panoramic fixed camera and the robotic zoom head. These can be delivered over IP into a media processor, IP-based production software or a lecture capture system to provide two camera angles from a single unit.
USB Audio Reference Line In
Attach a USB speakerphone directly to the VC-TR60A for single cable connection to your MTR or laptop. In speaker tracking mode, the camera's tracking algorithm will exclude sound produced by the speakerphone, ensuring that the VC-TR60A focuses only on individuals in the meeting space.
Specification:
PTZ Sensor: 1/2.8" CMOS 8.51M
PTZ Video Format: 2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
720p : 60 / 50 / 30 / 25
1080i : 60 / 50
Video Output (HD) Interface: HDMI / Ethernet / USB
Optical Zoom: 12x
Digital Zoom: 8x
PTZ Horizontal Viewing Angle: 81°
PTZ Vertical Viewing Angle: 50.5°
Diagonal Viewing Angle: 88.9°
PTZ Aperture: F1.8 ~ F3.6
PTZ Focal Length: 3.4 ~ 43.3 mm
Shutter Speed: 1/25 ~ 1/10,000 sec
Minimum Object Distance: Tele:1.5m / Wide:1m
Video S/N Ratio: > 50dB
Minimum Illumination: 0.5Lux (F1.8, AGC ON)
Focus System: Auto / Manual
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
PIP: Yes
Auto Tracking: Yes
Speaker Tracking: Yes
Auto Framing: Yes
Panoramic Sensor: 1/2.8" CMOS 8.51M
Panoramic Video Format: 2160p：30 / 25 , 1080p：60 / 50 / 30 / 25
Panoramic Horizontal Viewing Angle: 110°
Panoramic Vertical Viewing Angle: 78°
Panoramic Aperture: F2.0
Panoramic Focal Length: f=1.89mm
Panning Angle: +170° ~ -170°
Panning Speed: 0.1°~100°/sec
Tilting Angle: +90° ~ -30°
Tilting Speed: 0.1°/s ~ 60°/sec
Preset Positions: 256
HDMI: PTZ : 2160p 60 , Panoramic : 2160p 30
IP Stream
PTZ : RTSP：2160p 30 / 720p 30
Panoramic : RTSP：1080p 60
IP Compression: H.264
USB Output: 2160p 30
USB Compression: H.264 / MJPEG / NV12
IP Protocol: HTTP / RTSP / RTMP / RTMPS / SRT
PoE: PoE+ (IEEE802.3at)
Audio Input: Line In
Ref Audio Input: USB / Line In
Audio Output: Ethernet / USB / HDMI
Audio Compression Format: AAC / PCM

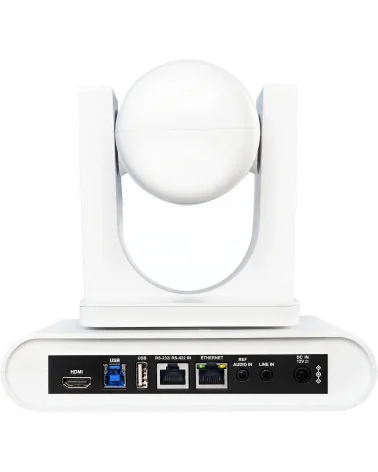

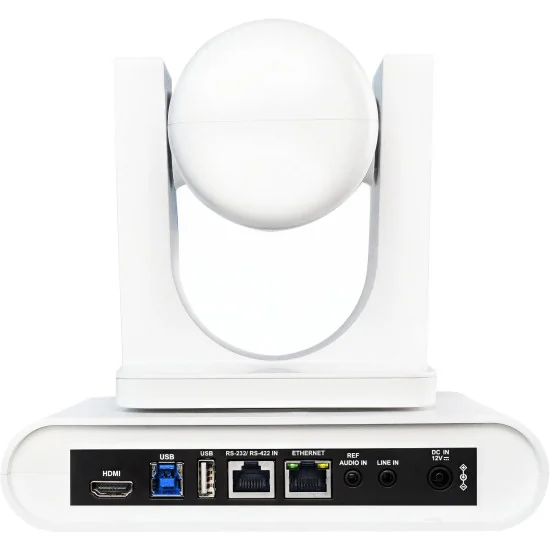

Interface: RS-232 / RS-422 / Ethernet / USB
Protocol: VISCA / ONVIF
UVC: Yes
UAC: Yes
DC In: 12V +/- 20%
Power Consumption: PoE: 15W
DC In: 14W
Body Color: Black / White
Weight: 1.5 kg
Dimension (WxHxD): 190 ×185 ×144 mm
VC-TR60A-W
Data sheet
- Video Output
- HDMI
RJ-45 (IP)
USB - Audio Input
- Mini Jack 3.5mm
- Audio Output
- HDMI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 4K UltraHD (3840 x 2160) 50/60 fps
- Control protocol for PTZ cameras
- ONVIF
RS-232
VISCA - Network Connection
- Ethernet
- Sensor Size
- 1/2.8"
- Optical Zoom
- 12x
- PoE Technology
- Yes
- Auto-Tracking
- Yes
- Tally Light
- Yes
Specific References
- ean13
- 4711246503656
- mpn
- VC-TR60A-W
