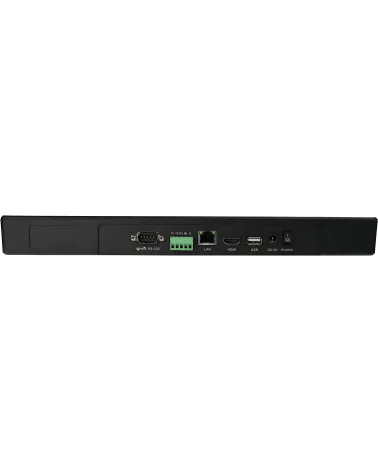

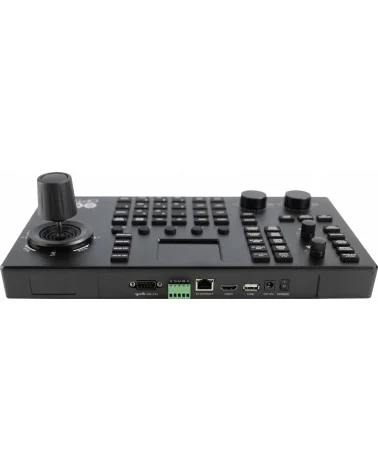

RS-232, RS-422 and RS-485 ports share the rear panel of the PTZOptics SuperJoy with an Ethernet jack that also takes 802.3af PoE, so older serial heads and current network cameras answer to one joystick. Over IP it speaks PTZOptics VISCA (UDP or TCP), Sony VISCA over IP, NDI, ONVIF and Panasonic HTTP; on serial lines, VISCA and Pelco-D/P. PTZOptics and HuddleCamHD cameras get the full command set; other brands receive a narrower one that varies by manufacturer. Sized for a rental fleet or a fixed control room, this PTZ camera controller holds 253 addresses: four groups of seven, plus a fifth that takes up to 225 network cameras.
Shading happens on the panel, not inside camera menus. The three-axis stick pans, tilts and zooms with a twist. One knob trims iris and shutter, another red and blue gain, and dedicated keys cycle five white-balance and five exposure modes, fire One Push calibration or toggle backlight compensation. Matching two angles on a panel debate before air becomes a quick job. Fine-tune dials creep zoom at its slowest step and pull focus by hand, while AF lock keeps a PTZOptics head from refocusing after each zoom. Pan, tilt, zoom, focus and preset speeds are saved per camera.
Presets run from 0 to 255 per camera; holding a keypad digit for three seconds stores a quick one. Super-Presets send up to eight cameras to stored shots at once and can add an HTTP-CGI call, useful for resetting a stage between conference sessions. Four custom keys and a fifth on the joystick knob send HTTP, TCP, UDP or UART strings to a switcher, a recorder, vMix or networked lights, and an automatic trigger can cut the mixer to a camera as soon as it is selected. For guest operators, Basic mode narrows the desk to presets, and Matrix mode maps keys 1–9 to presets 1–3 on cameras 1–3.
A built-in decoder pulls the active camera's RTSP stream and plays it out at 1080p over HDMI, so the desk can sit anywhere on the LAN with its own preview monitor. It draws 6 W from 12 V or PoE, RS-485 reaches 1,200 m, and settings export via USB or the web page to clone a setup between flight cases. Send us your camera list and we will confirm protocol support before you order.

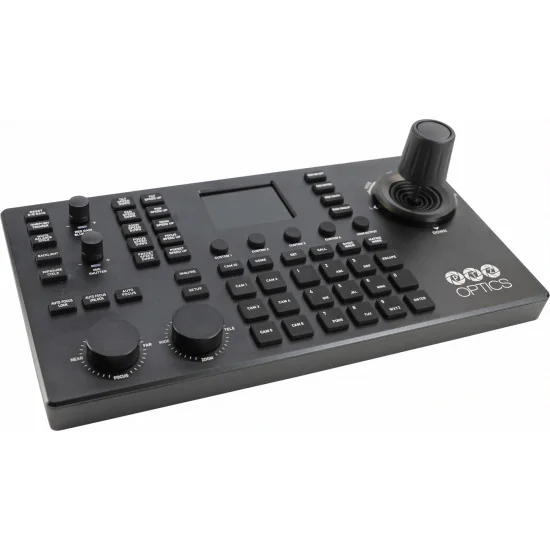

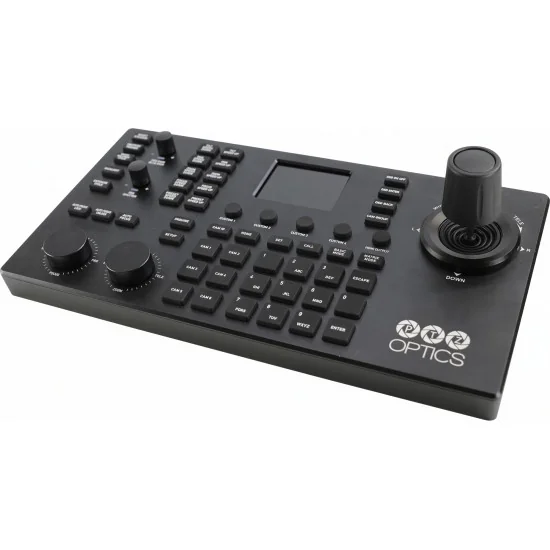

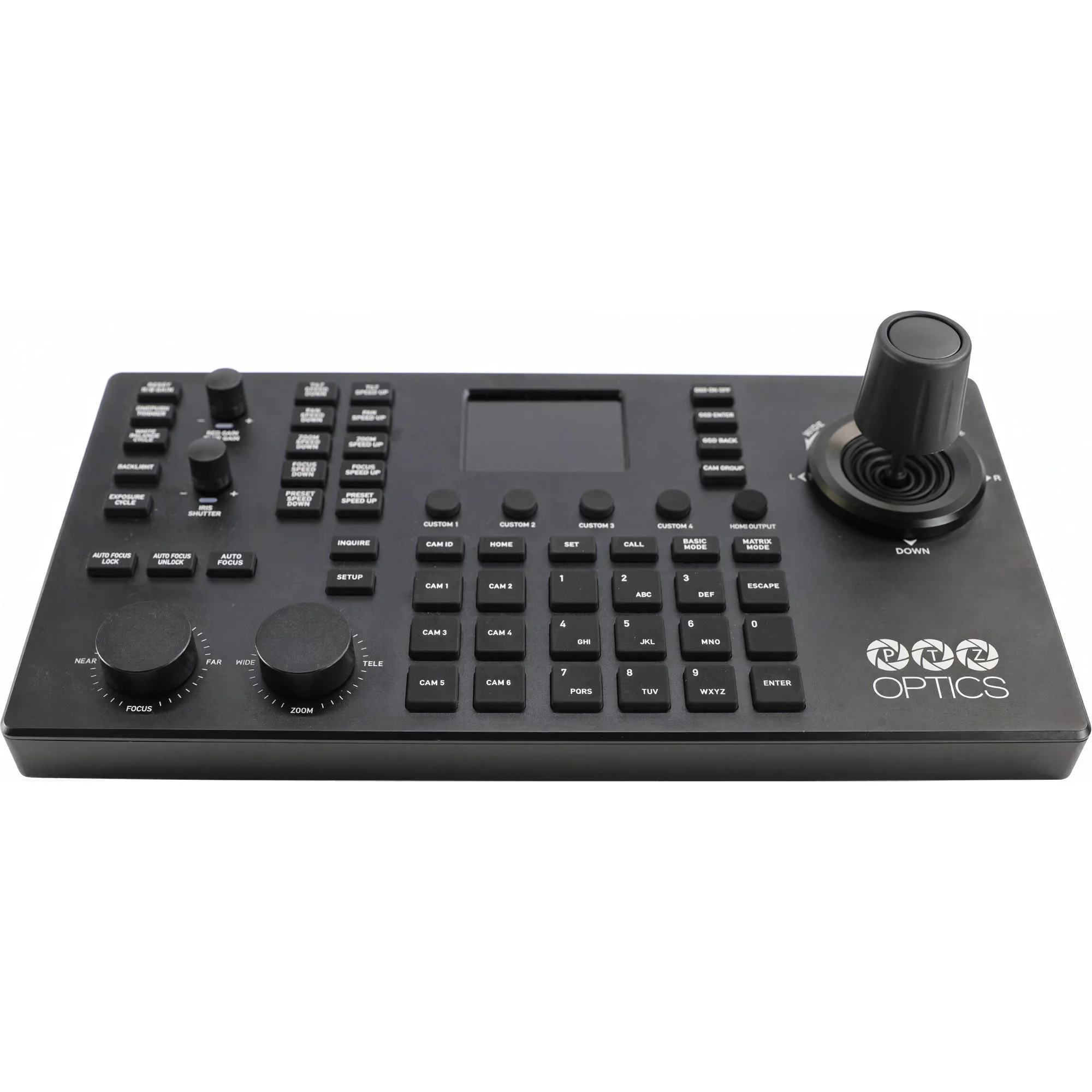

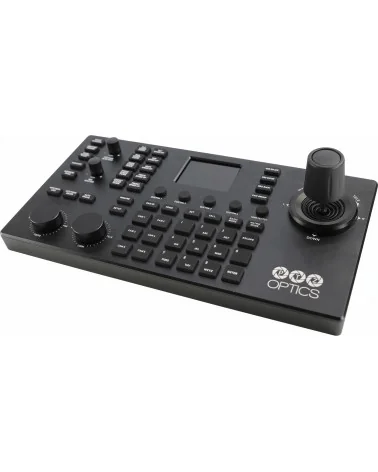

PTZOptics SUPERJOY PTZ Camera Controller
PT-SUPERJOY-G1
Price: €1,149.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

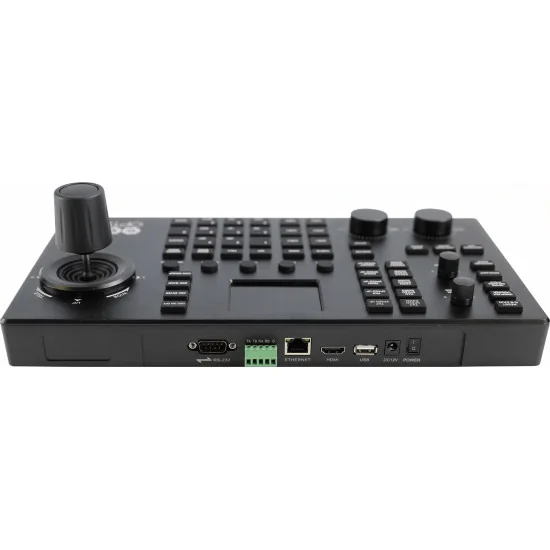

RS-232, RS-422 and RS-485 ports share the rear panel of the PTZOptics SuperJoy with an Ethernet jack that also takes 802.3af PoE, so older serial heads and current network cameras answer to one joystick. Over IP it speaks PTZOptics VISCA (UDP or TCP), Sony VISCA over IP, NDI, ONVIF and Panasonic HTTP; on serial lines, VISCA and Pelco-D/P. PTZOptics and HuddleCamHD cameras get the full command set; other brands receive a narrower one that varies by manufacturer. Sized for a rental fleet or a fixed control room, this PTZ camera controller holds 253 addresses: four groups of seven, plus a fifth that takes up to 225 network cameras.
Shading happens on the panel, not inside camera menus. The three-axis stick pans, tilts and zooms with a twist. One knob trims iris and shutter, another red and blue gain, and dedicated keys cycle five white-balance and five exposure modes, fire One Push calibration or toggle backlight compensation. Matching two angles on a panel debate before air becomes a quick job. Fine-tune dials creep zoom at its slowest step and pull focus by hand, while AF lock keeps a PTZOptics head from refocusing after each zoom. Pan, tilt, zoom, focus and preset speeds are saved per camera.
Presets run from 0 to 255 per camera; holding a keypad digit for three seconds stores a quick one. Super-Presets send up to eight cameras to stored shots at once and can add an HTTP-CGI call, useful for resetting a stage between conference sessions. Four custom keys and a fifth on the joystick knob send HTTP, TCP, UDP or UART strings to a switcher, a recorder, vMix or networked lights, and an automatic trigger can cut the mixer to a camera as soon as it is selected. For guest operators, Basic mode narrows the desk to presets, and Matrix mode maps keys 1–9 to presets 1–3 on cameras 1–3.
A built-in decoder pulls the active camera's RTSP stream and plays it out at 1080p over HDMI, so the desk can sit anywhere on the LAN with its own preview monitor. It draws 6 W from 12 V or PoE, RS-485 reaches 1,200 m, and settings export via USB or the web page to clone a setup between flight cases. Send us your camera list and we will confirm protocol support before you order.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Introducing the new SuperJoy Joystick Controller supporting Network and Serial Camera Control. Experience the full capabilities by pairing it with PTZOptics or HuddleCamHD cameras.
Create a Powerful, Precise and Versatile Production Experience

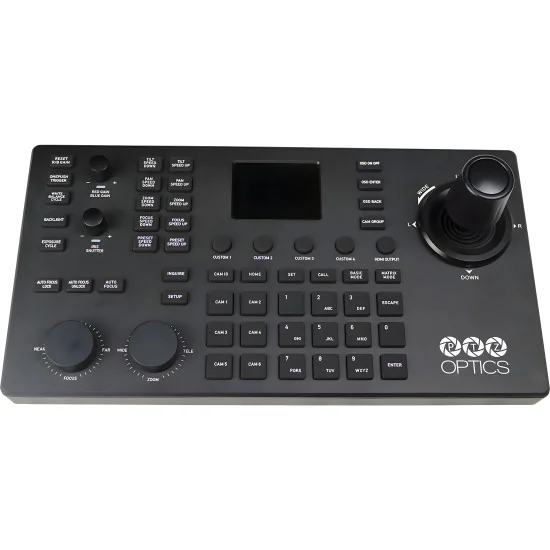

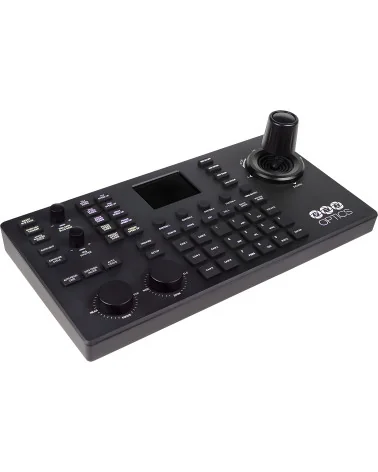

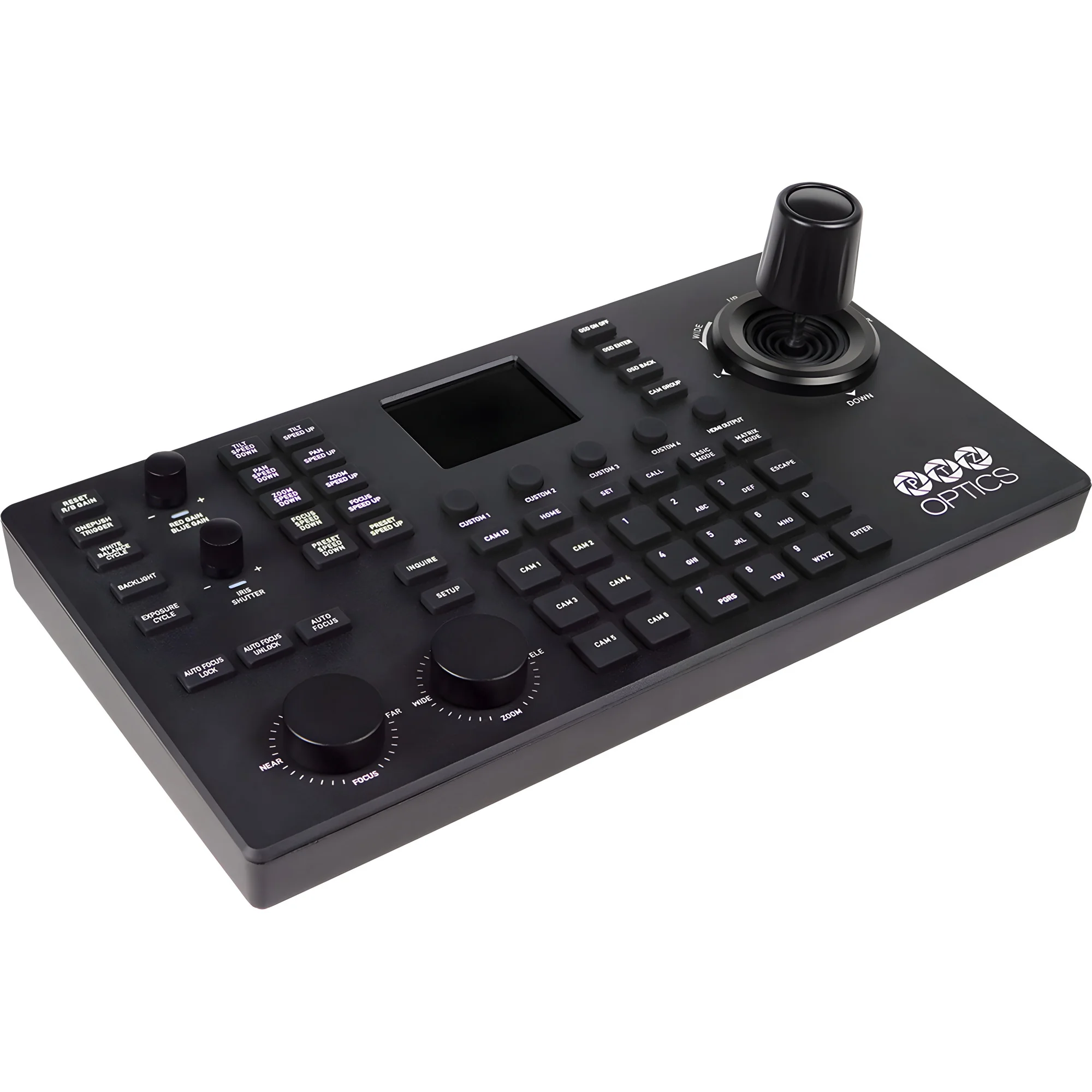

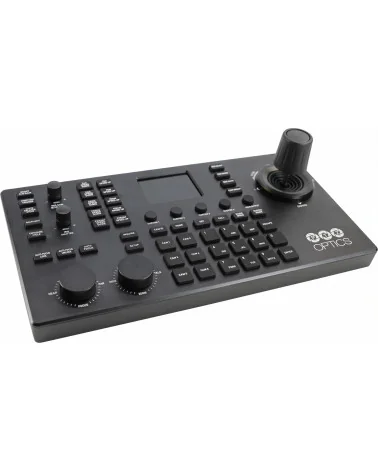

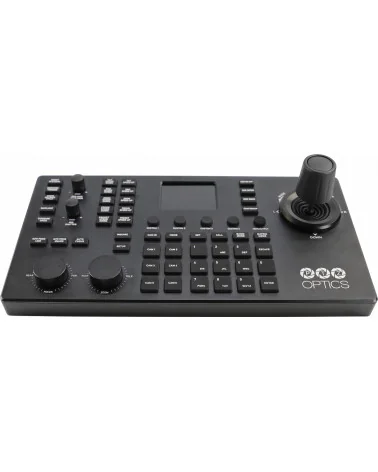

Introducing the PTZOptics SuperJoy, a PTZ camera joystick controller designed for smooth, efficient production workflows. The SuperJoy takes remote pan, tilt, and zoom camera operations to the next level in a simplified user interface with advanced controls for power users. The SuperJoy offers an intuitive, tactile interface, simplifying and streamlining even the most complex production setups.
SuperJoy’s HDMI video output provides a 1080p video preview for any camera connected to the SuperJoy that has an RTSP video feed available for use. This HDMI video output is ideal for viewing cameras over a local area network. In this way, a SuperJoy controller can be set up anywhere on a network to gain PTZ camera controls with a low-latency, live video preview.
Ergonomic, rubberized controls and pressure-sensitive dials for precise, on-the-fly-tuning, with no OSD adjustments required
Status-responsive backlit buttons and knobs indicate available camera modes, while optional tablet/computer control can allow for remote monitoring
Custom Control Across a Variety of Cameras and Devices
The PTZOptics SuperJoy Joystick Controller is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation.
Simultaneous pan, tilt and zoom control across IP, NDI® and serial cameras from multiple brands including PTZOptics, HuddleCamHD, Sony, BirdDog, and NewTek
If it’s IP-controlled, chances are the SuperJoy can control it – cameras, lights, projector screens and more – using four customizable buttons
Powerful Super-Preset buttons are programmable to trigger synchronized multi-preset commands across up to five unique camera groups with up to eight cameras each
Main Features
● Durable metal housing
● PTZOptics VISCA over IP & Serial control
● Limited NDI & Sony control
● PTZOptics Camera On Screen Display control
● Full Pan / Tilt / Zoom camera control
● PTZ, Focus, and Preset Speed Adjustment on the fly
● 5 Camera Control Groups
○ Groups 1-4 limited to 7 cameras
● 255 camera presets, 9 Quick presets
● 4 Customizable buttons (TCP, UDP, & HTTP)
● Fine tune zoom & focus control dials
● Buttons glow / flash when available
● RTSP Decoder via HDMI
● PTZOptics Focus Lock & Unlock
● Large LCD screen with controller status
● Import / Export settings via network & USB
● 2-Year warranty
What’s in the box?
● PT-SUPERJOY-G1 Joystick Controller
● 12V 2A DC International Power Supply
● RS-232C | DB9 to 8-pin mini-din cable
● PT-SUPERJOY-G1 Quick Start Guide
● Grounding Pin
| Specification | |
|---|---|
| General Specifications | |
| Protocol | PTZOptics VISCA and VISCA over IP PELCO-D and PELCO-P via Serial Ports Limited Sony VISCA and VISCA over IP support Limited ONVIF support Limited NDI support Limited Panasonic Support (HTTP) WebSockets |
| Baud Rate | 1200 to 19200 bps |
| Maximum Cameras | 253 channels / cameras Groups 1-4: 7 channels / cameras Group 5: 225 channels / cameras |
| Maximum Recommended Distance (Ethernet) | 328 feet / 100 Meters |
| Maximum Recommended Distance (RS-232) | 50 feet / 15 Meters |
| Maximum Recommended Distance (RS-485) | 3,937 feet / 1200 Meters |
| Maximum Recommended Distance (RS-422) | 50 feet / 15 Meters |
| Connections | |
| Power Connector | 12DC Power Connection |
| Power Requirements | 12V DC |
| Power Consumption | 6 Watts |
| HD Video Output | HDMI 1.3 (Up to 1080p) |
| Communication Interface | |
| Control Connections | RS-232 Control Connection RS-422 / RS-485 Control Connection Ethernet / RJ-45 (PoE) Network Connection |
| PoE | Supports 802.3af PoE power |
| Network | NIC (TCP and UDP) |
| Serial/Analog | RS-232 Full Duplex, RS-485 Semi Duplex, RS-422 Full Duplex |
| Physical Specifications | |
| USB 2.0 Interface | USB 2.0 Service Port (Update Firmware, Import Config, Export Config). DC12V Power required to activate. |
| Product Material | Aluminum |
| Dimensions (L x W x H) | 7.09” L x 13.94” W x 3.98” H 180mm L x 354mm W x 101mm H |
| Weight | 3.75 lbs / 1.70 kg |
| Box Dimensions (L x W x H) | 8.46” L x 14.57” W x 4.61” H 215mm L x 370mm W x 117mm H |
| Box Weight | 5.80 lbs / 2.63 kg |
| Operating Environment | Indoor |
| Operating Temperature | 14°F ~ 122°F (-10°C ~ +50°C) |
| Operating Humidity | 10% ~ 90% (non condensation) |
| Warranty | 2 Year Manufacturer Warranty |
| HEVC Patents | Covered by one or more claims of the HEVC patents listed at patentlist.accessadvance.com |
| Certifications | |
| FCC Class B | Tested under FCC 47 CFR Part 15 Subpart B, Class (sDoC), ANSI C63.4 -2014 |
| CE | Tested under EMC Directive 2014/30/EU |
| EN 55032 | EN 55032:2015+A11:2020 |
| EN 55035 | EN 55035:2017+A11:2020 |
| EN IEC 61000-3-2 | EN IEC 61000-3-2:2019 |
| EN 61000-3-3 | EN 61000-3-3:2013/A1:2019 |
| RoHS | Tested under RoHS Directive 2011/65/EU |
PT-SUPERJOY-G1
15 Items
Data sheet
- Video Output
- HDMI
- Interface
- Block terminal
DE-9/DB-9
Ethernet - Control protocol for PTZ cameras
- NDI
PELCO-D
PELCO-P
RS-232
RS-422
RS-485
Sony
VISCA
VISCA IP - Network Connection
- Ethernet
- Device type
- PTZ Camera Controller
- Tally Light
- No
Specific References
- ean13
- 840170500005
- mpn
- PT-SUPERJOY-G1
