AVMATRIX PKC3000 PTZ Camera Controller
€519.00
Operating a multi-camera PTZ setup during a live broadcast, a church service, or a corporate conference demands precision — and the AVMATRIX...

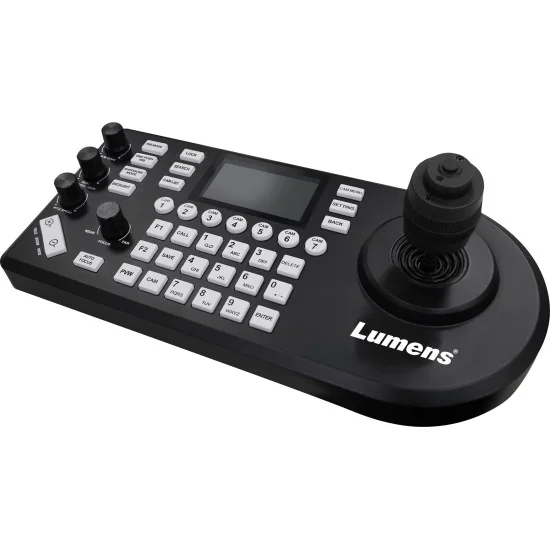

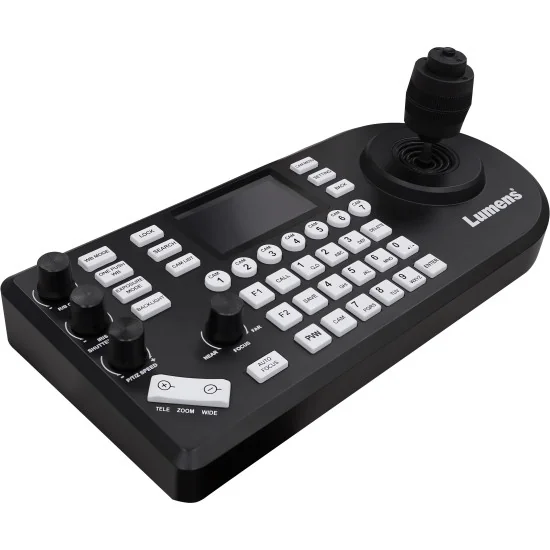

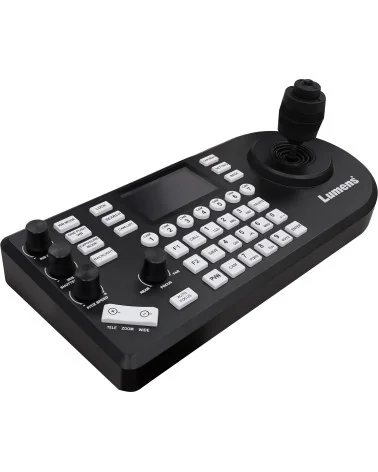

Running a multi-camera show falls apart the moment an operator has to guess where a remote head is pointing. The Lumens VS-KB21 answers that problem with a built-in 3" LCD preview screen that pulls live RTSP video straight from the camera being driven, so framing, focus and presets are set against the actual picture rather than a memorised position. Producers covering sport, houses of culture, council chambers or lecture theatres get the confidence of a confidence monitor without bolting on a separate display.
Control sits under the hand where it belongs. A weighted 4-axis joystick handles pan, tilt and zoom with the smoothness camera ops expect from far pricier desks, while a dedicated zoom seesaw and a speed knob let movements be feathered for a slow reveal or snapped quickly between two talkers. Seven hot keys switch the operator instantly between connected heads, and the controller addresses up to 255 IP cameras with the same number of stored presets — enough headroom for a permanent install in a large auditorium or a touring production that grows over time. Iris, shutter, gain and white balance each have direct access, and two user-assignable keys map the functions a given venue leans on most.
Compatibility is what keeps the desk relevant across mixed fleets. The VS-KB21 speaks VISCA, VISCA over IP and ONVIF, so it sits comfortably in front of Lumens heads and third-party box and PTZ cameras alike, with serial RS-232 and RS-422 on hand for legacy rigs. Baud rates from 2400 up to 115200 bps cover almost any device an integrator is likely to meet on site.
Installation stays refreshingly tidy. Connected to a PoE switch, a single Cat 5 run carries video preview, control data and power together, which trims cable counts in a crowded rack and shortens commissioning time; a 12V DC input remains available where PoE is not. Backed by a 5-year warranty, the Lumens VS-KB21 is a dependable long-term control surface for any team that treats uptime and repeatable results as part of the budget.
Lumens VS-KB21 PTZ Camera Controller
VS-KB21
Price: €929.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Running a multi-camera show falls apart the moment an operator has to guess where a remote head is pointing. The Lumens VS-KB21 answers that problem with a built-in 3" LCD preview screen that pulls live RTSP video straight from the camera being driven, so framing, focus and presets are set against the actual picture rather than a memorised position. Producers covering sport, houses of culture, council chambers or lecture theatres get the confidence of a confidence monitor without bolting on a separate display.
Control sits under the hand where it belongs. A weighted 4-axis joystick handles pan, tilt and zoom with the smoothness camera ops expect from far pricier desks, while a dedicated zoom seesaw and a speed knob let movements be feathered for a slow reveal or snapped quickly between two talkers. Seven hot keys switch the operator instantly between connected heads, and the controller addresses up to 255 IP cameras with the same number of stored presets — enough headroom for a permanent install in a large auditorium or a touring production that grows over time. Iris, shutter, gain and white balance each have direct access, and two user-assignable keys map the functions a given venue leans on most.
Compatibility is what keeps the desk relevant across mixed fleets. The VS-KB21 speaks VISCA, VISCA over IP and ONVIF, so it sits comfortably in front of Lumens heads and third-party box and PTZ cameras alike, with serial RS-232 and RS-422 on hand for legacy rigs. Baud rates from 2400 up to 115200 bps cover almost any device an integrator is likely to meet on site.
Installation stays refreshingly tidy. Connected to a PoE switch, a single Cat 5 run carries video preview, control data and power together, which trims cable counts in a crowded rack and shortens commissioning time; a 12V DC input remains available where PoE is not. Backed by a 5-year warranty, the Lumens VS-KB21 is a dependable long-term control surface for any team that treats uptime and repeatable results as part of the budget.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop

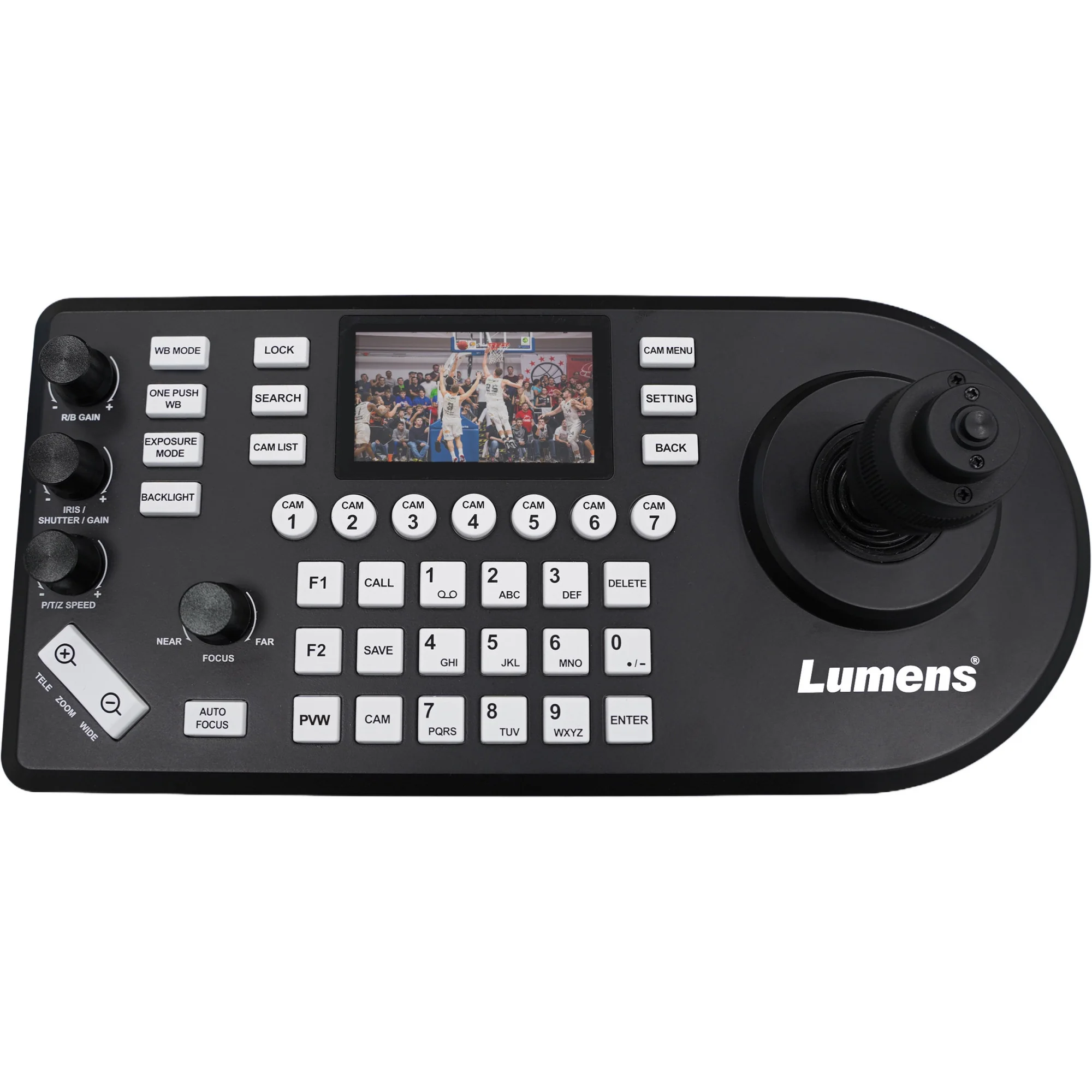

3" LCD Preview Screen
The low latency preview screen monitors up-to 255 IP streams simultaneously. For precise framing, the operator can switch to a single stream layout enabling full screen video preview.
IP Camera Controller
- Controls up-to total of 255 IP-connected cameras
- Quick access control of exposure, white balance, focus, PTZ speed and 2 user-assignable keys
- Supports RTSP Preview on LCD screen
- Supports RS-232, RS-422, and Ethernet control
- Supports VISCA and VISCA Over IP control protocols
Quick Camera Select
With 7 hot keys, the operator can instantly select the PTZ or box camera they want to control. This makes it easier than ever to manage a multi-camera production.
Quick Settings
The LCD screen displays all key camera parameters including iris, shutter and gain. This allows quick and accurate set-up of each camera.
Single Cable Installation
The VS-KB21's Ethernet connection is multi-purpose. Connected to a PoE-enabled switch, the network cable can transport video, power and control signals. This makes installation extremely quick and cost-effective.
Specification:
Comm. Interface: RS-232 / RS-422 / IP
Display: 3" LCD
Joystick: 4-axis (Pan / Tilt / Zoom)
Speed Control: x1 (1 Knob)
Zoom Control: x1 (Zoom Seesaw Lever)
Gain Control: R/B Gain
Focus Control: Auto / Manual
Assign Button: x2
Keypad with Backlight: Yes
Stream Preview: RTSP
Control Protocol: VISCA / VISCA Over IP
Baud Rate: 2400 / 4800 / 9600 / 38400 / 115200 bps
Camera Address: 1~255
Preset: 255
Power: DC12V / PoE
Power Consumption: PoE: 5W , DC In: 5W
Dimension(WxHxD): 11.89″ x 5.63″ x 4.41″ , (302 mm x 143mm x 112mm)
Weight: 2.8 lbs (1.3 kg)
VS-KB21
Data sheet
- Interface
- Ethernet
- Control protocol for PTZ cameras
- RS-232
RS-422
VISCA
VISCA IP - Network Connection
- Ethernet
- Device type
- PTZ Camera Controller
- Tally Light
- No
Specific References
- ean13
- 4711246503526
- mpn
- VS-KB21
