AVMATRIX PKC3500-NDI is a compact PTZ camera controller for broadcast control rooms and streaming galleries where one operator must reframe, shade and recall shots under time pressure. A 5-inch display presents live status and camera preview, while the tactile 4D joystick (with lock) drives pan/tilt/zoom with consistent speed. Three rotary controls provide direct access to iris/shutter/gain, red/blue balance and near/far focus, and the T-bar plus shortcut keys keep preset work fast and predictable.
Control is multi-protocol and scalable. On the network side, the RJ45 Gigabit Ethernet port supports ONVIF, VISCA over IP (including Sony variants) and NDI|HX2, so NDI PTZ cameras can be discovered and operated on the same LAN as your switcher and encoder. For legacy or point-to-point wiring, RS-232 and RS-422/RS-485 add VISCA, Pelco-D and Pelco-P control with baud rates up to 115200 bps. The system scales to 255 cameras with up to 255 presets. 7 user-assignable keys keep critical functions one press away.
Unlike controllers that require an external monitor, PKC3500-NDI decodes and displays incoming streams on its screen, including multi-view monitoring of up to four NDI sources. Use preview to validate focus, exposure and tally before taking a camera live, then store motion paths with track recording and playback to repeat complex pushes or panel sweeps for lecture capture, houses of worship, eSports, corporate town halls, telemedicine rooms or multi-camera interview sets.
Integration with live infrastructure is straightforward: TALLY/GPIO provides trigger and synchronization I/O for switchers and tally systems, while power can be delivered via PoE/PoE+ (IEEE 802.3af/at) or DC 7–24 V for clean flypack and rack wiring. A USB port supports firmware update, and consumption stays below 8 W for always-on operation.

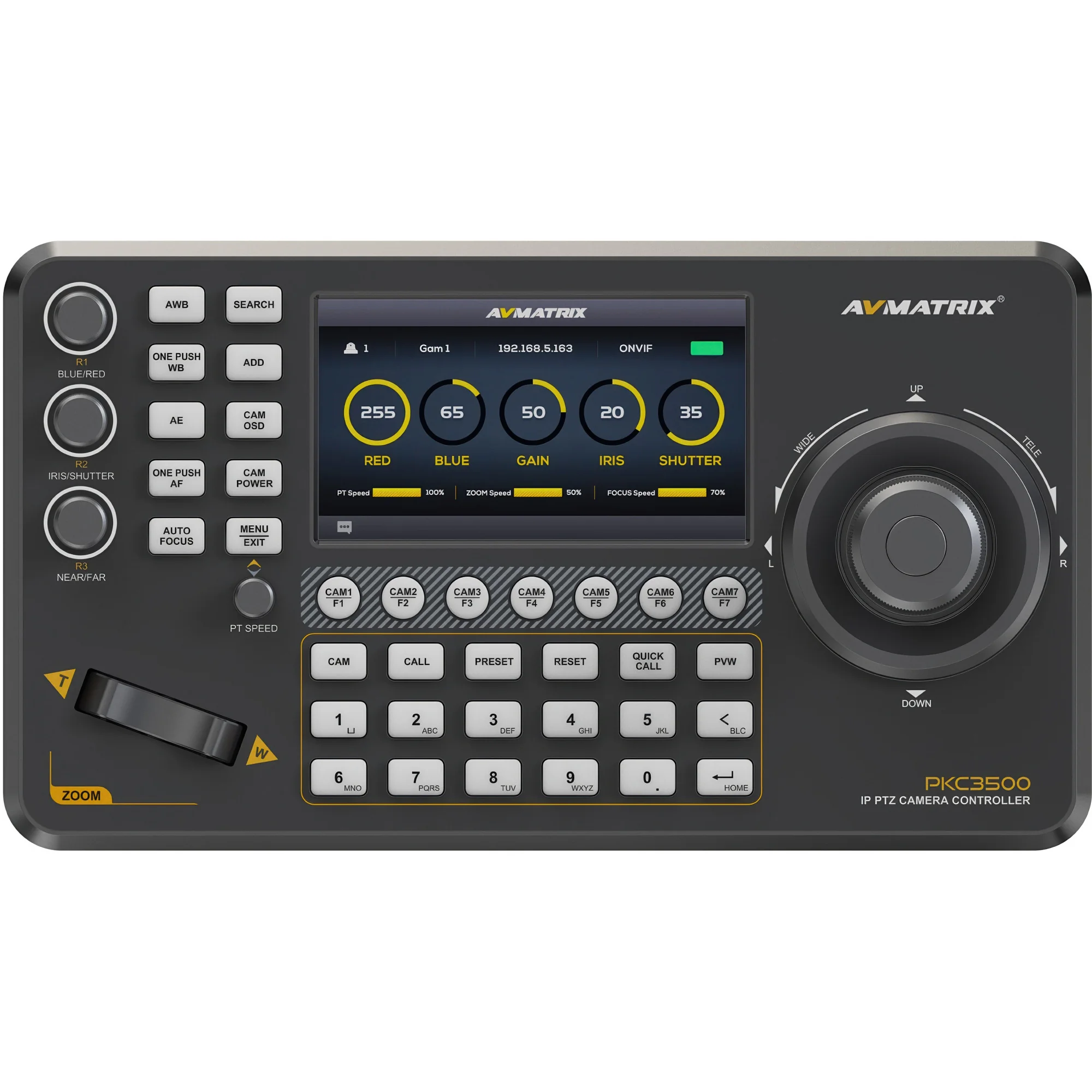

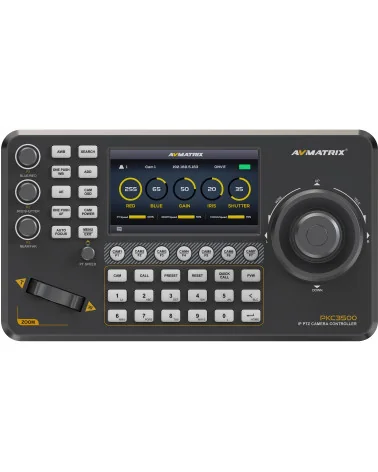

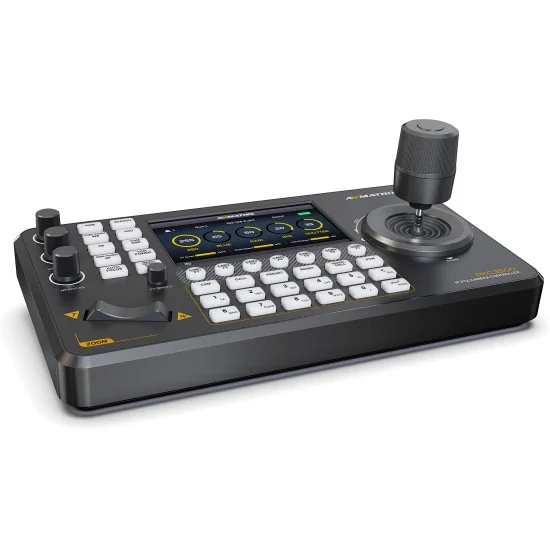

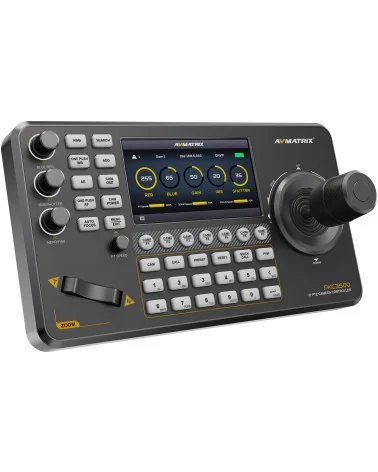

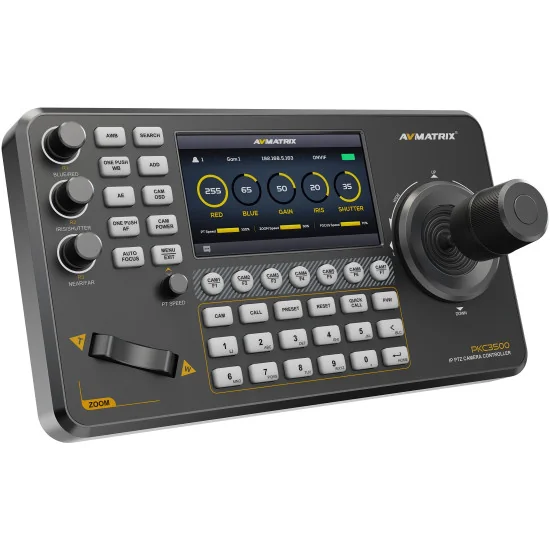

AVMATRIX PKC3500-NDI PTZ Camera Controller
PKC3500-NDI
Price: €519.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
AVMATRIX PKC3500-NDI is a compact PTZ camera controller for broadcast control rooms and streaming galleries where one operator must reframe, shade and recall shots under time pressure. A 5-inch display presents live status and camera preview, while the tactile 4D joystick (with lock) drives pan/tilt/zoom with consistent speed. Three rotary controls provide direct access to iris/shutter/gain, red/blue balance and near/far focus, and the T-bar plus shortcut keys keep preset work fast and predictable.
Control is multi-protocol and scalable. On the network side, the RJ45 Gigabit Ethernet port supports ONVIF, VISCA over IP (including Sony variants) and NDI|HX2, so NDI PTZ cameras can be discovered and operated on the same LAN as your switcher and encoder. For legacy or point-to-point wiring, RS-232 and RS-422/RS-485 add VISCA, Pelco-D and Pelco-P control with baud rates up to 115200 bps. The system scales to 255 cameras with up to 255 presets. 7 user-assignable keys keep critical functions one press away.
Unlike controllers that require an external monitor, PKC3500-NDI decodes and displays incoming streams on its screen, including multi-view monitoring of up to four NDI sources. Use preview to validate focus, exposure and tally before taking a camera live, then store motion paths with track recording and playback to repeat complex pushes or panel sweeps for lecture capture, houses of worship, eSports, corporate town halls, telemedicine rooms or multi-camera interview sets.
Integration with live infrastructure is straightforward: TALLY/GPIO provides trigger and synchronization I/O for switchers and tally systems, while power can be delivered via PoE/PoE+ (IEEE 802.3af/at) or DC 7–24 V for clean flypack and rack wiring. A USB port supports firmware update, and consumption stays below 8 W for always-on operation.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
AVMatrix PKC3500-NDI – Mini Professional NDI PTZ Controller
5" HD Display for Intuitive PTZ Control
The PTZ camera controller features a 5-inch HD screen that clearly presents real-time status as well as intuitive and well-organized menu layout which ensures a more efficient and professional control experience, making every action is clear and easy, enhancing both convenience and precision.
Real-time Preview of Your Camera
The controller supports decoding under NDIR|HX2(Optional), RTSP and ONVIF protocol which allows simultaneous real-time preview of the camera video streams on the 5-inch screen and adjust your control accordingly.
Track Recording and Playback
The PTZ camera controller supports track loop function which allows you to record camera path (pan, tilt, zoom) and replay it whenever required without having to manually control the camera.
Power-over-Ethernet (PoE)
Control up to total of 255 IP cameras on a single network with PoE support. You can use not only traditional DC power supply but also POE power supply to set up in various locations.
Sync Controller with Switcher Via GPIO
Equipped with GPIO, the controller can seamlessly integrate with switchers and tally system, enabling synchronized camera and video selection and simplifying your operations.
KEY FEATURES
- 5″ Touchscreen + NDI Decoding – Live preview up to 4 NDI feeds directly on the controller
- Full NDI Control – Discovery, control, and streaming integration alongside VISCA/IP, Pelco, ONVIF
- 4D Joystick + T-Bar – Precise, responsive pan/tilt/zoom/focus with professional feel
- 255 Camera Management – Auto IP discovery, multi-protocol support
- Track Record & Playback – Save and repeat complex camera movements
- 7 Assignable Keys – Instant access to presets, iris, WB, focus, etc.
- Connectivity – LAN (IP + PoE), RS-422/485/232, 12V DC
- GPIO Sync – Trigger or synchronize with external systems
SPECIFICATIONS
CONNECTIONS
Interfaces: IP(RJ45)×1, RS-232×1, RS-485/RS-422×1, TALLY×1, USB2.0 (For upgrade)
IP Protocol: ONVIF, VISCA, NDIR|HX2
Serial Protocol: PELCO-D, PELCO-P, VISCA
Serial Baud Rate: 2400, 4800, 9600, 19200, 38400, 115200 bps
LAN Port: 1000M×1 (PoE/PoE+: IEEE802.3 af/at)
USER INTERFACES
Display: 5-inch Screen
Knob: Quickly control iris, shutter speed, gain, auto exposure, white balance, etc.
Joystick: Pan/Tilt/Zoom
Camera Address: Up to 255
Camera Preset: Up to 255
POWER
Power: PoE/ DC 7~24V
Power Consumption: PoE: <8W, DC: <8W
ENVIRONMENT
Working Temperature: -20°C~60°C
Storage Temperature: -20°C~70°C
DIMENSION
Dimension(LWD): 282×158×47mm/ 282×158×100.5mm(With joystick)
Weight: Net: 1089g
PKC3500-NDI
Data sheet
- Interface
- Ethernet
- Control protocol for PTZ cameras
- NDI
ONVIF
PELCO-D
PELCO-P
RS-232
RS-422
RS-485
VISCA
VISCA IP - Network Connection
- Ethernet
- Device type
- PTZ Camera Controller
- Tally Light
- Yes
Specific References
- ean13
- 684232407167
- mpn
- PKC3500-NDI
