Magewell Pro Convert 12G SDI 4K Plus gives broadcast and live production teams a direct way to move a native 12G-SDI signal into an NDI environment without replacing proven camera chains, replay servers or studio infrastructure. It accepts a single-link SDI feed up to 4096x2160 at 60 fps and keeps a dedicated loop-through output available, which matters when the same source must feed a monitor wall, switcher input or technical shading position at the same time. For mobile production units, event venues, houses of worship, lecture capture systems and fixed studio installations, this means one encoder can bridge UHD baseband acquisition with an IP video network while keeping signal routing predictable.
The unit encodes NDI High Bandwidth at up to 4K60 4:2:2 8-bit and carries up to 16 channels of embedded audio, so a single SDI source can enter an NDI-based production with picture and multichannel sound preserved together. Magewell also allows adjustment of deinterlacing, scaling, frame rate and aspect ratio processing, which is useful when a camera feed must be normalized before it reaches OBS, vMix, NDI Studio Monitor or another NDI-aware destination. Support for BT.601, BT.709 and BT.2020 input spaces broadens compatibility with current HD and UHD equipment used in broadcast, streaming, corporate AV and hybrid event production.
Pro Convert 12G SDI 4K Plus also adds practical control features that make a difference on working sets. Through NDI-based PTZ control, operators can send commands to compatible cameras using protocols such as VISCA and PELCO, while the included tally support helps on-camera talent and operators see preview or program status more clearly. Remote administration through Web UI, Control Hub and HTTP API shortens setup time in multi-room or multi-encoder deployments, and USB RNDIS/ECM access is useful when a unit must be configured quickly from a laptop on location.
For integrators and engineering teams, the networking side is just as relevant. A Gigabit Ethernet interface with PoE reduces cabling at camera positions, temporary truss installations and conference spaces, while automatic signal detection and DHCP simplify first deployment. This makes the encoder a strong fit for 4K live streaming, broadcast contribution, NDI studio migration, e-sports production, auditorium capture, medical imaging distribution and rental systems where dependable SDI ingest and clean NDI conversion are more important than unnecessary extras.

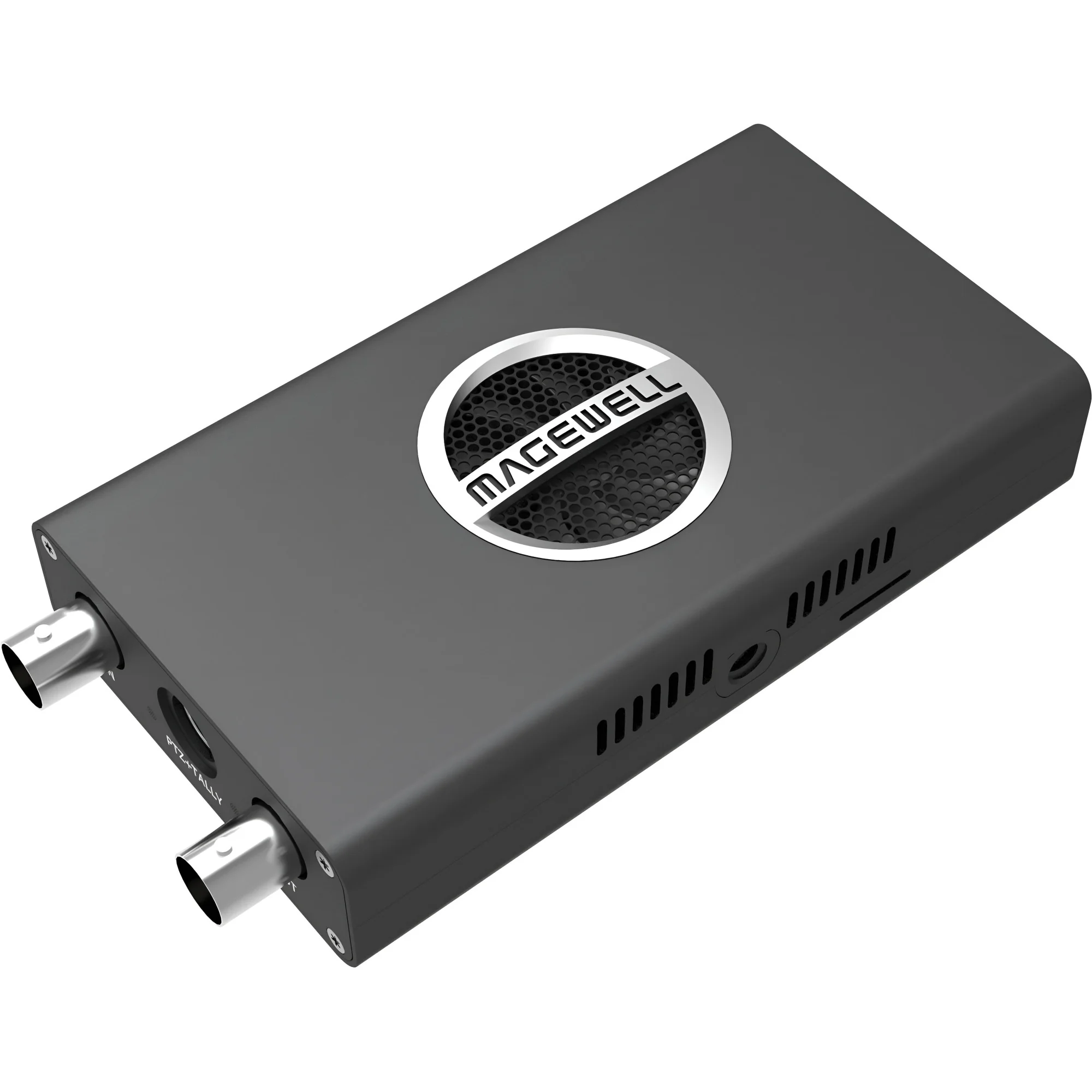

Magewell Pro Convert 12G SDI 4K Plus (64090) SDI to NDI
640900000
Price: €955.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Magewell Pro Convert 12G SDI 4K Plus gives broadcast and live production teams a direct way to move a native 12G-SDI signal into an NDI environment without replacing proven camera chains, replay servers or studio infrastructure. It accepts a single-link SDI feed up to 4096x2160 at 60 fps and keeps a dedicated loop-through output available, which matters when the same source must feed a monitor wall, switcher input or technical shading position at the same time. For mobile production units, event venues, houses of worship, lecture capture systems and fixed studio installations, this means one encoder can bridge UHD baseband acquisition with an IP video network while keeping signal routing predictable.
The unit encodes NDI High Bandwidth at up to 4K60 4:2:2 8-bit and carries up to 16 channels of embedded audio, so a single SDI source can enter an NDI-based production with picture and multichannel sound preserved together. Magewell also allows adjustment of deinterlacing, scaling, frame rate and aspect ratio processing, which is useful when a camera feed must be normalized before it reaches OBS, vMix, NDI Studio Monitor or another NDI-aware destination. Support for BT.601, BT.709 and BT.2020 input spaces broadens compatibility with current HD and UHD equipment used in broadcast, streaming, corporate AV and hybrid event production.
Pro Convert 12G SDI 4K Plus also adds practical control features that make a difference on working sets. Through NDI-based PTZ control, operators can send commands to compatible cameras using protocols such as VISCA and PELCO, while the included tally support helps on-camera talent and operators see preview or program status more clearly. Remote administration through Web UI, Control Hub and HTTP API shortens setup time in multi-room or multi-encoder deployments, and USB RNDIS/ECM access is useful when a unit must be configured quickly from a laptop on location.
For integrators and engineering teams, the networking side is just as relevant. A Gigabit Ethernet interface with PoE reduces cabling at camera positions, temporary truss installations and conference spaces, while automatic signal detection and DHCP simplify first deployment. This makes the encoder a strong fit for 4K live streaming, broadcast contribution, NDI studio migration, e-sports production, auditorium capture, medical imaging distribution and rental systems where dependable SDI ingest and clean NDI conversion are more important than unnecessary extras.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The Magewell Pro Convert 12G SDI 4K Plus converts one channel of 12G-SDI video up to 4Kp60 into Full NDI® with loop-through. This encoder supports inputs up to 4K at 60fps with 16 channels of embedded audio. Connect existing source equipment into NDI-enabled, IP-based media networks. All Magewell encoders are plug and play, which makes them very easy to use. input formats are automatically detected, and network configuration is done through DHCP.
Pro Convert hardware encoders and decoders let you easily and reliably bring baseband video and audio signals into and out of IP production workflows and AV-over-IP networks.
Making your transition to video-over-IP easier and more affordable, the low-latency Pro Convert devices let you connect your existing acquisition, production, presentation, and distribution equipment into flexible, IP based production and streaming workflows. PTZ Camera control is supported over NDI protocol.
- Converts one channel of 12G-SDI video up to 4Kp60 into Full NDI®
- Connects existing source equipment into NDI-enabled, IP-based media networks
- Supports inputs up to 4K at 60fps with 16 channels of embedded audio
- Plug-and-play ease of use with automatic input format detection and DHCP network configuration
Input & Loop through Features
Max video input & loop through: 4096x2160 60fps. Supported resolutions include:
4096x2160p/3840x2160p/2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60
1280x720p 50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
Support RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
Support RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support RGB, YUV BT.601/709/2020 video input
16-channel SDI embedded audio inputs
SD/HD/3G/6G/12G-SDI BNC input & loop through
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081)/12G (ST 2082) SDI standards
Receive 12G-SDI transmitted up to 30m (98ft), 6G-SDI 80m (262ft)
NDI® Encoding Features
Encoding Full NDI real-time stream at up to 4096x2160 60fps 4:2:2 8-bit
Output the same resolution as input or any custom resolution. Typical outputs include:
4096x2160p/3840x2160p/2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60
1280x720p 50/59.94/60
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
Encoding 16-channel NDI-embedded audio
Support NDI 5.x
Configuration Management
Register with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provide comprehensive information regarding the device and signals in real-time
Allow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, frame rate, aspect ratio, as well as the network connection
Update firmware
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs
On-board Control Buttons
16 Position Rotary DIP Switch: set board-index from 0 to F
PTZ Control
Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI
Mini-DIN–8 jack (shared with Tally light)
Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
Supported Products
NDI Studio Monitor
OBS
vMix
Any other NDI-enabled product
LED Indicators
Status LEDs indicate:
Power supply: on/off
Tally: preview/program
Input signal: locked/unlocked
Loop through signal: on/off
Form Factor
117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories
USB 2.0 A to B cable
5V/2.1A power adaptor
Mini-DIN 8 breakout cable
Tally light
L-bracket
Screw Mounting Hole
1⁄4–20 threaded hole
Power Consumption
5V max current: ~1.65A
Max power consumption: ~8.5W
Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
640900000
1 Item
Data sheet
- Video Input
- SDI
- Video Output
- NDI
SDI - Audio Input
- SDI Embedded
- Audio Output
- NDI Embedded
- Max Output Resolution
- 4K (4096 x 2160) 50/60 fps
- Output colour sampling
- RGB 4:2:2 8-bit
YUV/YCbCe/YPbPr 4:2:2 8-bit - Built-in scaler
- Yes
- Control protocol for PTZ cameras
- PELCO-D
PELCO-P
VISCA
VISCA UDP
Visca UDP2rs232 - Network Connection
- Ethernet
Specific References
- ean13
- 6936572401331
- mpn
- 640900000
