Magewell Pro Convert SDI TX answers a very specific need in modern broadcast and AV-over-IP systems: taking a single 3G-SDI camera, replay server or vision output and placing it straight onto an NDI network without adding a computer at the edge of the system. It accepts SD, HD and DCI 2K signals up to 2048 × 1080 at 60 fps, then encodes them as Full NDI with low latency, so the source can be routed into OBS, vMix, NDI Studio Monitor, switchers or multi-room production environments over standard Gigabit Ethernet. For studios moving legacy SDI infrastructure toward IP, this is a direct bridge between baseband video and networked production.
The unit carries embedded audio into the NDI stream, supports output at the original resolution or a custom format, and can keep the original frame rate or reduce it to 1/2, 1/3 or 1/4 when the network or receiving system needs a lighter load. A built-in equalizer supports SDI cable runs up to 180 metres, which matters in event venues, auditoriums and sports installations where cameras sit far from the control area. The encoder also supports PoE, so one network cable can deliver data and power, reducing cabling around camera positions, commentary booths or temporary flypacks.
For camera-chain integration, Magewell Pro Convert SDI TX also adds PTZ control and tally over NDI, using supported serial protocols through its shared Mini-DIN connection. That makes it relevant not only for fixed-rig encoding, but also for hybrid systems where SDI PTZ cameras need control feedback inside an IP production network. Web-based management, USB network configuration and HTTP API support simplify deployment for teams managing multiple endpoints across studios, campuses or rental inventories. Use cases include podcast rooms, lecture capture, stage cameras, replay outputs, graphics feeds and remote contribution points connected to an NDI control room.

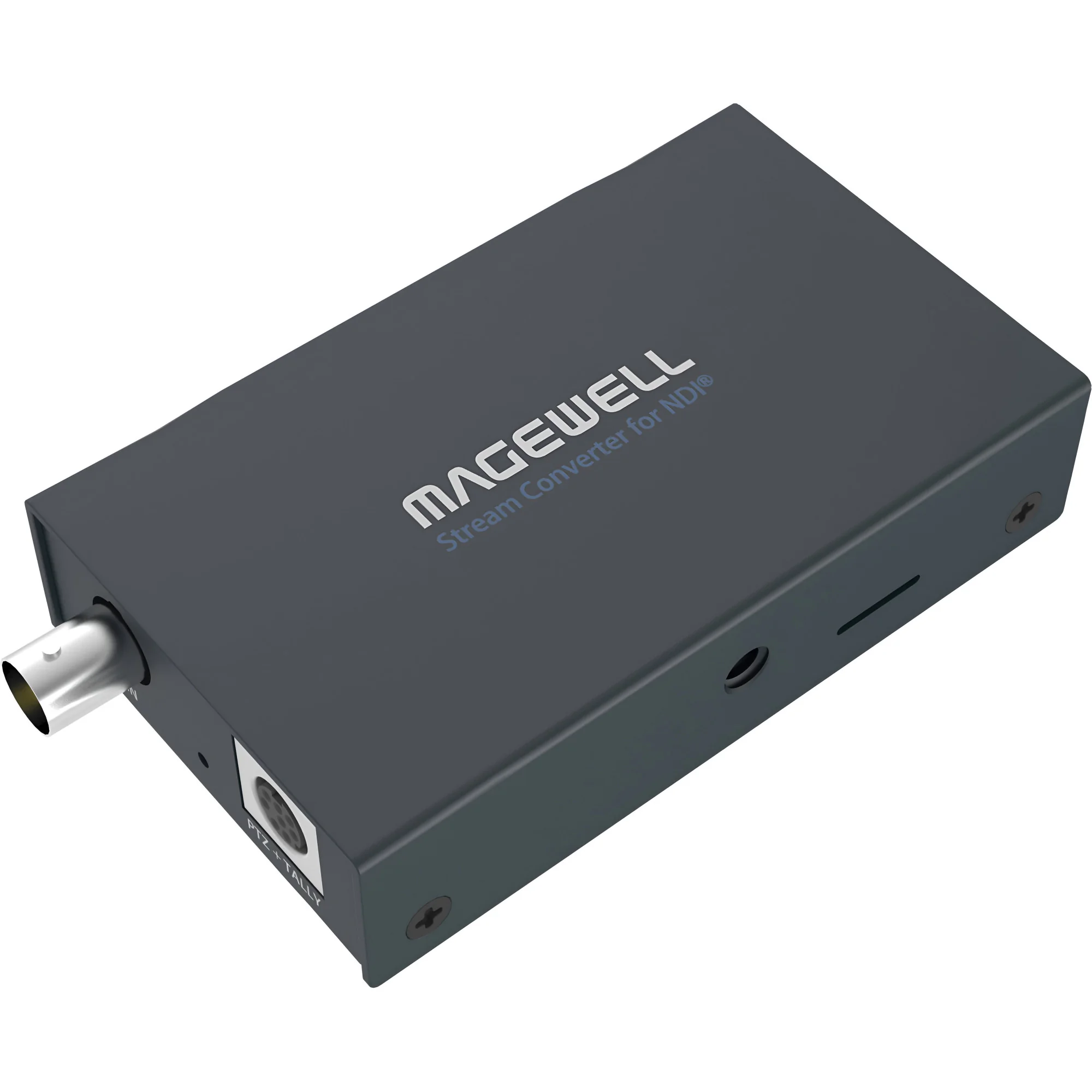

Magewell Pro Convert SDI TX (64062) SDI to NDI converter
640600000
Price: €449.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Magewell Pro Convert SDI TX answers a very specific need in modern broadcast and AV-over-IP systems: taking a single 3G-SDI camera, replay server or vision output and placing it straight onto an NDI network without adding a computer at the edge of the system. It accepts SD, HD and DCI 2K signals up to 2048 × 1080 at 60 fps, then encodes them as Full NDI with low latency, so the source can be routed into OBS, vMix, NDI Studio Monitor, switchers or multi-room production environments over standard Gigabit Ethernet. For studios moving legacy SDI infrastructure toward IP, this is a direct bridge between baseband video and networked production.
The unit carries embedded audio into the NDI stream, supports output at the original resolution or a custom format, and can keep the original frame rate or reduce it to 1/2, 1/3 or 1/4 when the network or receiving system needs a lighter load. A built-in equalizer supports SDI cable runs up to 180 metres, which matters in event venues, auditoriums and sports installations where cameras sit far from the control area. The encoder also supports PoE, so one network cable can deliver data and power, reducing cabling around camera positions, commentary booths or temporary flypacks.
For camera-chain integration, Magewell Pro Convert SDI TX also adds PTZ control and tally over NDI, using supported serial protocols through its shared Mini-DIN connection. That makes it relevant not only for fixed-rig encoding, but also for hybrid systems where SDI PTZ cameras need control feedback inside an IP production network. Web-based management, USB network configuration and HTTP API support simplify deployment for teams managing multiple endpoints across studios, campuses or rental inventories. Use cases include podcast rooms, lecture capture, stage cameras, replay outputs, graphics feeds and remote contribution points connected to an NDI control room.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The Magewell Pro Convert SDI TX converts one HD 3G-SDI input signal into Full NDI®, enabling users to connect existing source equipment into NDI or IP media networks. This device supports one SDI video signal up to 2048x1080 60fps with 8bit NDI encoding up to 2048x1080 60fps.
The plug-and-play simplicity of the Magewell Pro Convert SDI TX makes it very easy to use. Once connected, the device will automatically detect the input formats. All network configuaration settings are done through DHCP.
The Magewell Pro Convert Encoders offer aslo a perfect solution for connecting SDI or HDMI cameras into NDI workflows. In addition, the encoders feature PTZ control for centralized and remote control of PTZ cameras.
- Converts one 3G-SDI input signal into Full NDI®
- Supports signal input up to 2048x1200 60fps
- Supports NDI encoding output up to 2048x1200 60fps 4:2:2 8-bit
- DHCP network configuration
Easily pair Magewell Pro Convert encoders and decoders
The Magewell Pro convert encoders convert HDM and SDI signals to Full NDI®. Users are also able to encode to NDI|HX® when paired with the Magewell decoders.
Ultra Low Latency
When users choose to transmit video over the network, the transmission latency is often what they care about most. During the entire transmission process, the selection of software and hardware encoders & decoders is very important, which can directly affect the latency of network transmission. The average latency for all pro convert encoders and decoders is 47ms at 1080p@60fps. Read more about latency below.
Easy Access and Installation
The Pro Convert Encoders feature Plug-and-Play and Easy installation. The devices automatically detect your DHCP-based network as well as the video input format. The Magewell web GUI interface offers more flexibility and allows users to control devices and settings.
For a single 1080p or 4Kp60 input, Pro Convert requires 100Mbps to 250Mbps to deliver an NDI stream. A Gigabit network can deliver 6 to 7 1080p60 streams or 2 to 3 4Kp60 streams while guaranteeing stable transmission.
Other Features
Power via Power over Ethernet (PoE) or USB power supply
Program and preview tally lights
FPGA-based video processing
Remote NDI control of PTZ cameras
Automated failover redundancy
Send NDI streams across network segments
Input Features
Max video input: 2048x1080 60fps. Supported resolutions include:
2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
2048x1080i/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
Support RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
Support RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support RGB, YUV BT.601/709/2020 video input
16-channel SDI embedded audio inputs
SD/HD/3G-SDI BNC input
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards
Receive 3G-SDI transmitted up to 180m (591ft)
NDI® Encoding Features
Encoding Full NDI real-time stream at up to 2048x1080 60fps 4:2:2 8-bit
Output the same resolution as input or any custom resolution. Typical outputs include:
2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60
1280x720p 50/59.94/60
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
Encoding 16-channel NDI-embedded audio
Support NDI 5.x
Configuration Management
Register with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provide comprehensive information regarding the device and signals in real-time
Allow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, frame rate, aspect ratio, as well as the network connection
Update firmware
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs
On-board Control Buttons
16 Position Rotary DIP Switch: set board-index from 0 to F
PTZ Control
Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI
Mini-DIN–8 jack (shared with Tally light)
Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
Supported Products
NDI Studio Monitor
OBS
vMix
Any other NDI-enabled product
LED Indicators
Status LEDs indicate:
Power supply: on/off
Input signal: locked/unlocked
Form Factor
100.9mm (L) x 60.2mm (W) x 23.3mm (H)
Accessories
USB 2.0 A to B cable
5V/2.1A power adaptor
Mini-DIN 8 breakout cable
Tally light
L-bracket
Screw Mounting Hole
1⁄4–20 threaded hole
Power Consumption
5V max current: ~1.5A
Max power consumption: ~7W
Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
640600000
7 Items
Data sheet
- Video Input
- SDI
- Video Output
- NDI
- Audio Input
- SDI Embedded
- Audio Output
- NDI Embedded
- Max Output Resolution
- 1080p 50/60 fps
- Output colour sampling
- RGB 4:2:2 8-bit
YUV/YCbCe/YPbPr 4:2:2 8-bit - Built-in scaler
- Yes
- Control protocol for PTZ cameras
- PELCO-D
PELCO-P
VISCA
VISCA UDP
Visca UDP2rs232 - Network Connection
- Ethernet
Specific References
- ean13
- 6936572401201
- mpn
- 640600000
