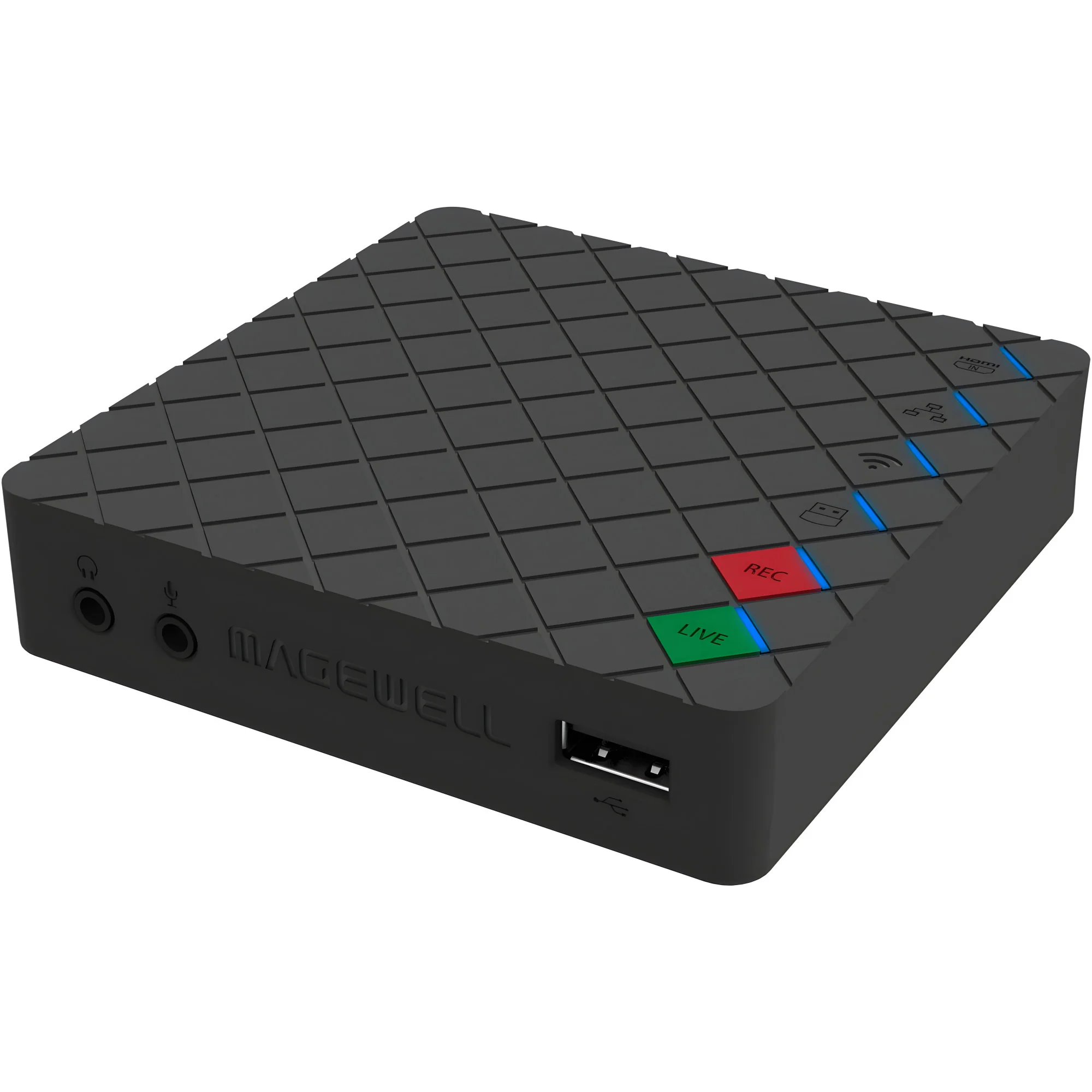

Magewell Ultra Stream HDMI (53010) Streaming video Encoder

Magewell Ultra Stream HDMI (53010) Streaming video Encoder

Name: Magewell Ultra Stream HDMI (53010) Streaming video Encoder
Brand: Magewell
SKU: 530100000
Price: 489.00 EUR
Availability: InStock

MPN: 530100000

Price: €489.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Magewell Ultra Stream HDMI is a standalone HDMI streaming encoder for productions that need direct transmission without placing a laptop or software encoder in the signal chain. It accepts up to 4K HDMI input and loop-through, then converts the signal for 1080p60 live streaming, which is useful when a camera, switcher or presentation system outputs UHD but the platform and available bandwidth call for stable Full HD delivery. For conference streaming, lecture capture, church services, gaming channels, corporate webinars or mobile event kits, this gives operators a compact encoder that starts quickly and keeps the installation simple.

In daily use, the advantage is not just portability but control over the stream itself. Magewell Ultra Stream HDMI supports H.264 and HEVC/H.265 video encoding with AAC audio, video bitrates up to 8 Mbps, selectable HD and SD output resolutions, and simultaneous streaming to two destinations. That makes it practical for sending one feed to a public platform and another to a private server at the same time. Native support for YouTube, Facebook and Twitch, plus RTMP, RTMPS and RTSP, gives it value in both managed corporate networks and standard social streaming setups.

Recording options also widen its role on set and on location. The unit can save files to internal 32 GB storage, a connected USB flash drive or a paired smartphone, with recording available in MP4 or MOV. This is useful when a producer needs a safety copy of a keynote, a backup file from a house-of-worship stream, or fast local capture from a trade-show presentation. The encoder also handles dual-stream encoding, de-interlacing, embedded HDMI audio, and external voice capture through the 3.5 mm microphone input, while the headphone output makes confidence monitoring easier during setup and live operation.

For integrators and video teams, Magewell Ultra Stream HDMI fits neatly into fixed and temporary systems thanks to Gigabit Ethernet, Wi-Fi, optional 3G/4G modem support, browser-based management, smartphone control and HTTP API access for custom control layers. It suits lecture rooms, meeting spaces, live multicam flypacks, overflow rooms and streaming stations where reliability matters more than unnecessary complexity. If the brief is simple HDMI ingest, direct platform delivery and local recording in one box, this encoder answers that requirement with clear technical logic.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The Magewell ultra stream HDMI streams your HDMI input to any streaming platform like YouTube, Twitch and Facebook. It is even possible to stream to two platforms simultaneously at bitrates up to 4Mbps.

This stand-alone device supports H.264 or HEVC video encoding at resolutions up to 1080p60 at 8Mbps. Record and save clips to internal storage, a USB flash drive, the associated smartphone or a specified FTP server.

- A dedicated HDMI streaming encoder with loop-through
- Live streaming to popular services such as Facebook Live, YouTube or Twitch
- Streams to a custom-specified RTMP or RMTPS server and supports sending RTSP streams
- Records video to the internal storage, a connected USB drive or an associated smartphone

Internet connectivity via wired Ethernet, Wi-Fi and optional 3G/4G modem support

Input Features
Max HDMI input & loop-through signals:
4096x2160 4:2:0 60fps
4096x2160 4:4:4/4:2:2 30fps
Custom EDID
Supported HDMI inputs include:
4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
2560x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
1920x1080i 25/29.97/30/50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60/144
720x576p 50/100/144
720x576i 25/50
720x480p 59.94/60/144
720x480i 29.97/30 8/10/12-bit color
Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
Input audio from 3.5mm microphone
HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D

Encoding Features
Dual stream encoding: main stream and sub stream
Max bitrate:
Main Stream - 8Mbps
Sub Stream - 2Mbps
Supported resolutions:
HD: 1920x1080, 1600x1200, 1600x900, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
H.264/H.265(HEVC) video encoders
Encoding 2-channel AAC at 48kHz, 16-bit
Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
Extracting audio from HDMI signal and output through 3.5mm headphone
Encoding videos after de-interlacing

Streaming Features
Natively support streaming to Facebook, Twitch and YouTube
Supported streaming protocols including RTSP/RTMP/RTMPS
Up to 2 streaming sessions simultaneously

Recording Features
Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously
To a USB Flash Drive
support auto-recording, normal recording
recording as MP4 or MOV files
Recording duration can be 5/10/30/40/50/60/90/120 min
Downloading recorded videos via WebUI
To internal SD storage (32GB)
support auto-recording, loop-styled or normal recording
recording as MP4 or MOV files
Recording duration can be 5/10/30/40/50/60/90/120 min
uploading recorded videos to a specified FTP server (FTP over TLS is supported), your Dropbox and Google Drive via WebUI
Downloading recorded videos via WebUI
To paired mobile device
recording as MP4 files
taking still image snapshots during recording
timer recording at 15s, 30s, 1min, 2min, 5min

Configuration Management
Register with 2 Magewell Cloud platforms
Remote control via Application, WebUI and Magewell Cloud
Provide comprehensive information regarding the system information of device and working status in real-time Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
Update firmware
WebUI supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs

Network
Wired Ethernet network: 10/100/1000Mbps
Wi-Fi 802.11 a/b/g/n/ac
3G/4G USB mobile broadband Modem (not included)
Bluetooth 4.0 BLE

LED Indicators
Indicate the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
Indicate the working state of the device: startup, recording, streaming, updating

Power Supply and Consumption
DC 5V/2A
Max power consumption: ~9.6 W

Form Factor
94.20mm x 94.20mm x 22.30mm

Accessories
AC adapter HDMI cable

Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
