Bolin EXU248N Grey Outdoor NDI PTZ Camera
€9,190.00
Bolin EXU248N Grey is an outdoor NDI PTZ camera for long range acquisition in broadcast and live streaming infrastructures. A 1 inch Sony...
The Telycam Drive+ SE SDI BK is a compact PTZ camera for multi-camera studios and streaming flypacks. At its core is a 1/2.8-inch (≈6.46 mm diagonal) 2.4 MP CMOS that outputs Full HD 1920×1080 at 60p over SDI, IP and USB. A 20× optical lens covers 4.9–98 mm, giving a horizontal angle from 60° wide to 3.2° tele, with AF driven by a fast algorithm and 2D/3D noise reduction for 0.7 lux scenes. Minimum object distance is 1.0 m, S/N ≥50 dB, and anti-flicker modes support 50/60 Hz pipelines.
Connectivity is built for production. 3G-SDI carries 1080p60/50/30/25/59.94/29.97/24/23.98 and 1080i60/50/59.94, while IP streaming supports H.264/H.265 at 1024 kb/s to 16 Mb/s via NDI|HX, SRT, RTSP, RTMP and RTP multicast; control includes VISCA over IP/TCP/UDP, ONVIF and Pelco P/D. USB 3.0/UVC 1.5 delivers 1080p60 to capture appliances and meeting PCs. A 3.5 mm line-level input embeds program audio on SDI, IP and USB outputs. The integrated tally follows NDI sources for on-air confidence.
Motion is precise: pan −170° to +170° and tilt −30° to +90°, with speeds from 0.1°/s for fine framing up to 120°/s pan and 80°/s tilt for quick cues. Store 10 IR presets or 128 over serial with 0.1° repeatability. Power and data run on one cable using PoE+ (IEEE 802.3at); DC 12 V is also available. Dimensions are 220×190×173 mm; weight 1.35 kg. Standard mounting uses a 1/4-20 UNC thread (≈6.35 mm) for tripods and ceiling plates; image flip/mirror options maintain correct orientation.
This model, TLC-300-IP-20(NDI)-SE-SDI, pairs reliably with broadcast switchers and IP video cores. It streams 360p–1080p60, integrates with HTML control pages, and negotiates Gigabit Ethernet at 1000 Mb/s. For directors and engineers who require consistent color and low latency across mixed interfaces, the Drive+ SE SDI BK offers a stable FHD pipeline, robust field-ready thermals rated −10 °C to +50 °C and ≤80% humidity(spec).
Telycam Drive+ SE SDI BK PTZ Camera
Drive+ SE SDI BK
Price: €695.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
The Telycam Drive+ SE SDI BK is a compact PTZ camera for multi-camera studios and streaming flypacks. At its core is a 1/2.8-inch (≈6.46 mm diagonal) 2.4 MP CMOS that outputs Full HD 1920×1080 at 60p over SDI, IP and USB. A 20× optical lens covers 4.9–98 mm, giving a horizontal angle from 60° wide to 3.2° tele, with AF driven by a fast algorithm and 2D/3D noise reduction for 0.7 lux scenes. Minimum object distance is 1.0 m, S/N ≥50 dB, and anti-flicker modes support 50/60 Hz pipelines.
Connectivity is built for production. 3G-SDI carries 1080p60/50/30/25/59.94/29.97/24/23.98 and 1080i60/50/59.94, while IP streaming supports H.264/H.265 at 1024 kb/s to 16 Mb/s via NDI|HX, SRT, RTSP, RTMP and RTP multicast; control includes VISCA over IP/TCP/UDP, ONVIF and Pelco P/D. USB 3.0/UVC 1.5 delivers 1080p60 to capture appliances and meeting PCs. A 3.5 mm line-level input embeds program audio on SDI, IP and USB outputs. The integrated tally follows NDI sources for on-air confidence.
Motion is precise: pan −170° to +170° and tilt −30° to +90°, with speeds from 0.1°/s for fine framing up to 120°/s pan and 80°/s tilt for quick cues. Store 10 IR presets or 128 over serial with 0.1° repeatability. Power and data run on one cable using PoE+ (IEEE 802.3at); DC 12 V is also available. Dimensions are 220×190×173 mm; weight 1.35 kg. Standard mounting uses a 1/4-20 UNC thread (≈6.35 mm) for tripods and ceiling plates; image flip/mirror options maintain correct orientation.
This model, TLC-300-IP-20(NDI)-SE-SDI, pairs reliably with broadcast switchers and IP video cores. It streams 360p–1080p60, integrates with HTML control pages, and negotiates Gigabit Ethernet at 1000 Mb/s. For directors and engineers who require consistent color and low latency across mixed interfaces, the Drive+ SE SDI BK offers a stable FHD pipeline, robust field-ready thermals rated −10 °C to +50 °C and ≤80% humidity(spec).
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Full HD Clarity
The Drive+ SE features an industry-leading image processor and a 1/2.8-inch 2.4-megapixel sensor, delivering FHD video at 1920x1080p60. It pro-vides vivid, sharp visuals even in challenging low-light conditions.
Precision Zoom
With a 20X optical zoom lens and a 60-degree field of view, the Drive+ SE ensures rapid, accurate focus with its proprietary algorithm. Capture every detail effortlessly, whether zooming in or panning.
Latest NDI®HX Integration
Using Newtek’s NDI® technology, the Drive+ SE enables seamless plug-and-play integration across various live streaming platforms.
Versatile Outputs
In addition to NDI®HX, the Drive+ SE simultaneously outputs via 3G-SDI and USB3.0, providing unmatched connectivity flexibility.
Intuitive Tally System
The built-in indicator light doubles as a tally, responding to notifications from NDI® devices. Easily discern when you're live with a glance.
Specifications
TLC-300-IP-20(NDI)-SE-SDI
1/2.8 inch, 2.4MP CMOS sensor
20X optical zoom
Lens: f= 4.9mm~98 mm, F1.5~F3.0
Horizontal View Angle: 60°(Wide)~3.2°(Tele)
Vertical Viewing Angle: 34.14°~1.12°
Diagonal Viewing Angle: 67.08°~2.27°
Minimum Working Distance: 1.0m
S/N Ratio: ≥50dB
Image Parameters
Noise Reduction: 2D&3D
Minimum lux: 0.7Lux(50 IRE Max AGC, 1/30, F1.8)
White Balance: ATW/Manual/Auto/Indoor/Outdoor/One Push/Sodium/Fluorescent
Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker: OFF, 50Hz, 60Hz
Image Flip: Supported
Mirroring: Supported
Focus: Auto/Manual
Iris: Auto/Manual
Electronic-shutter: Auto/Manual
Gamma: Supported
Backlight Compensation: Supported
Video Format
NDI®HX: 1920*1080@3~60; 1280*720@3~60; 1024*576@3~60; 640*360@3~60 (low bandwidth mode)
3G-SDI: 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
USB 3.0: 1920*1080P60/50/30/25 1280*720P60/50/30(USB 3.0); 1280*720P25(USB 3.0&USB 2.0); 1024*576P30(USB 3.0&USB 2.0); 960*540P30(USB 2.0); 640*360P30(USB 2.0); 512*288P30(USB 2.0)
IP Streaming
Video Encoding: H.264/H.265
Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range: 1024Kbps~ 16384Kbps
Network Port Speed: 1000M
Protocol: NDI®HX, SRT, HTTP, RTSP, RTMP, DHCP, ONVIF, VISCA over IP, VISCA TCP, VISCA UDP, Pelco P/D, RTP Multicast, HTML
Pan/Tilt Movement
Preset: Remote controller: 10; Serial port: 128; Accuracy: 0.1°
Pan Rotation Angle: -170°~+170°
Tilt Rotation Angle: -30°~+90°
Pan Rotation Speed: 0.1°~120°/s
Tilt Rotation Speed: 0.1°~80°/s

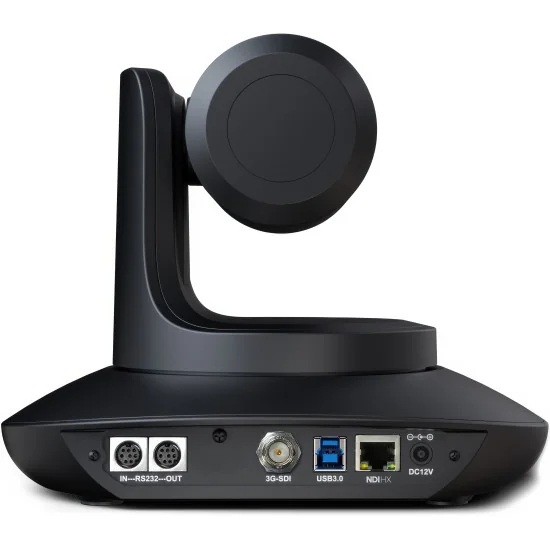

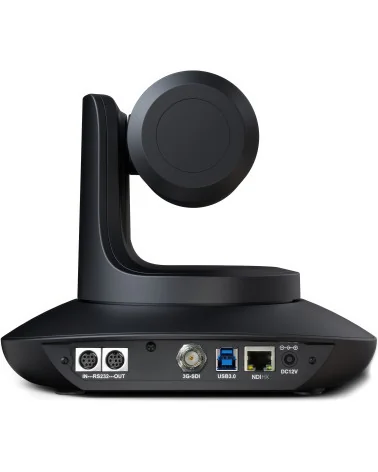

I/O Interface
Control Port: RS232, RS485, NDI®HX, USB 3.0(UVC1.5), USB 2.0(UVC1.1)
Video Port: NDI®HX, 3G-SDI(or HDMI), USB 3.0
Audio Port: stereo 3.5mm linear inputs
Tally: Supported
POE+: Supported
Daisy Chain: Supported
General
Input Voltage: DC12V, POE+(IEEE802.3at)
Operating Temperature: -10℃~50℃
Operating Humidity: ≤80%
Dimension(L×W×H): 220mmx190mmx173mm
Net Weight: 1.35kg
Color: Black/White
Drive+ SE SDI BK
6 Items
Data sheet
- Video Output
- NDI
RJ-45 (IP)
SDI
USB - Audio Input
- Mini Jack 3.5mm
- Audio Output
- NDI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 1080p 50/60 fps
- Control protocol for PTZ cameras
- PELCO-D
PELCO-P
RS-232
RS-485
VISCA
VISCA IP - Sensor Size
- 1/2.8"
- Optical Zoom
- 20x
- PoE Technology
- Yes
- Auto-Tracking
- No
- Tally Light
- Yes
Specific References
- ean13
- 768486167227
- mpn
- TLC-300-IP-20(NDI)-SE-SDI
