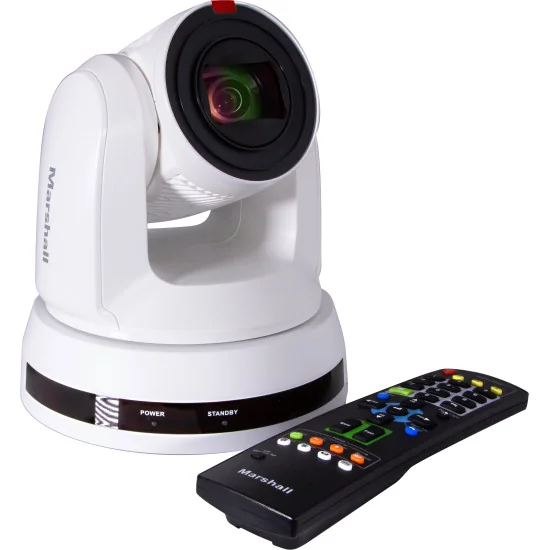

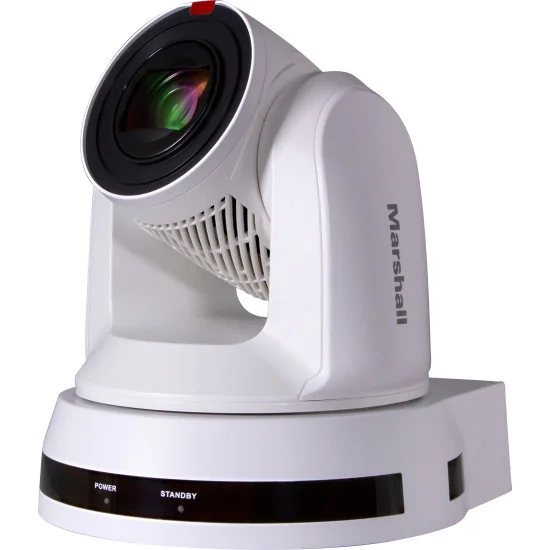

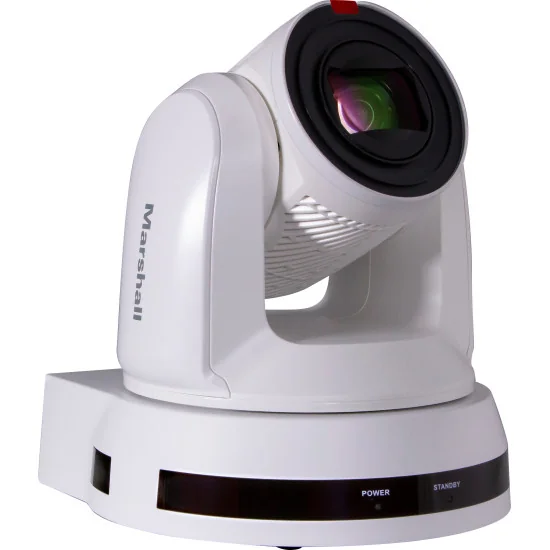

The Marshall CV630-BI and CV630-WI Cameras capture a crisp UHD video combined with smooth PTZ camera positioning and 25X optical zoom for a versatile networked video solution.

Key features

• 8MP 1/2.5" sensor
• 25X Optical Zoom (4.6~120.5mm) near 68-degrees AOV at widest
• 3GSDI, HDMI, and IP simultaneous outputs
• Simultaneous pan, tilt, and zoom
• H.265 (HEVC) and H.264 (triple-stream) networked outputs
• IP formats: RTSP, RTMP, RTMPS, MPEG-TS, SRT, Multicast, UDP, DHCP, RTP, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
• 3840x2160p, 1920x1080p, 1280x720p, and 1920x1080i
• Stereo audio input (mic or line level) embedding
• PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
• 340° pan, 120° tilt, and 25X zoom range

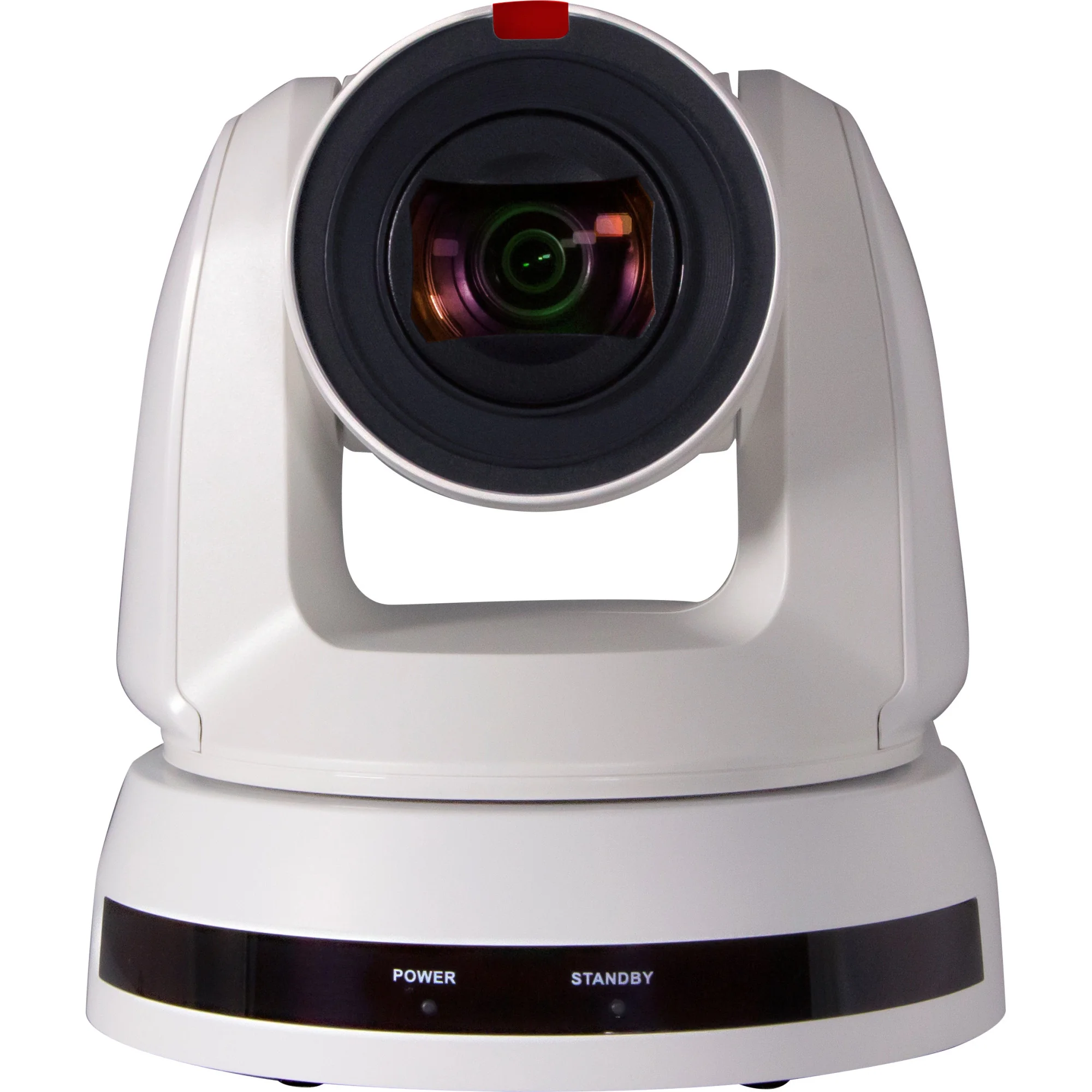

• Front tally light
• Free-D protocol support and CGI protocol commands

High Performance Video Output
At its core, the CV630-BI and CV630-WI both pack a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, 1280x720p, 1920x1080i.

Versatile Camera Positioning
The CV630-BI and CV630-WI are equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 25X optical zoom block provides flexibility from 4.6mm to 120.5mm, with a nearly 68-degree angle-of-view at its widest.

Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

Flexible Control Options
The CV630-BI and CV630-WI offer easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.

Additionally, the CV630-BI and CV630-WI are compatible with Marshall's VS-PTC-300 PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.

Applications:
The CV630 cameras are suitable for use in live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications

CV630-BI / CV630-WI Specifications
Model Name: CV630-BI/WI
Color: Black, White
Sensor: 1/2.5" COMS
Video Format: 2160p : 59.94 / 50 / 29.97 / 25
1080p : 59.94 / 50 / 29.97 / 25
720p : 59.94 / 50 / 29.97 / 25
1080i : 59.94 / 50
Video Output (HD) Interface: 3G-SDI, HDMI,Ethernet,USB3.0
Optical Zoom: >=25x
Horizontal Viewing Angle: 68
Aperture: 68
Focal Length: 4.8~120.5(mm)
Shutter Speed: 1/1 ~ 1/10,000 sec
Minimum Object Distance: <=1.5m
Focus System: Auto, Manual, Smart AF
Gain Control: Auto, manual
White Balance: Auto, manual
Exposure Control: Auto, manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
Preset Positions: 256

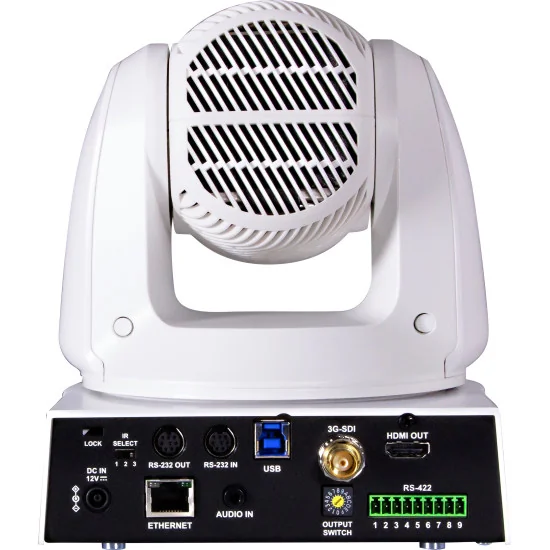

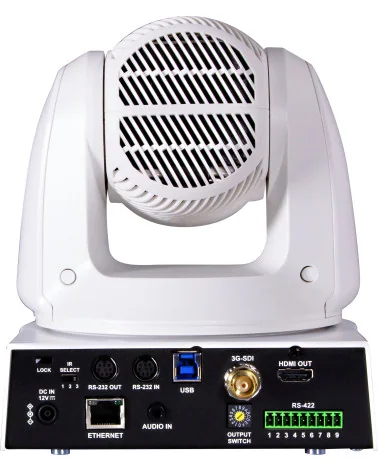

Control Interface: RS-232 / RS-422 / Ethernet / USB 3.0
Control Protocol: VISCA  / VISCA IP / PELCO D / ONVIF / UVC/CGI
Tally Light: Yes
IP Protocol: RTSP, RTMP, RTMPS, MPEG-TS, SRT,Multicast, UDP, DHCP, RTP, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
IP Streaming Output
Main : HEVC up to 2160p 59.94/50fps
Second : H.264 up to 1080p 59.94/50fps
Third : H.264 640x360 29.97fps
Webpage Preview: 640x360 15fps
PoE: PoE+ (IEEE802.3at)
Video Compression: H.265/H.264/MJPEG
Audio Input: Line In/MIC In , Phone Jack 3.5mm x1
Audio Output: Ethernet / 3G-SDI / HDMI / USB 3.0
IR Receiver: Yes
IR Remote Control: Yes
Power Consumption: PoE : 18W DC In : 16W
Weight: 1.9kg
Dimensions: 174x186x190
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -20 to 60 °C
