Netgear M4250-12M2XF (MSM4214X-100EUS) AV Line Managed Switch
€1,190.00
Engineered for AV over IP professionals, the Netgear M4250‑12M2XF is a fully managed switch built to keep demanding video and audio streams...
Running a live production floor on IP-based audio and video, the network sits at the centre of every creative decision. The NETGEAR M4250-26G4F-PoE+ (GSM4230P) addresses this directly: 24 rear-facing 1G PoE+ ports feed IP cameras, Dante microphone arrays, NVX encoders, and touch control panels while keeping rack cabling clean. Each port delivers up to 30 W with a combined PoE budget of 300 W. Two 1G RJ45 uplinks and four 1G SFP fibre slots extend backbone reach or add redundant inter-switch links.
Where the GSM4230P pulls ahead of generic gigabit hardware is multicast handling. NETGEAR IGMP Plus™ configures multicast routing at startup — no manual querier, no VLAN adjustments — making the switch immediately deployable in Dante, AES67, Q-SYS, NDI, and SDVoE environments. Factory-loaded port profiles for Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, SHURE, and SVSI cut commissioning time sharply. AVB unlocks via licence for IEEE 802.1BA without hardware changes. A dedicated colour-coded AV web GUI handles profile assignment and multicast group verification without CLI interaction.
Under the chassis, a 1.8 GHz ARM Cortex-A57 quad-core with 2 GB RAM drives a 60 Gb/s switching fabric at 44.64 Mpps and 2.2 µs latency. The unit runs fanless in typical studio conditions; active cooling engages at 34 dBA when thermal load climbs. The L2/L3 stack handles 4,093 VLANs, 4,000 IGMP multicast groups, RSTP, MSTP, 802.1X, MAC ACLs, QoS, and LLDP-MED. Remote management: SNMP v1/2/3, RMON, HTTPS, SSH, Telnet, and NETGEAR Insight cloud. A USB Type-C console and RJ45-to-DB9 cable ship in the box for out-of-band commissioning access.
The NETGEAR M4250-26G4F-PoE+ GSM4230P-100EUS fits naturally in OB vans, broadcast studios, live event rigs, streaming suites, and corporate boardrooms switching to AV over IP. All connectors face the rear; standard and recessed mounting brackets are included. Whether as a standalone AV Line managed switch or an access layer within a larger spine, it delivers the protocol depth — from Dante audio to NDI video to SDVoE — that mixed-signal production environments demand.

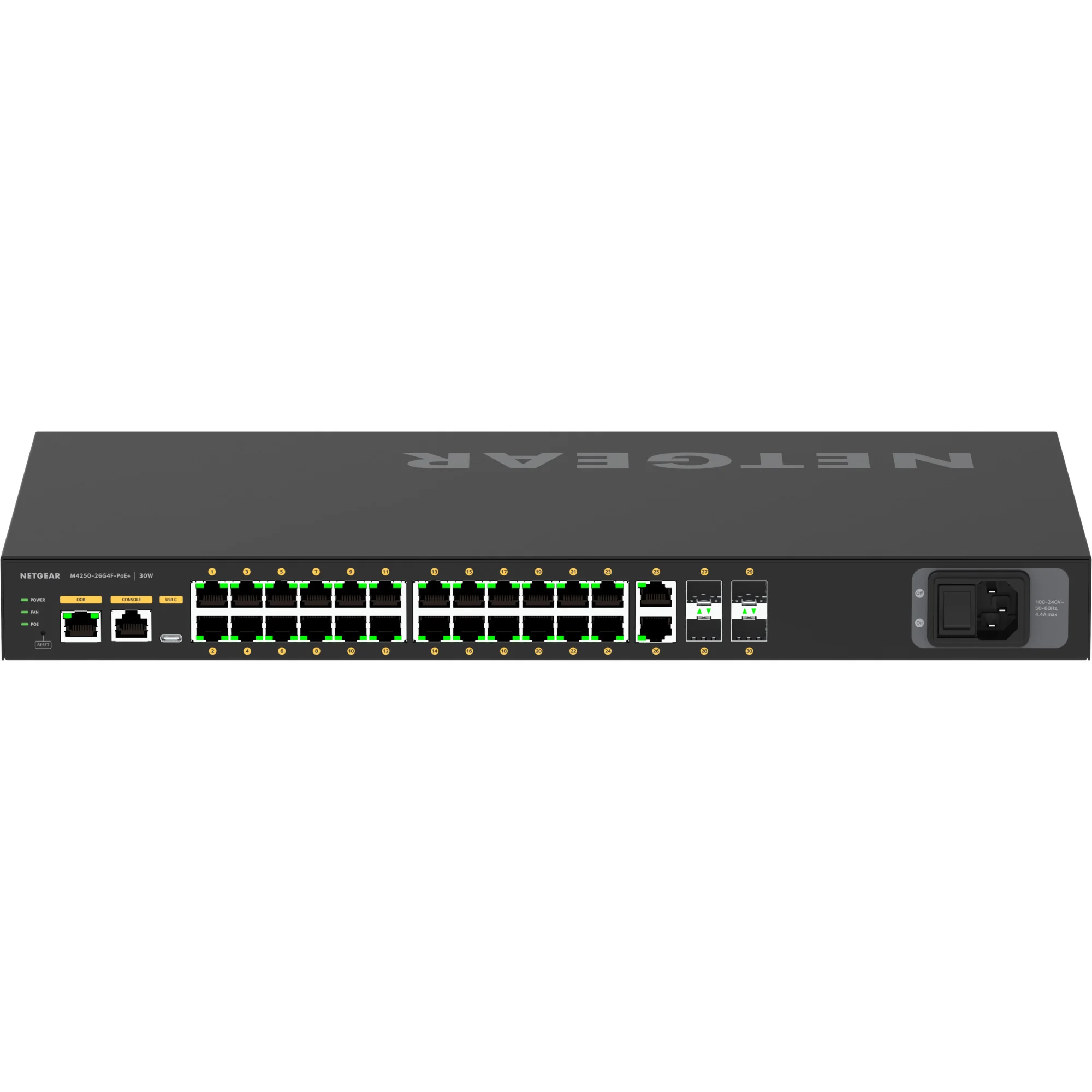

Netgear M4250-26G4F-PoE+ (GSM4230P-100EUS) AV Line Managed Switch
GSM4230P-100EUS
Price: €1,590.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Running a live production floor on IP-based audio and video, the network sits at the centre of every creative decision. The NETGEAR M4250-26G4F-PoE+ (GSM4230P) addresses this directly: 24 rear-facing 1G PoE+ ports feed IP cameras, Dante microphone arrays, NVX encoders, and touch control panels while keeping rack cabling clean. Each port delivers up to 30 W with a combined PoE budget of 300 W. Two 1G RJ45 uplinks and four 1G SFP fibre slots extend backbone reach or add redundant inter-switch links.
Where the GSM4230P pulls ahead of generic gigabit hardware is multicast handling. NETGEAR IGMP Plus™ configures multicast routing at startup — no manual querier, no VLAN adjustments — making the switch immediately deployable in Dante, AES67, Q-SYS, NDI, and SDVoE environments. Factory-loaded port profiles for Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, SHURE, and SVSI cut commissioning time sharply. AVB unlocks via licence for IEEE 802.1BA without hardware changes. A dedicated colour-coded AV web GUI handles profile assignment and multicast group verification without CLI interaction.
Under the chassis, a 1.8 GHz ARM Cortex-A57 quad-core with 2 GB RAM drives a 60 Gb/s switching fabric at 44.64 Mpps and 2.2 µs latency. The unit runs fanless in typical studio conditions; active cooling engages at 34 dBA when thermal load climbs. The L2/L3 stack handles 4,093 VLANs, 4,000 IGMP multicast groups, RSTP, MSTP, 802.1X, MAC ACLs, QoS, and LLDP-MED. Remote management: SNMP v1/2/3, RMON, HTTPS, SSH, Telnet, and NETGEAR Insight cloud. A USB Type-C console and RJ45-to-DB9 cable ship in the box for out-of-band commissioning access.
The NETGEAR M4250-26G4F-PoE+ GSM4230P-100EUS fits naturally in OB vans, broadcast studios, live event rigs, streaming suites, and corporate boardrooms switching to AV over IP. All connectors face the rear; standard and recessed mounting brackets are included. Whether as a standalone AV Line managed switch or an access layer within a larger spine, it delivers the protocol depth — from Dante audio to NDI video to SDVoE — that mixed-signal production environments demand.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Designed with input from industry professionals, this switch is engineered for 1G AV over IP. Enjoy rear-facing ports that ensure a clean integration in AV racks, and pre-configuration for out-of-the-box functionality.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
Fast, Easy, Configuration for AV Pros
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
Focus on The Event Not Fan Noise
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
Designed for AV Over IP right out of the box
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Refined Design Provides Mounting Flexibility
Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.
Primary Port Speed : 1 Gigabit
Number of Ports : 30 (24x 1G PoE+, 2x 1G, 4x SFP)
PoE Ports / Budget : 24 PoE+ (30W/port), 300W Budget
IGMP Support : Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support : Yes, up to 12kb
AVB Support : Yes. Electronic license required, activation key sent via email (AVB4230P-10000S).
Acoustics : Fanless or 34dB@25ºC
Power Consumption : With PoE: 401W/1369.01Btu/hr
Without PoE: 35.8W/122.22Btu/hr
Standby without any port connection: 23.4W/79.89Btu/hr
Third party support : Domotz
Dimensions (WxDxH) : 440 x 257 x 43.2 mm
Weight : 4.3Kg (9.47lb)
What's in the Box :
M4250-26G4F-PoE+ (GSM4230P)
Power cord(s)
Console USB Type-C and RJ45-DB9 cables
Rack-mounting standard brackets
Longer brackets for recessed mounting
Rubber footpads for tabletop installation
Installation guide
GSM4230P-100EUS
2 Items
Data sheet
- Switch type
- Managed
- Number of Ports
- 30
- Type of Ports RJ45
- 10/100/1000 BASE-T RJ45
10/100/1000 BASE-T RJ45 PoE+ - Number of Ports RJ45
- 26
- Type of Fibre Ports
- 1000BASE-X SFP
- Number of Fibre Ports
- 4
- PoE Standard
- PoE+ (30W) 802.3at
- Number of PoE Ports
- 24
- PoE Budget
- 300W
- Switching Capacity
- 60 Gbps
- Layer Supported
- Layer 2
Layer 3 - Management
- CLI
HTTPs
IT Web GUI (main)
MIBs RSPAN
Out-of-band
Radius Users
SNMP
SSH
TACACS+
Telnet - Wi-Fi
- No
Specific References
- ean13
- 606449151671
- mpn
- GSM4230P-100EUS
