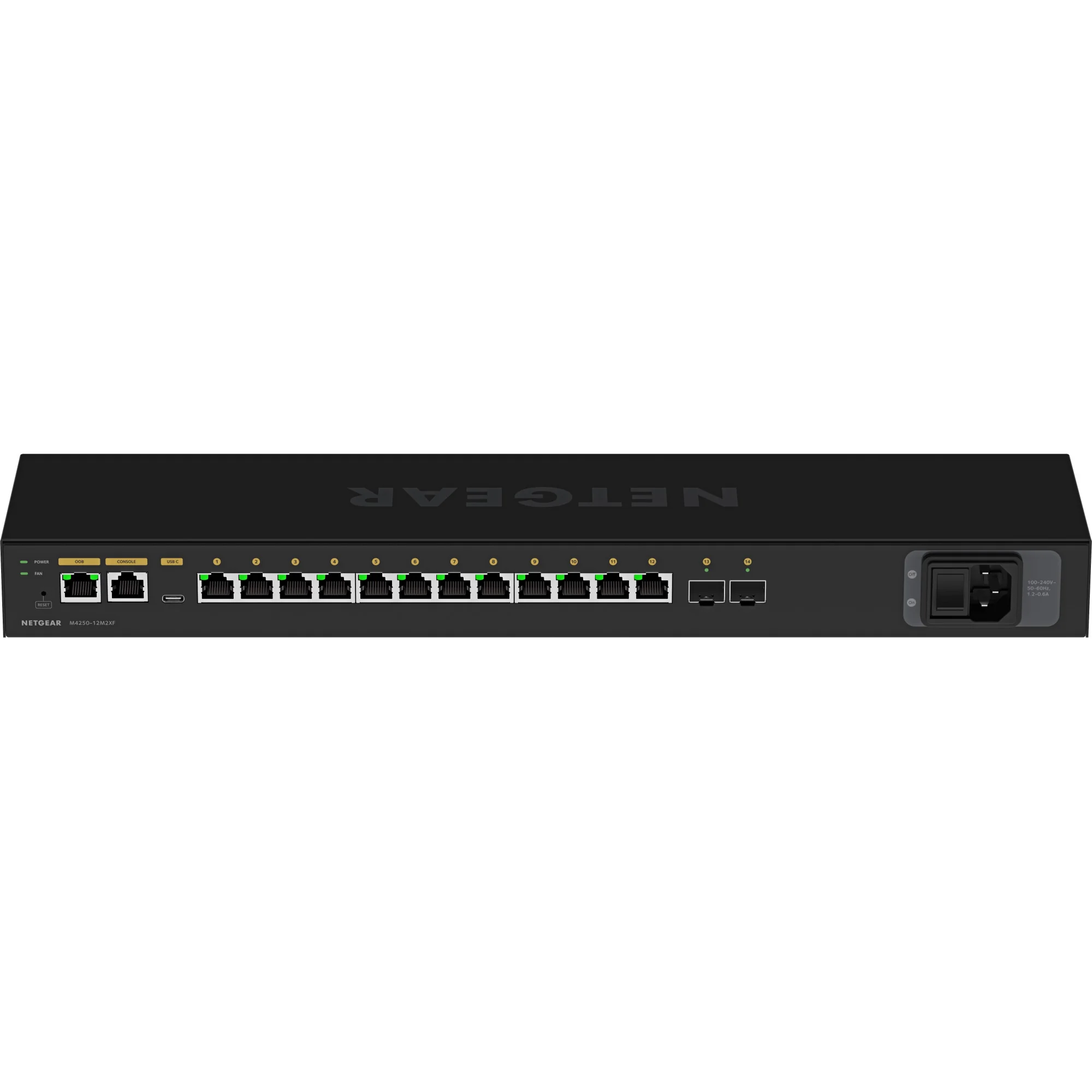

Netgear M4250-12M2XF (MSM4214X-100EUS) AV Line Managed Switch

Engineered for AV over IP professionals, the Netgear M4250‑12M2XF is a fully managed switch built to keep demanding video and audio streams flowing. Twelve multi‑gigabit 100/1000/2.5 Gbps RJ‑45 ports feed cameras, encoders and control surfaces, while two 10 Gbps SFP+ uplinks deliver fibre connectivity to servers or aggregation switches. A 100 Gbps non‑blocking fabric and 74.4 Mpps forwarding capacity ensure every frame arrives intact, even when multiple high‑bitrate streams run concurrently. The switch handles 16 K MAC addresses, 4 K ARP entries and up to 4 K VLANs, while a generous 16 MB packet buffer and jumbo frame support up to 12 KB accommodate uncompressed video. These capabilities make the M4250‑12M2XF an indispensable core for live‑production racks where low latency and reliability are crucial.

For simplified deployment, Netgear equips the switch with a dedicated web‑based AV GUI that offers colour‑coded port profiles for Dante, Q‑SYS, AES67 and AVB audio, as well as video formats such as NDI, NVX and SVSI. Profiles can mix audio, video and control traffic without manual QoS tuning. IGMP Plus automatically optimises multicast flows, and auto‑trunk/auto‑LAG functions link multiple M4250 or M4300 switches seamlessly. An out‑of‑band 1 Gbps management port, USB‑C and RJ‑45 console connectors and a USB‑A storage port give engineers multiple access paths for configuration or scripting. Beyond the Pro‑AV interface, the switch includes a full IT management suite: intuitive web GUI, command‑line, Telnet, SSH, SNMP, sFlow and RSPAN, making it simple to integrate into existing networks.

On the network layer, the M4250‑12M2XF offers static and dynamic routing, DHCP server/relay, policy‑based routing, PTPv2 timing and extensive multicast support (IGMPv1/v2/v3, MLD, PIM). Spanning‑tree options (RSTP, MSTP, PVSTP) provide resilience, while link aggregation with auto fallback and eight QoS queues prioritise critical streams. Security features include 802.1X authentication, DHCP snooping, dynamic ARP inspection and access control lists, giving studios and broadcasters confidence in mission‑critical applications. With selectable fan modes that allow quiet or even fanless operation, rear‑facing ports for tidy cabling and reversible mounting brackets with threaded holes for clamps or VESA plates, the switch adapts to cramped racks, fly‑packs or mobile OB vans. Typical power consumption is around 37.9 W (14.1 W on standby), so it runs cool even in dense installations.

This model’s combination of multi‑gig ports and fibre uplinks makes it an excellent hub for live streaming studios, e‑sports arenas, corporate meeting rooms and broadcast control rooms. Connect PTZ cameras, media servers and graphics processors on the RJ‑45 ports, send high‑resolution video feeds over SFP+ to core switches, and rely on the built‑in profiles to handle formats from Dante audio mixing to NDI video routing. Because it is tuned for AV traffic out of the box, production crews spend less time troubleshooting networks and more time focusing on content. The Netgear M4250‑12M2XF brings professional‑grade switching into the heart of modern production workflows, delivering predictable performance and the flexibility to scale with future IP‑based systems.
