Once connected to a Dante network, the camera appears in Dante Controller automatically and follows the system clock, which keeps lip-sync intact against every audio channel on the network. According to the current manufacturer specification, Dante AV-H stream 1 reaches 3840×2160 with frame rates between 1 and 60 fps, while stream 2 carries a low-resolution feed for multiview monitoring in Dante Studio. Plug a line-level feed into the 3.5 mm audio in and it is published as its own Dante channel; the matching audio out lets a technician monitor network sound right at the camera. For integrators already standardised on Dante, that takes a separate encoder — and its rack unit — out of every camera position.

Auto-tracking is computed inside the Link 4K, without a PC or capture software alongside. Presenter Lock stays on a chosen person even when others step into frame, Multi-Target Select lets the operator jump between numbered subjects, and Auto-Framing widens or tightens the shot to fit a small group at a table. Composition can be biased left, right, top or bottom; Tilt-Lock confines the head to horizontal moves for a speaker pacing a stage; a target-loss preset sends it back to a safe wide if the subject walks out. The 12x model follows people up to roughly 61 metres away. Serial controllers can start and stop tracking by calling presets 150 and 151, so even an older RS-485 system can automate it.

For multi-camera sets, the browser-based Horizon interface includes a Color View workspace with waveform, RGB parade and vectorscope, letting an engineer match heads against a grey card instead of by eye. A finished colour profile exports from one camera and loads onto the next. White balance adds a VAR mode from 2,500 K to 8,000 K adjustable in 20 K increments, alongside auto, indoor, outdoor and OnePush.

Pan covers ±170° at 0.7–100°/s and tilt runs from −30° to +90°. Each of the 255 presets returns within 0.1° and can store image settings with the position, so a podium shot and an audience shot keep their own exposure. Motion Sync coordinates preset moves, Preset Tour cycles positions unattended, and Privacy Mode turns the head away and blanks video between sessions. A tally indicator, driven by the switcher or through the API, shows talent which head is on air.

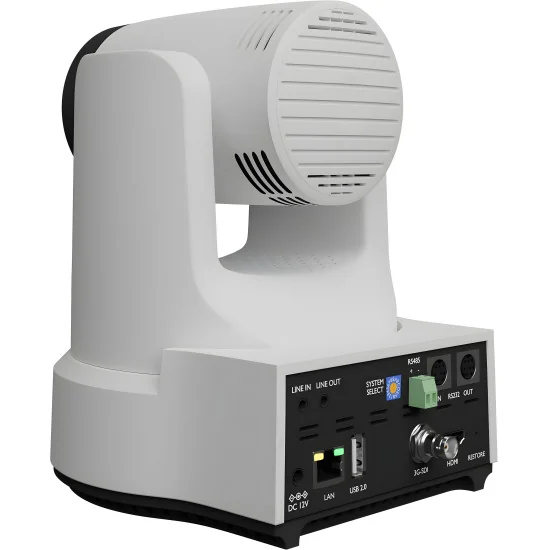

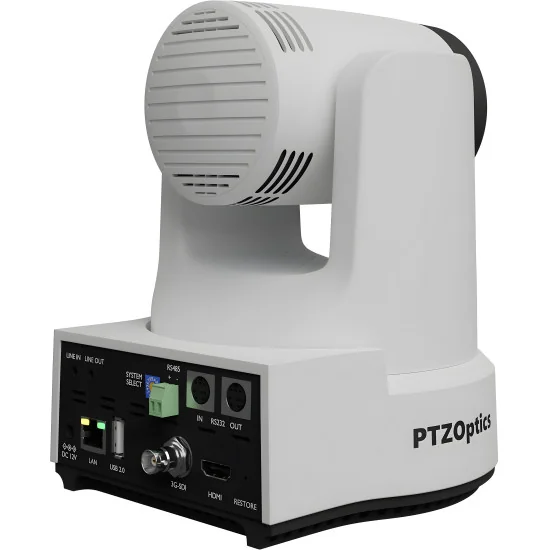

Control stays open on every layer: VISCA over IP on TCP or UDP, Sony VISCA over IP, an HTTP API with position and movement queries, RS-232 daisy chains (30 m) and RS-485 multi-drop buses (1,200 m) speaking VISCA, Pelco-D or Pelco-P. SuperJoy and PT-JOY-G4 joysticks, OBS, vMix, Wirecast and TriCaster drive this 4K PTZ camera directly. A FreeD data output, still flagged beta, sends position data to Unreal Engine through LiveLink for virtual sets, and HIVE Linked adds cloud monitoring across several sites.

A single PoE+ (802.3at) cable handles power, PTZ commands, the video streams and Dante audio, with a 12 V supply included as a fallback. Indoors it works between −10 and +40 °C; the camera also holds ONVIF Profile S certification and is NDAA compliant — two lines that regularly appear in public and corporate procurement. Firmware is authenticated and installed from the web interface, so features released later reach cameras already on the ceiling. For multi-camera projects we can confirm switch power headroom, Dante addressing and mount selection with you before dispatch.
