On this auto-tracking PTZ camera, person detection is computed inside the head itself, with no external PC. Presenter Lock keeps the frame on one designated speaker while others walk past, and Auto-Framing zooms in or out to suit the number of people present. Multi-Target Select tags each detected person with a number, letting the operator hand the shot to the next speaker from the keypad. Composition on both axes, sensitivity, tracking zoom level, start delay, target timeout and a fallback preset are configured once. Tilt-Lock then freezes the vertical axis while a presenter paces a level stage. PTZOptics specifies roughly 80 m as the maximum tracking distance for the 20x, enough for plenary sessions, award nights in sports arenas and tiered auditoriums filmed from the back. Serial controllers start and stop tracking by calling presets 150 and 151.

For seated discussions, Voice Tracking, sold as a licence, takes zone activity from networked microphones by Audio-Technica, Shure, Sennheiser, Nureva and Yamaha, or from a Televic Confero conference system. The camera moves to the preset tied to the active zone and can also switch OBS, vMix, INOGENI or Epiphan units to the right source, so a council chamber needs one person supervising rather than steering.

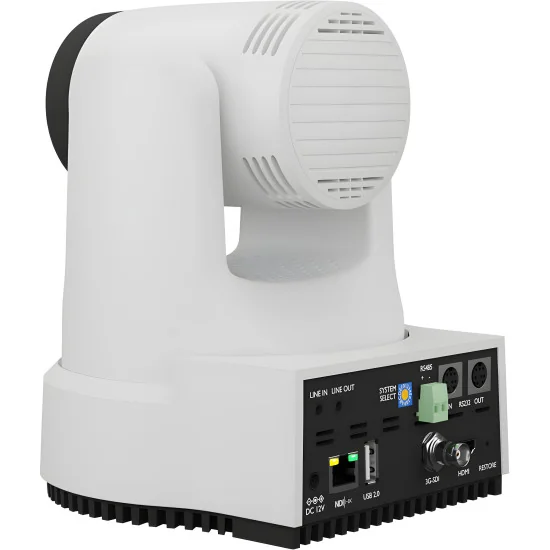

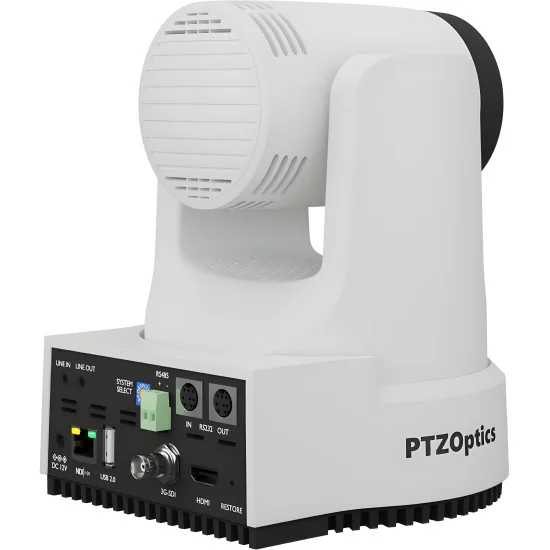

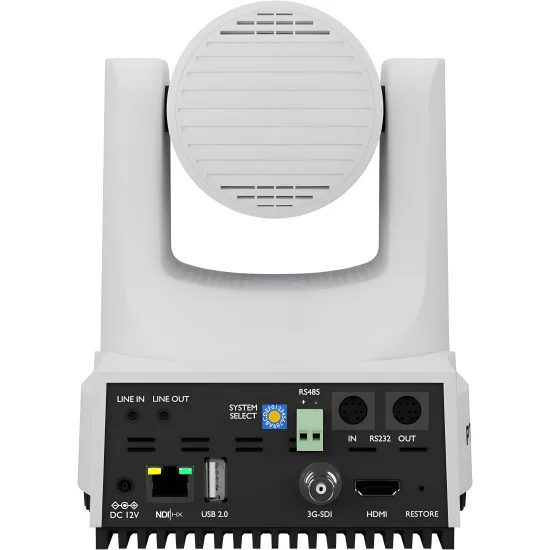

Two baseband outputs sit on the rear panel, HDMI 2.0 up to 2160p60 and 3G-SDI up to 1080p60, but only one is live at any moment; a 16-position rotary dial fixes the format. IP output runs regardless. The 30 September 2026 firmware brought NDI 6.3 and two NDI|HX3 profiles, High for 1080p50/60 and Ultra for 4K50/60, in H.264 or H.265, carried by Reliable UDP, TCP, plain UDP or multicast, plus iris and shutter adjustment from an NDI controller. At the same time, AES-encrypted SRT (caller or listener), RTMPS, RTMP and RTSP can serve a streaming platform, an off-site control room and a recorder, while a lighter second encoder handles previews. Over USB 2.0, Teams or Zoom see a UVC camera up to 4K30. Line-level audio enters on a 3.5 mm jack and is embedded as AAC, or G.711 for third-party platforms, with a second jack for monitoring. Under an NDI switcher the tally lamp glows green in preview and red on air, and an optional NTP timestamp overlay suits hearing recordings that must show the time.

Control fits almost any rack: the camera accepts VISCA over IP on TCP 5678 or UDP 1259, Sony's own VISCA over IP variant, ONVIF Profile S for video-management software and an HTTP API. That API reports whether the head is moving, returns the bounding boxes of detected people, serves JPEG snapshots from either stream and puts the camera into standby or privacy mode when a session ends; Resolume can also position it with NDI absolute commands. RS-232 reaches 30 m and daisy-chains, RS-485 reaches 1,200 m on a multi-drop bus, both speaking VISCA, Pelco-D or Pelco-P. Horizontal travel is ±170° at 0.7 to 100°/s, vertical travel −30° to +90° at up to 69.9°/s. Each of the 255 presets is found again within 0.1°, and Motion Sync brings pan, tilt and zoom to the mark together. The browser-based Horizon interface comes included, HIVE Linked brings cloud supervision of several sites, and FreeD data (beta) lets Unreal Engine follow the camera's position inside a virtual set. OBS, vMix, TriCaster, Wirecast, mimoLive, Blackmagic ATEM switchers and PTZOptics joysticks all drive it.

On a PoE+ (802.3at) switch, one Cat5e/Cat6 cable of up to 100 m carries power, control and NDI; elsewhere, the 12 V DC socket takes over, drawing no more than 18 W. An orientation sensor rights the picture when the camera hangs from a ceiling, and the operating range is −10 to 40 °C, indoors only. The NDAA-compliant build and ONVIF certificate settle two points public and university tenders often check. Integrators choose the white housing for pale ceilings, conference-centre walls and bright television sets, where it stays inconspicuous in reverse shots. White ceiling and wall brackets, the SuperJoy controller and Move 4K 20x multi-camera kits are available from us; send the room plan and we will quote the full chain, from cameras to PoE+ switching and control.
