The sensor is specified down to 0.5 lux with the iris wide open and gain engaged, and PTZOptics lists a signal-to-noise ratio of 55 dB or higher. Exposure runs in full auto, manual, shutter or iris priority, or Bright for dimmed rooms, with a shutter range of 1/30–1/10,000 s. Nine DRC steps, 2D/3D noise reduction and 50 Hz anti-flicker for LED walls on European mains keep the picture clean. VAR white balance, adjustable between 2,500 and 8,000 K, sits beside Auto, Indoor, Outdoor, One Push and Manual for matching this head to other cameras on the switcher.

Long focal lengths are unforgiving with autofocus. Near and far AF limits, set in metre steps between 1 and 20 m, stop the lens jumping onto a lectern or a front-row head; AF zone weighting and a one-shot SNAP focus, which returns to manual afterwards, complete the toolset.

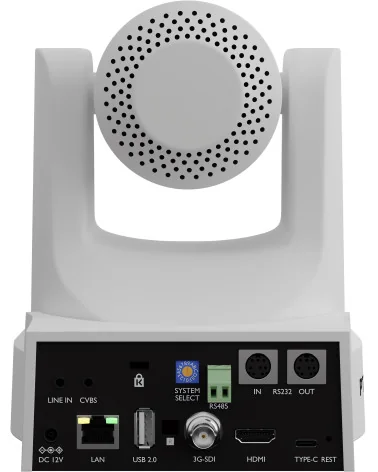

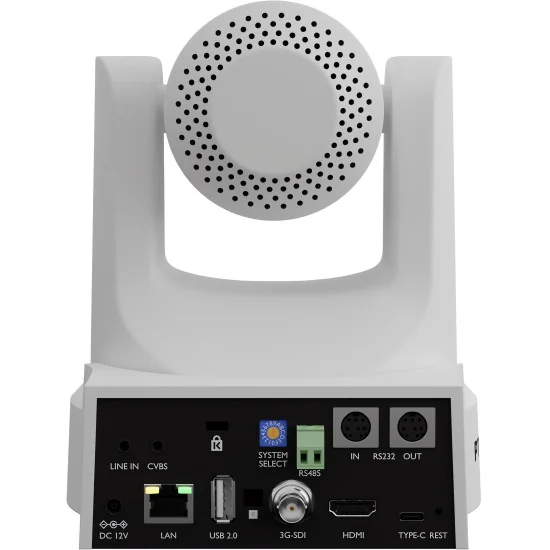

Formats cover 1080p at 60, 59.94, 50, 30, 29.97 and 25 fps plus 720p60 and 720p50, set by the rear rotary dial. In the web interface, four output combinations decide where video goes: HDMI/SDI + IP, USB + IP, USB + HDMI/SDI, or all three together at 30 fps. The 3G-SDI BNC (SMPTE 424M) and HDMI 1.3 connectors feed a hardware vision mixer or router, while USB-C 3.0 presents a UVC device with sound to Teams, Zoom or a lecture-capture PC, in MJPEG up to 1080p60 or YUY2 up to 1080p30.

The gigabit port delivers two separately configured streams in H.264 or H.265, stream two also offering MJPEG: up to 102.4 Mb/s on the first, 20.48 Mb/s on the second, CBR or VBR. Each can push to a separate RTMP or RTMPS address, so one product launch can go live on YouTube and a client's platform without extra hardware. SRT works in caller and listener modes with passphrase encryption (10–79 characters), carrying contribution feeds across hotel or venue internet. ONVIF, RTSP and RTP multicast cover recorders and VMS software.

Native NDI|HX3 runs on the NDI 6.3 SDK, can be disabled when unused and travels over TCP, multicast, plain UDP or its reliable RUDP form, with NTP keeping timestamps aligned across several NDI heads. Desk audio arrives at line level on a 3.5 mm jack and is embedded as AAC (44.1/48 kHz) or G.711A; a second jack sends a line feed back for monitoring.

Integration on the control side rarely needs adapters. VISCA over IP listens on TCP 5678 and UDP 1259, with Sony's variant on UDP 52381, joined by ONVIF, HTTP commands and MIDI mapping. Serially, RS-232 in/out ports daisy-chain heads over 30 m and RS-485 runs to 1,200 m, all with VISCA and Pelco-D/P. Its 255 presets return within 0.1°; pan covers ±170° (top speed 100°/s) and tilt −30° to +90° (69.9°/s maximum). A per-recall switch decides whether picture settings return with the framing. Since September 2026 the API also confirms preset arrival and reports stored coordinates, so show-control scripts wait for a settled shot before cutting. SuperJoy and PT-JOY-G4 controllers, vMix, OBS, NDI Studio Monitor, Hive and the Camera Management Platform all operate it.

A single Cat5e/Cat6 run from an 802.3af PoE switch port carries power, video and control; the supplied 12 V adapter covers everything else. Hung upside down from a ceiling bracket, the head rights its own image through a gravity sensor, saved pan/tilt limits survive a reboot and keep the lens off the audience, and privacy mode points the head aside while cutting all feeds. Giving each unit a readable name such as camera1.local speeds commissioning on multi-room sites. IT teams receive digest authentication and ONVIF login enabled by default, guest accounts barred from SRT and RTMP keys, login-protected firmware uploads and NDAA compliance; a Kensington slot handles theft risk. Indoor operation, −10 to 40 °C, 10–80 % humidity.

The white housing disappears into pale ceiling tiles, light timber auditoriums, glass boardrooms and bright corporate sets. Videomaker heard the cooling fan in a silent room during its test; on a 20x, usually mounted well back from the lectern microphone, that rarely matters. Planning several units? Tell us your vision mixer, network switch and room depth, and our technical team will confirm the output mode, NDI profile and PoE layout before the cameras ship.
