PTZOptics Studio 4K 20x Zoom Box Camera Grey
PT20X-STUDIO-4K-GY-G3
Price: €1,199.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
The PTZOptics Studio 4K 20x is a compact box camera built around a 1/2.8-inch 8MP CMOS sensor, delivering native UHD 3840×2160 resolution at up to 60 frames per second over HDMI 2.0. Its 20x optical zoom lens spans a focal range of 4.7–94 mm with a maximum aperture of F1.6, paired with 16x digital zoom that lets operators frame a head-and-shoulders shot from roughly 27 metres away. The horizontal field of view reaches 60.7 degrees, making the camera well suited for capturing a wide stage or isolating a speaker at the far end of a conference hall. Minimum illumination sits at 0.5 lux (F1.8, AGC on) with a signal-to-noise ratio of 55 dB or higher, so the Studio 4K 20x holds clean imagery under dim lighting — a real consideration during live worship services, courtroom proceedings, or council recordings where artificial light is sparse.
Simultaneous output across 3G-SDI, HDMI, USB 3.0 Type-C, and Gigabit Ethernet lets production teams feed several destinations at once. Integrated NDI support brings low-latency IP video transport alongside SRT, RTMP, and RTSP streaming with H.264 and H.265 encoding, so the camera fits directly into both hardware broadcast chains and software-based live production environments. A built-in microphone captures ambient audio, while separate audio input and output connections allow precise sound routing when external mixers or wireless receivers are in the signal path.
Camera control runs through IP or RS-485 using VISCA protocol, ensuring integration with hardware controllers from Crestron, Extron, or any VISCA-compatible joystick panel. The PTZOptics Studio 4K 20x is also Hive-Linked, enabling cloud-based camera management through Hive Studio — a tangible benefit for multi-site installations or remote production crews who need to adjust exposure and colour parameters without physical access to the unit. Power can be supplied through the included 12 V adapter or via PoE+, reducing cabling to a single Ethernet run in ceiling-mounted setups. A 5-year limited warranty and a built-in tally light complete a camera that earns its spot on any professional equipment list.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The PTZOptics Studio 4K 20X is a high-performance, fixed camera that provides stunning 4K video resolution with a 20X optical zoom, making it an excellent choice for medium to large spaces. Whether used as a standalone solution or integrated into a larger production setup, the Studio 4K 20X delivers exceptional clarity and detail, capturing shots from up to 27 meters away. This camera is perfect for professional applications such as live streaming, broadcasting, and corporate video production, providing unmatched video quality and flexibility.
The Studio 4K 20X is designed for seamless connectivity with SDI, HDMI, USB, and IP outputs. It is native to NDI® HX3, ensuring smooth integration into various video production environments. The camera is also Hive-Linked, allowing for automatic connection to PTZOptics' Hive Studio platform, which enables centralized management of multiple cameras via a web browser. With Hive Studio, users can control and configure their cameras from anywhere, making multi-camera management more streamlined and efficient.
With its compact and discreet design, the Studio 4K 20X is well-suited for a wide range of environments, including municipal meetings, worship services, sports, and security applications. As a fixed camera, it also provides reliable performance in courtroom settings. The Studio 4K 20X offers flexible mounting options and is built for continuous operation, making it a versatile addition to any production setup. Additionally, the camera comes with a 5-year limited parts and labor warranty, ensuring long-term reliability.
Features and Benefits:
- 4K resolution at 60fps for high-quality video capture
- 20X optical zoom for detailed shots from long distances
- NDI® HX3 support for seamless IP video integration
- Hive-Linked connectivity for easy, web-based camera control and management
- SDI, HDMI, USB, and IP outputs for versatile connectivity options
- Compact and unobtrusive design ideal for a variety of production environments
- 255 preset positions for simple camera configuration

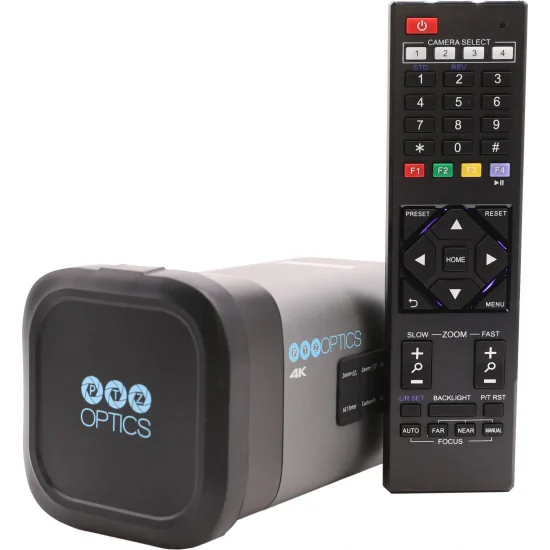

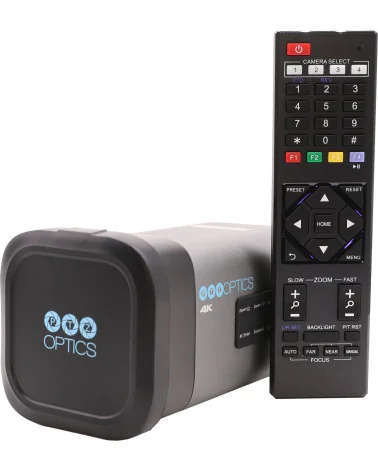

- Built-in IR control with 4x IR addresses for flexible operation
- 5-year parts and labor warranty for added peace of mind
Technical Specifications:
Camera & Lens
Image Sensor & Lens: 1/2.8” CMOS, 8MP (8.4M effective pixels)
Digital Zoom: 16x
Resolution and Frame Rate:
HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50
Optical Lens Focal Length (Zoom): 20x: f = 4.7mm ~ 94mm, F1.6 ~ F3.6
Optical Lens Field of View, Horizontal & Vertical: H 3.5° ~ 60.7° | V 1.9° ~ 34.1°
Display Field of View: 67.8°
Min Lux: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
Presets: 255 Presets
Presets Accuracy: 0.1°
Image Flip: Supported
Image Mirror: Supported
Image Freeze: Supported
Physical Specifications
Material: Aluminum, Plastic
Color: Gray or White
Dimensions (L x W x H): 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H
Weight: 0.64kg
Working Environment: Indoor
Humidity Range: 10% ~ 80%
Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature: -40°F ~ 140°F (-40 ~ 60°C)

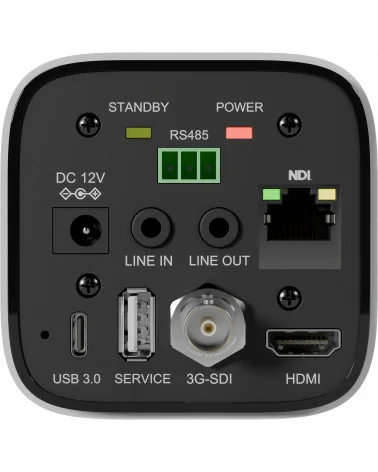

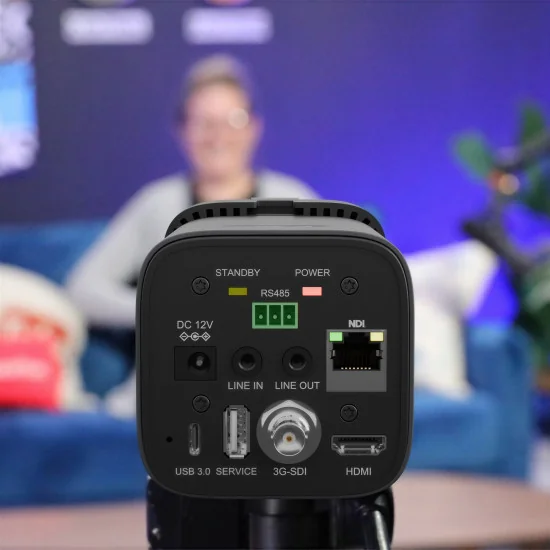

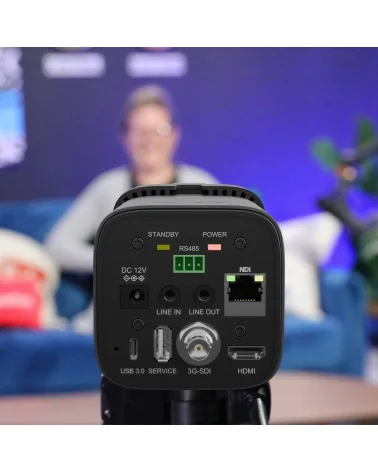

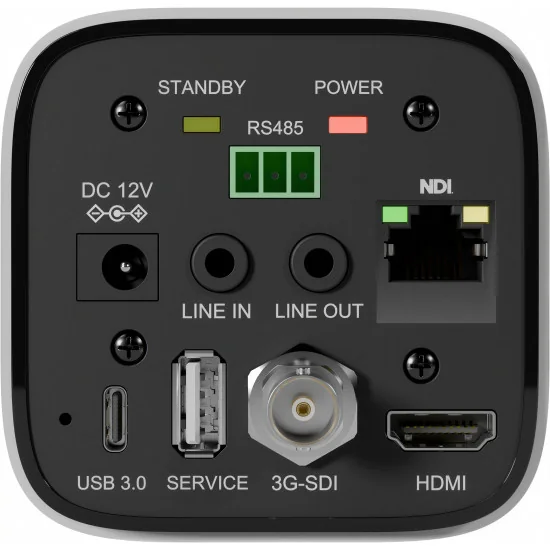

Connections
HD Video Output:
1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI® HX3 enabled
1x HDMI: Version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M
Audio Interface: 1x 3.5mm Line level input, 1x 3.5mm Line level output
Video Formats:
USB:
YUY2: Max resolution 1920x1080p @ 30fps
MJPEG: Max resolution 3840x2160p @ 30fps
H.264 AVC & SVC: Max resolution 3840x2160p @ 30fps
RTSP/NDI® HX3 only: H.265: Max resolution 3840x2160p @ 60fps
Compression Standards: H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX3 only)
UVC Version Supported: UVC 1.1 ~ 1.5
Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc.
IR: 4x IR Addresses, Max distance 30ft / 9m
Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
Current Consumption: Max 2A
Power Consumption: Max 18W
PT20X-STUDIO-4K-GY-G3
4 Items
Data sheet
- Video Output
- HDMI
NDI
RJ-45 (IP)
SDI
USB - Audio Input
- Built-in microphone
Mini Jack 3.5mm - Audio Output
- HDMI Embedded
Mini Jack 3.5mm
NDI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 4K UltraHD (3840 x 2160) 50/60 fps
- Streaming protocols
- Multicast
NDI®|HX 3
ONVIF
RTMP
RTSP
SRT - Network Connection
- Ethernet
- USB video capture
- Yes
- Sensor Size
- 1/2.8"
- Optical Zoom
- 20x
- Interchangeable lens
- No
- Lens mount
- Integrated lens
Specific References
- ean13
- 840170500920
- mpn
- PT20X-STUDIO-4K-GY-G3
