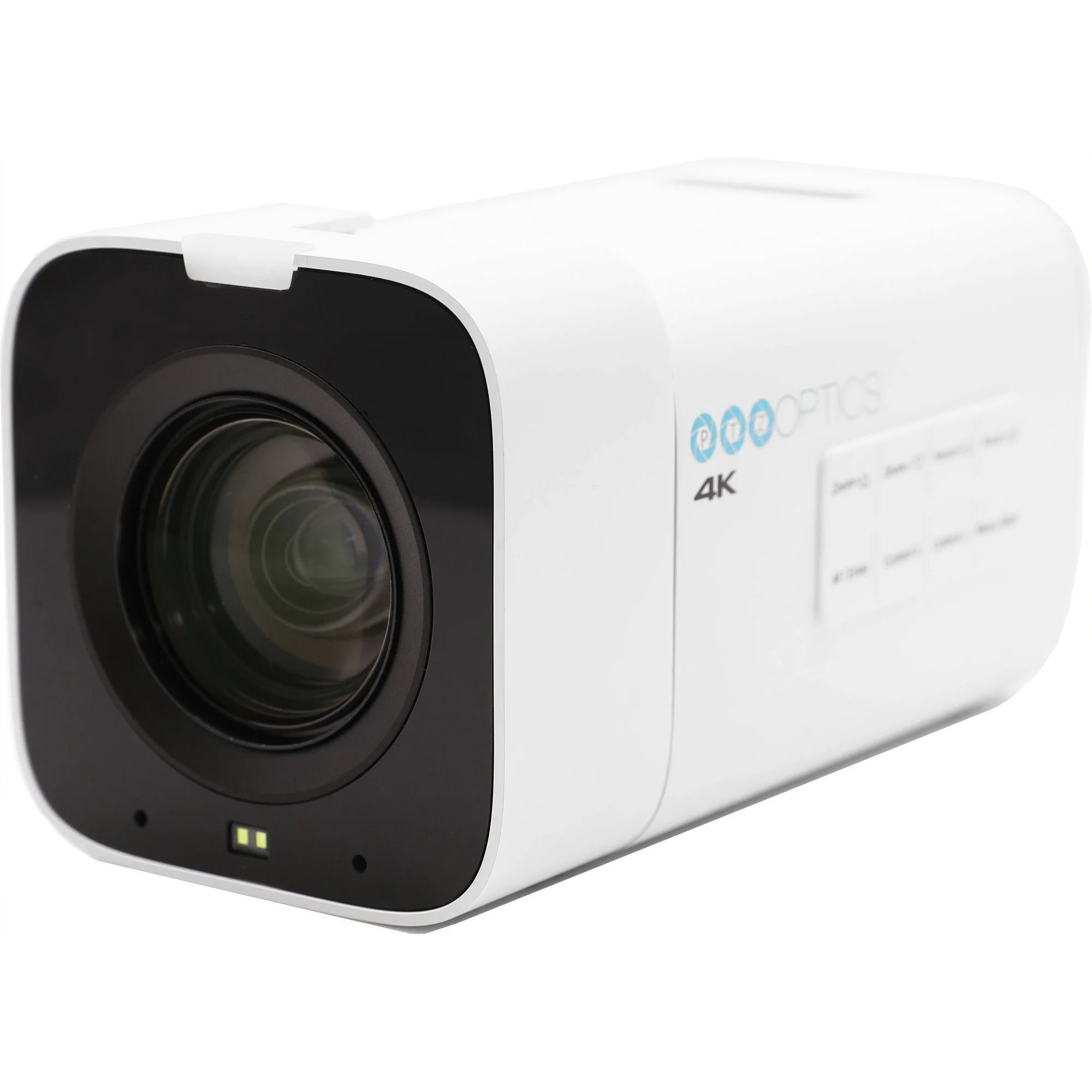

The PTZOptics Studio 4K 20X is a high-performance, fixed camera that provides stunning 4K video resolution with a 20X optical zoom, making it an excellent choice for medium to large spaces. Whether used as a standalone solution or integrated into a larger production setup, the Studio 4K 20X delivers exceptional clarity and detail, capturing shots from up to 27 meters away. This camera is perfect for professional applications such as live streaming, broadcasting, and corporate video production, providing unmatched video quality and flexibility.

The Studio 4K 20X is designed for seamless connectivity with SDI, HDMI, USB, and IP outputs. It is native to NDI® HX3, ensuring smooth integration into various video production environments. The camera is also Hive-Linked, allowing for automatic connection to PTZOptics' Hive Studio platform, which enables centralized management of multiple cameras via a web browser. With Hive Studio, users can control and configure their cameras from anywhere, making multi-camera management more streamlined and efficient.

With its compact and discreet design, the Studio 4K 20X is well-suited for a wide range of environments, including municipal meetings, worship services, sports, and security applications. As a fixed camera, it also provides reliable performance in courtroom settings. The Studio 4K 20X offers flexible mounting options and is built for continuous operation, making it a versatile addition to any production setup. Additionally, the camera comes with a 5-year limited parts and labor warranty, ensuring long-term reliability.

Features and Benefits:

• 4K resolution at 60fps for high-quality video capture
• 20X optical zoom for detailed shots from long distances
• NDI® HX3 support for seamless IP video integration
• Hive-Linked connectivity for easy, web-based camera control and management
• SDI, HDMI, USB, and IP outputs for versatile connectivity options
• Compact and unobtrusive design ideal for a variety of production environments
• 255 preset positions for simple camera configuration

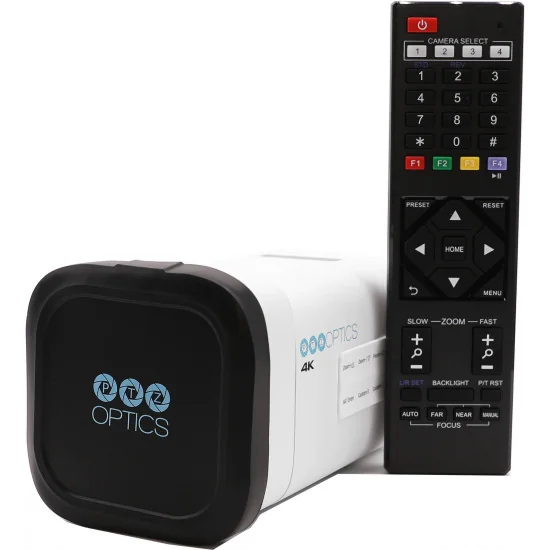

• Built-in IR control with 4x IR addresses for flexible operation
• 5-year parts and labor warranty for added peace of mind

Technical Specifications:

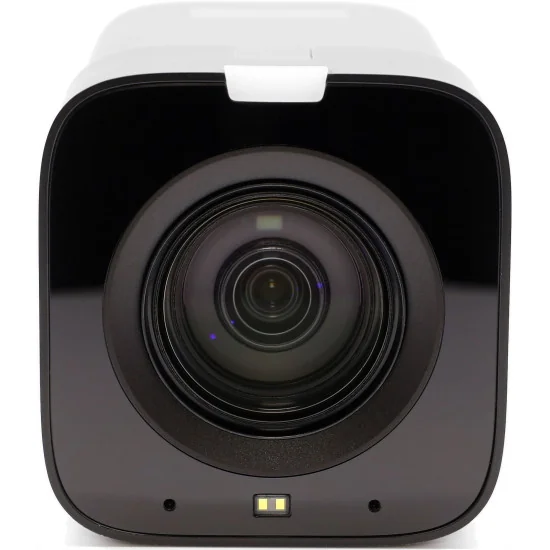

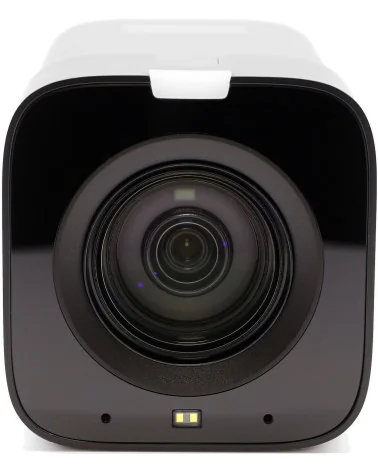

Camera & Lens
Image Sensor & Lens: 1/2.8” CMOS, 8MP (8.4M effective pixels)
Digital Zoom: 16x
Resolution and Frame Rate:
HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50
Optical Lens Focal Length (Zoom): 20x: f = 4.7mm ~ 94mm, F1.6 ~ F3.6
Optical Lens Field of View, Horizontal & Vertical: H 3.5° ~ 60.7° | V 1.9° ~ 34.1°
Display Field of View: 67.8°
Min Lux: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
Presets: 255 Presets
Presets Accuracy: 0.1°
Image Flip: Supported
Image Mirror: Supported
Image Freeze: Supported

Physical Specifications
Material: Aluminum, Plastic
Color: Gray or White
Dimensions (L x W x H): 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H
Weight: 0.64kg
Working Environment: Indoor
Humidity Range: 10% ~ 80%
Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature: -40°F ~ 140°F (-40 ~ 60°C)

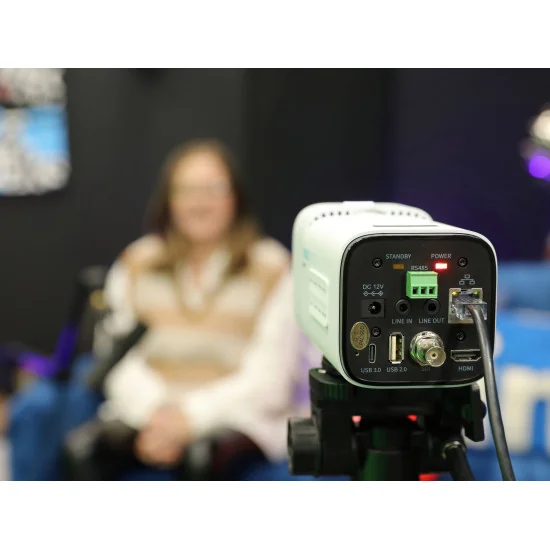

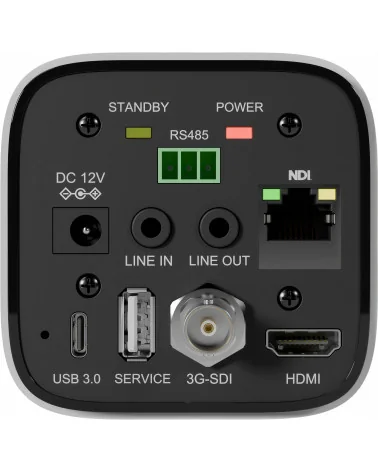

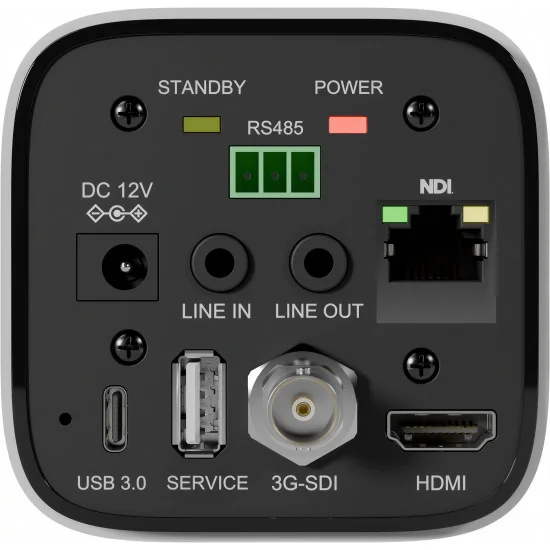

Connections
HD Video Output:
1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI® HX3 enabled
1x HDMI: Version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M
Audio Interface: 1x 3.5mm Line level input, 1x 3.5mm Line level output
Video Formats:
USB:
YUY2: Max resolution 1920x1080p @ 30fps
MJPEG: Max resolution 3840x2160p @ 30fps
H.264 AVC & SVC: Max resolution 3840x2160p @ 30fps
RTSP/NDI® HX3 only: H.265: Max resolution 3840x2160p @ 60fps
Compression Standards: H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX3 only)
UVC Version Supported: UVC 1.1 ~ 1.5
Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc.
IR: 4x IR Addresses, Max distance 30ft / 9m
Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
Current Consumption: Max 2A
Power Consumption: Max 18W
