PTZOptics Studio Pro Box Camera 12x Zoom

PTZOptics Studio Pro Box Camera 12x Zoom

Name: PTZOptics Studio Pro Box Camera 12x Zoom
Brand: PTZOptics
SKU: PT-STUDIOPRO
Price: 699.00 EUR
Availability: InStock

MPN: PT-STUDIOPRO

Price: €699.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

In stock (Shipping 3-14 working days.)

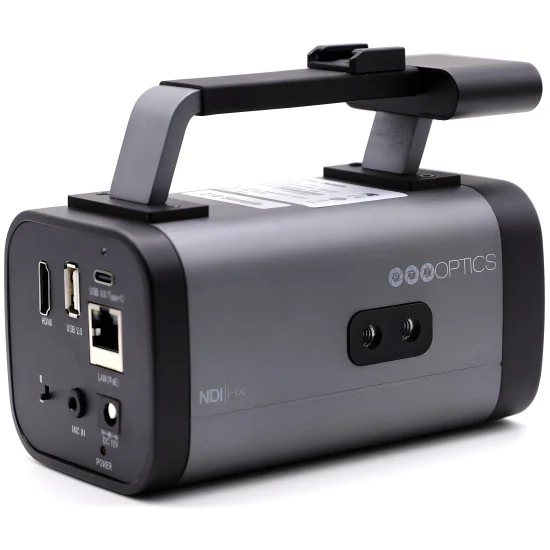

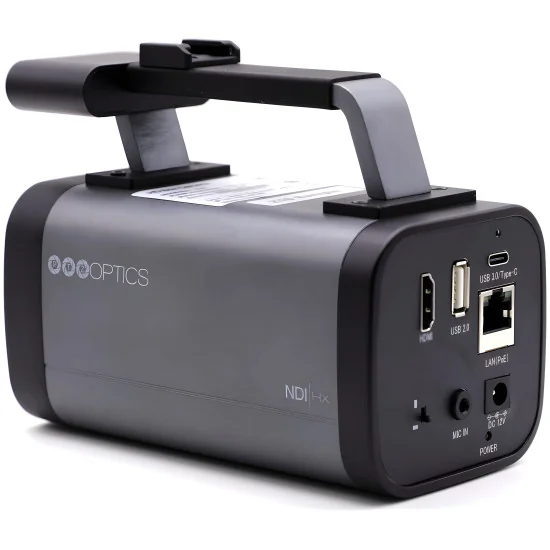

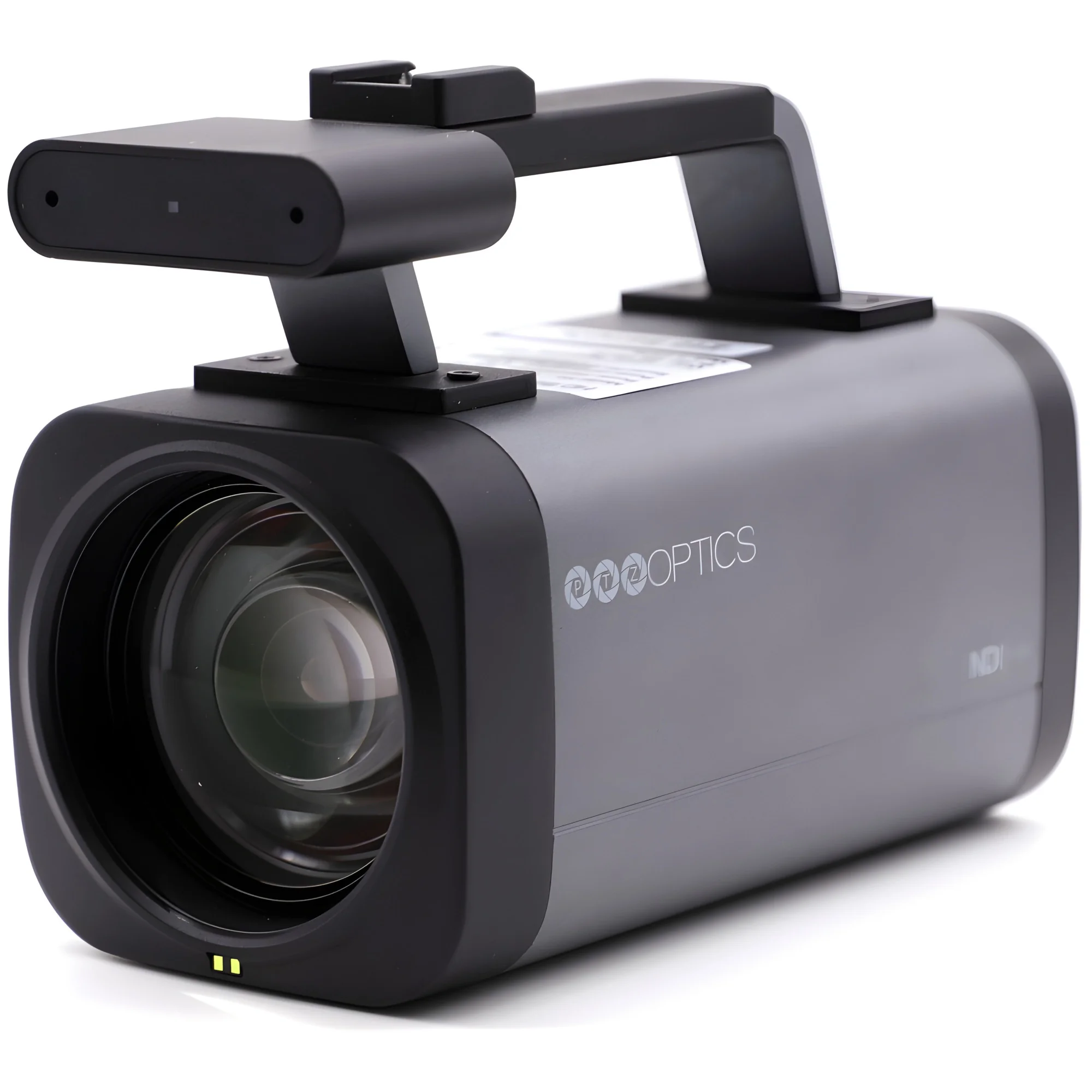

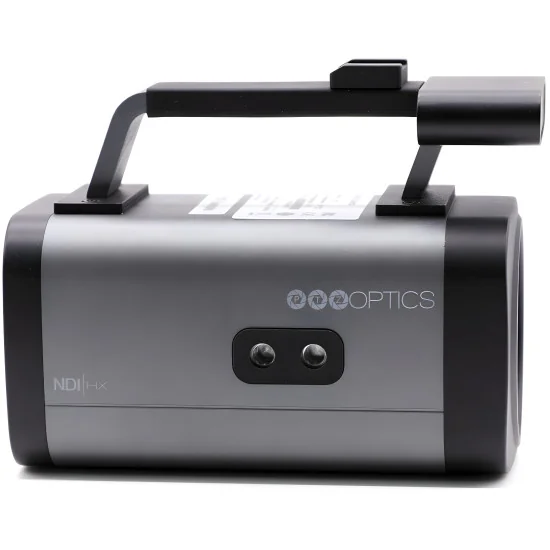

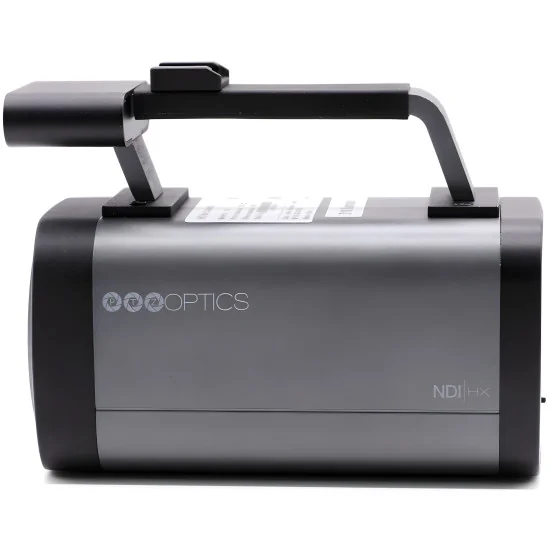

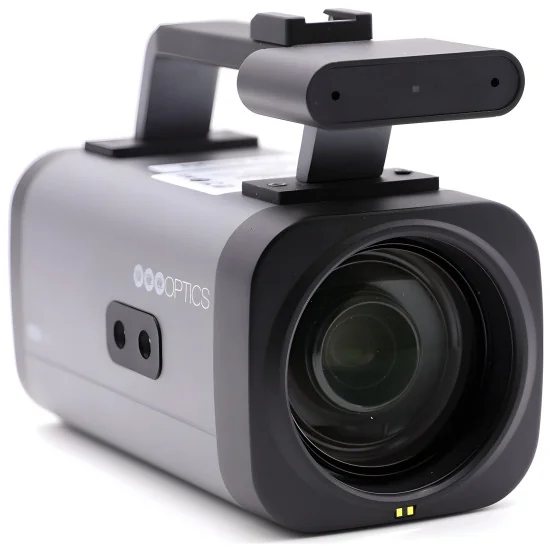

PTZOptics Studio Pro is a professional 12x optical zoom box camera for live streaming, studio cutaways and broadcast inserts. It captures Full HD 1080p60 with low latency over NDI® HX3, while outputting simultaneously via HDMI, USB-C (UVC 1.5) and IP. A hardware portrait/landscape switch supports vertical workflows. Built-in LED panel (3000–6000 K) and a calibrated microphone array deliver ready-to-use acquisition on a compact footprint.

The optical block pairs a real-glass 12x zoom (horizontal 72.5°–6.9° FoV) with a 1/2.8″ CMOS sensor (2.07 MP). Time-of-Flight autofocus locks quickly and holds focus through moves, while manual controls enable shallow-depth looks without hunting. Minimum illumination is 0.5 lux for reliable results under practical lighting. A cold shoe enables on-axis accessories; an IR remote is included for menu and focus/zoom operations.

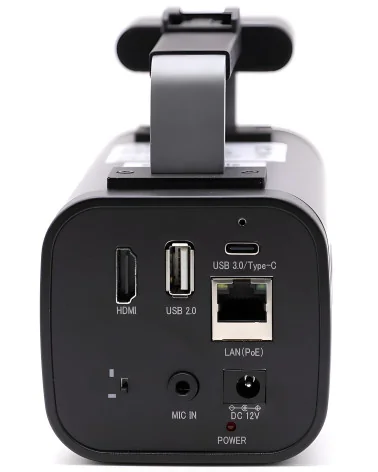

Connectivity covers HDMI 1.4b, USB-C 3.0 for uncompressed UVC, and IP streaming with SRT, RTMP/RTSP, ONVIF and multicast. Encoding options include H.264/H.265/MJPEG and YUY2. Audio arrives via the internal array or a 3.5 mm mic input with AAC at 96/128/256 kbps. Power the camera by PoE (802.3af), 12 VDC, or 5 V USB. Place it up to 100 m from your switch over a single Ethernet cable for control, power and transport. Streams can be published directly to CDNs using RTMP(S) or contribution links via SRT, while NDI® HX3 integrates with IP switchers and tally. PoE simplifies single-cable installation; typical draw is 6 W.

At 147 × 113 × 77 mm and 699 g, Studio Pro fits where traditional camcorders won’t. It suits fixed angles beside PTZ heads, talent close-ups, and presenter framing for OBS, vMix, TriCaster and hardware switchers. The PTZOptics Studio Pro ships with an LED light, locking USB cable and IR remote, and carries a 5-year limited warranty—ready for broadcast, corporate studios and live event pipelines. Display field of view is 80.2°, suitable for multi-presenter sets.

UE Shipping

We ship all over the European Union for €20, free shipping on orders over €1,000.

B2B Shop

Our offer is aimed only to B to B Customers, all prices are exclusive of tax.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The PTZOptics Studio Pro is a multi-functional box camera designed for content creation and livestreaming. This 1080P 60fps camera features a 12X optical zoom lens with a 72.5° field of view and a toggle for switching between landscape and portrait mode. The ultra-fast time-of-flight sensor allows the camera to focus moving objects very accurately. Moreover, users can switch between advanced focus settings for beautiful bokeh effects.

This camera outperforms many DSLR cameras due to its multi-output capabilities. Simultaneous outputs include USB-C, HDMI, NDI®|HX, RTSP, RTMP.

PTZOptics Studio Pro
■ Built-in mic with noise canceling
■ Premium LED light
■ 12X Zoom optical zoom (16X digital zoom)
■ USB-C, HDMI, SDI, PoE | NDI®|HX, RTSP, RTMP

Flexiblity and compatibility
In contrast to most DSLR cameras, the Studio Pro has HDMI, USB, and IP output capabilities, which can be used simultaneously. This makes this camera ideal for complex setups. In addition, this camera comes with NDI®|HX and does not require to be updated with a license. The Studio Pro can be powered by USB, 12VDC, or POE for flexile deployment.

Additional features
The Studio Pro comes with a premium LED POV light which produces temperatures up to 6000K. This USB-powered light offers different modes from soft white all the way up to crisp daylight. Additional features include a noise canceling microphone array and a cold shoe mount.

Key Features:
• Plug and Play USB-C Connection • Precise Focus
• 1080P HD Image
• NDI®|HX
• HDMI 1.4b
• 72.5° Wide Angle Lens
• Standard Cold Shoe mount for A/V accessories, Threaded 1/4-20 connection for A/V accessories
• 3.5mm audio input embeds audio into HDMI, USB-C, and IP video streams
• Supports Portrait & Landscape Mode • 3 Power Supply options: USB 5V, DC 12V and PoE

What’s in the Box
• Camera
• Power Supply
• IR Remote
• 2 AAA Batteries
• USB-A to USB-C Screw Locking Cable
• LED Panel Light

Image Sensor and Lens
Video Sensor 1/2.8 inch, CMOS Sensor. Effective pixels: 2.07M
Resolution 1080P@60 / 50 / 30, 1080I@60 / 50, 720P@60 / 50
Lens 12X Optical Zoom, 16X Digital Zoom
Horizontal Field of View 6.90 ~ 72.50
Vertical Field of View 3.90 ~ 44.80
Min. Illumination 0.5 Lux
Scanning Mode Progressive
Horzantal & Vertical Flip / Image Freeze Supported
LED Panel Light Color adjustment with warm/natural light and dimming range
Electronic Index
Input Voltage 5V (USB Power), DC 12v, PoE(802.3af)
Power Consumption 6W
USB-A Type A, Only supplies power to 3rd Party Devices
Working Environment Indoor
Physical Specifications
Material Plastic
Dimensions L-147 x H-113 x D-77 (mm)
Weight 1.54 lbs
Operating Temp. 32 ° F ~ 104 ° F
Storage Temp. -40 °F ~ 140 °F
USB Features
Color System H.264 / H.265 / MJPEG / YUY2
Video Format YUY2 (ISOC), H.264 SVC, MJPEG: Max. 1080p@60fps
USB Video Communication Protocol UVC 1.5
Video Bit Rate 32 ~ 102400
Audio AAC, 96 Kbps, 128 Kbps, 256 Kbps
Protocols TCP/IP, HTTP, RTMP, ONVIF, DHCP, RTSP, NDI®|HX, Multicast, SRT
