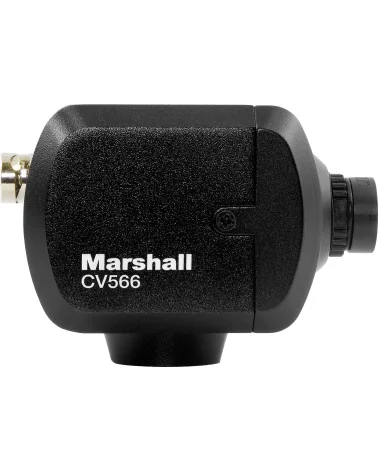

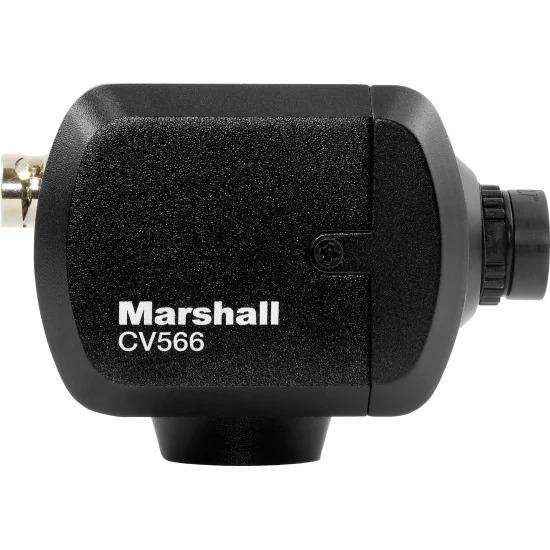

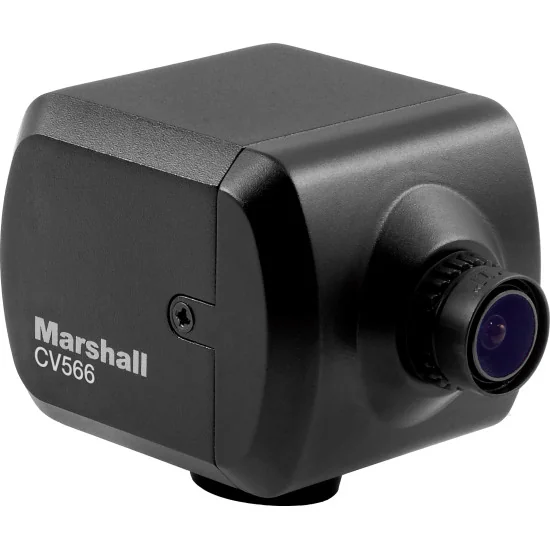

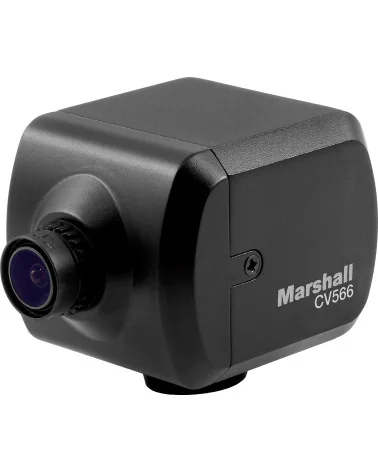

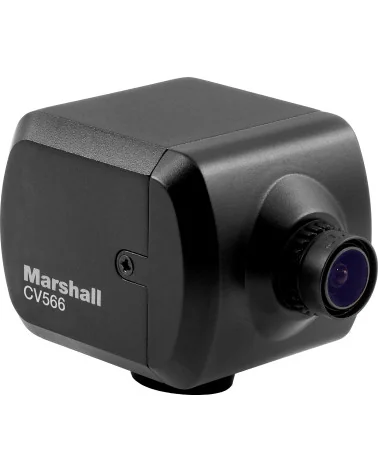

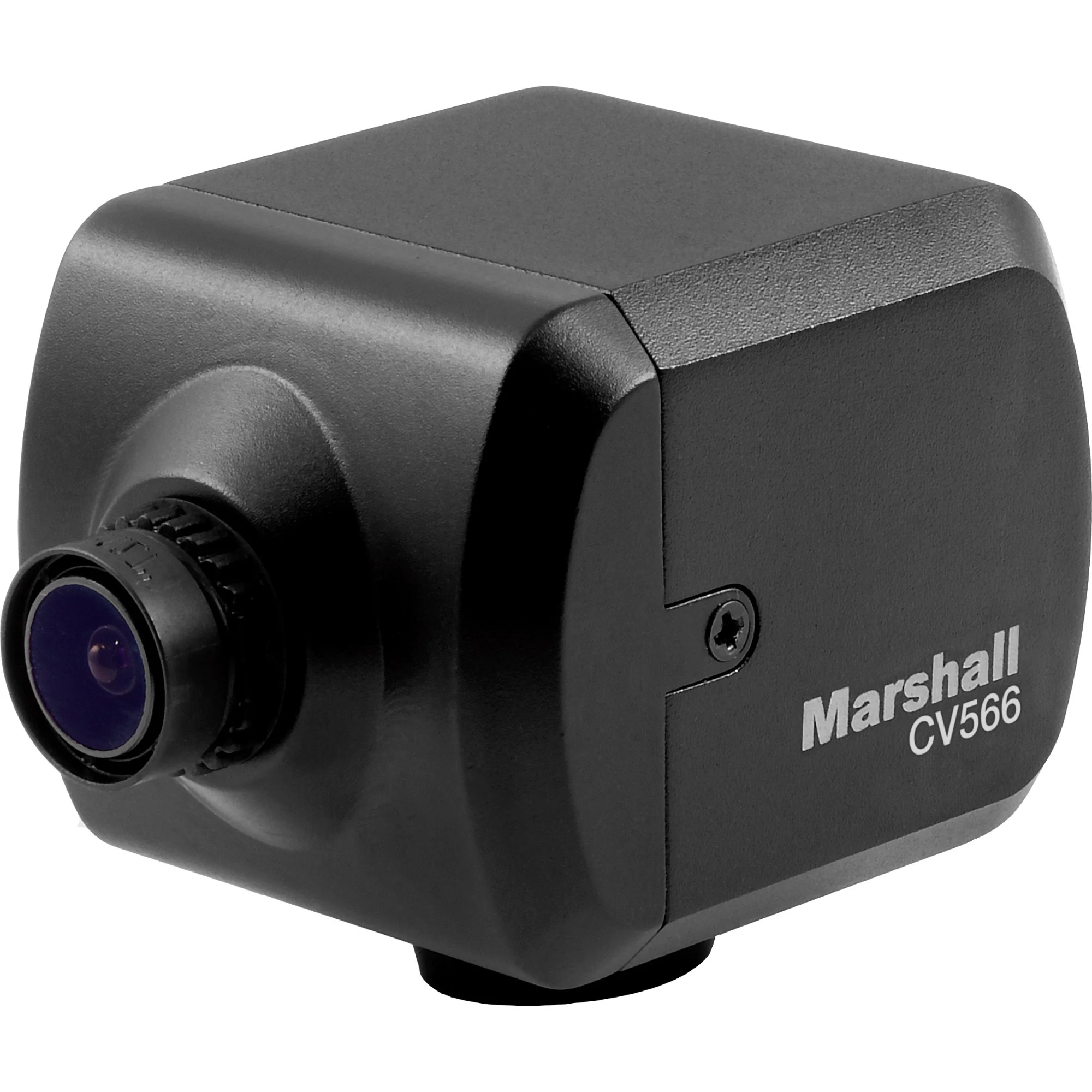

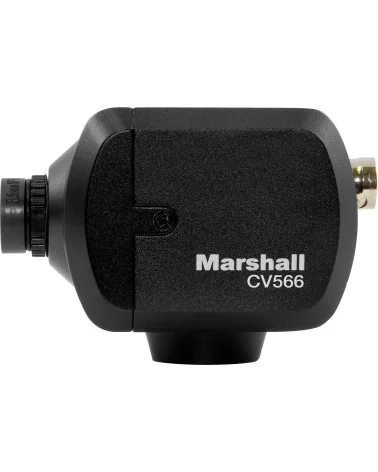

Marshall CV566 Mini Camera
CV566
Price: €699.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Frame-accurate timing decides whether a multicamera cut looks deliberate or clumsy, and that is exactly the problem the Marshall CV566 Mini Camera solves in the POV class. Its tri-level sync (genlock) input phase-locks the head to house reference, so the vision mixer switches between angles cleanly, with no frame-store delay creeping into a live programme. Simultaneous 3G-SDI and HDMI outputs let one unit feed a broadcast router and a compact streaming switcher at the same time.
Behind the interchangeable M12 lens mount sits a Sony Exmor 1/2.8-inch (6.46 mm) CMOS sensor with 2.2 megapixels. It delivers Full HD 1920×1080p at any rate from 23.98 to 60 fps, with 1080i and 720p on hand for legacy plants — welcome wherever 25p and 50p standards still rule. Colour holds down to 0.01 lux, and a night mode rated at 0.005 lux captures IR wavelengths for near-dark observation. A colour matrix with style, master and colour level/phase adjustment lets an engineer match this miniature head to full-size studio cameras rather than fixing it in post.
The body is milled from a solid aluminium billet, with protective ears guarding the rear connectors against knocks on scaffolding, motorsport mounts or cramped set pieces. A 4.0 mm prime comes fitted; Marshall's M12 optics run from a 2.3 mm wide angle to a 16 mm telephoto plus two varifocals, so a single camera model covers goal-line, drum-kit and courtroom framings alike. Over RS-485, it answers to Marshall's control software or a CV-RCP-V2 shading panel from a control room hundreds of metres away, while the 12-pin Hirose breakout carries power, control, genlock and stereo audio — embedded on both outputs at up to 48 kHz.
For a production company, the running costs stay modest: 6 W of draw, a 12 V supply in the box, micro-USB firmware updates handled on site, and one operator matching a whole fleet from the CCU chair. OB trucks, esports arenas, courtrooms, parliamentary chambers and touring concert rigs all gain angles no camera operator could physically occupy.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Key features
- 2.2 Megapixel (1/2.8") Sony sensor
- Color Matrix control: Style, Master level/phase, Color level/phase
- Mic/Line Level (2.5V bias), AUDIO stereo embedding up to 48kHz
- Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
- Interchangeable M12 lens mount (includes CV-4704.0-3MP - 4.0mm lens 78.8°H. AOV)
- Durable aluminum alloy body with rear connection protection ears
- 3GSDI + HDMI outputs with Genlock 3G/HD-SDI Tri-Level Sync for quick switching
- HD Resolutions: 1920x1080p, 1280x720p and 1920x1080i
- Framerates Supported: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
- Remote adjust & match via Camera Control Software, CV-RCP-V2 (CCU) or 3rd party sources
- Micro-USB port for firmware upgrades in the field (downloadable from website)

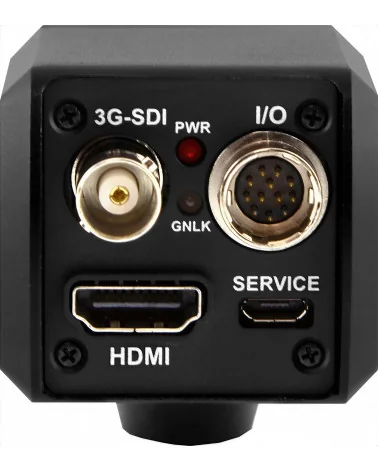

- Locking Hirose Cable: Genlock (I/O), RS485 control, Audio (stereo) and 12V Power
- Includes 12V+/-10% Power Supply (6W)
Applications:
The 566 is suitable for use in 3GSDI as well as HDMI workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, concerts, house of worship and many more.
New Sony 1/2.8" (6.46mm) CMOS Solid-State Image Sensors
The next generation Sony Exmor sensors provide clear HD images with true color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR light wavelengths can be captured.
Genlock Tri-Level Sync Feature
Tri-level sync runs at higher frequency which allows multiple cameras to be plugged into HD workflows already in sync (genlock) with much less latency when switched and more seamless transitions.
Durable, Flexible, Powerful, Performance

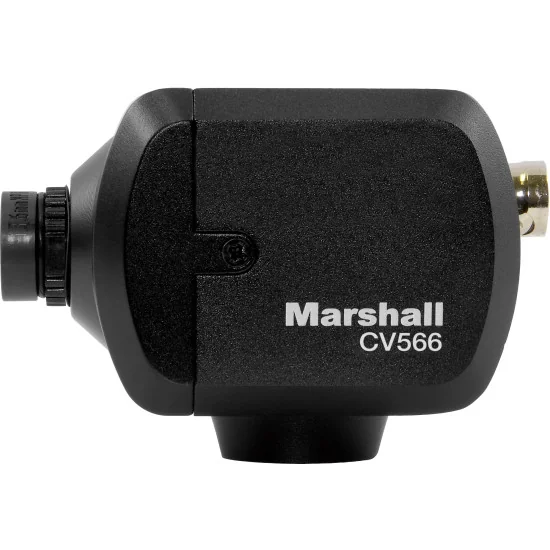

The durable CV500-series cameras are chiseled from one block of aluminum alloy with rear panel protection, which enable them to be used in rough environments and continue to produce clean reliable signals.
Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter.
Specs.
| Sensor | |
|---|---|
| Sensor Type | 1/2.8" 2.2 Megapixel |
| Resolution & Frame Rates | |
| HD 1920x1080p | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920x1080i | 50, 59.94 & 60 |
| HD 1280x720p | 50, 59.94 & 60 |

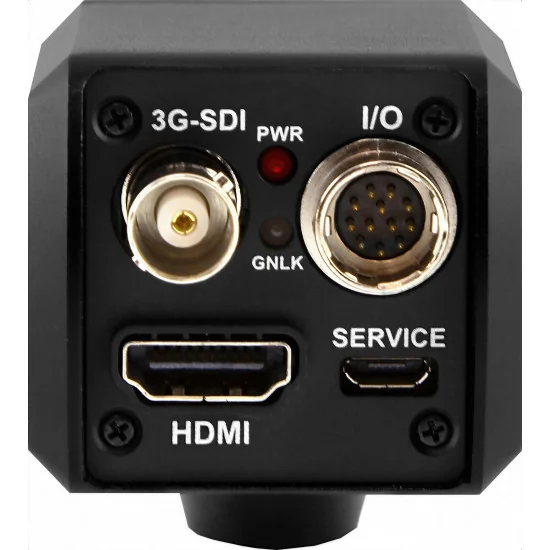

| Input & Output Connectors | |
| Video Output | 1x 3G-SDI & 1x HDMI |
| I/O Breakout Cable | 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input & 1x Tri-Level Genlock |
| Firmware & Service | 1x Micro-USB |
| Lens | |
| Mount Type | M12 |
| Focal Length | 4.0mm |
| Focus | Manual |
| Image Control Settings | |
| White Balance | Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain) |
| Control Protocol | |
| Control Protocol | RS-485 |
| General | |
| Power Input | 12V DC |
CV566
Data sheet
- Video Output
- HDMI
SDI - Audio Input
- Mini Jack 3.5mm
- Audio Output
- HDMI Embedded
SDI Embedded - Max Output Resolution
- 1080p 50/60 fps
- Network Connection
- None
- USB video capture
- No
- Sensor Size
- 1/2.8"
- Optical Zoom
- No
- Interchangeable lens
- Yes
- Lens mount
- M12
Specific References
- ean13
- 801813228649
- mpn
- CV566
