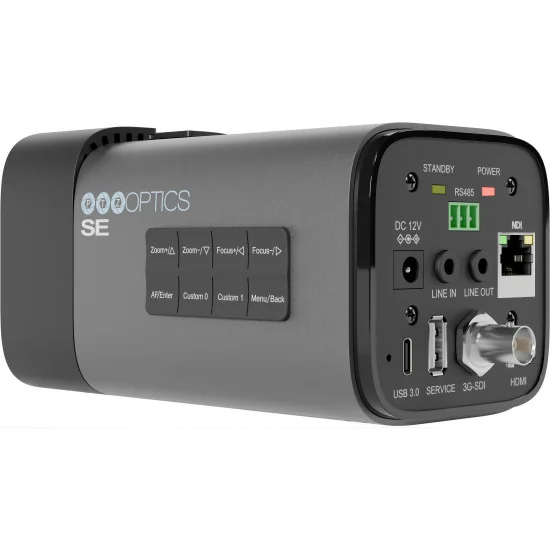

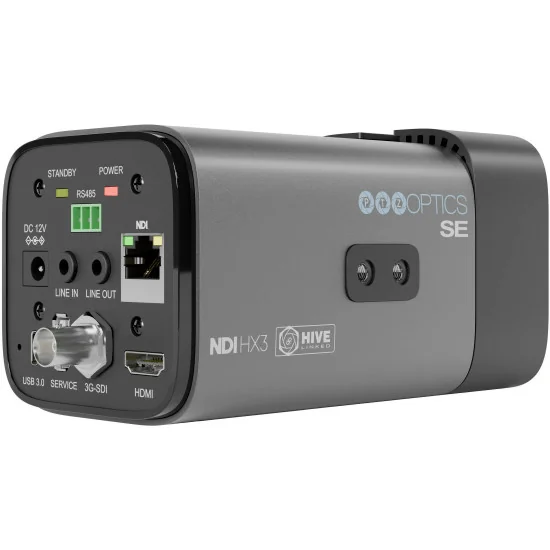

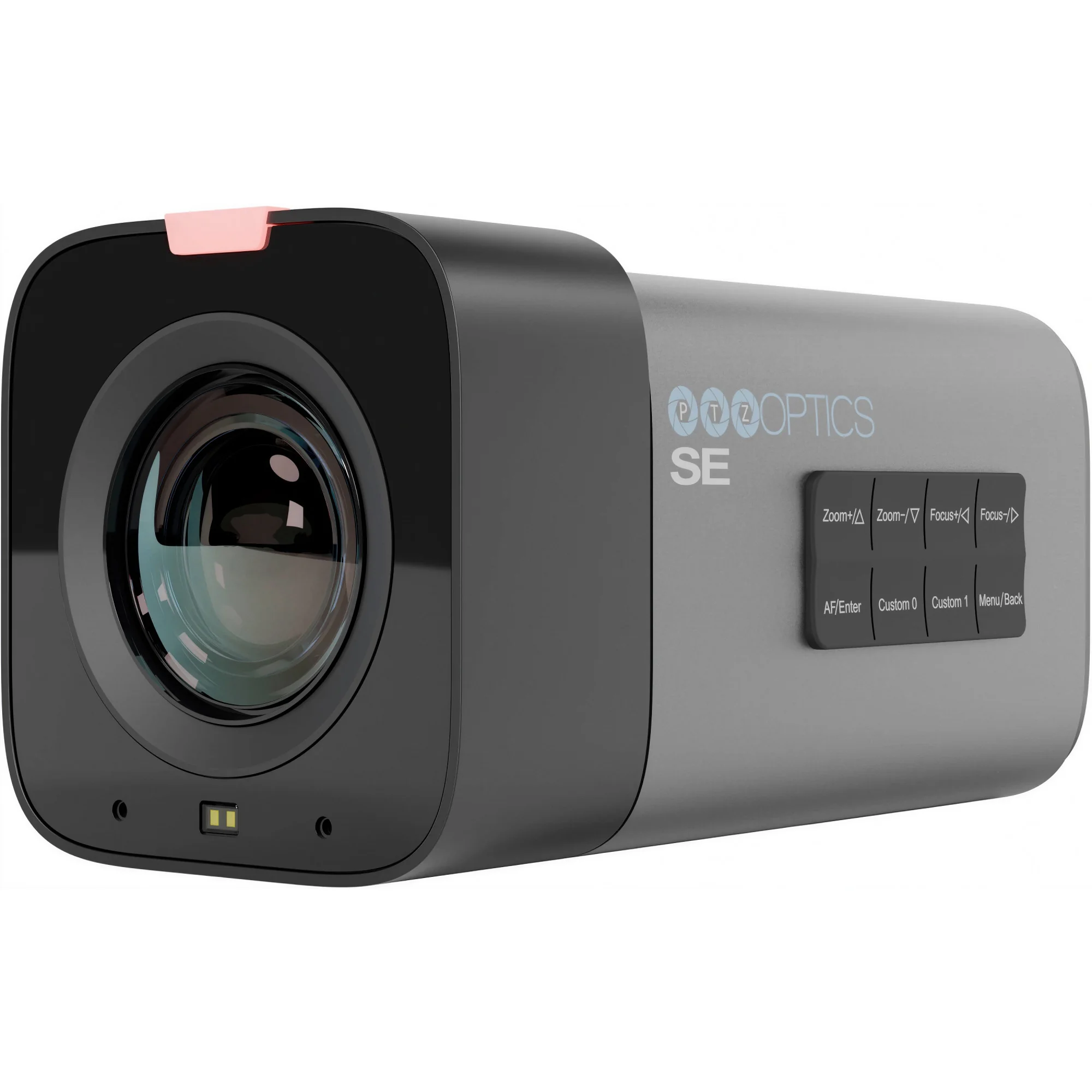

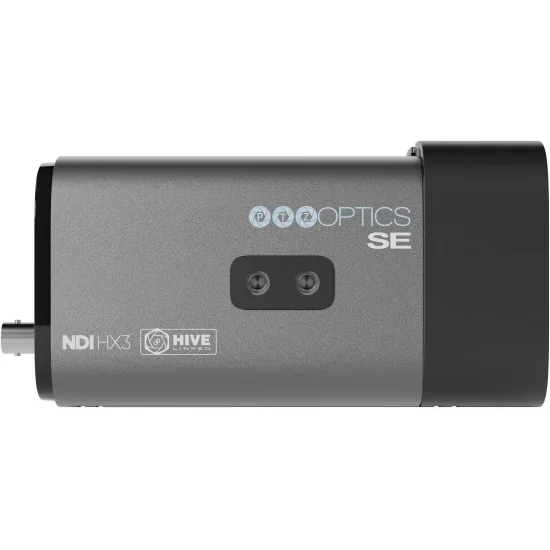

PTZOptics Studio SE 20x Zoom Box Camera Grey
PT20X-STUDIO-SE-GY-G3
Price: €1,039.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
The PTZOptics Studio SE 20x is a fixed-lens box camera built around a 1/2.8-inch CMOS sensor with 8.4 million effective pixels, outputting 1080p video at up to 60 fps through simultaneous HDMI 2.0, 3G-SDI, USB 3.0 Type-C, and Gigabit Ethernet. Its 20x optical zoom (f = 4.7 – 94 mm, F1.6 – F3.6) paired with 16x digital zoom reaches tight framings from across a studio floor, while a 67.8° field of view at the wide end covers broad shots. With minimum illumination of 0.5 lux (F1.8, AGC on), the camera handles dimly lit stages, houses of worship, and courtrooms where lighting stays low.
Native NDI® HX3 over the RJ45 port lets teams route video across standard Ethernet alongside RTSP, RTMP/RTMPS, SRT, and ONVIF streams — essential when feeding IP-based broadcast chains, vMix or OBS-driven live production setups, or multi-camera lecture capture systems. The 3G-SDI BNC output conforms to SMPTE 424M (800 mVp-p, 75 Ω), supporting cable runs up to roughly 100 metres without signal loss. A built-in microphone plus 3.5 mm line-level input and output handle audio embedding without extra hardware.
Control runs through PTZOptics Hive Studio, a browser-based platform that manages several Studio SE units from any networked device. Up to 255 presets at 0.1° accuracy prove valuable during multi-angle television broadcasts, corporate events, or municipal council recordings where shot recall must be instant. A front tally light confirms on-air status to talent, and image flip, mirror, and freeze functions cover inverted mounts and hold-frame needs.
Powered by 12 V DC or PoE (802.3at) at a maximum 18 W, the PTZOptics Studio SE 20x keeps wiring simple in ceiling or truss installations. Its IR remote supports four addresses for multi-camera zones in a broadcast studio or event venue. Compression spans H.264, H.265 HEVC (via RTSP/NDI HX3), MJPEG, and YUY2, while UVC 1.1 ensures plug-and-play recognition on most software switchers. NDAA Section 889 compliance meets government procurement standards.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
PTZOptics Studio SE 20x Technical Specifications:
Camera & Lens
Image Sensor & Lens: 1/2.8” CMOS, 8MP (8.4M effective pixels)
Digital Zoom: 16x
Resolution and Frame Rate:
HDMI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50/30/29.97
SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1280x720p-60/59.94/50/30/29.97

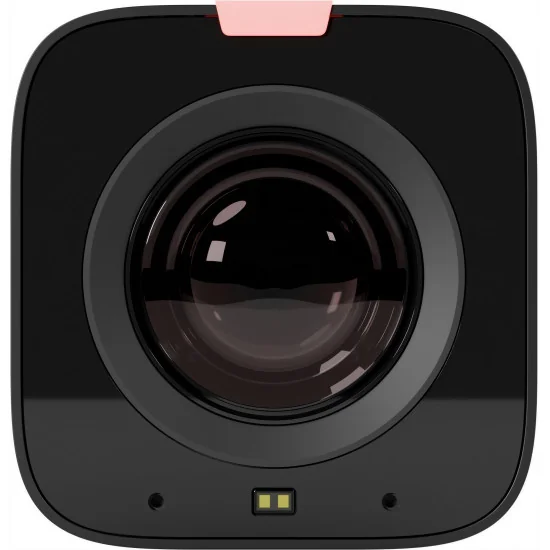

Optical Lens Focal Length (Zoom): f = 4.7mm ~ 94mm, F1.6 ~ F3.6
Optical Lens Field of View, Horizontal & Vertical: H 3.5° ~ 60.7° | V 1.9° ~ 34.1°
Display Field of View: 67.8°
Min Lux: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
Presets: 255 Presets
Presets Accuracy: 0.1°
Image Flip: Supported
Image Mirror: Supported
Image Freeze: Supported
Physical Specifications
Material: Aluminum, Plastic
Color: Gray or White
Dimensions (L x W x H): 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H
Weight: 0.64kg
Working Environment: Indoor
Humidity Range: 10% ~ 80%
Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature: -40°F ~ 140°F (-40 ~ 60°C)

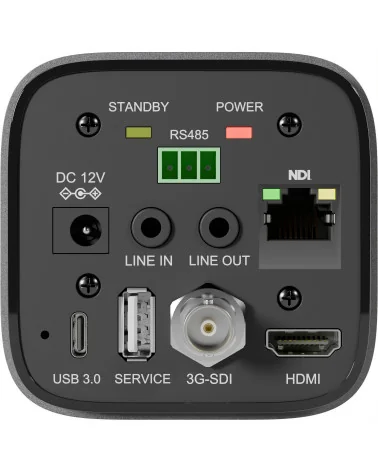

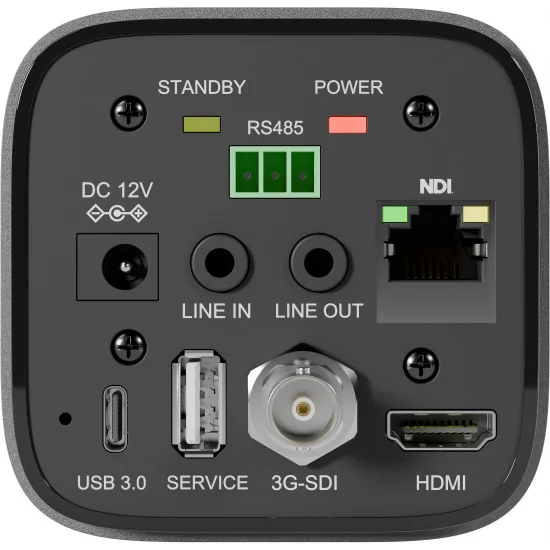

Connections
HD Video Output:
1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI® HX3 enabled
1x HDMI: Version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M
Audio Interface: 1x 3.5mm Line level input, 1x 3.5mm Line level output
Video Formats:
USB:
YUY2: Max resolution 1920x1080p @ 30fps
MJPEG: Max resolution 1920x1080p @ 30fps
H.264 AVC & SVC: Max resolution 1920x1080p @ 30fps
RTSP/NDI® HX3 only: H.265: Max resolution 1920x1080p @ 30fps
Compression Standards: H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX3 only)
UVC Version Supported: UVC 1.1
Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc.
IR: 4x IR Addresses, Max distance 30ft / 9m
Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
Current Consumption: Max 2A
Power Consumption: Max 18W
PT20X-STUDIO-SE-GY-G3
4 Items
Data sheet
- Video Output
- HDMI
NDI
RJ-45 (IP)
SDI
USB - Audio Input
- Built-in microphone
Mini Jack 3.5mm - Audio Output
- HDMI Embedded
Mini Jack 3.5mm
NDI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 1080p 50/60 fps
- Streaming protocols
- Multicast
NDI®|HX 3
ONVIF
RTMP
RTSP
SRT - Network Connection
- Ethernet
- USB video capture
- Yes
- Sensor Size
- 1/2.8"
- Optical Zoom
- 20x
- Interchangeable lens
- No
- Lens mount
- Integrated lens
Specific References
- ean13
- 840170500975
- mpn
- PT20X-STUDIO-SE-GY-G3
