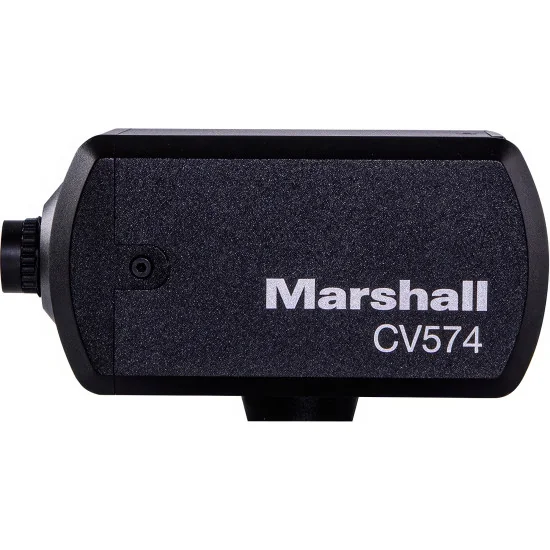

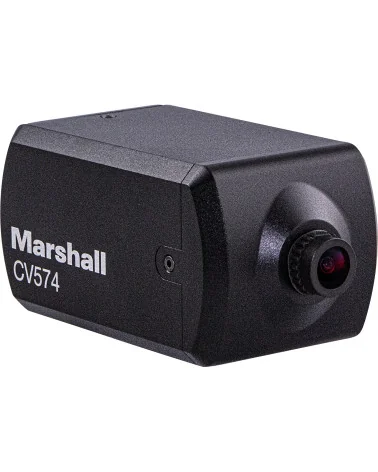

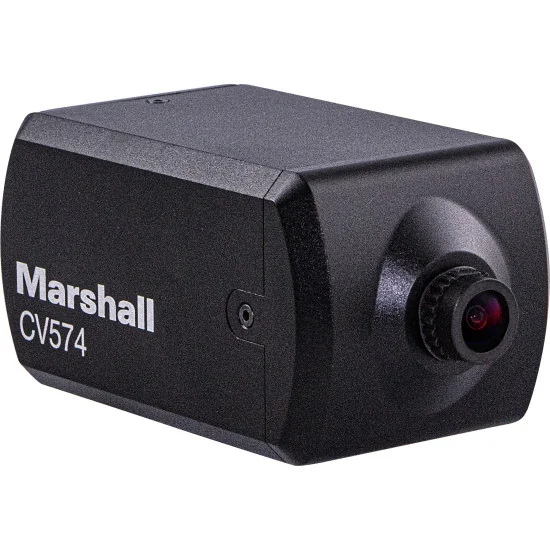

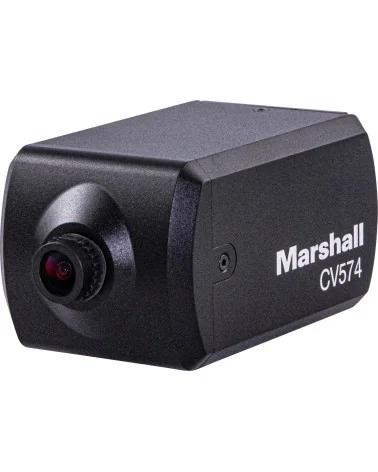

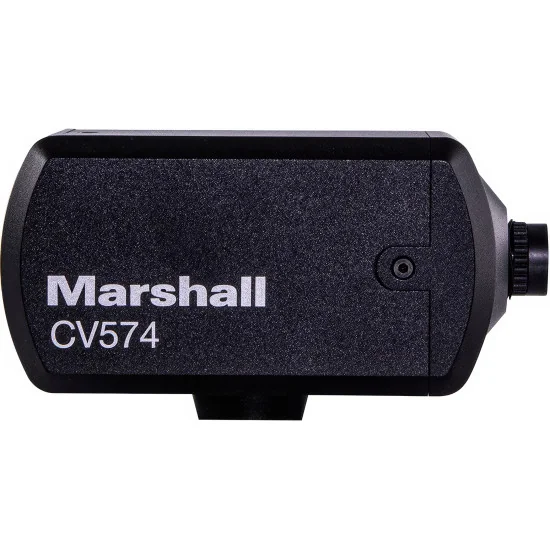

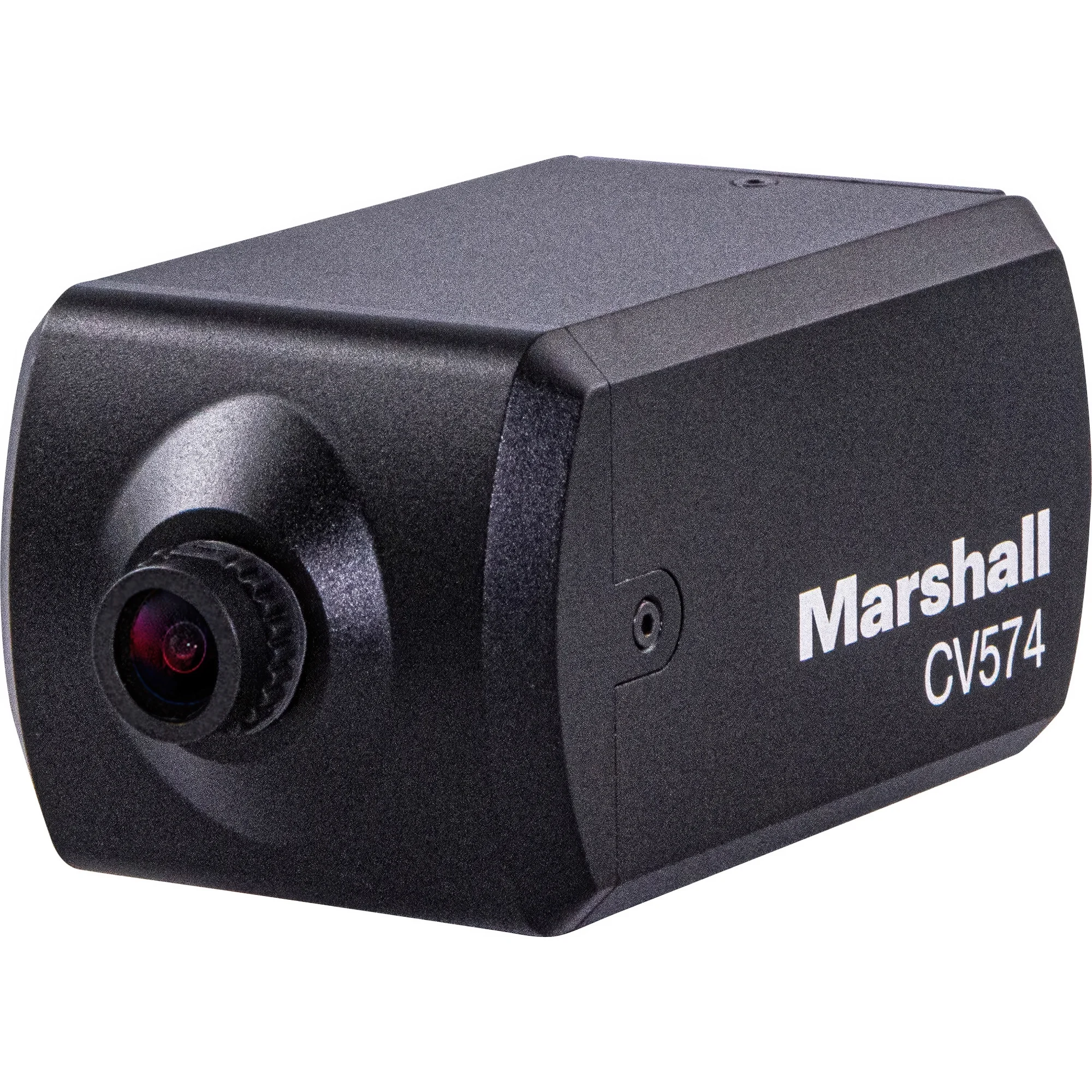

Marshall CV574 4K Mini Camera

    CV574
    Price: €999.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

    Race crews in the Nevada desert bolt the Marshall CV574 into trophy trucks and push live pictures over satellite at more than 220 km/h — a useful benchmark for what this miniature 4K POV camera shrugs off before a festival stage, a courtroom or an esports arena even registers as difficult. Behind the lens thread sits a 1/2.8-inch Sony CMOS sensor with 8.46 million pixels, reading out UHD at 60 frames per second with the colour fidelity broadcast graders expect from far larger heads.

    The network side carries the strongest argument. NDI|HX3 holds end-to-end latency near 100 milliseconds at 1080p60 while using a fraction of full-NDI bandwidth; NDI|HX2 and RTSP move 2160p60 across the LAN, and SRT secures remote contribution over the public internet to a cloud production hub. H.265 encoding keeps every stream lean, the HDMI output runs simultaneously for a local mixer or confidence monitor, and a single PoE cable carries power, video, control and audio together — the 3.5 mm input embeds a microphone or line feed straight into each output.

    Optically, nothing is welded shut. An interchangeable M12 mount ships with a 4 mm f/1.8 prime, and Marshall's lens catalogue stretches from a 126-degree wide to a 16 mm telephoto plus two varifocals. The ICR day/night mechanism reaches 0.01 lux in monochrome night mode; WDR, 2D/3D noise reduction and anti-flicker tame mixed venue lighting. Several units match from one seat via VISCA over IP, the built-in web panel or an RCP-PLUS desk, and a 12-pin port accepts the CV-PT-HEAD for remote pan-tilt duty.

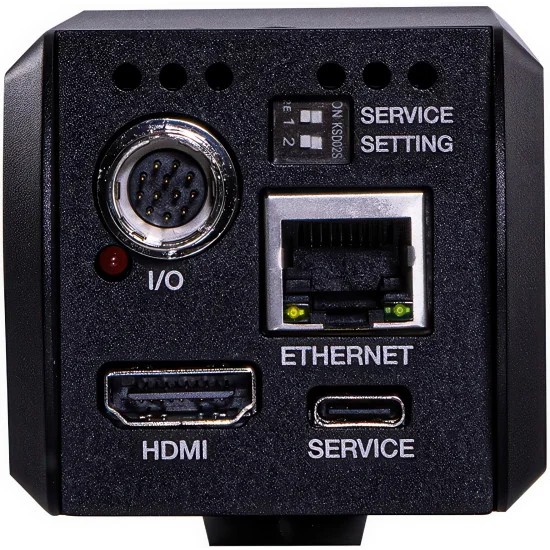

    For a production company the case is financial: a housing machined from solid aluminium alloy, shielded rear connectors and a two-year manufacturer warranty add up to kit that survives seasons of rental and rigging. Our team helps match focal lengths to throw distances, tunes stream bitrates before dispatch, and stays reachable once the camera is on the truss.

    Quantity
    Add to Wishlist
    Add to Compare
    Last items in stock

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    Key features

    • 8.46 Megapixel 1/2.8" Sony solid-state image sensor
    • CV4804-8MP - Interchangeable 4.0mm lens with 77.2° Horizontal AOV
    • 3840x2160p, 1920x1080p, 1920x1080i & 1280x720p resolutions available
    • Framerates: 60, 59.94, 50, 30, 29.97, 25fps
    • HDMI + network support for NDI HX3, RTSP, RTMP, SRT with H.264 and HEVC streaming codecs
    • One-cable to camera option for power (PoE), video, audio, and remote setting control
    • Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
    • Remote adjust & match via Visca over IP, NDI|Tools, and camera control webpage
    • PoE over Cat cable or 12V power with included power supply

    Applications:
    The Miniature CV574 is suitable for use in AV over IP or HDMI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.

    NDI HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec
    Featuring the extremely efficient NDI HX3 codecs gives the miniature CV574 camera a unique advantage over other streaming cameras with 100ms end-to-end of latency using less bandwidth and maintaining the premium video quality of the source. Simultaneous HDMI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more.

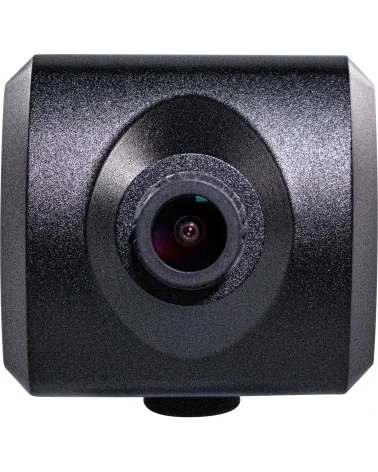

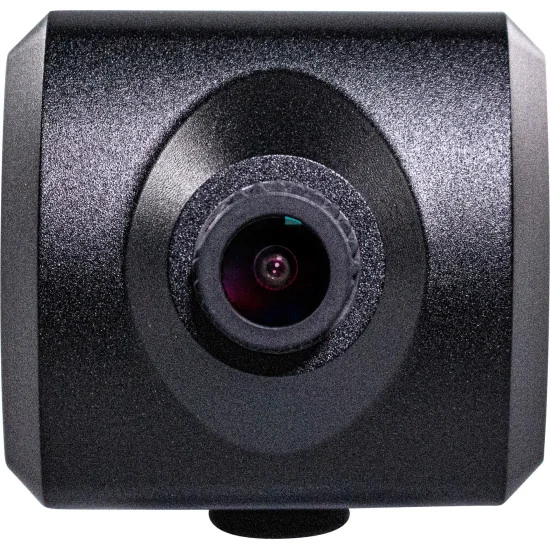

    Interchangeable M12 Lenses
    Marshall CV574 cameras come with a high-quality 4.0mm (77.2° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.

    Durable, Flexible, Powerful
    The miniature CV574 body is chiseled from a block of aluminum alloy making it extremely durable in a discreet miniature size with rear I/O protection. CV574 operates with exceptional low-light sensitivity, ensuring a clear Ultra-HD picture in challenging lighting conditions with refined remote adjust & match capability over network or Visca over IP commands. Suitable for a variety of AV over IP network, cloud production, remote contribution, and HDMI workflows.

    Broadcast Performance
    Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

    Sensor
    Image Sensor1/2.8" Progressive CMOS (Approx. 8.46 mega)
    Scanning System16:9 Progressive
    Sync. SystemInternal
    Effective Pixel3840(H) x 2160(V)
    Min. Illumination0.5Lux (Day), 0.01Lux (Night)
    Optics
    LensM12 4.0mm
    Functions
    Back Light CompensationWDR, BLC
    ExposureAuto / Manual
    White BalanceAUTO / Manual / Indoor / Outdoor / One Push / AUTO Tracking (ATW)
    Day & Night SystemDay / Night: TDN (ICR)
    Electronic Shutter1/30~1/10000
    FunctionsImage Mirror/Flip, 2D+3DNR, Anti Flicker
    Ethernet
    IP ProtocolsNDI|HX2, NDI|HX3, SRT, RTMP, RTSP
    Video Encode FormatH.264 / H.265
    (Note: RTMP supports only H.264)
    Video Output
    InterfacesHDMI, Ethernet
    Output Resolutions
    HDMI2160p25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080i50/59.94/60
    720p25/29.97/30/50/59.94/60
    IP2160p25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    720p25/29.97/30/50/59.94/60
    NDI|HX22160p25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    720p25/29.97/30/50/59.94/60
    NDI|HX31080p50/60
    Audio Input
    Line Level16kHz, 32kHz, 48kHz sample rates
    Control
    NetworkWeb GUI / VISCA over IP
    General
    Operation Temperature0℃ ~ 50℃
    Power Input12VDC (10V to 13.5VDC)
    Power Consumption12VDC power: 5.625W
    PoE power: 6.7W
    Dimensions94.53mm(L) x 53mm(W) x 55mm(H)
    (without lens)
    Weight0.7 lbs
    CV574
    1 Item

    Data sheet

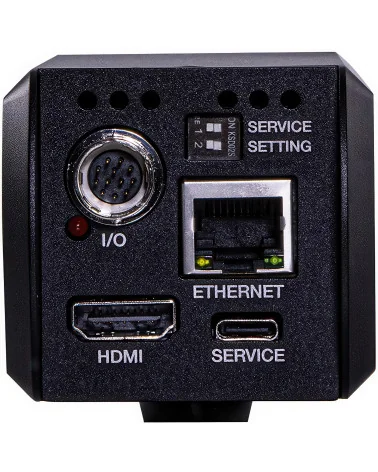

    Video Output
    HDMI
    NDI
    RJ-45 (IP)
    Audio Input
    Mini Jack 3.5mm
    Audio Output
    HDMI Embedded
    NDI Embedded
    RJ-45
    Max Output Resolution
    4K UltraHD (3840 x 2160) 50/60 fps
    Network Connection
    Ethernet
    USB video capture
    No
    Sensor Size
    1/2.8"
    Optical Zoom
    No
    Interchangeable lens
    Yes
    Lens mount
    M12

    Specific References

    ean13
    801813232493
    mpn
    CV574
