SmallHD Camera Control Kit for RED RCP2 (Indie)
€519.00
The SmallHD Camera Control Kit for RED RCP2 is a specialized solution designed for seamless integration between SmallHD Indie 5 monitors and...
SmallHD Camera Control Kit for Sony FX6 turns the SmallHD Cine 5 monitor into a full-featured remote head for Sony’s 4K full-frame workhorse. After activating the perpetual software licence, a single slim Ethernet link lets the monitor’s ultra-bright touchscreen surface the FX6 menu tree in real time, eliminating on-body button pushes when the camera sits on gimbals, cranes or drones. Latency-free control via PageOS ensures decisive adjustments even during live multicam or virtual-production shoots.
From the same screen that hosts waveform, false-colour and LUT preview you can trigger record/run-stop, step electronic ND in 0.25-stop increments, set shutter speed or angle, swap base-ISO, dial white balance, alter FPS, load partial LUTs and play back clips. Persistent overlays report time-code, resolution, media capacity, battery level and codec, so assistants stay informed even when the camera is beyond arm’s reach. This integrated workflow cuts menu-dives and preserves framing continuity, a critical gain when seconds cost money on set.

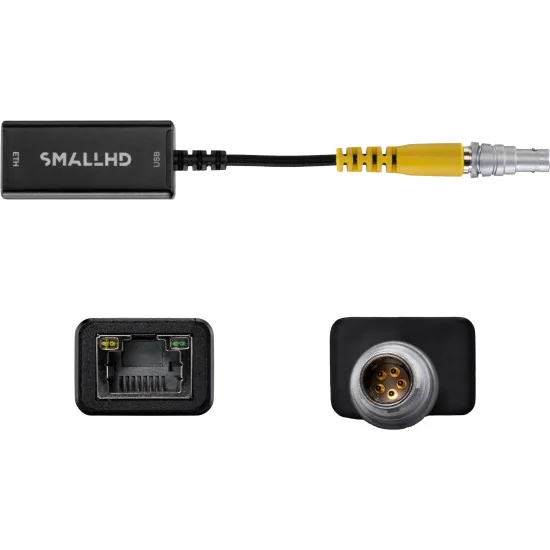

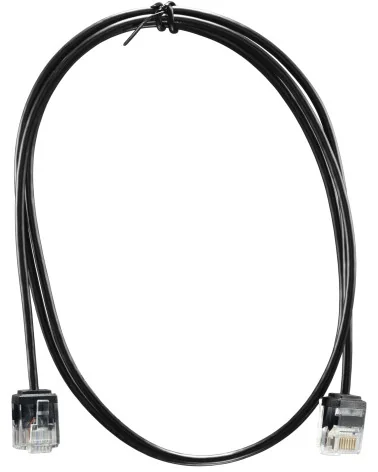

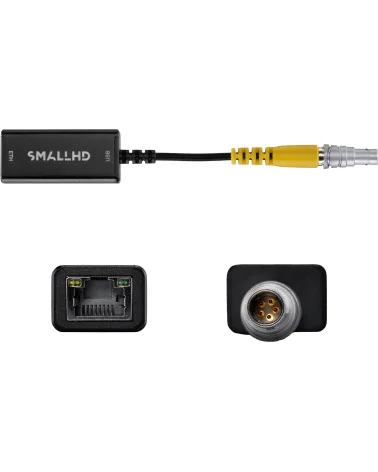

The kit ships with a rugged 91.4 cm (36 in) slim Ethernet cable and a locking 5-pin LEMO → RJ-45 adapter—both rated for studio duty—and weighs just 88 g in its 15.7 × 11.2 × 7.4 cm carton. A USB-C-to-Ethernet dongle (optional) allows off-camera licence activation for rental fleets. All links are PoE-passive, drawing < 1 W, so V-mount or Gold-mount power budgets remain untouched. Combining daylight-viewable 2000 nit monitoring with fingertip FX6 control, Cine 5 becomes a single-cable command hub ideal for Steadicam, OB vans and LED-volume stages.
SmallHD Camera Control Kit for Sony FX6 (Cine)
SHD-18-2011
Price: €319.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
SmallHD Camera Control Kit for Sony FX6 turns the SmallHD Cine 5 monitor into a full-featured remote head for Sony’s 4K full-frame workhorse. After activating the perpetual software licence, a single slim Ethernet link lets the monitor’s ultra-bright touchscreen surface the FX6 menu tree in real time, eliminating on-body button pushes when the camera sits on gimbals, cranes or drones. Latency-free control via PageOS ensures decisive adjustments even during live multicam or virtual-production shoots.
From the same screen that hosts waveform, false-colour and LUT preview you can trigger record/run-stop, step electronic ND in 0.25-stop increments, set shutter speed or angle, swap base-ISO, dial white balance, alter FPS, load partial LUTs and play back clips. Persistent overlays report time-code, resolution, media capacity, battery level and codec, so assistants stay informed even when the camera is beyond arm’s reach. This integrated workflow cuts menu-dives and preserves framing continuity, a critical gain when seconds cost money on set.
The kit ships with a rugged 91.4 cm (36 in) slim Ethernet cable and a locking 5-pin LEMO → RJ-45 adapter—both rated for studio duty—and weighs just 88 g in its 15.7 × 11.2 × 7.4 cm carton. A USB-C-to-Ethernet dongle (optional) allows off-camera licence activation for rental fleets. All links are PoE-passive, drawing < 1 W, so V-mount or Gold-mount power budgets remain untouched. Combining daylight-viewable 2000 nit monitoring with fingertip FX6 control, Cine 5 becomes a single-cable command hub ideal for Steadicam, OB vans and LED-volume stages.
UE Shipping
We ship all over the European Union for €20, free shipping on orders over €1,000.
B2B Shop
Our offer is aimed only to B to B Customers, all prices are exclusive of tax.
Secure checkout
Secure online payments via Stripe.
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop

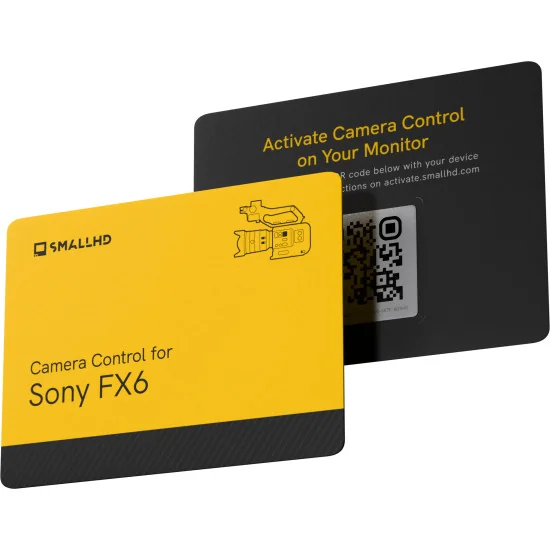

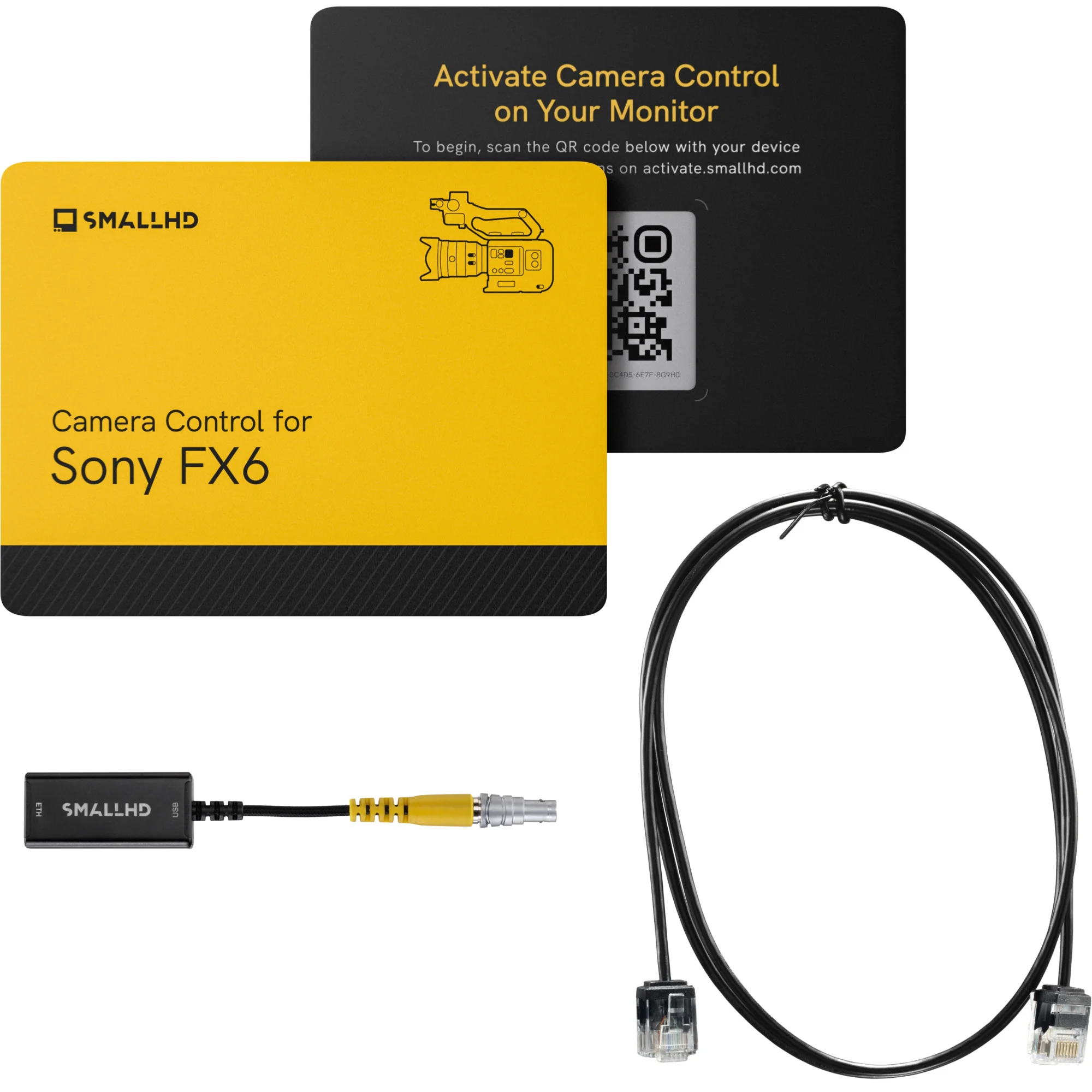

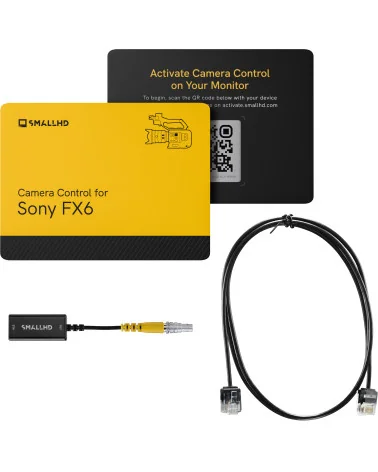

Take your Cine 5 to the next level with intuitive camera-control software*. This kit includes a software-license download card and control cables that enable real-time configuration of the Sony FX6. Quickly access essential SONY camera settings with intuitive, user-friendly controls on the Cine 5 monitor from SmallHD.
Camera Control Access:
Start/Stop Record, ND Filter Selection, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Partial LUT Configuration, Clip Playback
Non-Interactive Camera Information:
Timecode, Media Status, FPS, Resolution, Battery Info, Recording Format
Disclaimer: Once any camera control is registered in your SmallHD monitor, it can not be removed or transferred to a different monitor
*Users need to source their own USB-C to Ethernet adapter
SHD-18-2011
Data sheet
- Compatibility
- SmallHD Cine 5
Sony FX6 - Software Type
- Plugin, Add-On
Specific References
- ean13
- 811786035397
- mpn
- 18-2011
