SWEDX Lamina 58" White SWL-58K8-A1 | Digital Signage Totem Kiosk, 4K, HDMI, USB

Name: SWEDX Lamina 58" White SWL-58K8-A1 | Digital Signage Totem Kiosk, 4K, HDMI, USB
Brand: SWEDX
SKU: SWL-58K8-A1
Price: 1320.00 EUR
Availability: InStock

MPN: SWL-58K8-A1

Price: €1,320.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

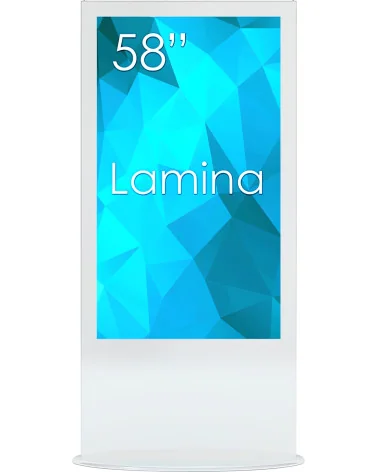

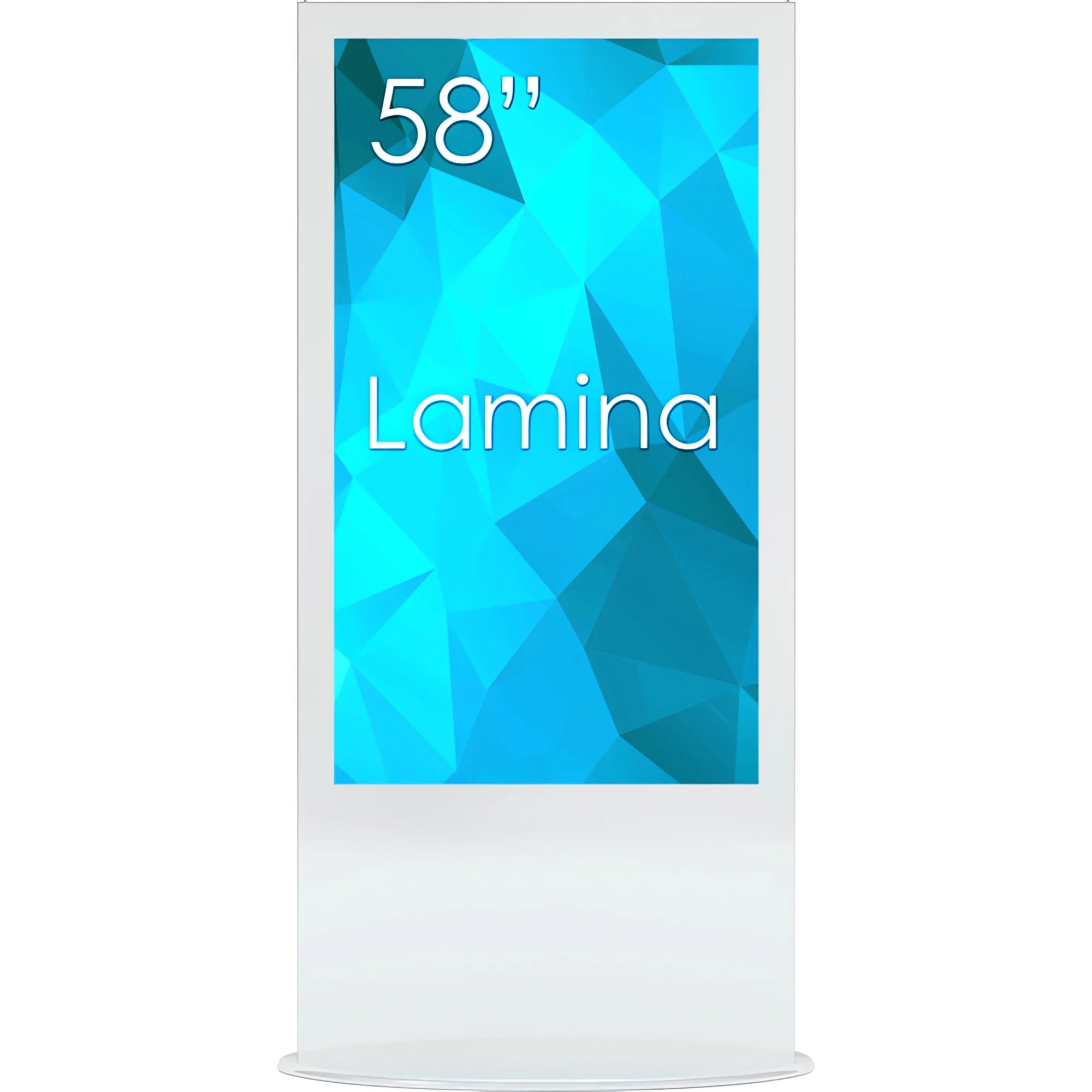

The SWEDX Lamina 58” White SWL-58K8-A1 is a freestanding digital signage totem featuring a 58-inch 4K Ultra HD display with a resolution of 3840 x 2160 pixels. Its brightness level reaches 350 cd/m², ensuring clear visibility even in well-lit environments. Equipped with three HDMI 2.0 inputs supporting 60Hz refresh rates, it facilitates seamless integration with various media sources. The device includes two USB 2.0 ports for additional connectivity options. Designed for continuous 24/7 operation, it is ideal for high-traffic areas such as retail stores, hotels, and public institutions. The anti-glare coating enhances content visibility by reducing reflections. A lockable rear compartment provides secure housing for media players or mini PCs, ensuring both functionality and security. The SWEDX Lamina’s sleek white design complements modern interiors, making it a versatile choice for various professional settings.

UE Shipping

We ship all over the European Union for €20, free shipping on orders over €1,000.

B2B Shop

Our offer is aimed only to B to B Customers, all prices are exclusive of tax.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The SWEDX Lamina SWL-58K8-A1 represents the pinnacle of freestanding 4K display technology. This sleek black advertising stand features a large 58-inch screen capable of 4K resolution, making it a visually striking addition to any setting. The display is outfitted with three HDMI 2.0 inputs, each supporting a 60Hz refresh rate for ultra-HD video, image, and animation playback. This non-touch display model is at the forefront of modern display technology and is perfectly suited for businesses seeking to enhance their entrance spaces, museums, retail environments, and public institutions. The SWEDX Lamina SWL-58K8-A1 also offers the flexibility of portrait mode, allowing content to be showcased in 4K with a high brightness of 350 cd/m².

It's built for continuous operation, capable of running 24/7, which makes it an ideal choice for locations like petrol stations that operate around the clock. In high-traffic areas like hotels, restaurants, and retail spaces, the SWL-58K8-A1 excels as a freestanding 4K display.

Traditional static billboards, which display the same content for extended periods, often lose their appeal quickly, especially to daily commuters. In contrast, a digital billboard like the SWEDX Lamina SWL-58K8-A1 offers the versatility of changing content as needed, continually engaging and attracting regular visitors with new information or visuals.

The SWEDX Lamina SWL-58K8-A1 boasts a resolution of 3840 x 2160 pixels, ensuring that your advertising material is displayed in brilliant UHD quality. The 4K resolution advantage is clear, with images and details presented with unparalleled clarity and depth. Even at close distances, viewers experience a significantly improved image compared to Full HD, with the display’s 350 cd/m² brightness and 4000:1 contrast ratio contributing to an exceptional viewing experience. The anti-glare coating on the screen ensures that the content is easily viewable even in bright surroundings, minimizing distracting reflections.

Security and functionality are thoughtfully considered, with a lockable door at the back of the unit to safeguard equipment. This space can accommodate a variety of digital signage players, facilitating the easy creation of photo and video playlists for automated playback. Additionally, devices like mini PCs or Android boxes can be connected through one of the two USB ports. The display is also environmentally conscious, featuring automatic on/off timers and Smart HDMI technology to regulate power usage based on HDMI signals. The internal media player allows for USB-driven content playback, offering the flexibility to tailor content display timings, such as different information for morning hours or weekends.

LCD DISPLAY
Model	SWL-58A1/A2
Panel Type	58" TFT UHD Panel
Display size	58"
Active Display area	1270,08 (H )x 721,44 (V)
Pixel Pitch	0,334 (H) x 0,334 (v)
Pixel Arrangment	RGB Vertical Stripe
Backlight	Edge-LED
Backlight rated hours	30000 (LED Decays to 50%)
Refresh rate	50/60Hz
Aspect Ratio	16:09
Response Time	Gray to Gray typical Avrage 9,5ms
Max. Resolution	3840 x R.G.B x 2160
HD Format	Quad Full HD 3840x2160 pixels
Output frame rate	QFHD 50/60 Hz
Contrast Ratio	4000:1
Brightness (cd/m2)	350d/m2
Display Color	1,07G corlars (8-bit +FRC)
Viewing Angle	H:178o V:178o VA Technology
Ultra wide viewing technology	Super VMA Technology
Display operation mode	Transmissive mode/Normaly black
Surface treatment	Anti-Glare coating (Haze 1%) Hardness 3H
Base Type	Removable
Accessories included	Base,Remote,AC-Cable, Screw
Remote Type	2,4 GHz
Remmote printed language	English
Remote Pairing	Reciver key + 2 remote keys (ok+8)
Display
High color saturation	NTSC 88%
Sound System	Stereo /Surround/ SRS TruSurround XT
AUDIO
Stereo system	Stereo
Audio Speaker	10W X2
CONNECTION
CVBS +Audio R/L Input	X 1
Analog VGA	X 1
PC Stereo Input	X 1
HDMI 1 ARC	X1
HDMI 2	X1
HDMI 3 MHL	X1
YCbCr/YPbPr Input	X1
Coaxial Out	X1
USB 1	X1
USB 2	X1
On/OFF key	X1
Remote Pair Key	X1
Touch Screen USB	No
Touch Screen
USB Connection	-
Touch screen 6point	-
Touch screen 10 point	-
Touch Type	-
Protective glas	-
Signal Mode
CVBS +Audio R/L Input	Pal/Secam/NTSC 1Vp-p@75ohm 500mVrms
Analog VGA	H:30-75KHz V:56-75Hz 0,7Vp-p@75ohm Max 1920x1080@60Hz
PC Stereo Input	500mVrms
HDMI	HDMI2,0/1,4b /HDCP 2,2/1,4 MHL 3,0/2,1 Compatible
YCbCr/YPbPr Input:	Y:1Vp-p@75ohm, PbPr: 0,7Vp-p@75ohm 500mVrms 480I/P, 576I/P, 720P,1080I/P
USB 1	2.0
USB 2	2.0
POWER
Valtage/Frequency	AC Input 100~240V,50/60Hz
Power Consumpiton	Max 50 Watt
Stand by Power consumption	<0.5W
Power Code	TBD
Power code mark	TBD
FEATURES
Full HD Compitable	480i/576i,480p/576p,720p/1080i /1080P 2160i/2160P
HDMI Input	480P,576P,720P,1080I,1080P /2160I /2160P
HDMI 4k @50Hz / 60Hz	Yes in All inputs
3D Digital Comb Filter	Yes
3D Digital Noise Reduction	Yes
Sleep timer	Yes
Advanced Timer	Yes
Power on/off timer	Yes
Smart HDMI	Yes
Color temperature control	Yes
Picture Status Memory	Yes
Multi display mode	Optional
USB Media player	Yes
USB play list	Yes
USB Auto play mode Video	Yes
USB Auto play mode Photo	Yes
USB Simple mode	Yes
USB Play list mode	Yes
De-Interlace	3D motion adaptive video
OSD Language	English, Swedish, Japan, German, Italy ,France, Chinese
DIMENSION
Dimension with base	w 916x h 1820x d 450 mm
Dimension w/t base	w 850x h 1802x d 66 mm
Thikness upper part	41,50 mm
Packing Size	L 1940 x W 1000 x H 160 mm
Gross wieght	65KG
Net wieght	50KG
Other packing	Flight Case avalible (Optional)
Operating Condtion
Temperature	Normal Condtion 20± 15°C
Humidity	Normal Condtion 55± 20%
Operating Ambient Temp.	0°C - 50°C
Storage Temp.	Min -20°C / Max +60°C
Display Pattern	continually changing pattern (Not staionary)
Color
Front Standard	Glossy Black Code A2/ Glossy white Code A1
Back Standard	Black Code A2/ White Code A1
Edge Standard	Chrome
Other colors	Open request

Reference SWL-58K8-A1

Data sheet

Video Input: Component
Composite CVBS
HDMI
USB
VGA
Screen Size: 58"
Display Brightness: 350 nits
Aspect Ratio: 16:9
Screen Resolution: 3840x2160
Refresh Rate: 60Hz
Screen Type: LCD TFT
Backlight: Edge-LED
Backlight Rated Hours: 30000
Touch Screen: No
Viewing Angle: 178/178
Built-in Speaker: Yes
USB Media Player: Yes
Supported OS: Android
Linux
Mac OS
Windows 8
Windows 10
Windows 2000
Windows Vista
Windows XP
