Telycam Vision+ 4KZ BK Box Camera

Name: Telycam Vision+ 4KZ BK Box Camera
Brand: Telycam
SKU: Vision+ 4KZ BK
Price: 929.00 EUR
Availability: InStock

MPN: Vision+ 4KZ BK

Price: €929.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Pan-tilt heads add cost, moving parts and service visits, yet plenty of camera positions in a studio or venue never move at all. For those spots the Telycam Vision+ 4KZ BK is a fixed 4K60 box camera that shares its lens, 1/1.8-inch 9 MP CMOS sensor and image processor with the Vision+ 4KN 20x PTZ. Put both on the same switcher and the pictures match from the first frame, so rehearsal time goes into shot composition rather than chasing skin tones between sources.

The 20x optical zoom (6.25–112.5 mm, F1.58–F3.96) runs from a 61° wide shot to a 3.5° close-up – enough to hold a lectern from the back of an auditorium or a presenter from a truss 20 metres away. Autofocus reacts fast during zoom moves, the minimum object distance is 1 m, and 2D/3D noise reduction keeps the picture usable down to 0.5 lux. Anti-flicker at 50 or 60 Hz tames LED lighting and video walls.

Output options suit both baseband and IP rooms. HDMI 2.0 carries up to 2160p60, while the NDI|HX3 main stream sends 2160p30 or 1080p60 over Gigabit Ethernet. A parallel CROP stream at up to 1080p60 is where the AI works: Auto Framing keeps a panel of speakers composed as a group, and Auto Tracking follows one presenter across the stage, giving a wide and a tight angle from a single body with no operator. H.264/H.265 encoding in CBR or VBR (1–61 Mb/s) pushes straight to SRT, RTMP, RTSP or WebRTC destinations. USB 2.0 UVC output serves conferencing rooms, though not while NDI is active.

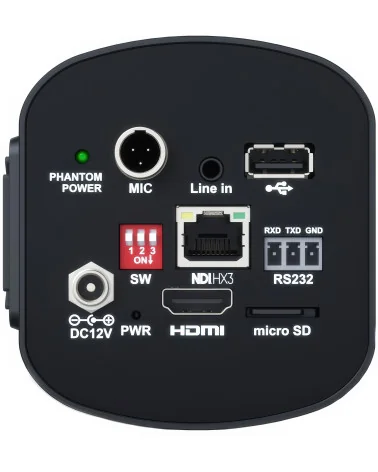

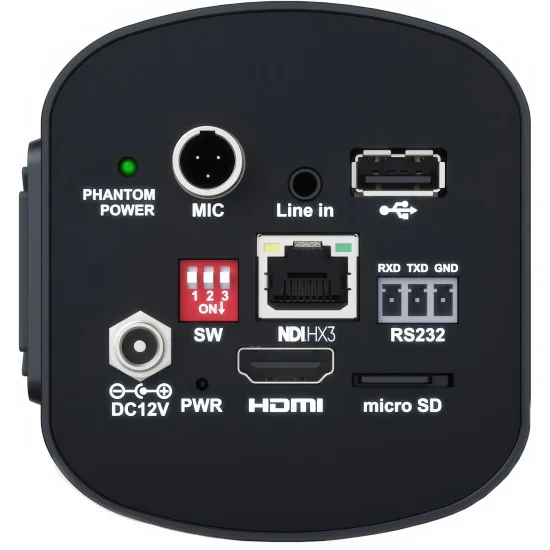

Rigging the Vision+ 4KZ takes little time. One PoE+ (IEEE 802.3bt) cable powers the camera and carries video, VISCA over IP control and NDI tally, with 12 V DC as a fallback. Exposure, white balance and the IP address are set on a side-mounted colour screen with five buttons – no laptop needed on the ladder. Audio enters through a 3.5 mm stereo line input or a mini XLR with +48 V phantom power, a microSD slot records a local safety copy, and FreeD lens data links the camera to Unreal Engine, Aximmetry or Zero Density virtual sets. RS-232 with VISCA and Pelco P/D, ONVIF and SSDP discovery cover control rooms, lecture capture and corporate AV integrations.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

4K UHD Resolution
Experience breathtaking detail and clarity with ultra-high-definition 4K (3840 x 2160) video at 60fps via HDMI. Our advanced image processing ensures lifelike images, even in low-light conditions.

Perfect Color Match for Multi-Camera Productions
The Vision+ 4KZ box camera solves color and visual inconsistency in multi-camera productions by using the same high-quality lens, sensor, and processor as the Vision+ 4KN 20x PTZ, ensuring a consistent look across fixed and PTZ setups.

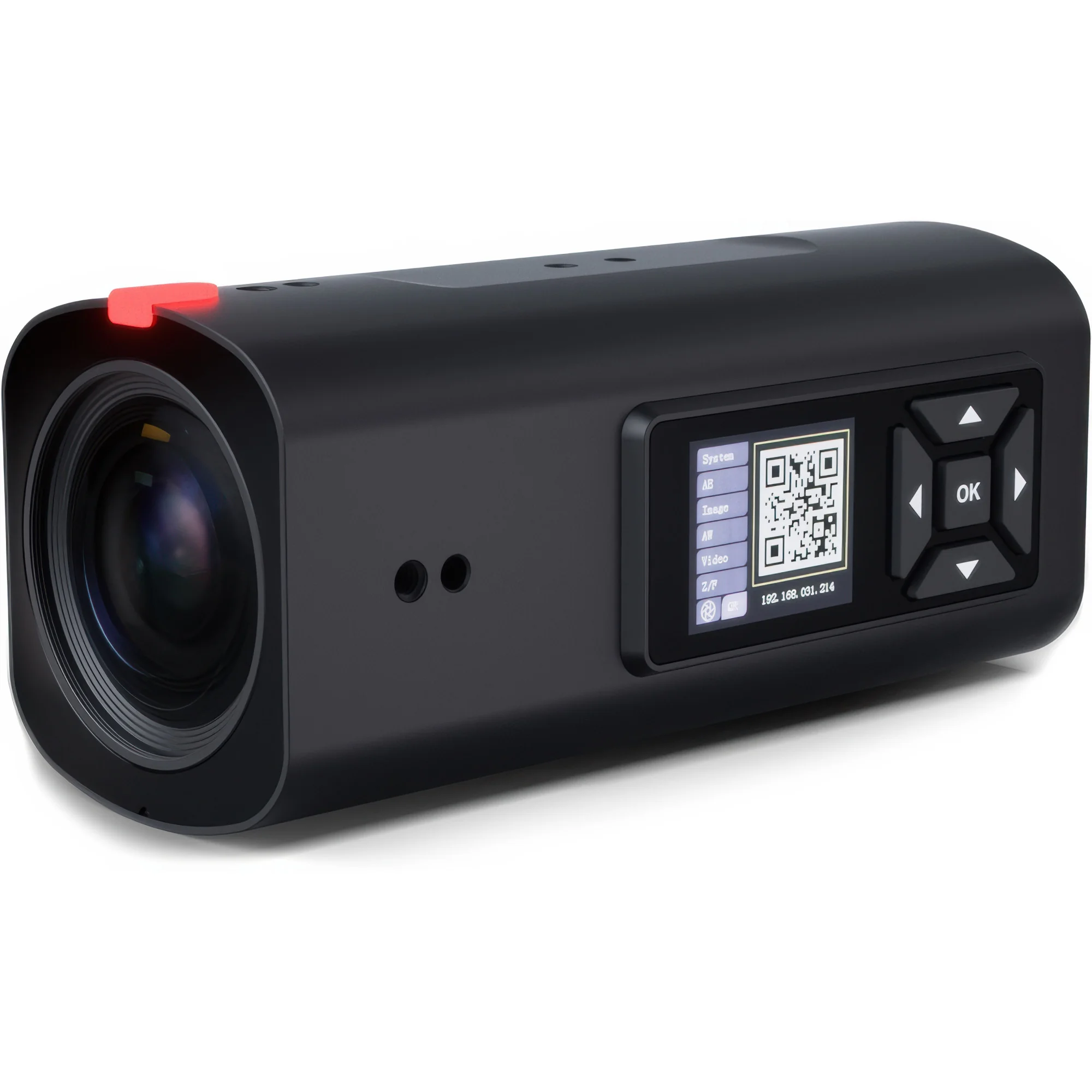

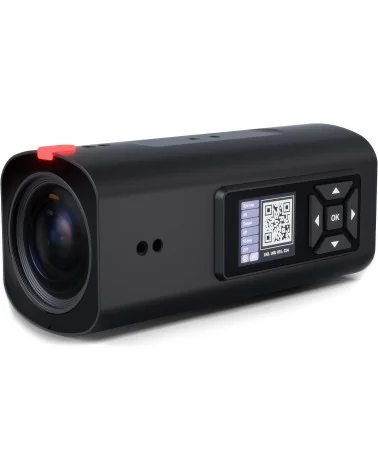

Side Control Panel for Key Image Parameters & IP Address
Quickly access and adjust essential image parameters and view the IP address directly on the camera’s side panel, streamlining your workflow.

20X Optical Zoom
The Vision+ 4KZ offers 20X optical zoom options with FOV of 61°. Its advanced focusing algorithm ensures rapid and accurate focus even during zoom or movement.

Built-in CROP Dual Smart Tracking Modes (1080P and Below)
In CROP mode, two intelligent tracking options are available: Auto Framing and Auto Tracking. Auto Framing dynamically adjusts the frame to keep the subject perfectly centered. Auto Tracking uses advanced AI algorithms to identify and follow the subject even in complex environments.

Embed the Latest NDI® SDK
Leverage the power of Newtek's NDI® for plug-and-play compatibility with various live streaming products and platforms, creating diverse and engaging content.

All-in-One Live Streaming Camera
It features multi-interface output support via NDI® HX3, HDMI, or USB 2.0. For professional audio integration, it offers dual connectivity: a 3.5mm line-in and a Mini XLR port with +48V phantom power, ensuring compatibility with studio-grade microphones. An integrated tally light delivers clear visual status feedback during live streaming.

Specifications

Part NO. TLC-600-IP-20-4K(NDI)-AB
1/1.8-inch, 9MP UHD CMOS sensor
20X optical zoom
Lens: f = 6.25mm ~ 112.5mm, F1.58 ~ F3.96
Horizontal View Angle: 61° (Wide) ~ 3.5° (Tele)
Vertical Viewing Angle: 34.1°~1.9°
Diagonal Viewing Angle: 60.7°~3.5°
Minimum Working Distance: 1.0m
S/N Ratio: ≥50dB

Image Parameters
Noise Reduction: 2D&3D
Minimum lux: 0.5Lux(50 IRE Max AGC, 1/30, F1.8)
White Balance: Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature
Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker: OFF, 50Hz, 60Hz
Image Flip/Mirroring: Support
Focus/Iris/Electronic-shutter: Auto/Manual
Gamma: Support
Backlight Compensation: Support

Video Format
HDMI2.0：3840*2160P60/59.94/50/30/29.97/25 1920*1080P60/59.94/50/30/29.97/25/24/23.98 ; 1920*1080I60/59.94/50 ; 1280*720P60/59.94/50/30/29.97/25
NDI®|HX3：Main Stream: 3840*2160P15~30; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60 Sub Stream (CROP): 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60;640*360P15~60;
USB 2.0：NV12：1920*1080P5; 1280*720P10; 1024*576P15; 800*448P30/25 YUYV：1920*1080P5; 1280*720P10; 1024*576P15; 800*448P20/15 MJPG：1080P60/50/30/25; 1280*720P60/50/30/25; 1024*576P60/50/30/25; 800*448P60/50/30/25

IP Streaming
Video Encoding: H.264/H.265
Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range: 1024Kbps~61440Kbps
Network Port Speed: 1000M
Protocol: NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, NTP, RTP Multicast, WebRTC

I/O Interface
Control Port: RS232, RJ45
Video Port: NDI®HX3, HDMI2.0, USB Type-A
Audio Port: Stereo 3.5mm linear inputs, mini XLR
Tally: Support
POE: Support

General
Input Voltage: DC12V, POE+(IEEE802.3bt)
Operating Temperature: -10℃~50℃
Operating Humidity: ≤80%
Dimension(L×W×H): 82mm×85.3mm×186.5mm
Net Weight: 0.95kg(2.09LBS)
Color: Black
