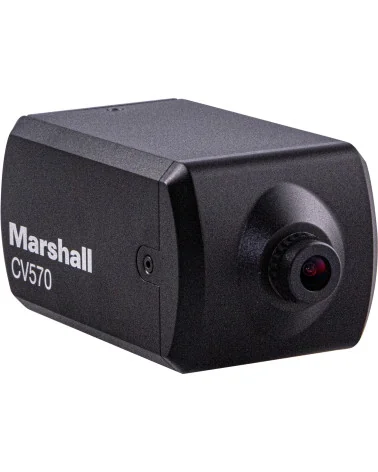

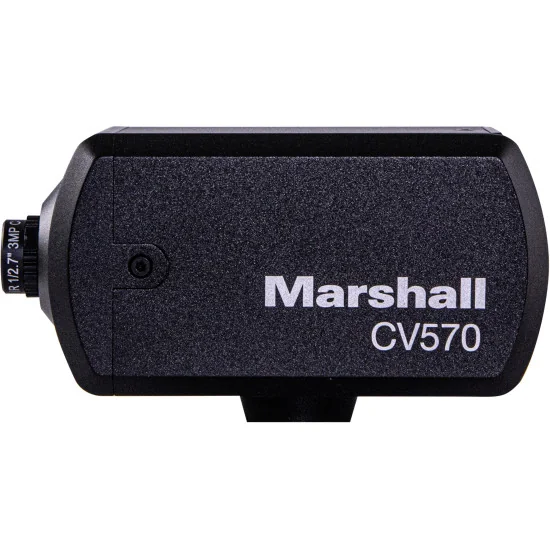

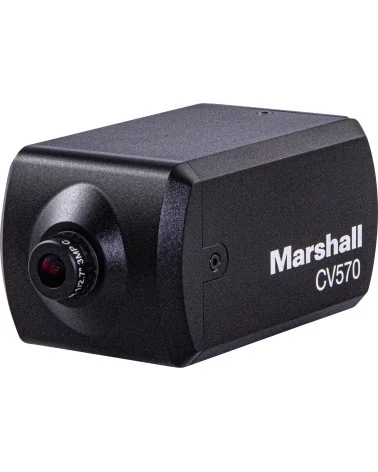

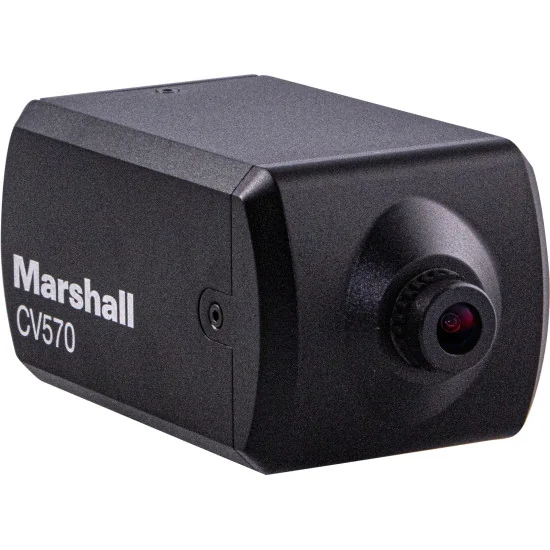

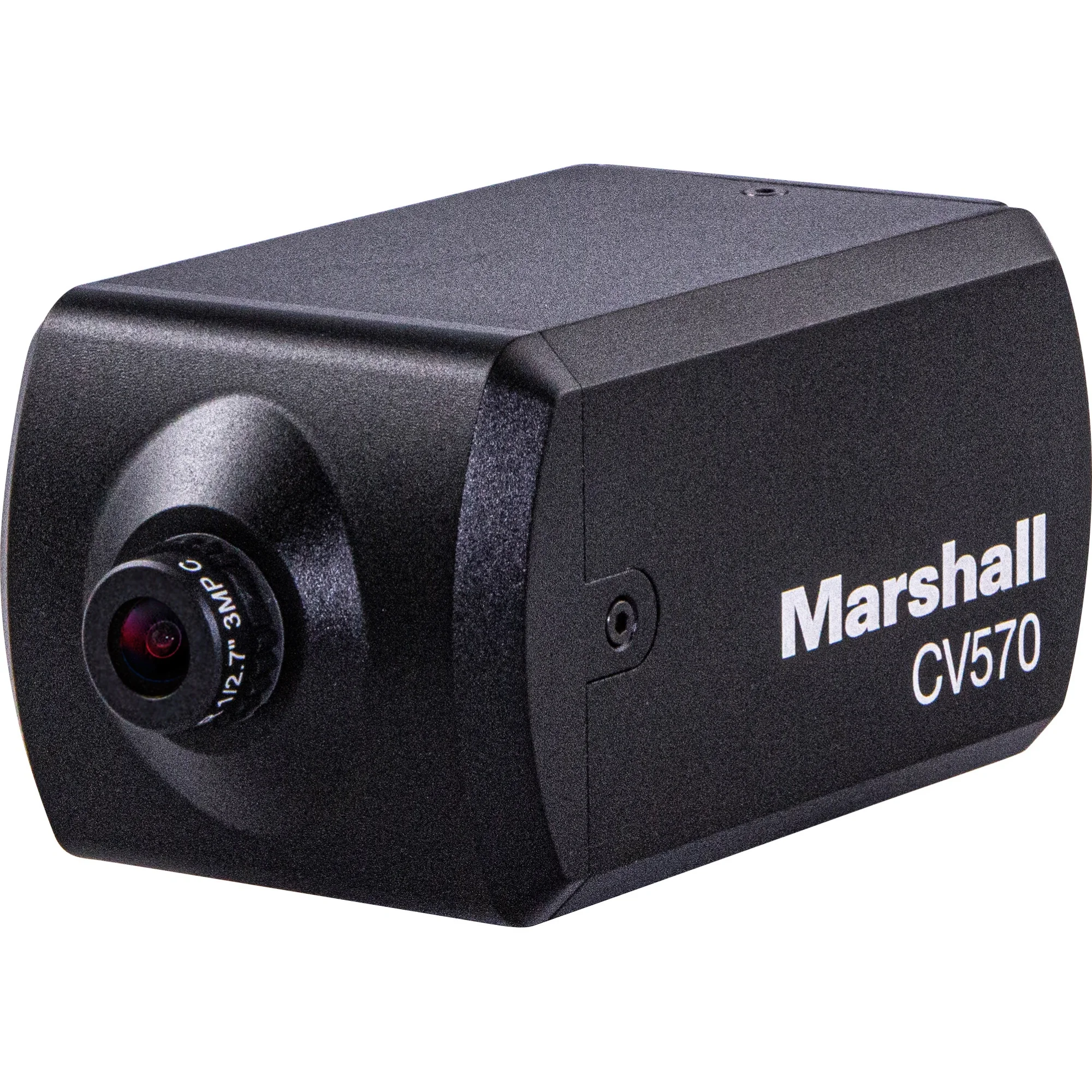

Marshall CV570 Mini Camera
CV570
Price: €899.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Some camera positions are impossible to staff: behind a basketball hoop, inside a race car, above a courtroom bench, on the lip of an esports stage. The Marshall CV570 Mini Camera exists for those spots. Its current-generation Sony 1/2.8-inch sensor with 2.13 million pixels uses enlarged photosites in a square array, and it keeps a clean picture when the house lights drop – a real difference during concerts or theatre recordings where re-lighting is not an option. The signal itself is broadcast material: 10-bit 4:2:2 colour up to Full HD 1080p60, with 1080i and 720p plus eight framerates from 23.98 to 60 fps covering every regional standard.
On the network side the camera speaks NDI|HX3, holding end-to-end latency near 100 milliseconds at modest bandwidth, so cutting between several POV angles in a live gallery feels immediate. Facilities running conventional IP infrastructure get SRT, RTSP and RTMP with H.264 or HEVC encoding, while an HDMI output runs simultaneously for local monitoring or a hardware switcher. A single Cat cable with PoE carries power, video, audio and control – one run up a lighting truss instead of four. Where PoE is unavailable, any 7–15 V source covers the modest 6 W draw.
Optics remain open. The M12 lens mount ships with a 4 mm prime covering just over 81° horizontally, sharp from near contact to infinity, and accepts Marshall primes from 2.3 mm ultra-wide to 16 mm tele alongside varifocal options. Shading and matching several units happens over VISCA over IP, the built-in web panel or NDI tools, so one operator aligns an entire fleet from the gallery. The housing is machined from aluminium alloy with shielded rear connectors; it survives touring.
For production companies standardising on IP, the CV570 drops into sportscasts, government assemblies, reality sets and corporate studios without extra converters. As a B2B supplier we assist with lens selection, PoE switch sizing and multi-camera configuration, so each unit arrives ready for its first show day.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Key features
- 2.13 Megapixel Sony sensor with larger pixels and square pixel array
- CV-4704.0-3MP - Interchangeable 4.0mm lens with 81° Horizontal AOV
- HDMI + network support for NDI HX3, RTSP, RTMP, SRT with H.264 and HEVC streaming codecs
- One-cable to camera option for power (PoE), video, audio, and remote setting control
- Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
- 1920x1080p, 1920x1080i & 1280x720p resolutions available
- Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
- Remote adjust & match via Visca over IP, NDI|Tools, and camera control webpage
- Power Draw: 6W with 7~15V flexibility or PoE over Cat cable
Applications:
The Miniature CV570 is suitable for use in AV over IP or HDMI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.
NDI HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec
Featuring the extremely efficient NDI HX3 codecs gives the miniature CV570 camera a unique advantage over other streaming cameras with 100ms end-to-end of latency using less bandwidth and maintaining the premium video quality of the source. Simultaneous HDMI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more.

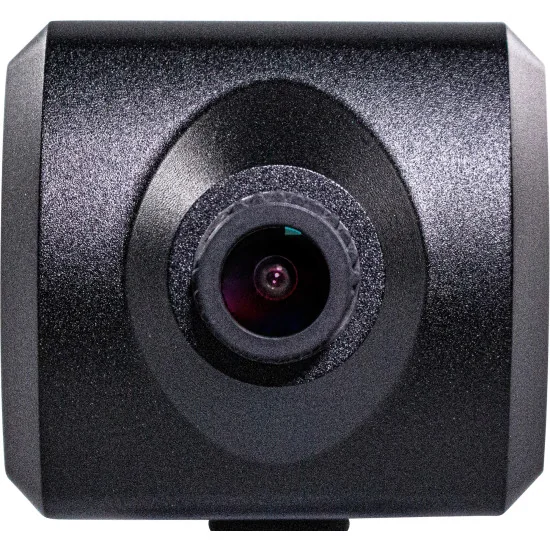

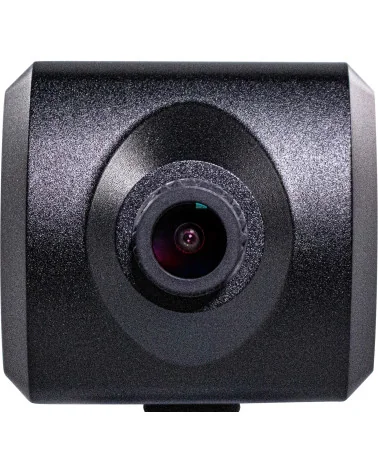

Interchangeable M12 Lenses

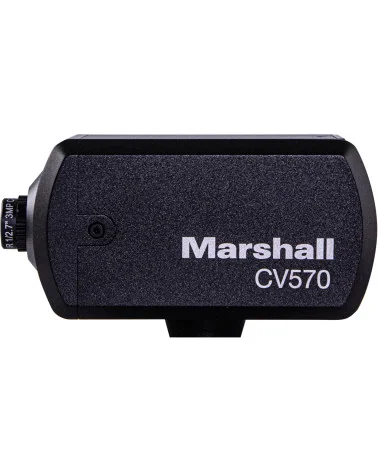

Marshall CV570 cameras come with a high-quality 4.0mm (81.1° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.
Durable, Flexible, Powerful

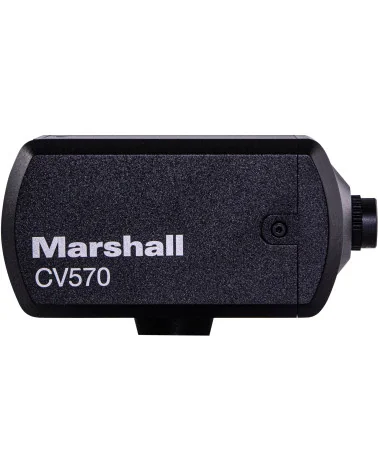

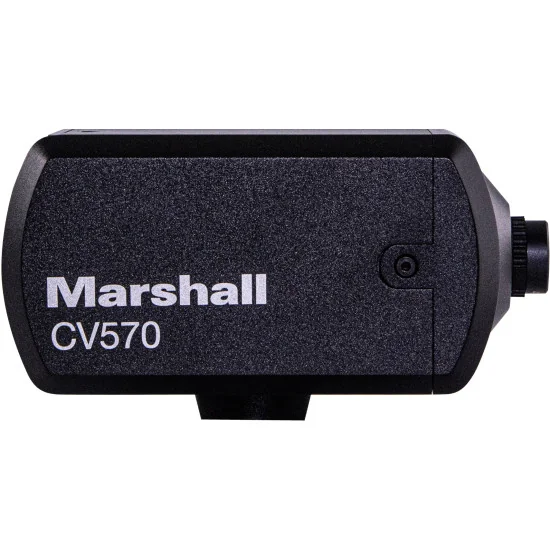

The miniature CV570 body is chiseled from a block of aluminum alloy making it extremely durable in a discreet miniature size with rear I/O protection. CV570 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability over network or Visca over IP commands. Suitable for a variety of AV over IP network, cloud production, remote contribution, and HDMI workflows.
Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
Specs.
| Sensor | |
|---|---|
| Sensor Type | 1/2.8" 2.2 Megapixel |
| Pixel Size | 2.9μm x 2.9μm |
| Resolution & Frame Rates | |
| HD 1920x1080p | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920x1080i | 50, 59.94 & 60 |
| HD 1280x720p | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 |

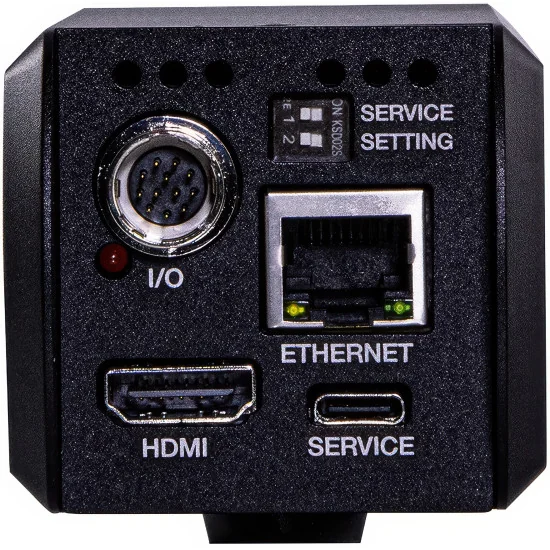

| Input & Output Connectors | |
| Video Output | HDMI & RJ45 (IP Ethernet, NDI|HX2 & NDI|HX3) |

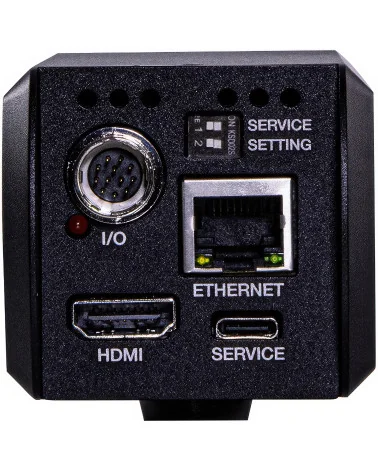

| I/O Breakout Cable | 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input |
| Firmware & Service | 1x USB-C |
| Lens | |
| Mount Type | M12 |
| Focal Length | 4.0mm |
| Max. Aperture | f/2.0 |
| Focus | Manual |
| Image Control Settings | |
| White Balance | Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain) |
| Control Protocol | |
| Control Protocol | RS-485 |
| General | |
| Power Input | 12V DC |
CV570
Data sheet
- Video Output
- HDMI
NDI
RJ-45 (IP) - Audio Input
- Mini Jack 3.5mm
- Audio Output
- HDMI Embedded
NDI Embedded
RJ-45 - Max Output Resolution
- 1080p 50/60 fps
- Network Connection
- Ethernet
- USB video capture
- No
- Sensor Size
- 1/2.8"
- Optical Zoom
- No
- Interchangeable lens
- Yes
- Lens mount
- M12
Specific References
- ean13
- 801813232486
- mpn
- CV570
