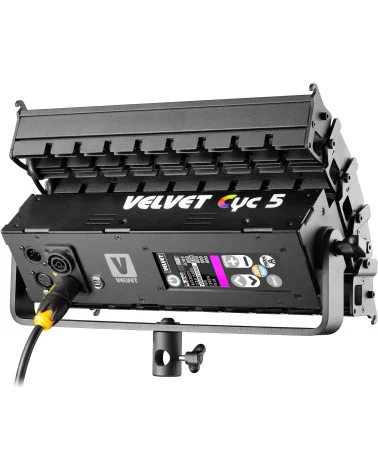

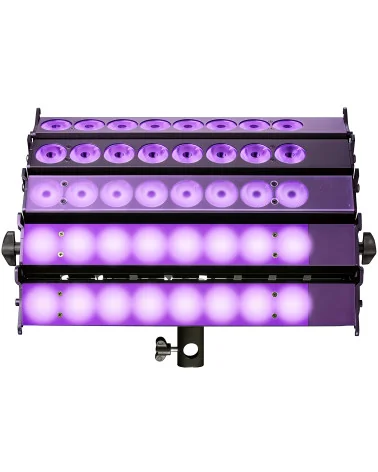

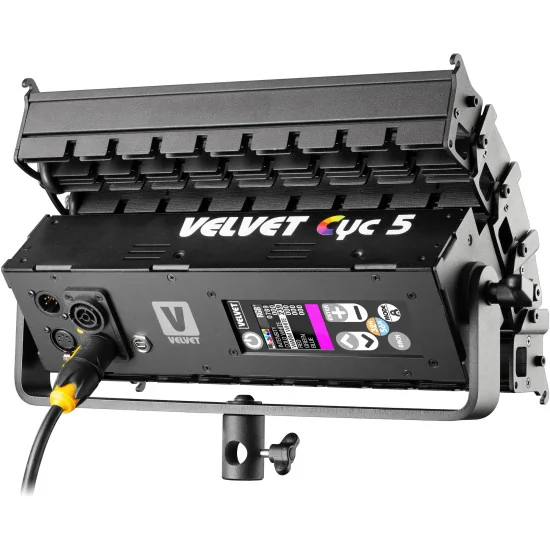

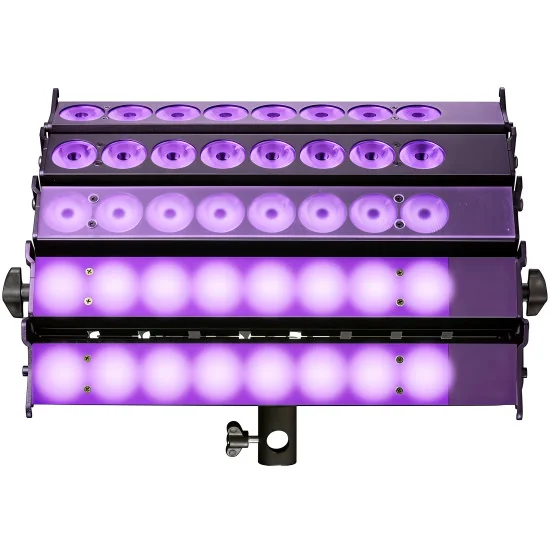

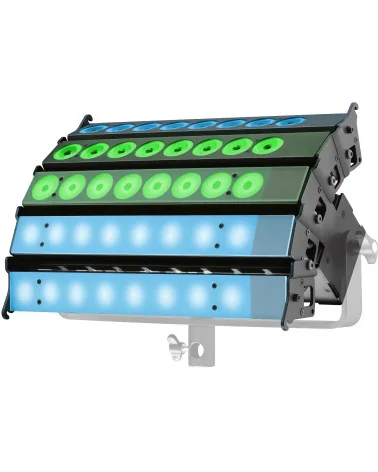

VELVET CYC 5 Color Studio RGBW LED Beam (No Yoke)
VY5CSTNY
Price: €2,490.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
VELVET CYC 5 Color Studio is an RGBW cyclorama and wash light for television stages, broadcast studios and virtual production sets that need uniform, camera-ready backgrounds. Five articulated LED battens produce an asymmetrical cyclorama beam that can cover backdrops up to 5 metres high, so one compact head can replace several conventional cyc fixtures while keeping illuminance consistent from floor to grid.
The fixture provides CCT control from 2500K to 10000K with full green/magenta correction, allowing colour temperature and tint to follow camera white balance or existing key systems. Advanced colour engines and modes – CCT, HSI, RGB, virtual gels and effects – let operators create white cycloramas, saturated chroma backgrounds, pastel gradients or horizontal colour splits by addressing each batten individually. A 16 kHz LED refresh keeps output flicker-free for high-speed capture up to 2000 fps, making VELVET CYC 5 suitable for drama, entertainment and live sports studio workflows.
For integration into studio infrastructure, VELVET CYC 5 Color Studio includes on-board AC electronics with 90–264 VAC input, PowerCon TRUE1 in/out for daisy-chaining, and both wired DMX-RDM via 5-pin XLR and wireless Wi-Fi ArtNet plus Bluetooth control. The local interface with shock-resistant keys and colour display enables fast stand-alone operation in green-screen rooms, streaming studios and OB vans. Typical colour rendering above CRI 95 with TLCI 94/93 ensures accurate reproduction of skin tones, chroma key backdrops and printed branding in multicamera broadcast pipelines.
The fanless aluminium housing uses passive cooling for silent operation, ideal for close-mic news sets and drama stages. IP21 protection and a wide operating temperature range support daily use in fixed grids, theatre cycloramas, rental inventories and touring backdrop rigs. With optional junior/baby yokes, ball-joint mounts, pole-operated yokes, barn doors and flight cases, VELVET CYC 5 Color Studio RGBW cyclorama provides a flexible solution for television, live streaming, XR stages and events where reliable, repeatable background washes are critical.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Color asymmetrical beam fixtures with multiple light engines
RGBW asymmetrical cyclorama fixture. Multiple light engines with individual control by battens to create gradient color effects. Mechanically tunable vertical beam. High color reproduction (96 CRI index). Lightweight, low-carbon aluminum body. Totally silent fanless operation. DMX-RDM, Wi-fi Artnet, Bluetooth. High efficiency with built-in PSU.
Included
1x Velvet CYC 5
1x PowerCon TRUE1 3.5m power cable
SPECIFICATIONS
NUMBER OF LIGHT ENGINES: 5
COLOUR TEMPERATURE: Continuously adjustable from 2500K to 10000K
LIGHT INTENSITY: Dimmable 0 to 100, smooth and flicker-free
GREEN/MAGENTA CORRECTION: Continuously adjustable (full Plusgreen to full Minusgreen)
COLOR CONTROL MODES: CCT, HSI, RGB, Gels and Effects
LOCAL CONTROL: Shock proof buttons and color display
WIRE CONTROL: DMX-RDM with XLR-5 In & Out connectors
WIRELESS CONTROL: Wi-Fi ArtNet
COLOR RENDERING INDEX: 95 CRI typical
TLCI: INDEX 94 at 3200K and 93 at 5600K
PHOTOMETRICS: 598 Lux / 55 fc over a background of up to 5 meters / 16.4 feet
BEAM ANGLE: Asymmetrical adjustable: Horizontal beam angle 45º / Vertical beam angle adjustable 45º to 110º
DIMENSIONS: 340x250x148mm / 13,4x10x,2,7”
WEIGHT: 5.5kg / 12 lbs. including yoke
POWER DRAW: 126W (0.57A at 220VAC — 1.14A at 110VAC)
POWER SUPPLY: 90-264 VAC 50/60Hz
LED RATED LIFE: More than 50.000 hours L70 / More than 35.000 hours L80
POWER CONNECTION: Neutrik PowerCon TRUE1 in and out connectors
OUTPUT FREQUENCY: 16KHz flicker-free up to 2000fps
OPERATION TEMPERATURE: From -20ºC to +40ºC
COOLING: No-noise, fan-free passive cooling
PROTECTION: IP21 dustproof, indoor or outdoor protected use
VELVET LED TECHNOLOGY: RGBW high-power selected BIN LED core unit + multi Fresnel system
RIGGING OPTIONS (optional): Aluminum yoke with 16 female combined with 28 pin, swivel ball head, pole operated yoke
QUICK MOUNTING ACCESSORIES (optional): Removable barn doors, flight case
CONSTRUCTION & FINISH: Black anodized extruded aluminum and black powder coated sheet aluminum
VY5CSTNY
Data sheet
- Light type
- LED Wash
- Rated Power (W)
- 126W
- Color Temperature
- RGBW
- CRI Rating
- 96
- TLCI Rating
- 93
- CCT
- 2500K-10000K
- Control Type
- 2.4 GHz
Bluetooth
DMX/RDM
On-board - Illumination lux (from 1m 5600K without reflector)
- 27000 lux
- Pack
- Single light
Specific References
- mpn
- VY5CSTNY
