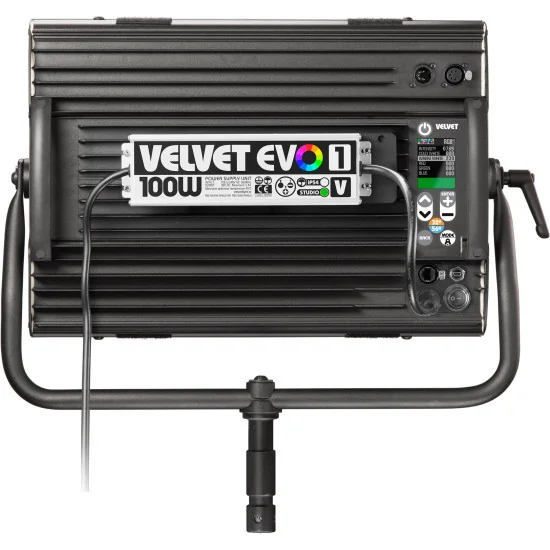

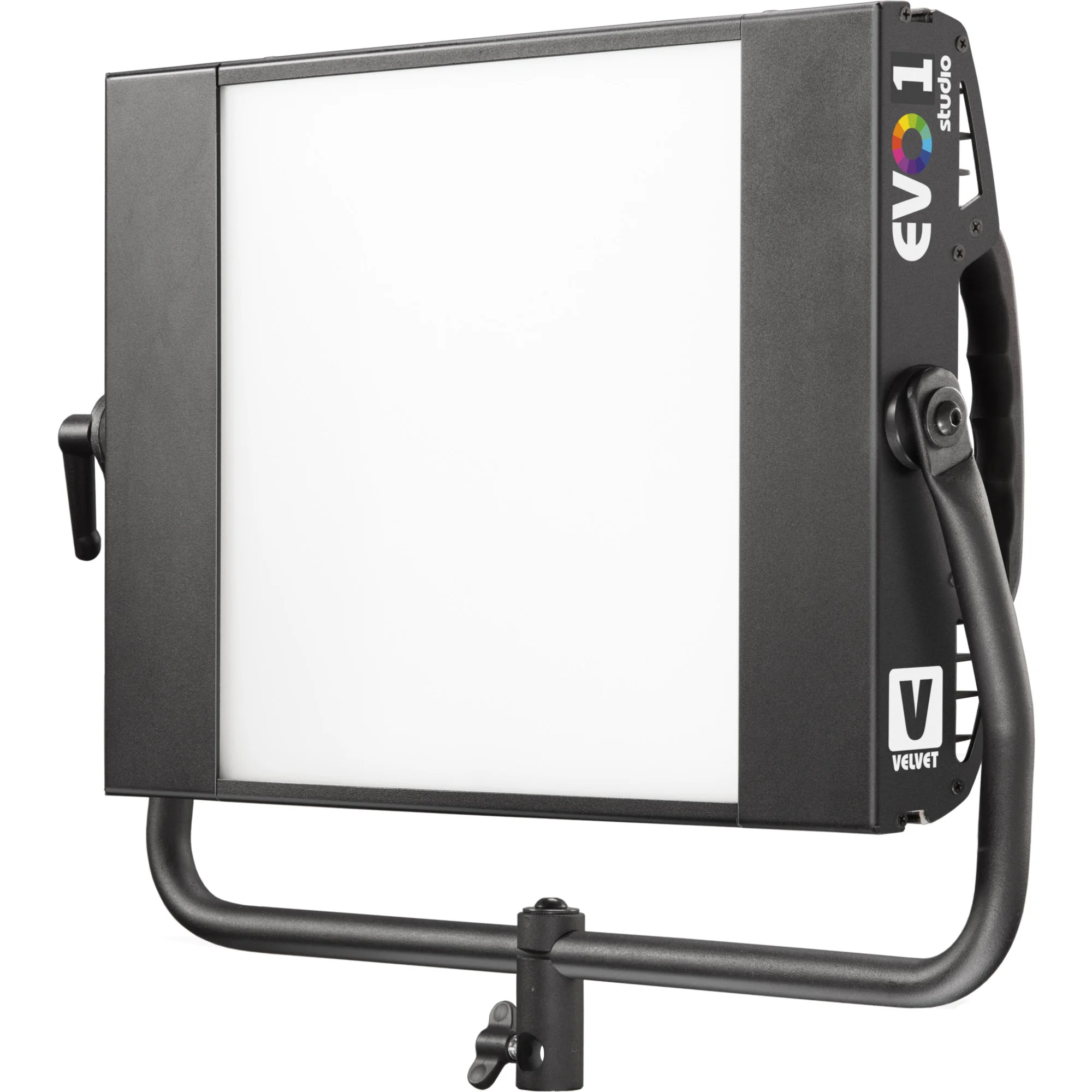

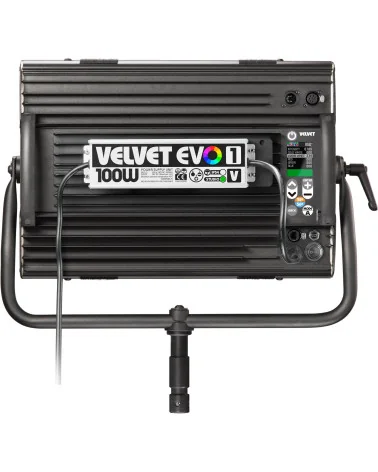

The VELVET EVO 1 Studio V2 is a professional RGBWW LED soft panel for broadcast, streaming and studio environments where precise colour control and silent running are essential. Its 5-LED engine (R+G+B+W+CW) spans a continuous 2500K–10000K CCT range with adjustable green-magenta shift, TLCI up to 97 and high SSI, giving stable skin tones and accurate brand colours on multi-camera sets. A wide 115° beam and optimized diffusion create a very even field suitable for key, fill and background washes without visible multi-shadow artifacts. The panel maintains consistent colour and output matching across multiple units in larger studio grids.
Colour management includes CCT, HSI, RGB, gel and effects modes. Full-spectrum output supports saturated primaries, subtle pastels and practical source emulations, while any colour can be combined with a calibrated white base for consistent contrast and exposure. Output remains flicker-free up to 2000 fps, making the VELVET EVO 1 Studio V2 RGBWW LED Panel suitable for high-speed work. High illuminance at typical studio distances and excellent lux-per-watt efficiency reduce fixture counts in lighting grids, news sets and compact control rooms.
The AC-only IP51 dust-protected housing uses passive cooling for completely silent operation, ideal for close-miked talk shows, drama stages and webinar studios. Low-carbon aluminium construction, a 112 W power draw and LED lifetime beyond 50,000 hours support intensive daily use with minimal maintenance. Integration is handled through an on-board interface with 8 shock-resistant keys and a colour display plus full DMX-RDM with 5-pin in/out, Art-Net via RJ-45 and wireless Wi-Fi Art-Net with VELVET Goya App. Supplied as a complete pack with fixture, yoke and PowerCon TRUE1 Schuko cable, it forms a ready-to-rig solution for television studios, streaming stages, corporate video hubs and virtual production volumes that require dependable, colour-accurate RGBWW studio lighting.
The VELVET EVO 1 Studio V2 is a professional RGBWW LED soft panel for broadcast, streaming and studio environments where precise colour control and silent running are essential. Its 5-LED engine (R+G+B+W+CW) spans a continuous 2500K–10000K CCT range with adjustable green-magenta shift, TLCI up to 97 and high SSI, giving stable skin tones and accurate brand colours on multi-camera sets. A wide 115° beam and optimized diffusion create a very even field suitable for key, fill and background washes without visible multi-shadow artifacts. The panel maintains consistent colour and output matching across multiple units in larger studio grids.
Colour management includes CCT, HSI, RGB, gel and effects modes. Full-spectrum output supports saturated primaries, subtle pastels and practical source emulations, while any colour can be combined with a calibrated white base for consistent contrast and exposure. Output remains flicker-free up to 2000 fps, making the VELVET EVO 1 Studio V2 RGBWW LED Panel suitable for high-speed work. High illuminance at typical studio distances and excellent lux-per-watt efficiency reduce fixture counts in lighting grids, news sets and compact control rooms.
The AC-only IP51 dust-protected housing uses passive cooling for completely silent operation, ideal for close-miked talk shows, drama stages and webinar studios. Low-carbon aluminium construction, a 112 W power draw and LED lifetime beyond 50,000 hours support intensive daily use with minimal maintenance. Integration is handled through an on-board interface with 8 shock-resistant keys and a colour display plus full DMX-RDM with 5-pin in/out, Art-Net via RJ-45 and wireless Wi-Fi Art-Net with VELVET Goya App. Supplied as a complete pack with fixture, yoke and PowerCon TRUE1 Schuko cable, it forms a ready-to-rig solution for television studios, streaming stages, corporate video hubs and virtual production volumes that require dependable, colour-accurate RGBWW studio lighting.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
1x1 foot dustproof AC powered soft light LED panels R+G+B+W+CW with wireless control
Natural soft light color 5LED panel. Dustproof IP51 rated. High color reproduction. High SSI, TLCI & CRI (96). Perfect skin tones and real colors. Robust and lightweight lowcarbon aluminum body. Totally silent fanless operation. High efficiency: best lux/watt ratio on the market. RJ-45 ethernet, Wi-fi Artnet, Bluetooth. AC and DMX-RDM In-Out built-in connectors.
Included
1x VE1CSTNY VELVET Evo 1 Colour Studio IP51
1x VE1-YT mounting bracket
1x EV-2816TK 28/16 mm combination spigot
1x ACC3.5M-TRUE1 Schuko cable, 3.5 metres
SPECIFICATIONS
COLOUR TEMPERATURE: Continuously adjustable from 2500K to 10000K
GREEN-MAGENTA: Continuously adjustable from full minusgreen to full plusgreen
COLOR SPECTRUM: Full color spectrum R+G+B+W+CW with hue, saturation, and base colortemperature control
CONTROL COLOR MODES: CCT, HSI, RGB, Gels and Effects base Kelvin white light can be set combined with any color
LIGHT INTENSITY: Dimmable 0 to 100, smooth and flicker-free
LOCAL CONTROL: With 8x shock resistant buttons and color display
WIRE CONTROL: DMX-RDM with XLR-5 In & through connectors, Ethernet Art-Net with RJ-45 connector
WIRELESS CONTROL: Wi-Fi Art-Net +VELVET Goya App
TLCI INDEX: 96 at 3200K and 97 at 5600K
PHOTOMETRICS: 4591 lux / 423 fc at 1m / 3 feet, 656 lux / 61 fc at 3m / 10 feet
BEAM ANGLE: 115º
DIMENSIONS: 453 x 318 x 128mm / 17.8 x 12.5 x 5 inches
WEIGHT: 5.6 kg / 12.3 lbs (panel), 6.1 kg / 14.4 lbs (panel + yoke)
POWER DRAW: 112W (0.47A at 220VAC — 1.0A at 110VAC)
POWER SUPPLY: 90-264V AC 50/60Hz
LED RATED LIFE: More than 50.000 hours
POWER CONNECTION: Neutrik PowerCon TRUE1 TOP In connector
OUTPUT FREQUENCY: 2000 fps
OPERATION TEMPERATURE: From -20ºC to +40ºC
COOLING: Silent and fan-free pasive cooling
PROTECTION IP51: dustproof, indoor or outdoor use
VELVET LED TECHNOLOGY: Selected BIN LED core unit + optic diffuser + CPU software control
RIGGING OPTIONS (optional): Aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, multiple 1/4”- 20 rigging points, pole operated yoke.
QUICK MOUNTING ACCESSORIES (optional) : Foldable SnapBag, foldable Snapgrid, removable barn doors, cordura case, hard case
CONSTRUCTION & FINISH: Fixture and yoke made of black powdercoated extruded and sheet aluminum
