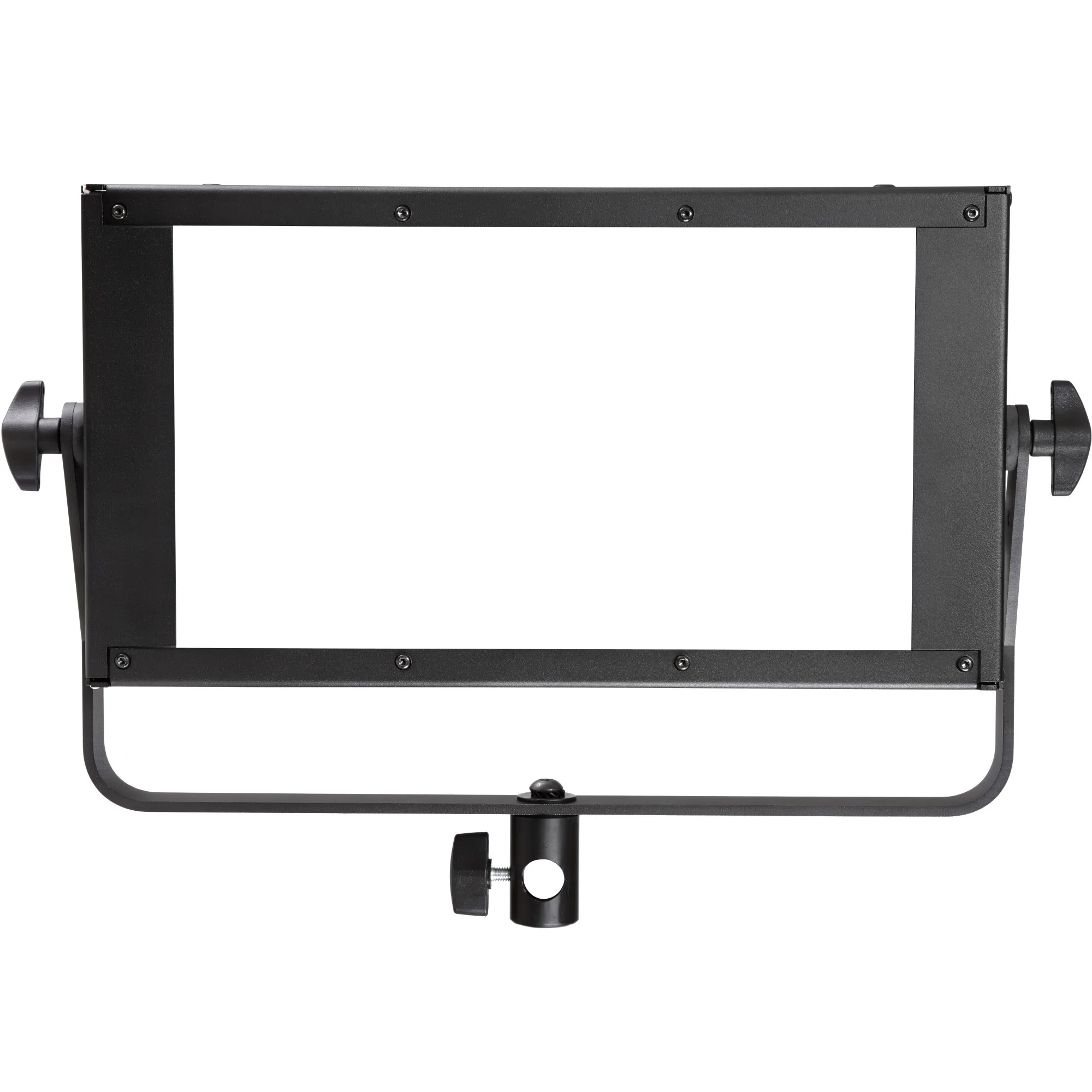

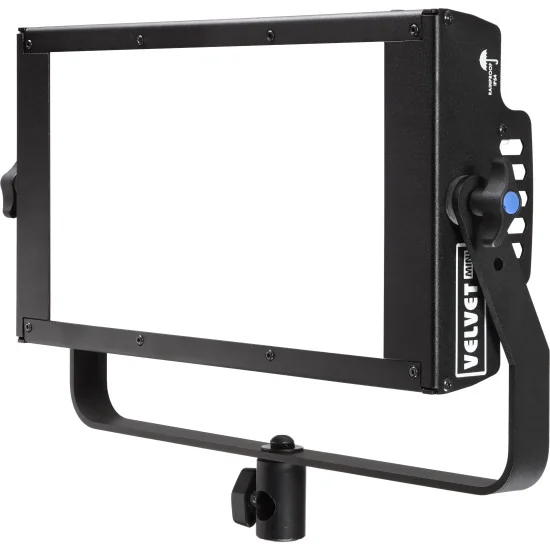

VELVET Mini 1 IP54 DMX Bi-Color LED Panel V-Mount

VELVET Mini 1 IP54 DMX Bi-Color LED Panel V-Mount

Name: VELVET Mini 1 IP54 DMX Bi-Color LED Panel V-Mount
Brand: VELVET Light
SKU: VM1IP54VLDMX
Price: 999.00 EUR
Availability: InStock

MPN: VM1IP54VLDMX

Price: €999.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

VELVET Mini 1 IP54 DMX is a compact bi-color LED panel for broadcast studios, OB vans and streaming sets that need uniform soft output. The 50W engine drives a 100° beam delivering 1200 lux at 1 m and 170 lux at 3 m, so a single panel can key a presenter or small group in low-ceiling spaces. Selected-bin LEDs with an optimized diffuser form a smooth field without visible diodes or double shadows, suitable for tight framing and reflective sets.

The unit offers CCT control from 2700K to 6500K in 100K steps, with a TLCI/CRI up to 98 for precise colour reproduction on cinema and broadcast cameras. On-board dimming from 0–100 % stays flicker-free up to 2000 fps, supporting high-speed capture on commercials, sports replay or tabletop macro work. Local operation uses a shock-resistant keypad and clear display, plus a dedicated 3200K/5600K key for quick switching between tungsten and daylight based looks.

For system integration the VELVET Mini 1 IP54 DMX provides 5-pin DMX-RDM with XLR-5 input, enabling remote intensity and colour control from lighting consoles, media servers or architectural controllers. DMX-RDM feedback simplifies addressing and status checks in permanent rigs or rental fleets. Optional SnapBag and SnapGrid accessories, barn doors and cases give precise beam shaping for key, fill, back or background use on drama sets, virtual studios and corporate webcasts.

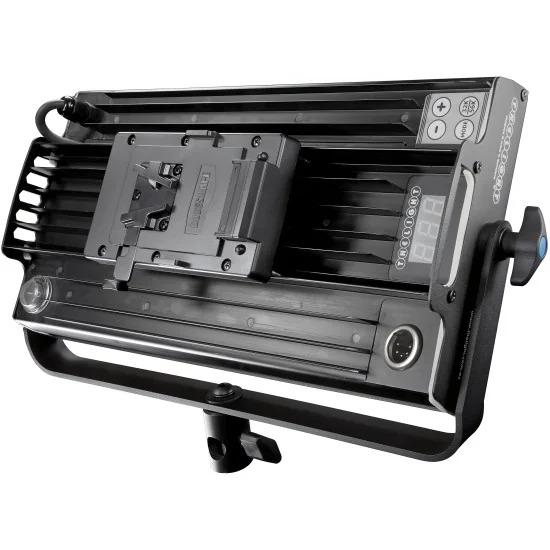

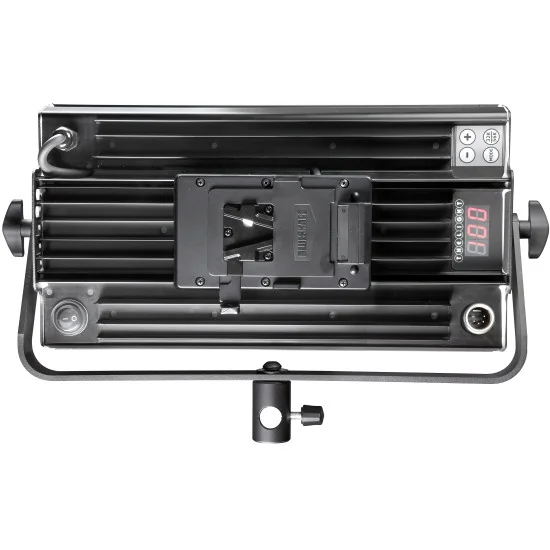

A low-carbon aluminium body with passive cooling keeps operation silent, making the panel appropriate for audio-critical spaces such as control rooms, podcasts or conference studios. The IP54 weatherproof rating protects against rain and dust for exterior interviews or live events, while power input accepts 12–35 V DC through the integrated V-Mount battery plate or 90–264 V AC via a smart adapter. One VELVET Mini 1 IP54 DMX V-Mount moves easily from stand to grid or rigged on a truss, keeping colour temperature and softness consistent across the production.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

1x1/2 foot bicolor weatherproof compact panoramic soft light LED panel
Natural soft light panel for low ceilings. Weatherproof IP54. High TLCI & CRI (96). Precise color temperature adjustment from 2700K to 6500K. Perfect skin tones and real colors. Lightweight, low-carbon aluminum body. Totally silent fanless operation. High efficiency means 100% output even with batteries. DMX-RDM control. Optional DMX In/Out splitter.

SPECIFICATIONS
COLOUR TEMPERATURE: Adjustable from 2700K a 6500K (100K increments)
LIGHT INTENSITY: Dimmable 0 to 100 (smooth and flicker-free)
LOCAL CONTROL: Shock proof buttons and display
WIRE CONTROL: DMX-RDM with XLR-5 In connector (In & Out with DMX splitter)
TLCI INDEX: 97 at 3200K and 98 at 5600K
PHOTOMETRICS: 1200 lux / 111 fc at 1m / 3 feet , 170 lux / 16 fc at 3m / 10 feet
BEAM ANGLE: 100º
DIMENSIONS: 345 x 190 x 90 mm / 13,6”x7,5”x3,5” (panel)
WEIGHT: 1,9 kgs / 4,2 lbs (panel)
POWER DRAW: 50W (0.45A at 110 VAC — 0.22A at 220 VAC)
POWER SUPPLY: Vlock or Gold battery mount, 90-264 VAC 50/60Hz through Smart AC adapter
LED RATED LIFE: More than 50.000 hours L70 , More than 35.000 hours L80
OUTPUT FREQUENCY: 2000 fps
OPERATION TEMPERATURE: From -20ºC to +40ºC
COOLING: No-noise, fan-free passive cooling
PROTECTION: IP54 rainproof, indoor or outdoor use
VELVET LED TECHNOLOGY: Selected BIN LED + optic diffuser + CPU software control

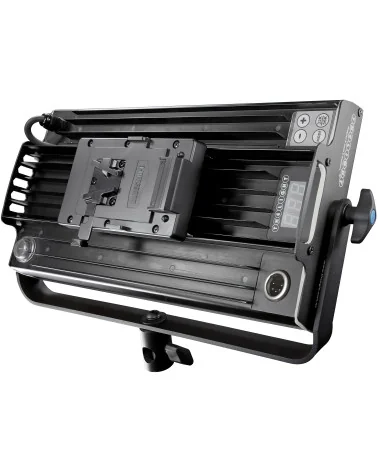

RIGGING OPTIONS: Aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, four sliding threads ¼” for riggings located on panel sides, double baby pin for diagonal or vertical position using the standard yoke
QUICK MOUNTING ACCESSORIES: Smart AC power supply, VELVET DMX remote control, foldable Snapgrid, foldable SnapBag softbox, removable barn doors, cordura case, hard case
CONSTRUCTION & FINISH: Black anodized extruded aluminum and black powder coated sheet aluminum

Please note that no power supply unit is included in the scope of delivery!
The device is operated with optionally available Gold-Mount or V-Mount batteries.
To operate the device from a 230V AC socket, you will need an optionally available power supply unit.
