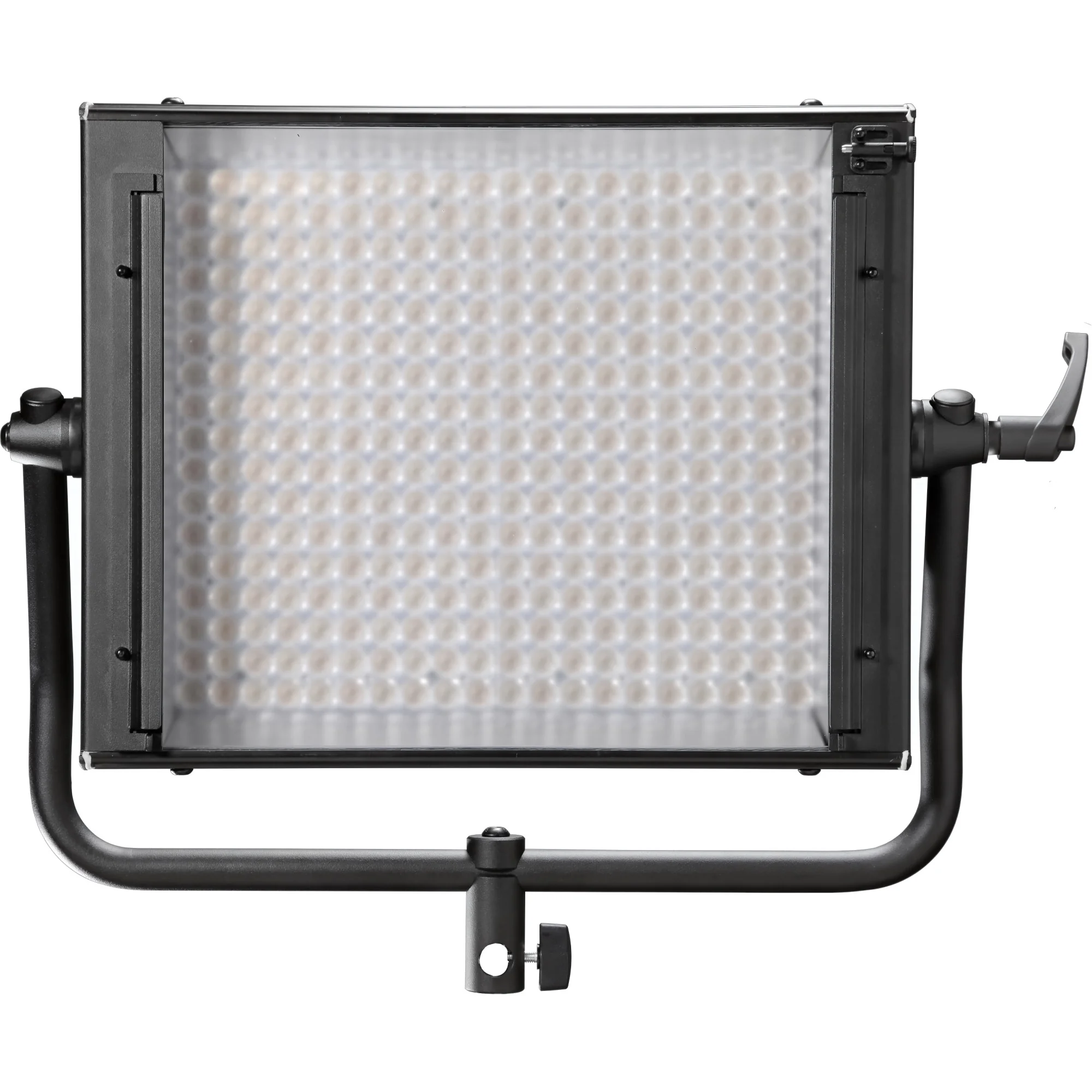

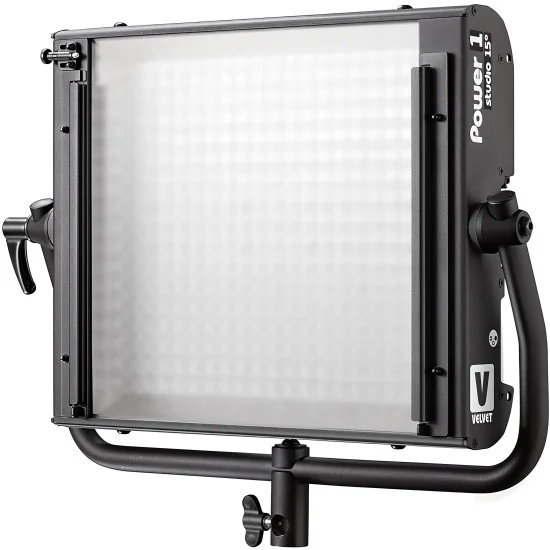

The VELVET Power 1 Studio Spot 15° Bi-Color LED Panel is a 100W studio pack with a dustproof IP51 1×1 LED head, yoke, 28/16 mm combination spigot, AC power supply and Schuko cable. The narrow 15° beam delivers around 6000 lux at 3 m and 1700 lux at 6 m, giving concentrated output for long-throw key, backlight and effect lighting in broadcast and live streaming studios. The beam holds intensity after diffusion, so the unit maintains level with frames, softboxes or bounce reflectors in grids several metres above the talent.
The bi-color engine spans 2700K–6500K in 100 K steps with TLCI 98 at 3200K and 96 at 5600K, supporting consistent skin tones and neutral rendering of coloured sets for studio cameras. 0–100% dimming is smooth and flicker-free, and the high-frequency driver keeps light output stable for high-speed capture up to 2000 fps. A 3200K/5600K quick key speeds switching between tungsten and daylight balances, while optional VELVET diffusion filters open the 15° beam to wider angles up to roughly 105° when a broader wrap or background wash is preferred on magazine sets, e-sports stages or virtual production volumes.

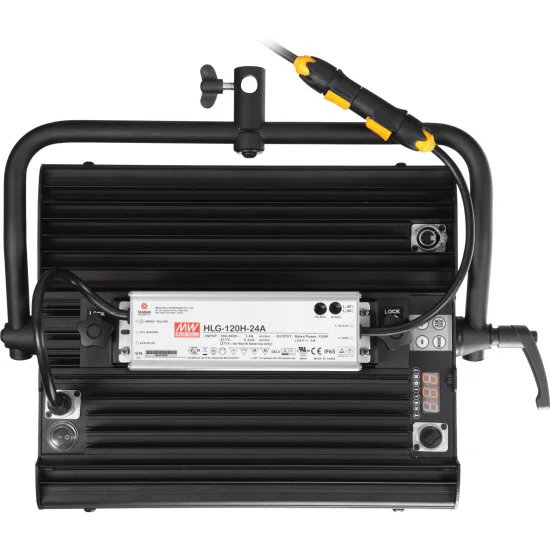

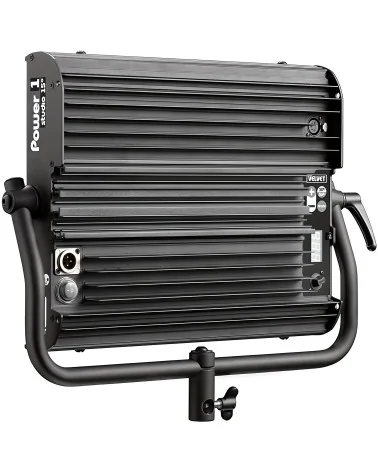

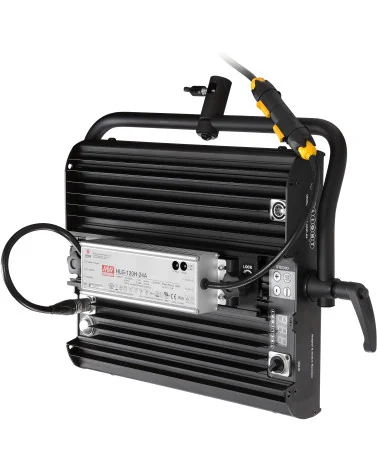

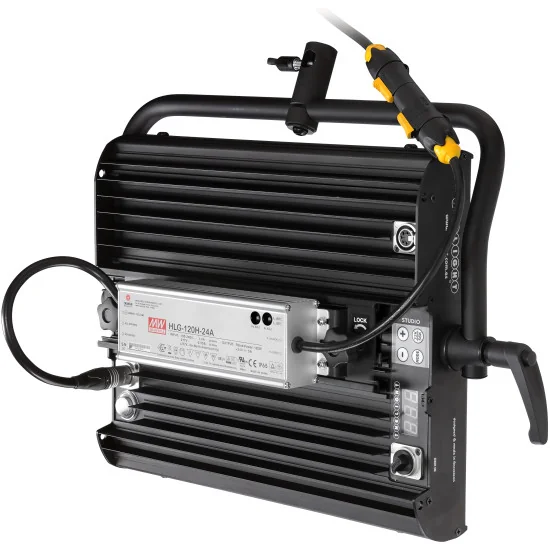

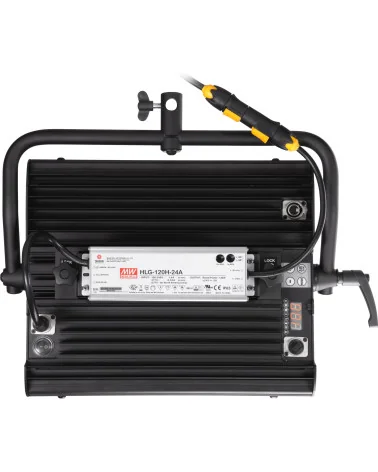

The VELVET Power 1 Studio Spot 15° runs in a rigid aluminium housing with passive cooling, so there are no fans and the fixture remains fully silent on dialogue sets and music stages. IP51 sealing limits dust ingress in permanent installations, and the integrated 90–264 V AC supply feeds the head via a Neutrik XLR-3 DC input, removing external power bricks in the grid or OB racks. The LED array is specified for more than 50,000 hours of operation between -20°C and +40°C, supporting intensive daily schedules in television facilities, rental fleets and education studios.
Control is available locally through shock-resistant buttons and a numeric display, or via DMX-RDM over 5-pin XLR. Address and intensity follow standard console workflows and RDM support permits remote configuration from the control room. Shared colour science across the VELVET Power family allows the VELVET Power 1 Studio Spot 15° Bi-Color LED Panel to integrate with Flood 30° and IP54 variants in coherent lighting systems for television, live streaming, corporate studios and hybrid events.
VELVET Power 1 Studio Spot 15° Bi-Color LED Panel
VP1SPST-PACK
Price: €2,190.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
The VELVET Power 1 Studio Spot 15° Bi-Color LED Panel is a 100W studio pack with a dustproof IP51 1×1 LED head, yoke, 28/16 mm combination spigot, AC power supply and Schuko cable. The narrow 15° beam delivers around 6000 lux at 3 m and 1700 lux at 6 m, giving concentrated output for long-throw key, backlight and effect lighting in broadcast and live streaming studios. The beam holds intensity after diffusion, so the unit maintains level with frames, softboxes or bounce reflectors in grids several metres above the talent.
The bi-color engine spans 2700K–6500K in 100 K steps with TLCI 98 at 3200K and 96 at 5600K, supporting consistent skin tones and neutral rendering of coloured sets for studio cameras. 0–100% dimming is smooth and flicker-free, and the high-frequency driver keeps light output stable for high-speed capture up to 2000 fps. A 3200K/5600K quick key speeds switching between tungsten and daylight balances, while optional VELVET diffusion filters open the 15° beam to wider angles up to roughly 105° when a broader wrap or background wash is preferred on magazine sets, e-sports stages or virtual production volumes.
The VELVET Power 1 Studio Spot 15° runs in a rigid aluminium housing with passive cooling, so there are no fans and the fixture remains fully silent on dialogue sets and music stages. IP51 sealing limits dust ingress in permanent installations, and the integrated 90–264 V AC supply feeds the head via a Neutrik XLR-3 DC input, removing external power bricks in the grid or OB racks. The LED array is specified for more than 50,000 hours of operation between -20°C and +40°C, supporting intensive daily schedules in television facilities, rental fleets and education studios.
Control is available locally through shock-resistant buttons and a numeric display, or via DMX-RDM over 5-pin XLR. Address and intensity follow standard console workflows and RDM support permits remote configuration from the control room. Shared colour science across the VELVET Power family allows the VELVET Power 1 Studio Spot 15° Bi-Color LED Panel to integrate with Flood 30° and IP54 variants in coherent lighting systems for television, live streaming, corporate studios and hybrid events.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
1x1 foot bicolor dustproof, IP51 AC powered concentrated long distance beam light LED panel
Hard and soft light in the same fixture. Dustproof IP51 bicolor rated panel. Long throw concentrated beam of 15º or 30º. High TLCI & CRI (97). Precise color temperature adjustment from 2700K to 6500K. Totally silent fanless operation. robust and lightweight lowcarbon aluminum body. High efficiency: low power consumption. DMX-RDM control. AC & DMX In & Out built-in connectors.
Included
1x VP1SPSTNY VELVET Power 1 Studio
1x VP1-YT mounting bracket
1x THE-2816CTUBEK 28 mm/16 mm combination spigot

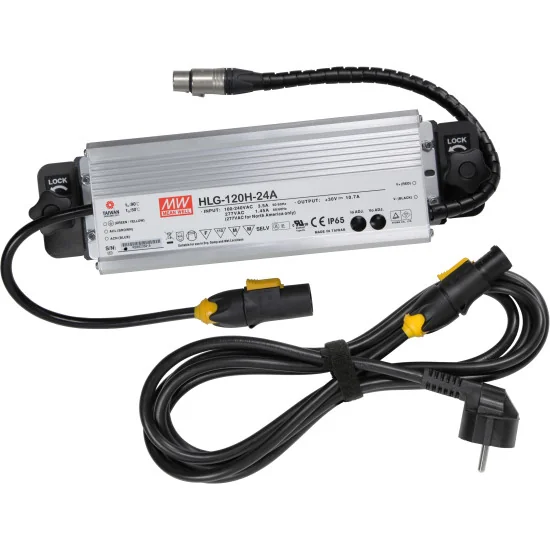

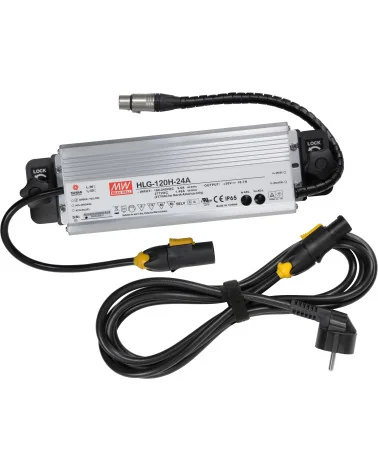

1x VL1ST-PSUNC power supply
1x ACC3.5M-TRUE1 Schuko cable, 3.50 metres
SPECIFICATIONS
COLOUR TEMPERATURE: Adjustable from 2700K a 6500K (100K increments)
LIGHT INTENSITY: Dimmable 0 to 100 (smooth and flicker-free)

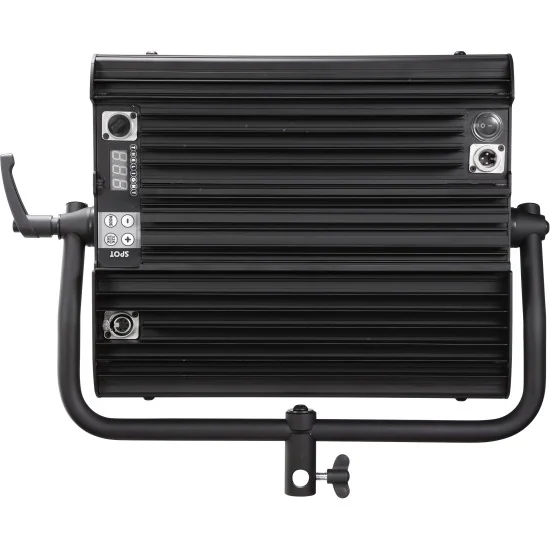

LOCAL CONTROL: Shock proof buttons and display
WIRE CONTROL: DMX-RDM with XLR-5 In connector
TLCI INDEX: 98 at 3200K and 96 at 5600K
PHOTOMETRICS: 6000 lux / 557 fc at 3m / 9.8 feet, 1700 lux / 165 fc at 6m/20 feet
BEAM ANGLE: 15º (30º-105º with filters)
DIMENSIONS: 380x308x68mm / 15”x12”x2.7” (panel), 495x395x68mm / 19.5 ”x15.5”x2.7” (panel+yoke)
WEIGHT: 4.2 kg / 9.3 lbs (panel), 4.7 kg / 10.4 lbs (panel + yoke)
POWER DRAW: 100 W / 0.91 Amps at 110 VAC
POWER SUPPLY: 90-264V AC 50/60Hz through XLR3 connector
LED RATED LIFE: More than 50.000 hours
POWER CONNECTION: Neutrik XLR-3 DC In connector
OUTPUT FREQUENCY: 2000 fps
OPERATION TEMPERATURE: From -20ºC to +40ºC
COOLING: No-noise, fan-free passive cooling
PROTECTION: IP51 dustproof, indoor or outdoor use
VELVET LED TECHNOLOGY: Selected BIN High-power LED + VELVET custom optics + CPU software control

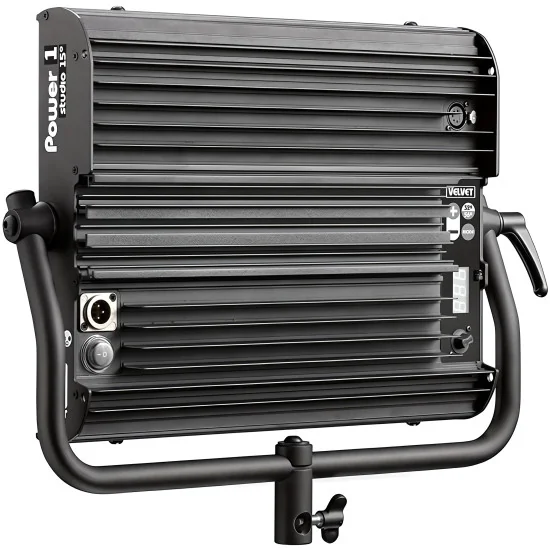

CONSTRUCTION & FINISH: Made of black powdercoated extruded and sheet aluminum
VP1SPST-PACK
Data sheet
- Light type
- LED Panel
- Rated Power (W)
- 100W
- Color Temperature
- Bi-Color
- CRI Rating
- 97
- TLCI Rating
- 97
- CCT
- 2700K-6500K
- Control Type
- DMX/RDM
On-board - Illumination lux (from 1m 5600K without reflector)
- 37000 lux
- Pack
- Single light
Specific References
- mpn
- VP1SPST-PACK
